供應DAYTON電機, 馬達(1LPV1, 1LPV1A, 1L552)
|
|
| 型號︰ | 1LPV1, 1LPV1A |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
|
Technical Specs:
- Item: AC Gearmotor
- Type: Parallel Shaft
- Voltage Rating: 115/230
- Phase: 1
- Hz: 60/50
- Shaft Orientation: Parallel
- Reversible Shaft Output: No
- Shaft: Single Output
- Nameplate RPM: 96
- RPM @ 50 Hz: 89
- Full Load Torque (In.-Lbs.): 20.0
- Overhung Load (Lb.): 50
- Input HP: 1/20
- Gear Ratio 18:1
- Full Load Amps: 0.62/0.33
- Full Load Amps @ 115/230V: 0.62/0.33
- Insulation Class: B
- Enclosure: TENV
- Thermal Protection: None
- Ambient (C): 40
- Rotation: Reversible
- Mounting: All Position
- Motor Type: Permanent Split Capacitor
- Capacitor Required: Included
- Length Less Shaft (In.): 5-3/4
- Shaft Dimensions (In.): 5/16 x 3/4
- Keyway (In.): Flat
- Bearings: Porous Bronze Sleeve on Case, Ball on Motor
- Lubrication: Grease Filled
- Lubrication Quantity (Qt.): 3.2 oz.
- Finish: Unpainted
- Housing: Zinc Die Cast
- Gear Case: Zinc Die Cast
- Gears: Acetyl/Steel
- Seals: O-Ring Type on Output Shaft
- Agency Compliance: cRUus
- RPM Range: 76 to 100
|
|
|
|
| 產品規格︰ | 型號: 1LPV1, 1LPV1A (替代舊型號1L552) |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

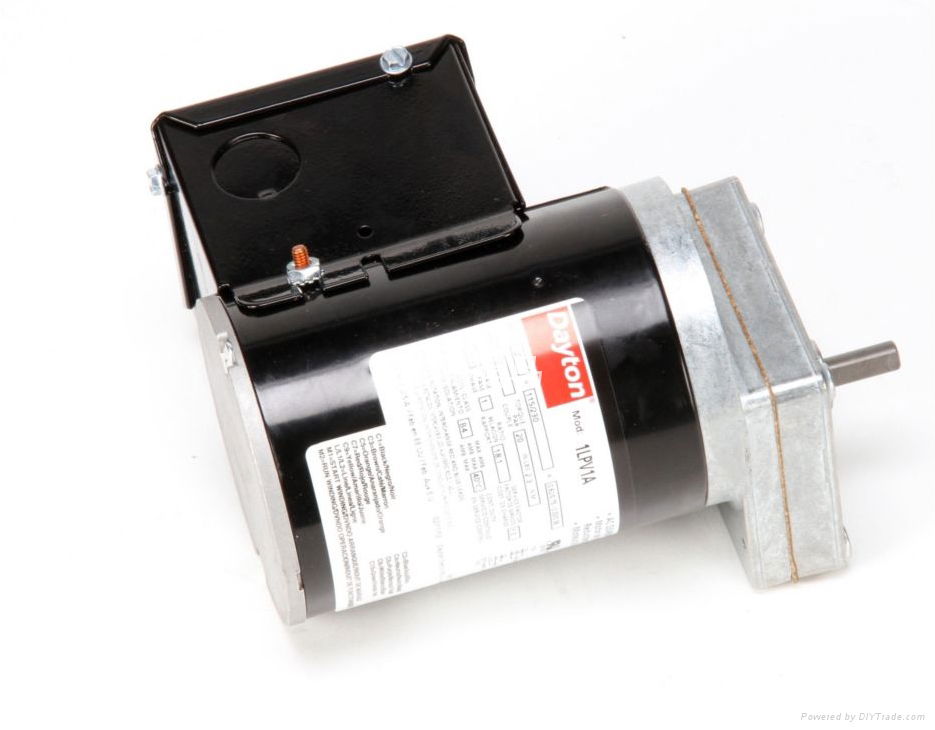

DAYTON電機, 馬達, 型號: 1LPV1A
DAYTON電機, 馬達, 型號: 1LPV1A
微店, 掃一掃.
DAYTON電機, 馬達, 型號: 1LPV1A
DAYTON電機, 馬達, 型號: 1LPV1A
DAYTON電機, 馬達, 型號: 1LPV1A
DAYTON電機, 馬達, 型號: 1LPV1A

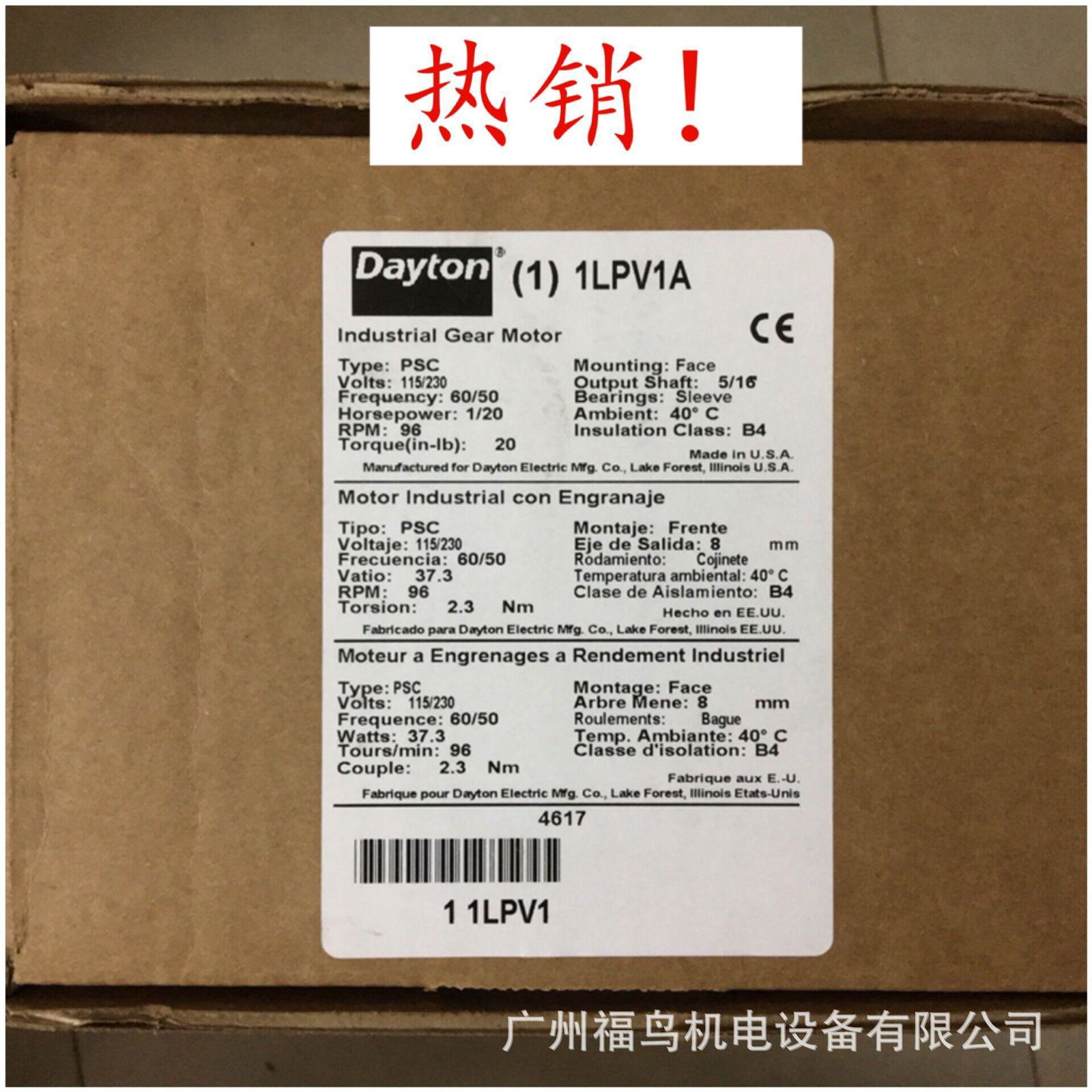

DAYTON電機, 馬達, 型號: 1LPV1
DAYTON電機, 馬達, 型號: 1LPV1
DAYTON電機, 馬達, 型號: 1LPV1
|
|
|
|
|
|
