供應DAYTON電機, 馬達(1LPV6, 1LPV6A, 1L478)
|
|
| 型號︰ | 1LPV6, 1LPV6A |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
|
|
|
|
|
|
|
|
Technical Specs:
- Item: DC Gearmotor
- Type: Parallel Shaft
- Voltage Rating: 12VDC
- Phase: DC
- Shaft Orientation: Parallel
- Reversible Shaft Output: No
- Shaft: Single Output
- Nameplate RPM: 17
- Full Load Torque (In.-Lbs.): 50.0
- Overhung Load (Lb.): 50
- Input HP: 1/30
- Gear Ratio: 141:1
- Full Load Amps: 2.10
- Insulation Class: F
- Enclosure: TENV
- Thermal Protection: None
- Ambient (C): 40
- Rotation: Reversible
- Mounting: All Position
- Motor Type: Permanent Magnet
- Length Less Shaft (In.): 5-5/8
- Shaft Dimensions (In.): 5/16 x 3/4
- Keyway (In.): Flat
- Bearings: Porous Bronze Sleeve on Case, Ball on Motor
- Lubrication: Grease Filled
- Lubrication Quantity (Qt.): 3.2 oz.
- Brushes: Externally Replaceable
- Finish: Unpainted
- Housing: Zinc Die Cast
- Gear Case: Zinc Die Cast
- Gears: Acetyl/Steel
- Seals: O-Ring Type on Output Shaft
- Agency CompliancecRUus
- Replacement Brushes: 6YHY4
- RPM Range: 16 to 30
|
|
|
|
| 產品規格︰ | 型號: 1LPV6, 1LPV6A (替代舊型號1L478) |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

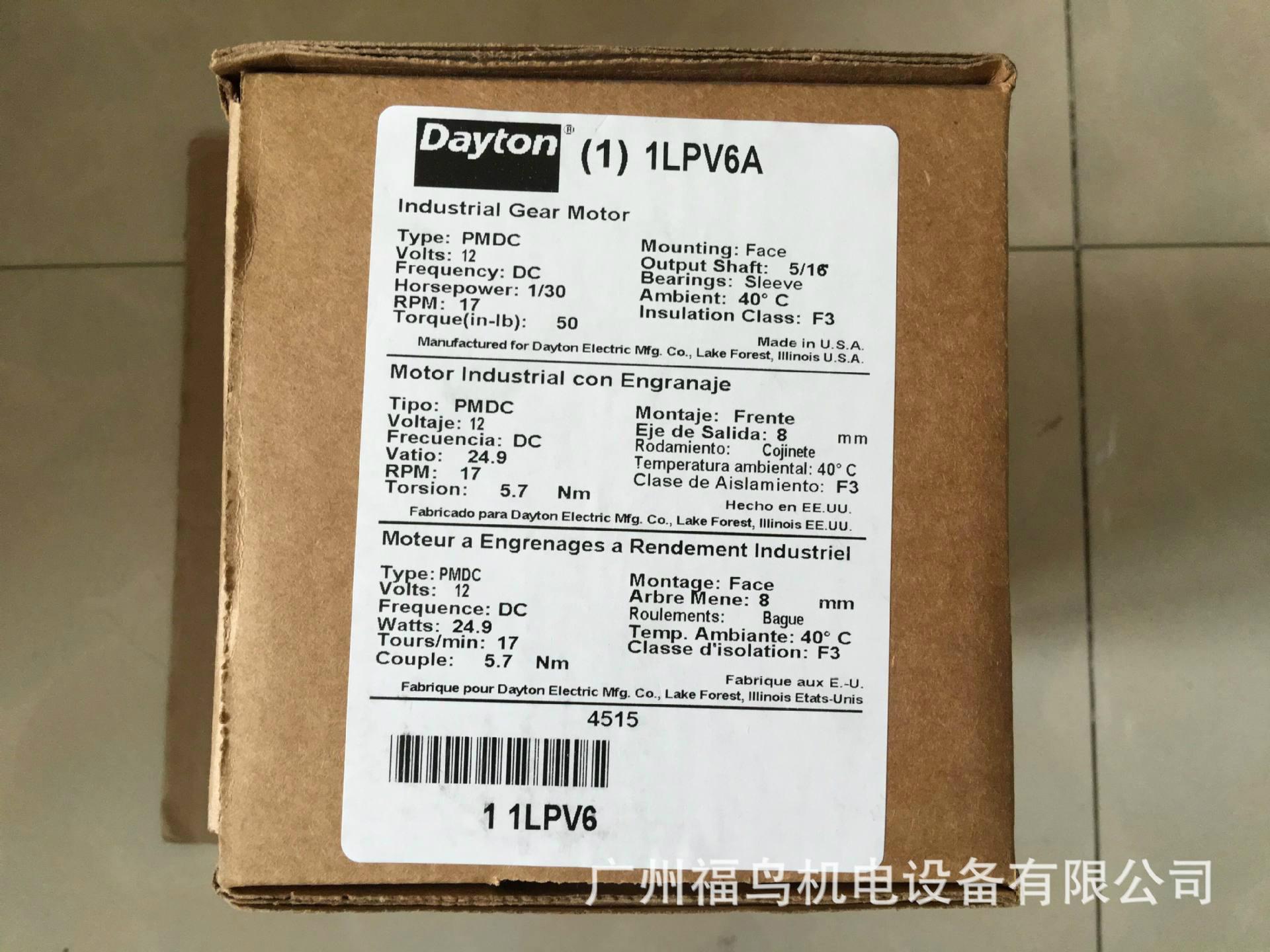

DAYTON電機, 馬達, 型號: 1LPV6A
微店, 掃一掃.

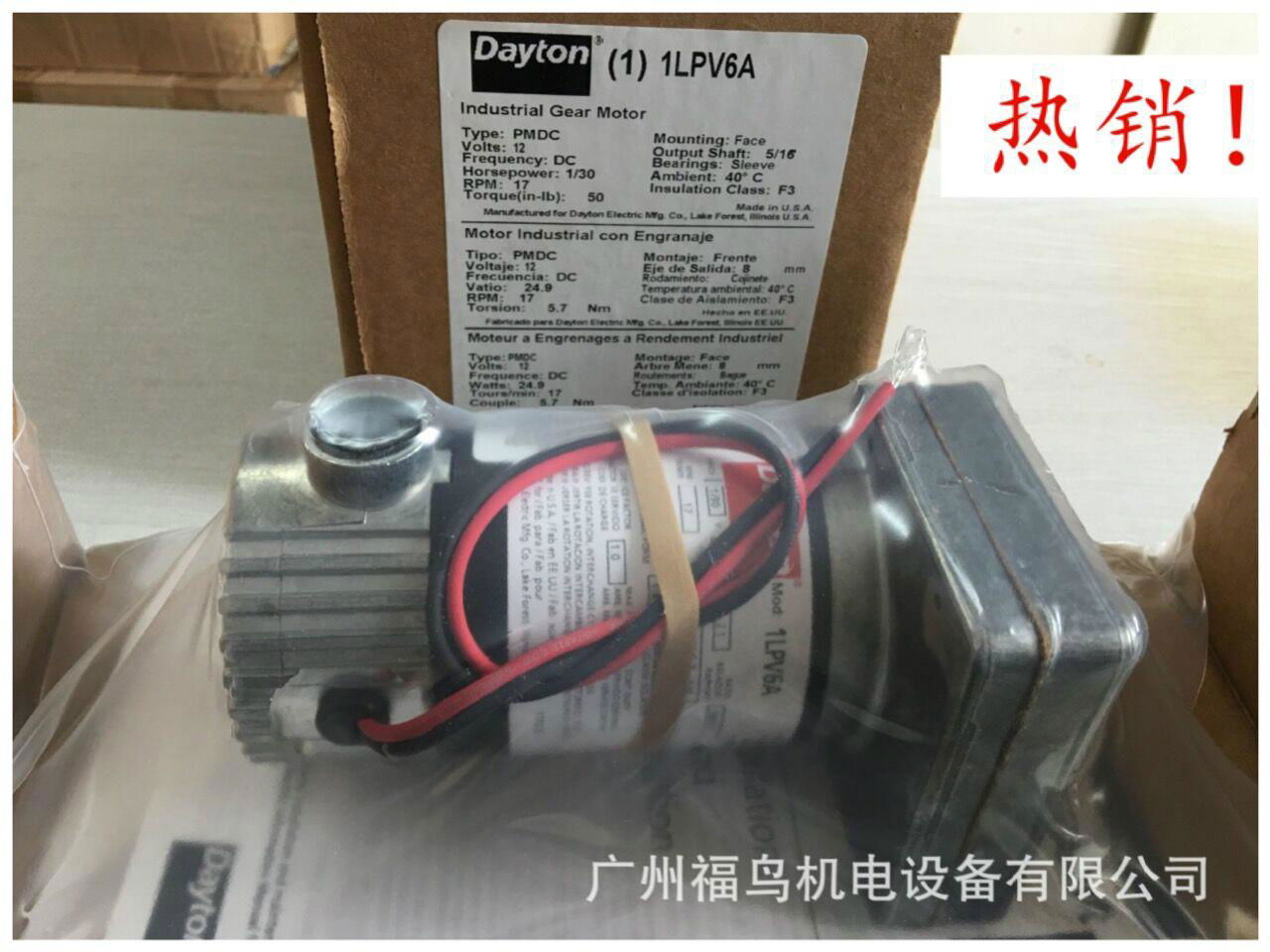

DAYTON電機, 馬達, 型號: 1LPV6A

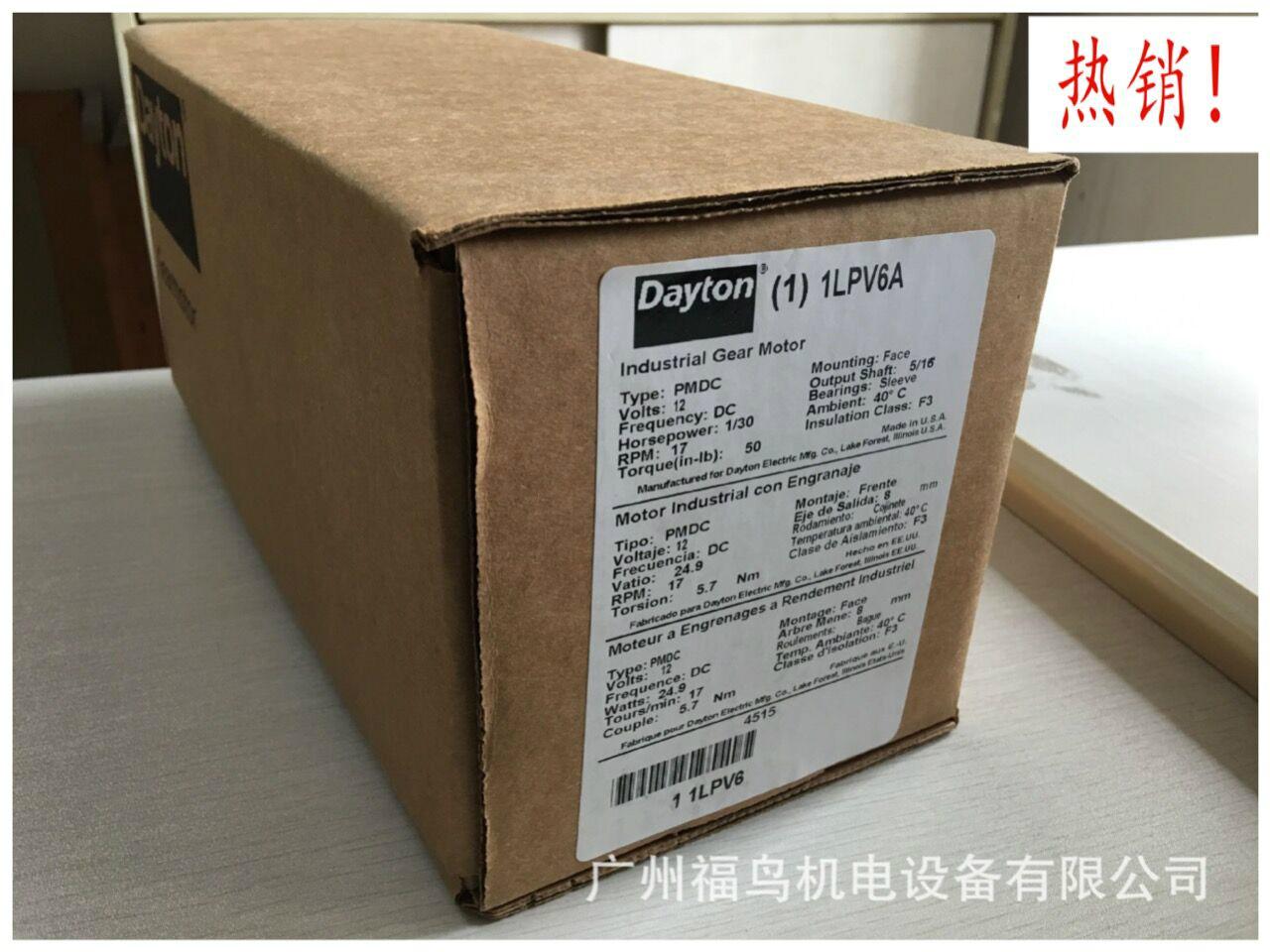

DAYTON電機, 馬達, 型號: 1LPV6A

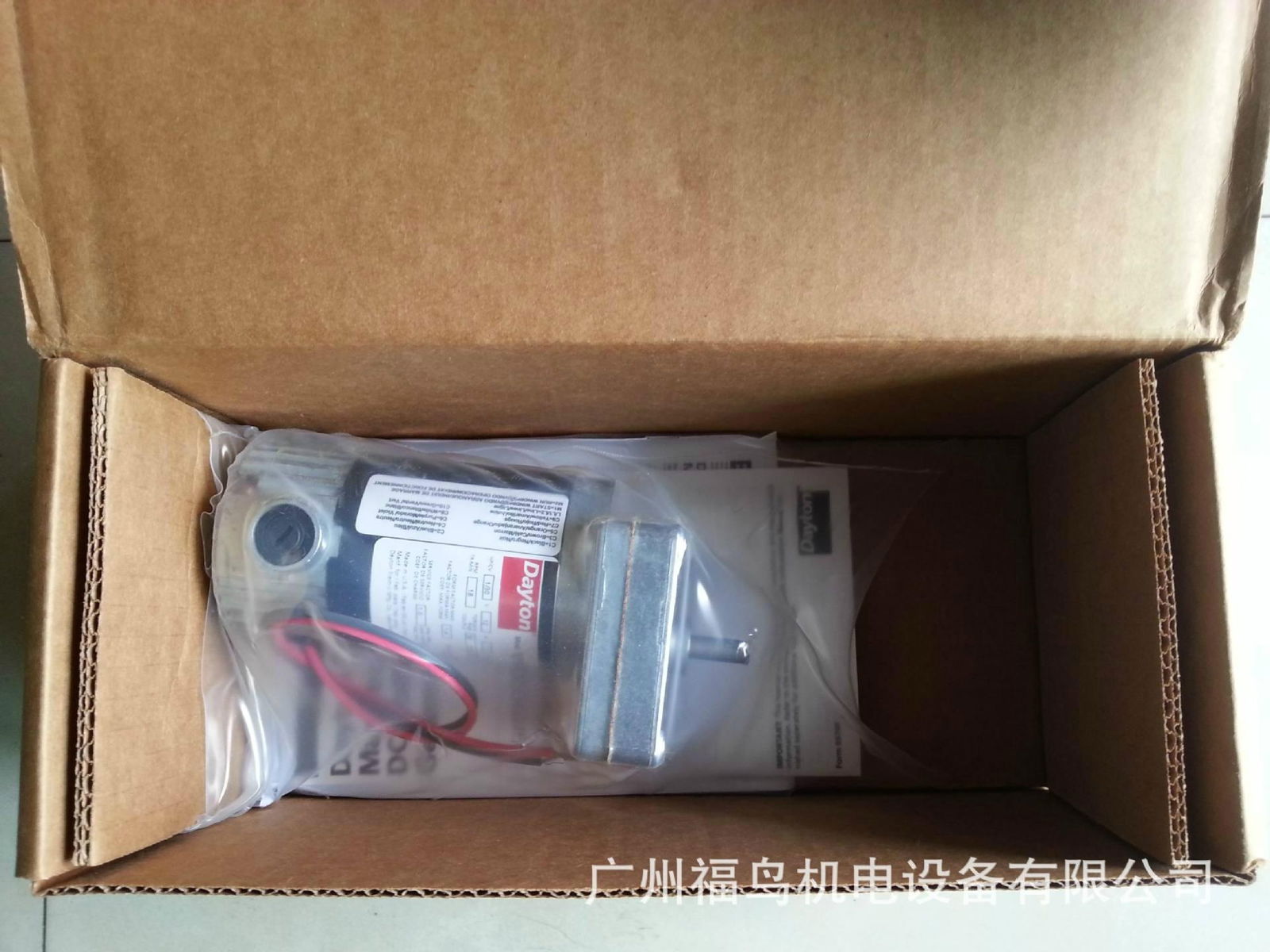

DAYTON電機, 馬達, 型號: 1LPV6A
DAYTON電機, 馬達, 型號: 1LPV6A
DAYTON電機, 馬達, 型號: 1LPV6
DAYTON電機, 馬達, 型號: 1LPV6A
DAYTON電機, 馬達, 型號: 1LPV6A
|
|
|
|
|
|
