供應DAYTON電機, 馬達(1LPV6, 1LPV6A, 1L478)

供應DAYTON電機, 馬達(1LPV6, 1LPV6A, 1L478)

型號︰1LPV6, 1LPV6A

品牌︰DAYTON

原產地︰美國

單價︰-

最少訂量︰-

現在查詢

產品描述

Technical Specs:

  • Item: DC Gearmotor
  • Type: Parallel Shaft
  • Voltage Rating: 12VDC
  • Phase: DC
  • Shaft Orientation: Parallel
  • Reversible Shaft Output: No
  • Shaft: Single Output
  • Nameplate RPM: 17
  • Full Load Torque (In.-Lbs.): 50.0
  • Overhung Load (Lb.): 50
  • Input HP: 1/30
  • Gear Ratio: 141:1
  • Full Load Amps: 2.10
  • Insulation Class: F
  • Enclosure: TENV
  • Thermal Protection: None
  • Ambient (C): 40
  • Rotation: Reversible
  • Mounting: All Position
  • Motor Type: Permanent Magnet

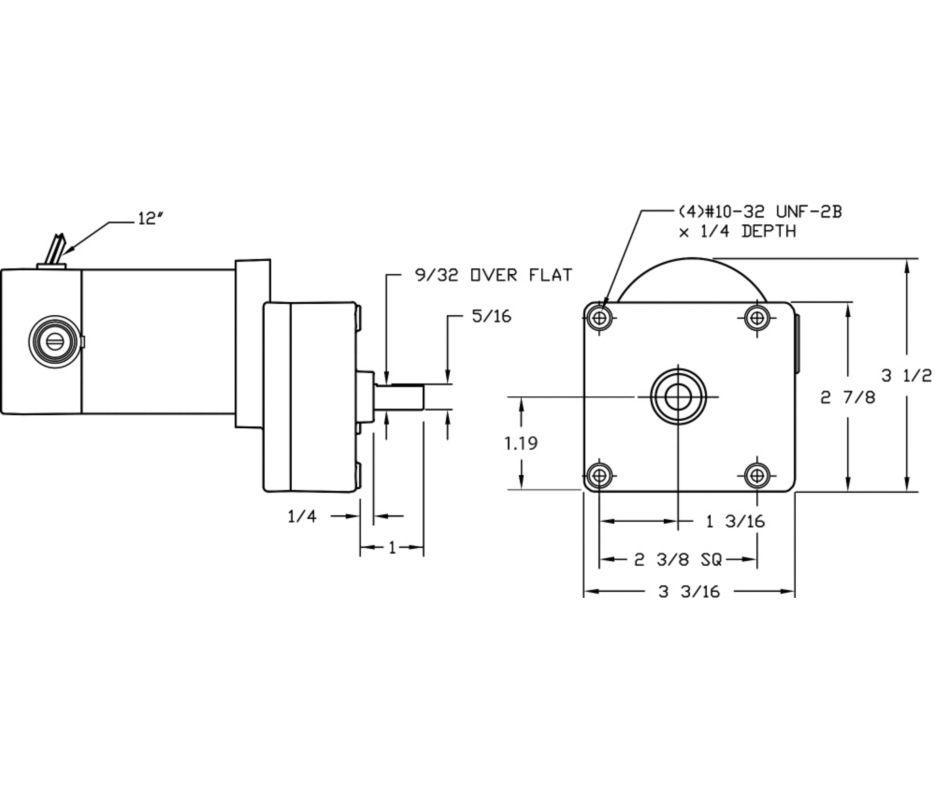

  • Length Less Shaft (In.): 5-5/8
  • Shaft Dimensions (In.): 5/16 x 3/4
  • Keyway (In.): Flat
  • Bearings: Porous Bronze Sleeve on Case, Ball on Motor
  • Lubrication: Grease Filled
  • Lubrication Quantity (Qt.): 3.2 oz.
  • Brushes: Externally Replaceable
  • Finish: Unpainted
  • Housing: Zinc Die Cast
  • Gear Case: Zinc Die Cast
  • Gears: Acetyl/Steel
  • Seals: O-Ring Type on Output Shaft
  • Agency CompliancecRUus
  • Replacement Brushes: 6YHY4
  • RPM Range: 16 to 30

產品規格︰ 型號: 1LPV6, 1LPV6A (替代舊型號1L478)

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

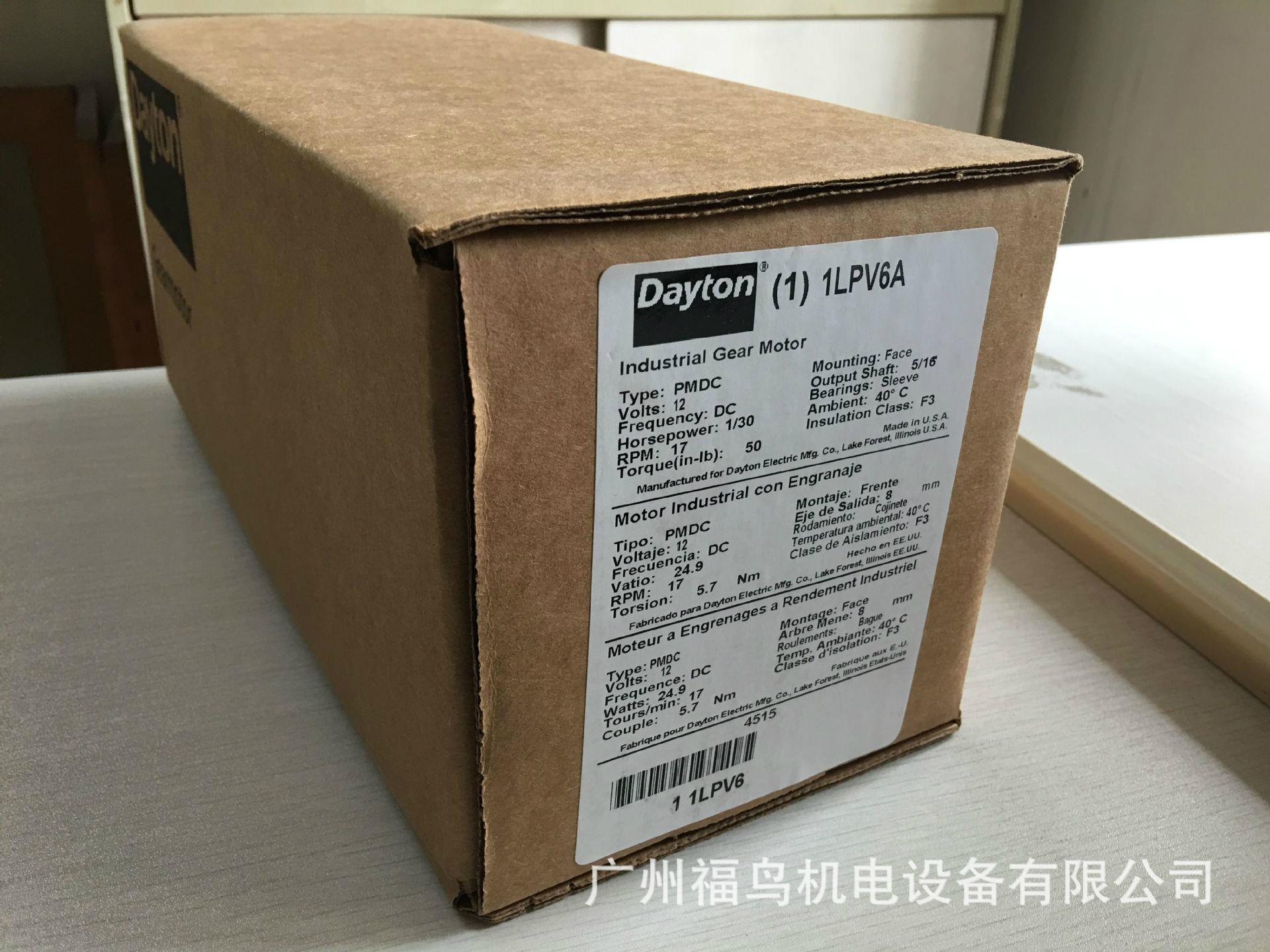

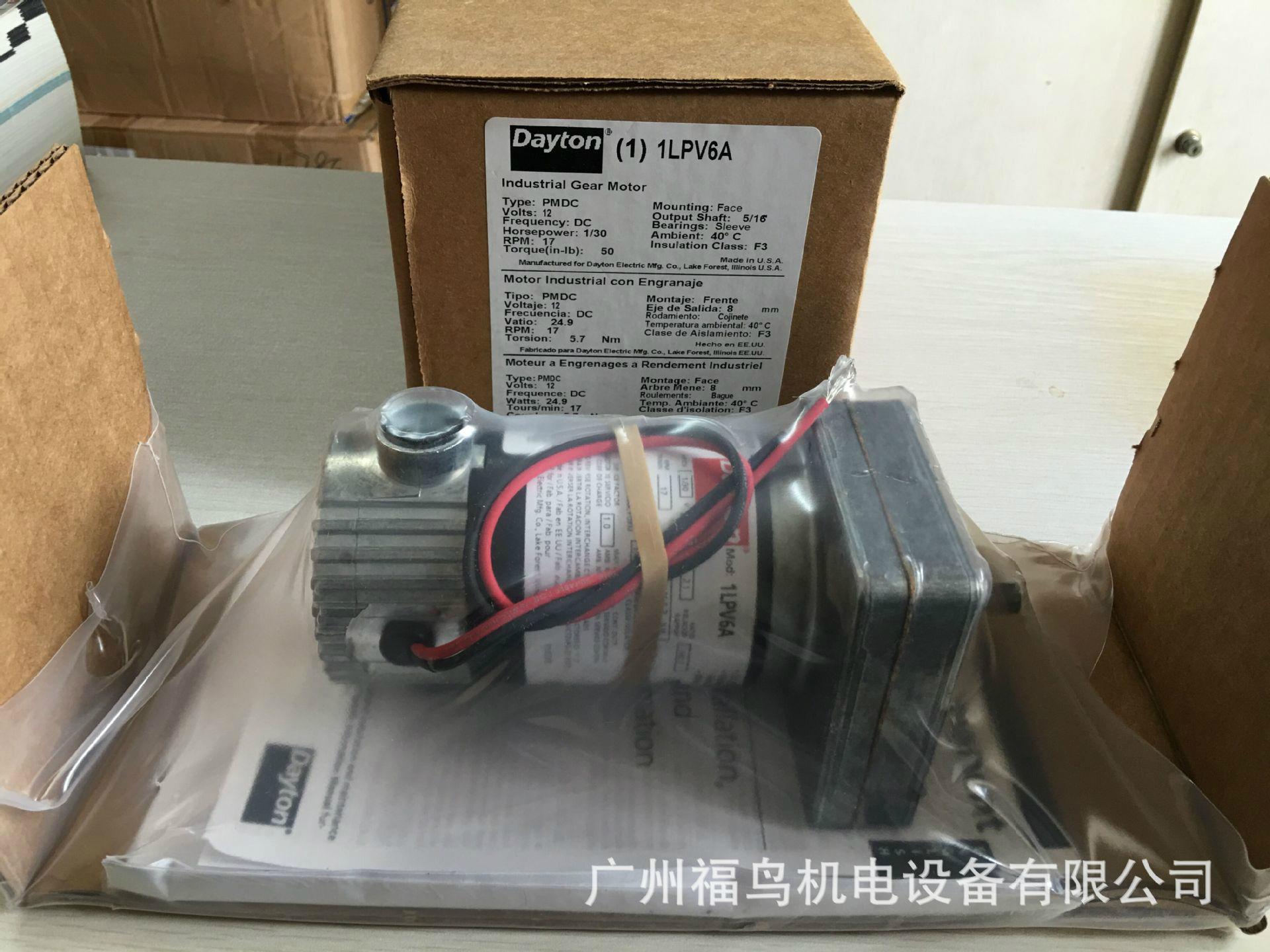

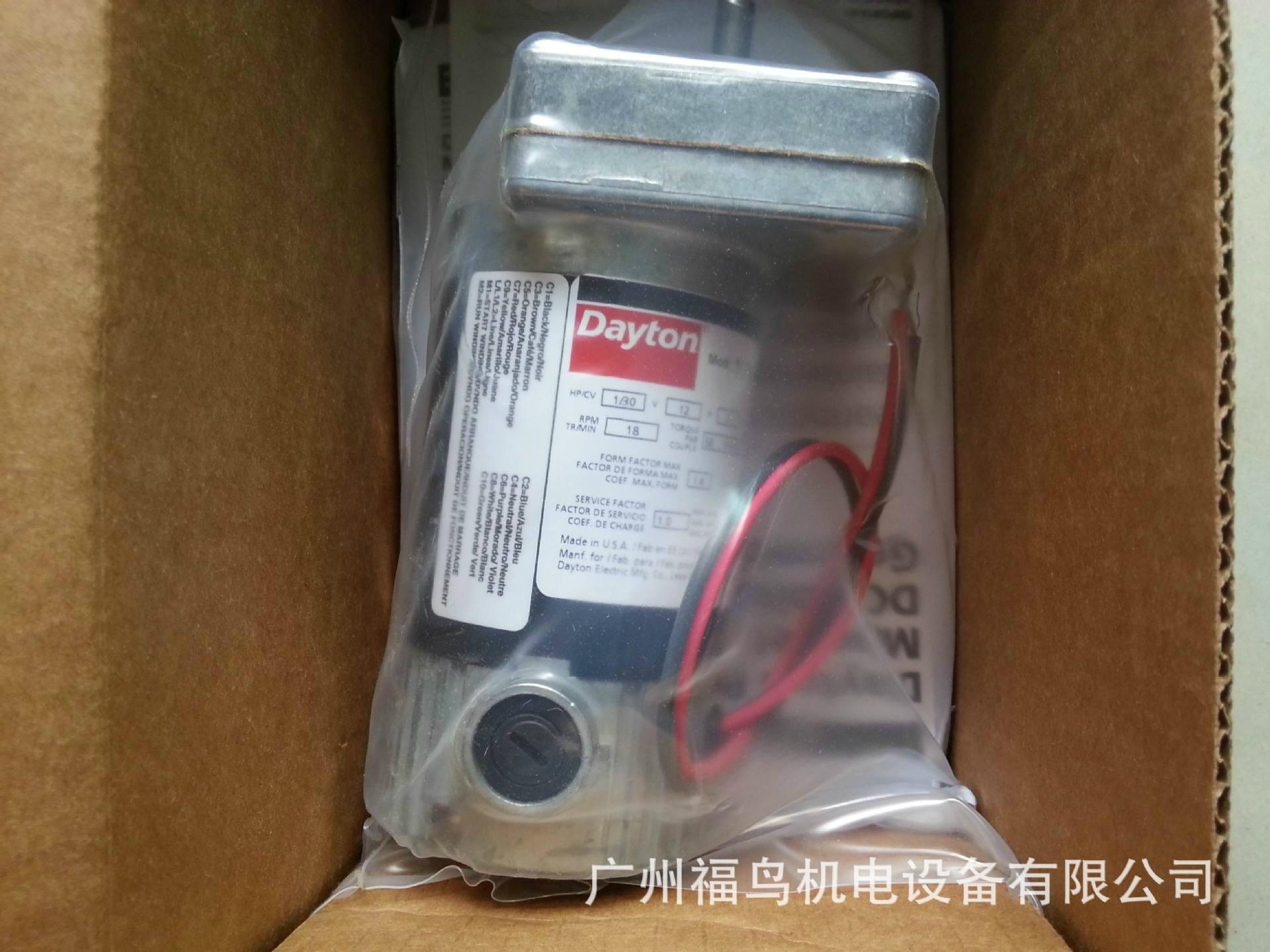

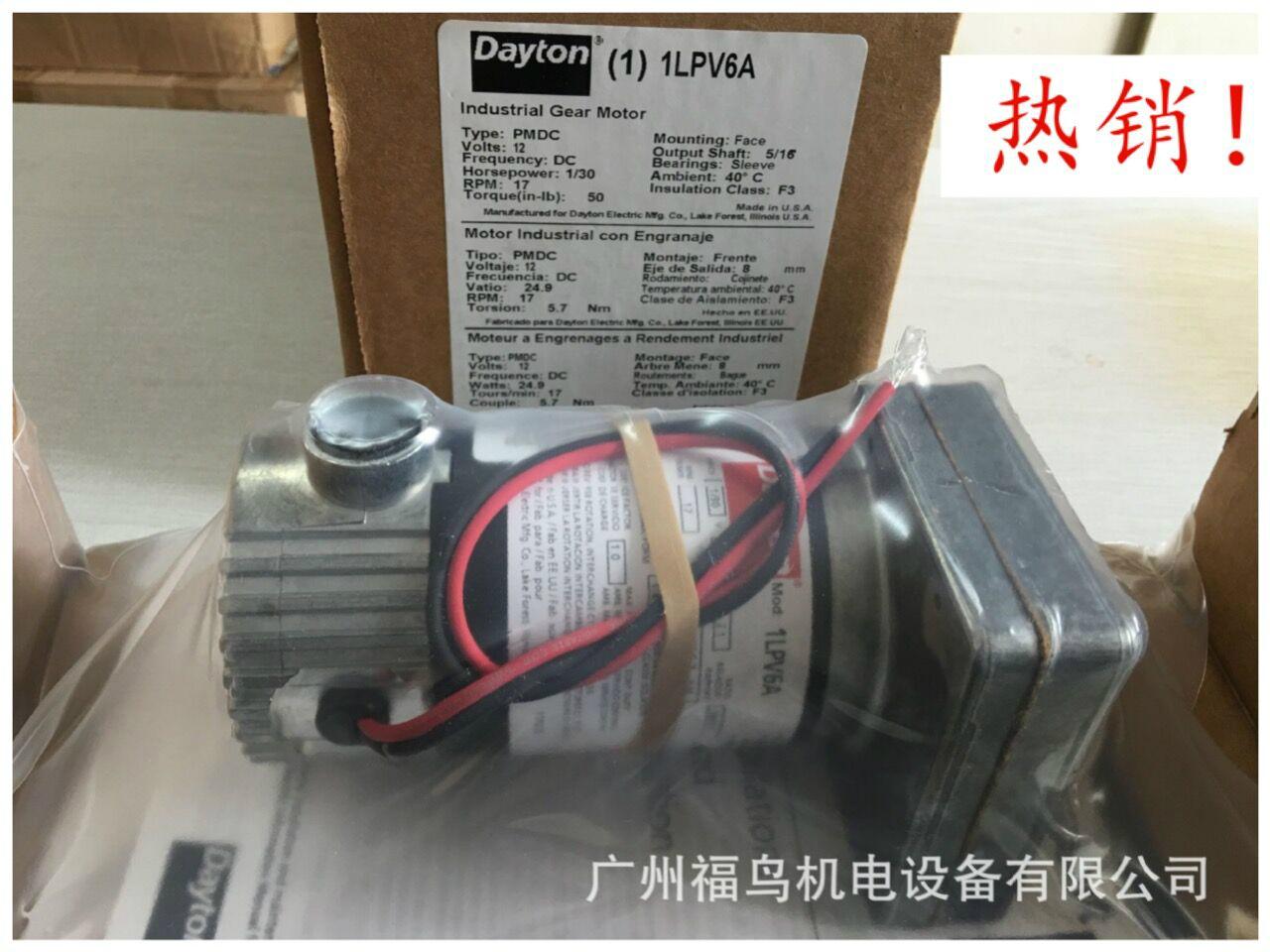

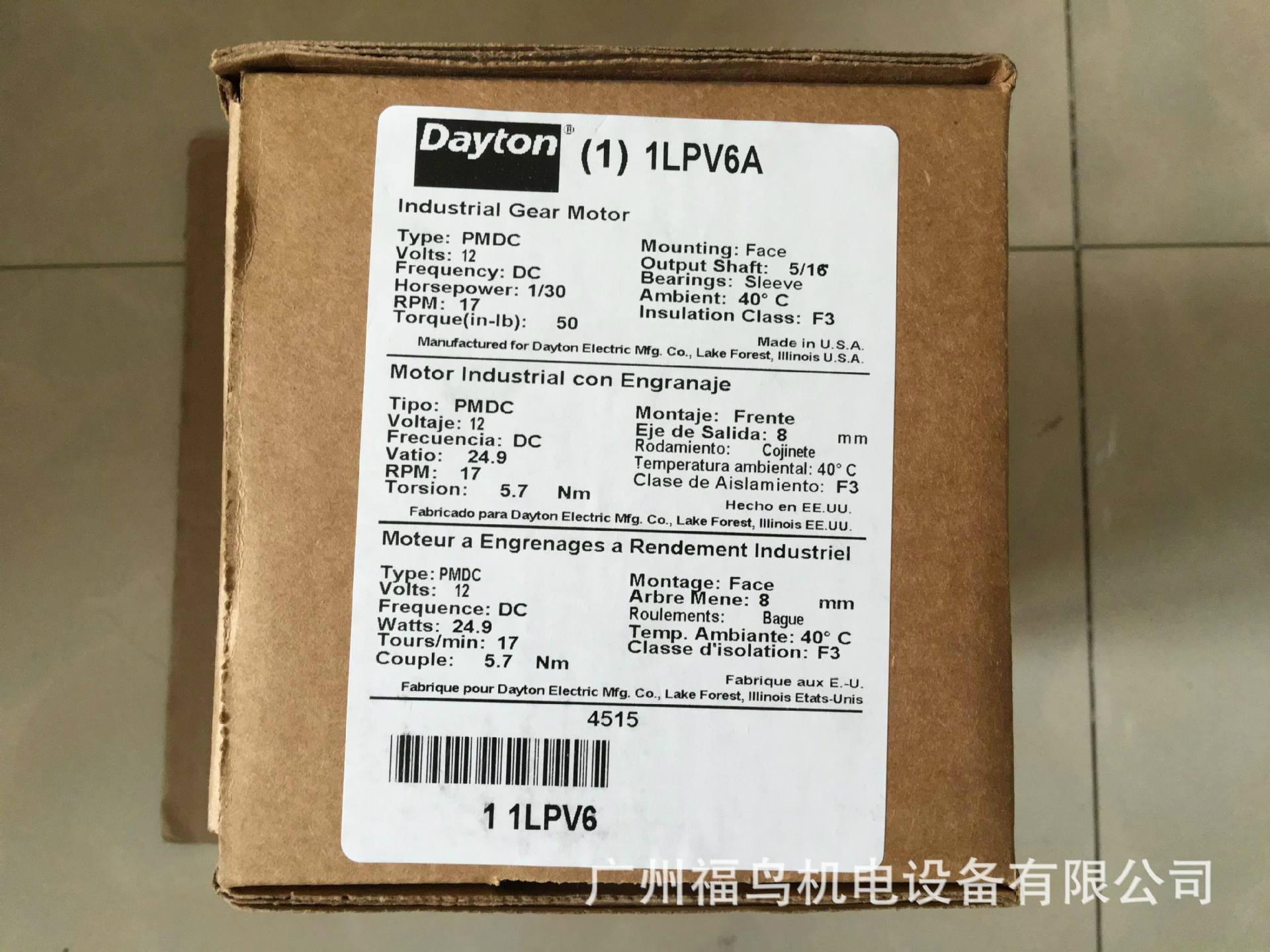

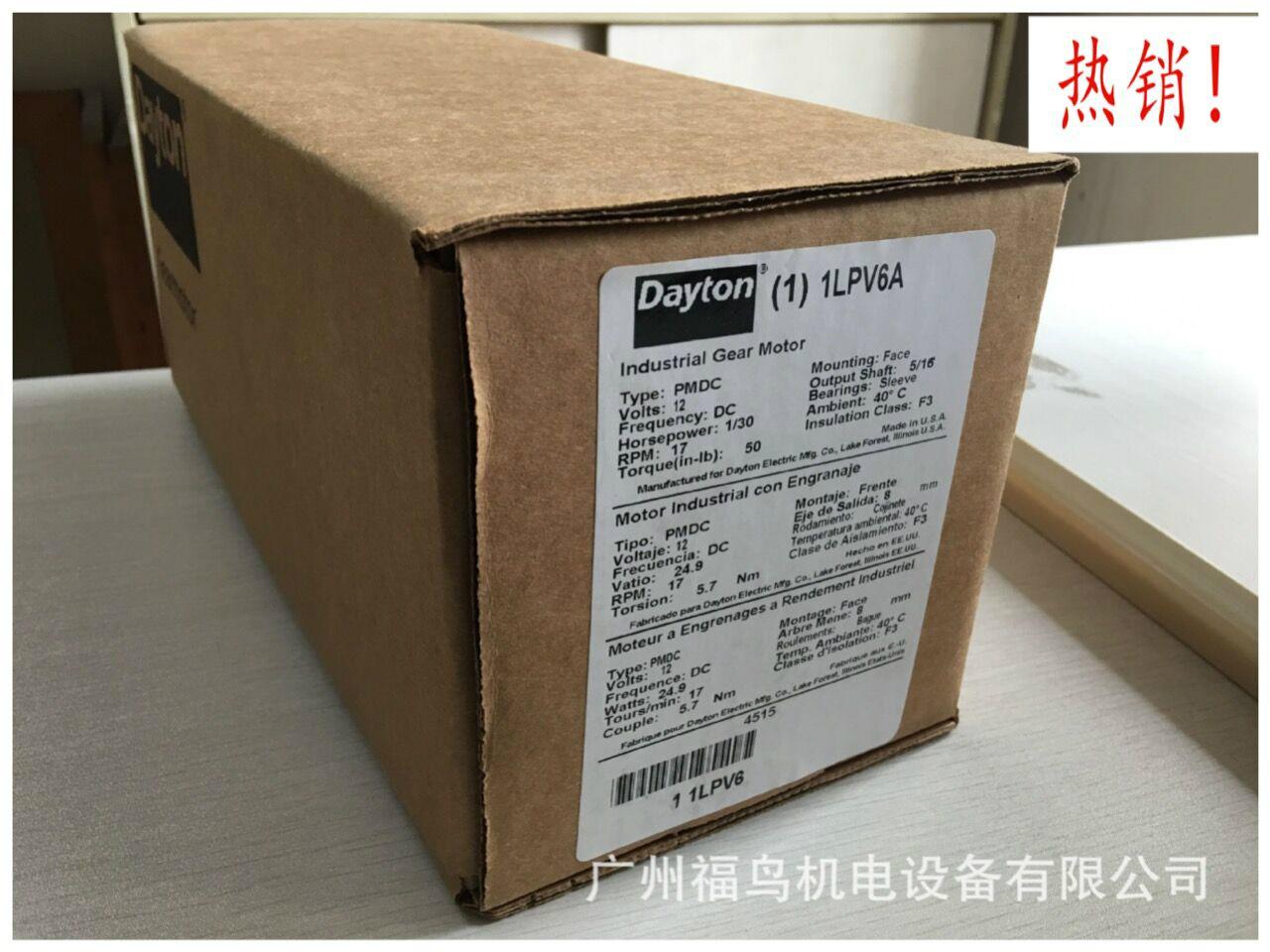

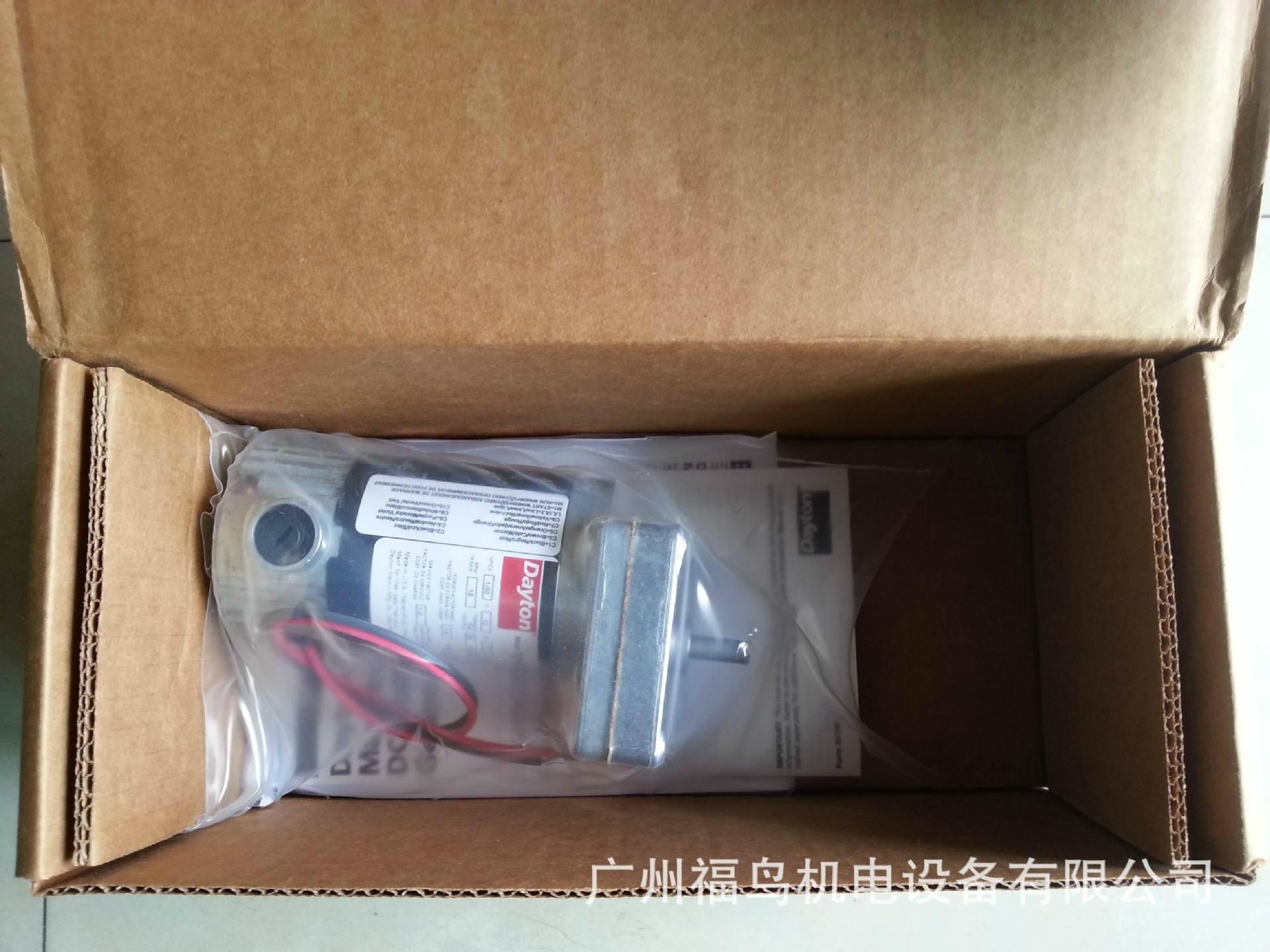

產品圖片
