供應DAYTON電機, 馬達(1L536, 1L536B)
|
|
| 型號︰ | 1L536, 1L536B |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
|
Technical Specs:
Item: AC Gearmotor
Voltage: 115/230VAC
Phase: 1
Hz: 50/60
Shaft Orientation: Right Angle
Nameplate RPM: 27
RPM @ 50 Hz: 23
Max. Torque: 75 in.-lb.
Overhung Load: 225 lb.
Input HP: 1/15
Gear Ratio: 60:1
Full Load Amps; 1.3/0.70
Enclosure: TEFC
Thermal Protection: None
Max. Ambient Temp.: 40 Degrees C
Rotation: Reversible
Mounting: All Position
Motor Type: Permanent Split Capacitor
Capacitor Required: Included
Brake: Adaptable to 5X400
Bearings: Needle Bearing on Case, Ball on Motor
Lubrication: Oil Filled
Housing: Die Cast Aluminum
Gear Case Material: Die Cast Aluminum
Gears: Hardened Steel Worm/Bronze
Gear Material: Hardened Steel/Bronze
Gear Type: Worm
Seals: Lip Type on Input and Output Shaft
RPM Range: 16 to 30
|
|
|
|
| 產品規格︰ | 型號: 1L536, 1L536B |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

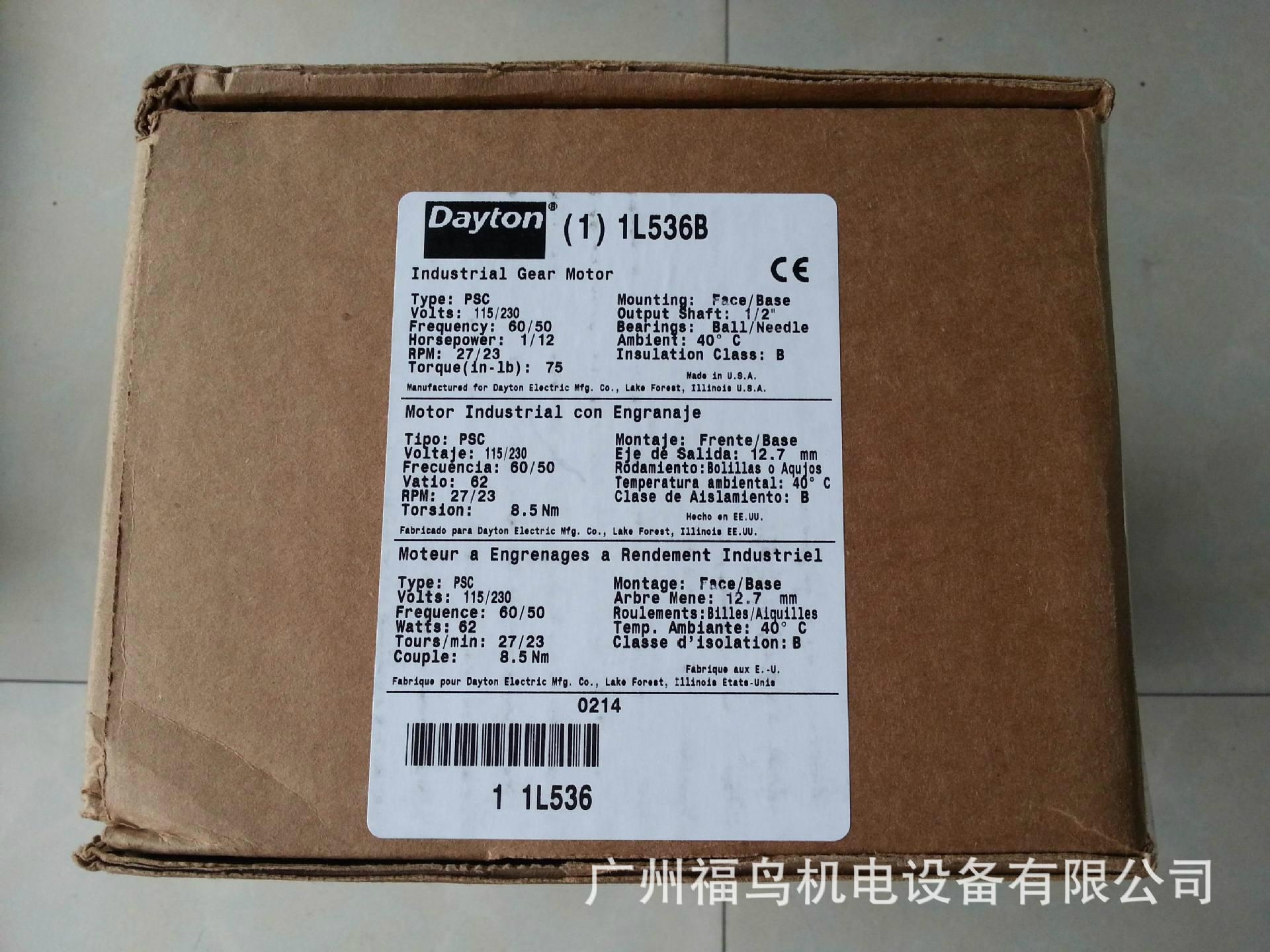

DAYTON電機, 馬達, 型號: 1L536

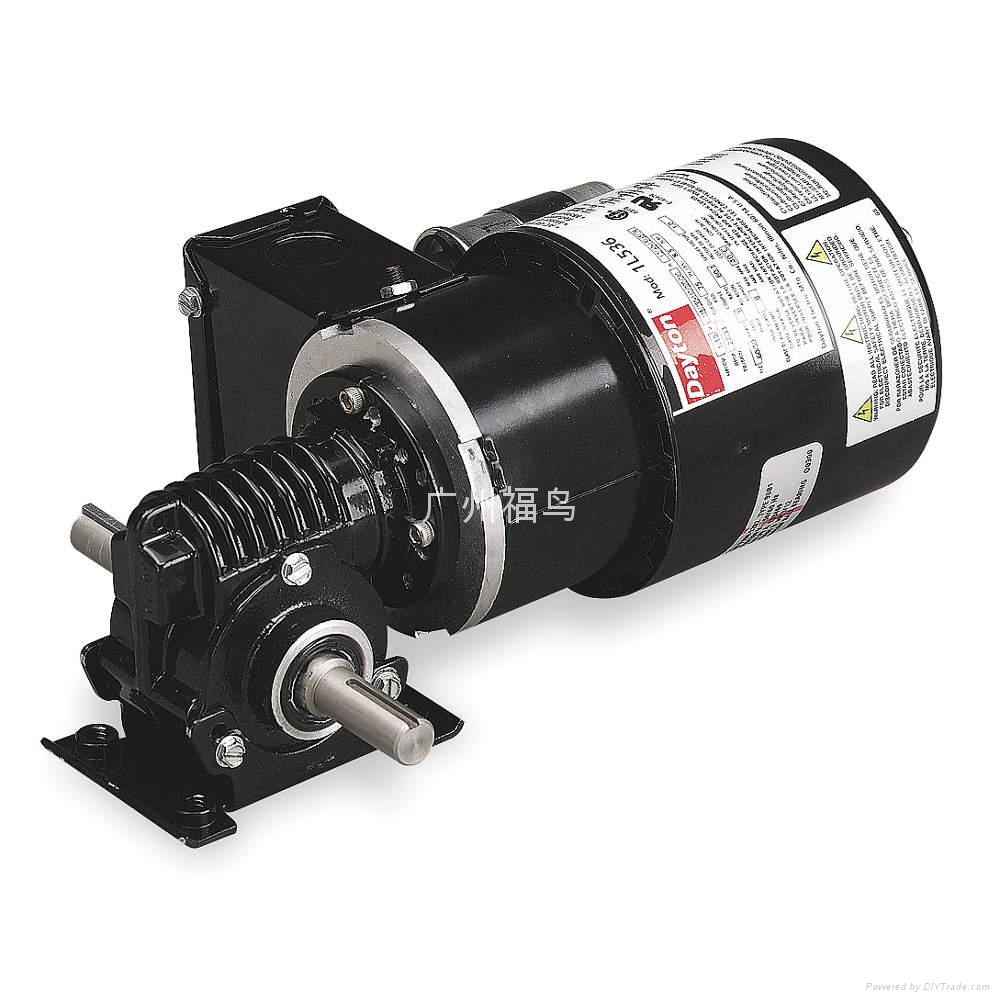

DAYTON電機, 馬達, 型號: 1L536
微店, 掃一掃.

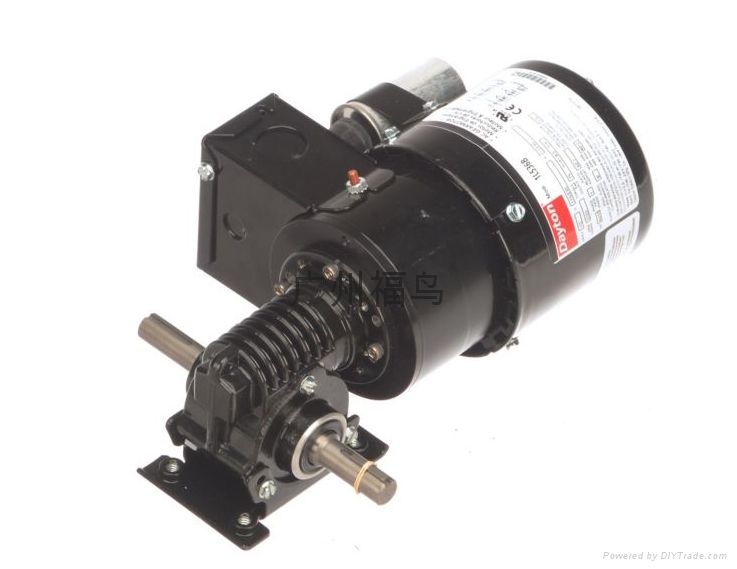

DAYTON電機, 馬達, 型號: 1L536
微信, 掃一掃.

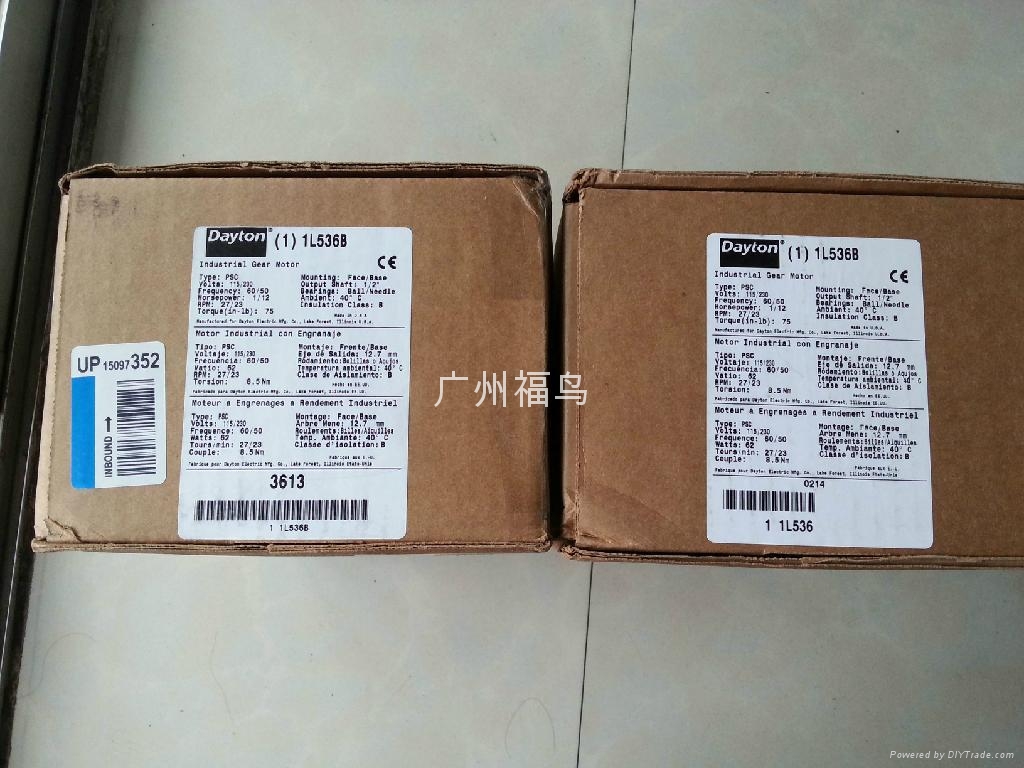

DAYTON電機, 馬達, 型號: 1L536

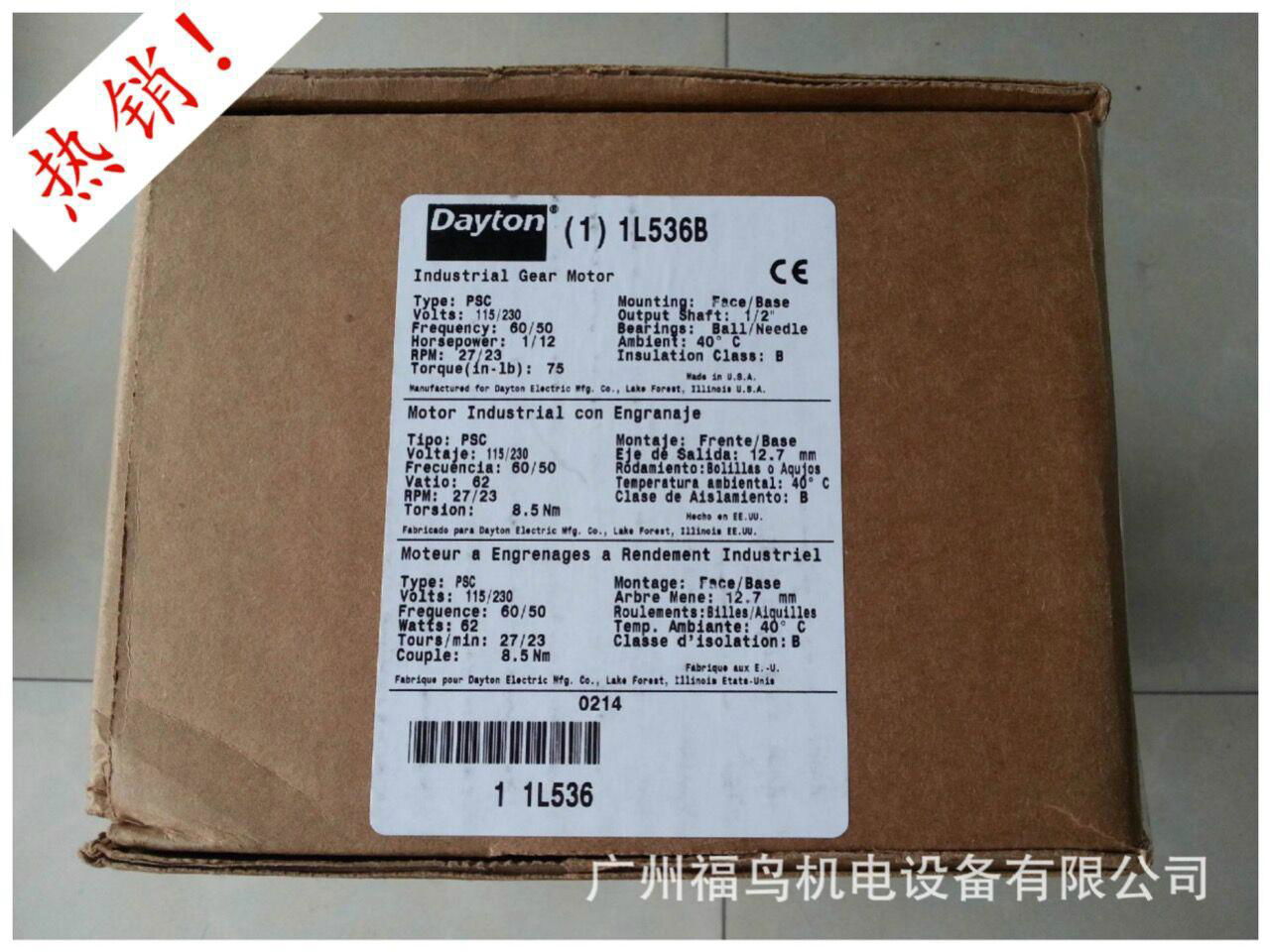

DAYTON電機, 馬達, 型號: 1L536
DAYTON電機, 馬達, 型號: 1L536
|
|
|
|
|
|
