供應DAYTON電機, 馬達(1LPU9, 1LPU9A, 1L551)
|
|
| 型號︰ | 1LPU9, 1LPU9A |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
|
Technical Specs:
- Item: AC Gearmotor
- Voltage: 115/230VAC
- Phase: 1
- Hz: 50/60
- Shaft Orientation: Parallel
- Reversible Shaft Output: No
- Shaft: Single Output
- Nameplate RPM: 68
- RPM @ 50 Hz: 58
- Max. Torque: 30 in.-lb.
- Overhung Load: 50 lb.
- Input HP: 1/20
- Gear Ratio: 26:1
- Full Load Amps: 0.62/0.33
- Insulation Class: B
- Enclosure: TENV
- Thermal Protection: None
- Max. Ambient Temp.: 40 Degrees C
- Rotation: Reversible
- Mounting: All Position
- Motor Type: Permanent Split Capacitor
- Capacitor Required: Included
- Length Less Shaft: 5-3/4"
- Keyway Size: Flat
- Bearings: Porous Bronze Sleeve on Case, Ball on Motor
- Lubrication: Grease Filled
- Finish: Unpainted
- Housing: Die Cast Zinc
- Gear Case Material: Die Cast Zinc
- Gears: Acetyl/Steel
- Gear Material: Acetyl/Steel
- Seals: O-Ring Type on Output Shaft
- Standards: cRUus
- RPM Range: 51 to 75
|
|
|
|
| 產品規格︰ | 型號: 1LPU9, 1LPU9A (替代舊型號1L551) |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

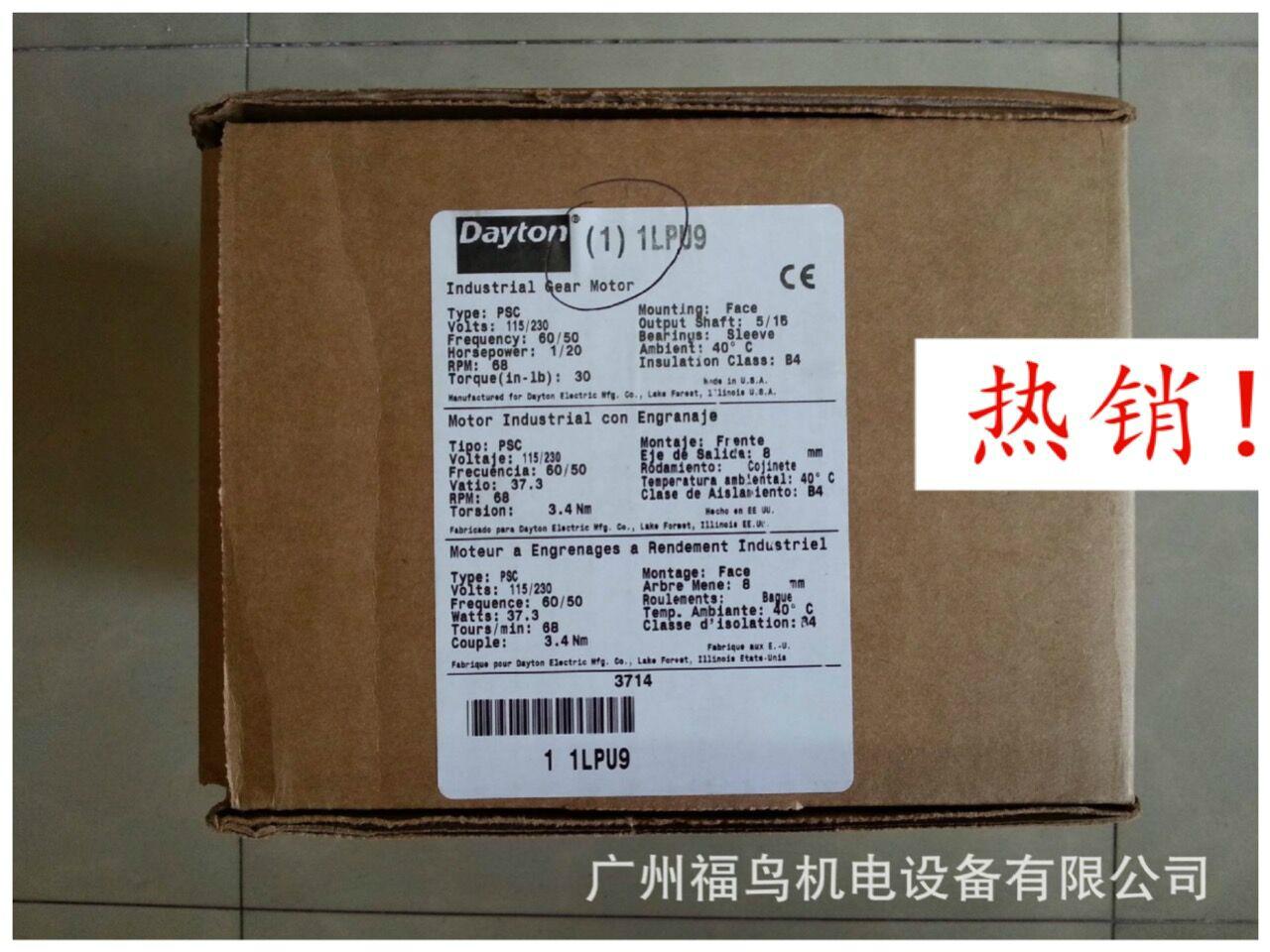

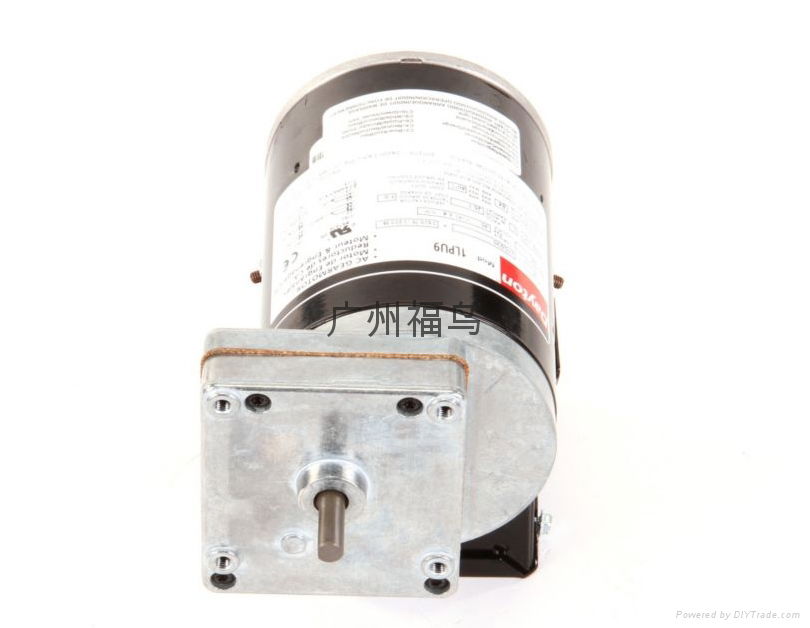

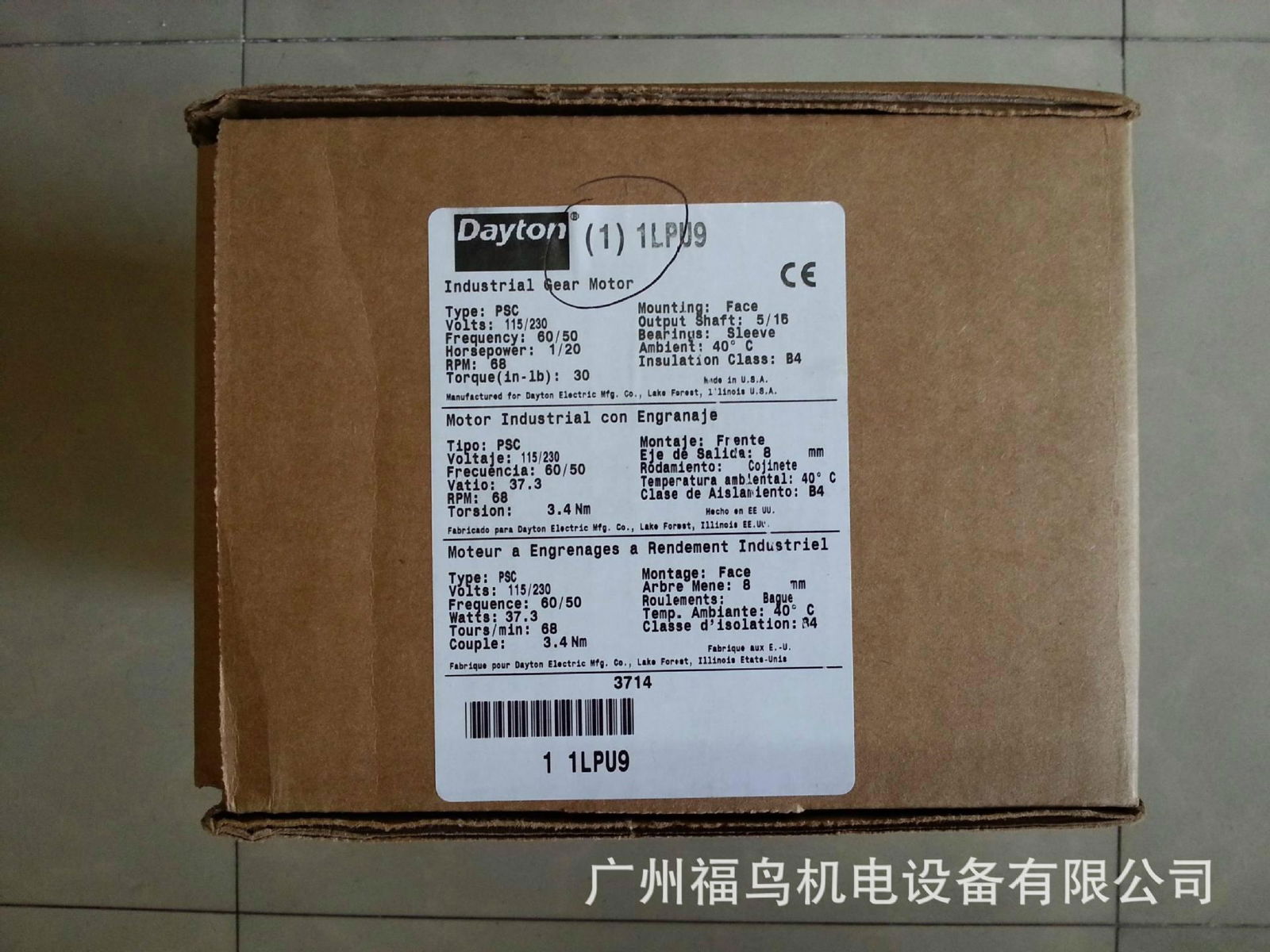

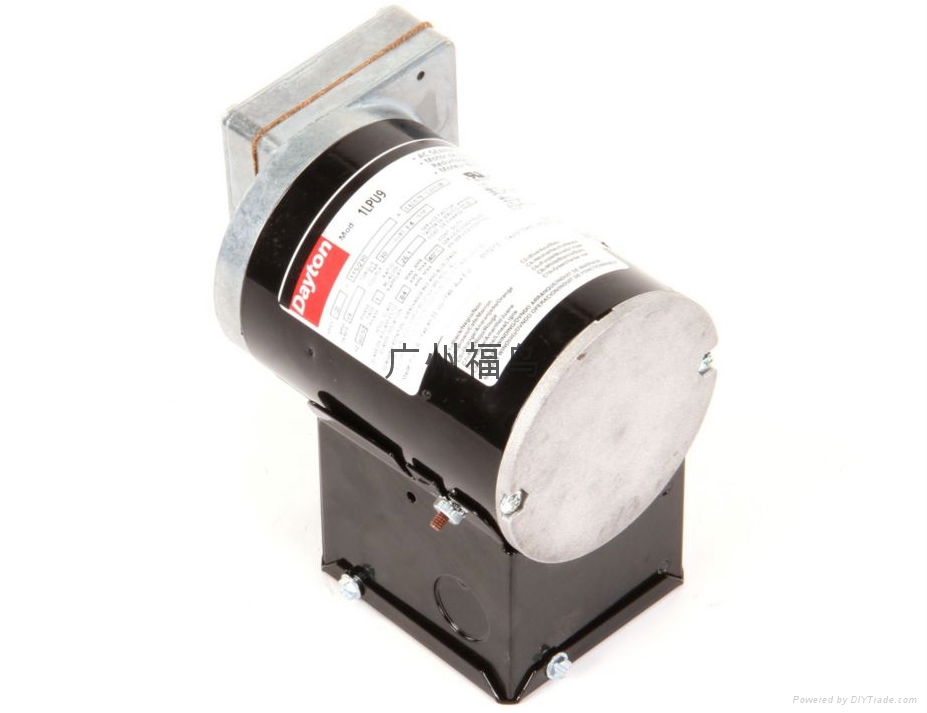

DAYTON電機, 馬達, 型號: 1LPU9
DAYTON電機, 馬達, 型號: 1LPU9
微店, 掃一掃.
DAYTON電機, 馬達, 型號: 1LPU9
DAYTON電機, 馬達, 型號: 1LPU9
DAYTON電機, 馬達, 型號: 1LPU9
DAYTON電機, 馬達, 型號: 1LPU9
DAYTON電機, 馬達, 型號: 1LPU9
|
|
|
|
|
|
