供應DAYTON電機, 馬達( 4Z521, 4Z521B, 4Z521C)
|
|
| 型號︰ | 4Z521, 4Z521C |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
| Item |
|
AC Gearmotor |
| Type |
|
Parallel Shaft |
| Voltage Rating |
|
115/230 |
| Phase |
|
1 |
| Hz |
|
60/50 |
| Shaft Orientation |
|
Parallel |
| Nameplate RPM |
|
70 |
| Full Load Torque (In.-Lbs.) |
|
61.0 |
| Overhung Load (Lb.) |
|
175 |
| Input HP |
|
1/15 |
| Gear Ratio |
|
23:1 |
| Full Load Amps |
|
1.2/0.63 |
| Enclosure |
|
TEFC |
| Thermal Protection |
|
None |
| Ambient (C) |
|
40 |
| Rotation |
|
Rev. |
| Mounting |
|
All Position |
| Motor Type |
|
Permanent Split Capacitor |
| Capacitor Required |
|
Included |
| Length Less Shaft (In.) |
|
8-3/4 |
| Shaft Dimensions (In.) |
|
5/8 x 1 1/2 |
| Brake |
|
5X400 |
| Number of Brake Discs Required |
|
1 |
| Bearings |
|
Heavy Duty Needle Roller and Thrust Balls on Case, Ball on Motor |
| Lubrication |
|
Permanent Heavy Duty Gear Oil |
| Gear Case |
|
Die Cast Aluminum |
| Gears |
|
Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9 |
| Seals |
|
Lip Type on Input and Output Shaft |
| RPM Range |
|
51 to 75 |
|
|
|
|
| 產品規格︰ | 型號: 4Z521, 4Z521B, 4Z521C |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

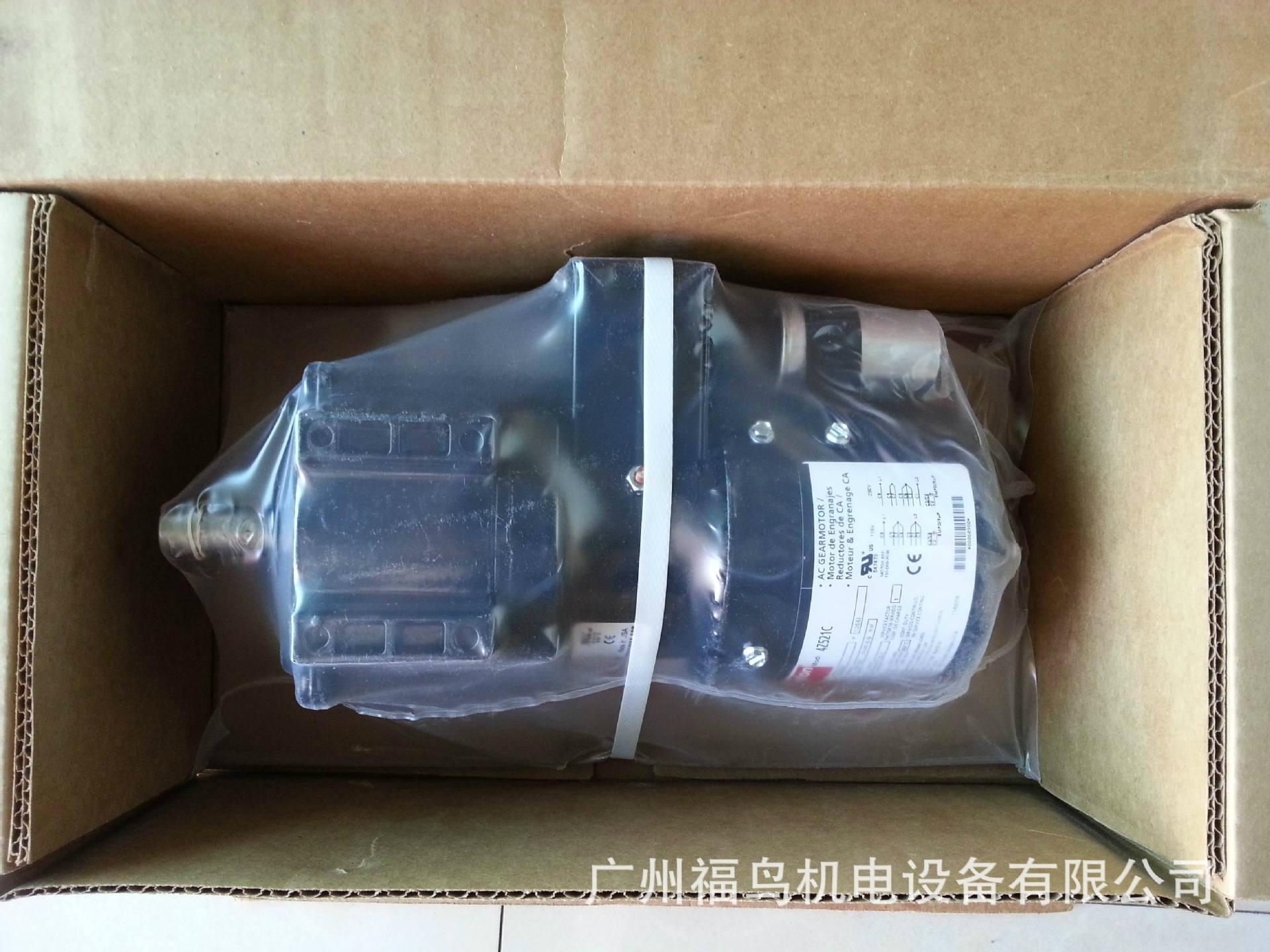

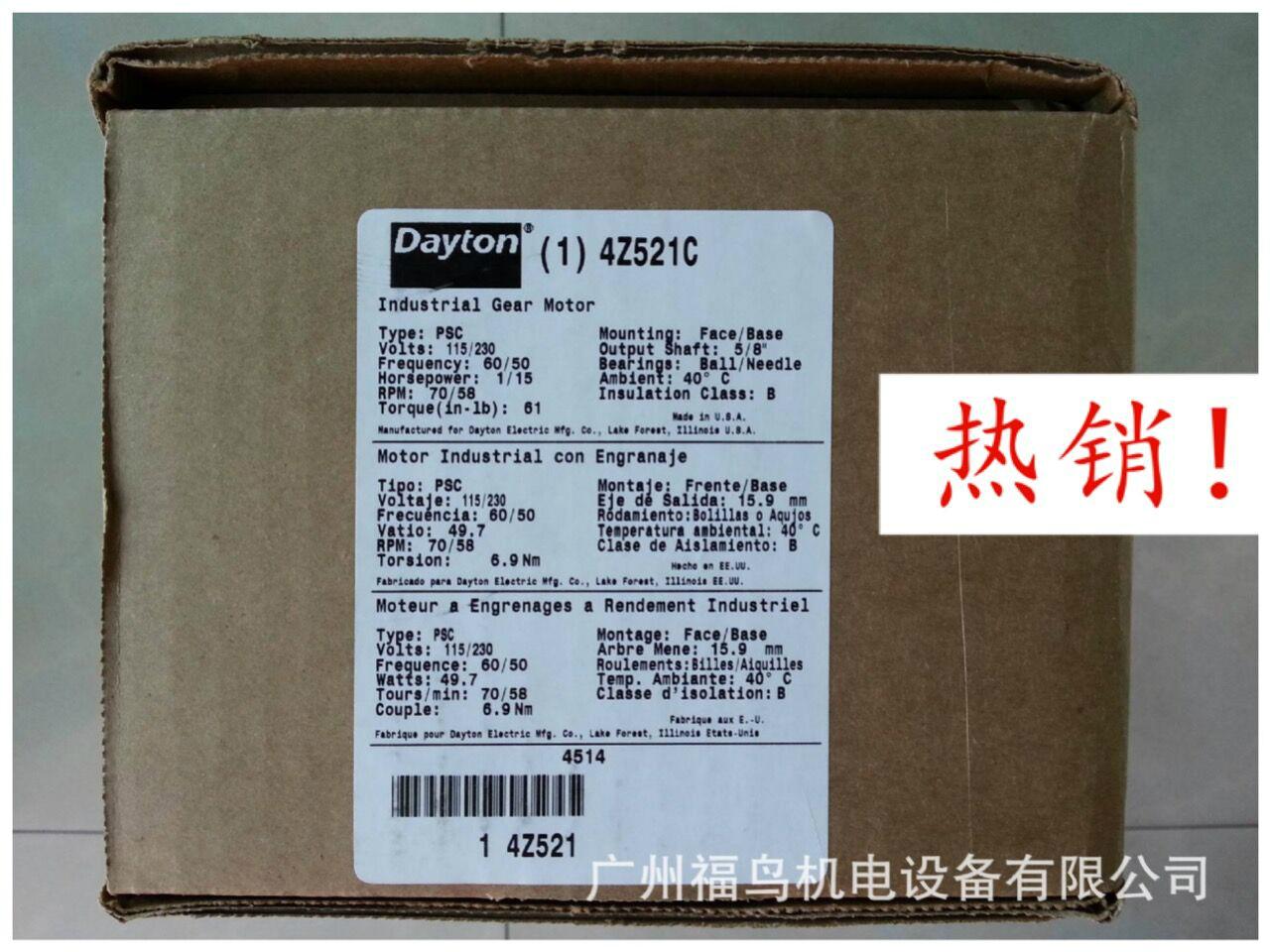

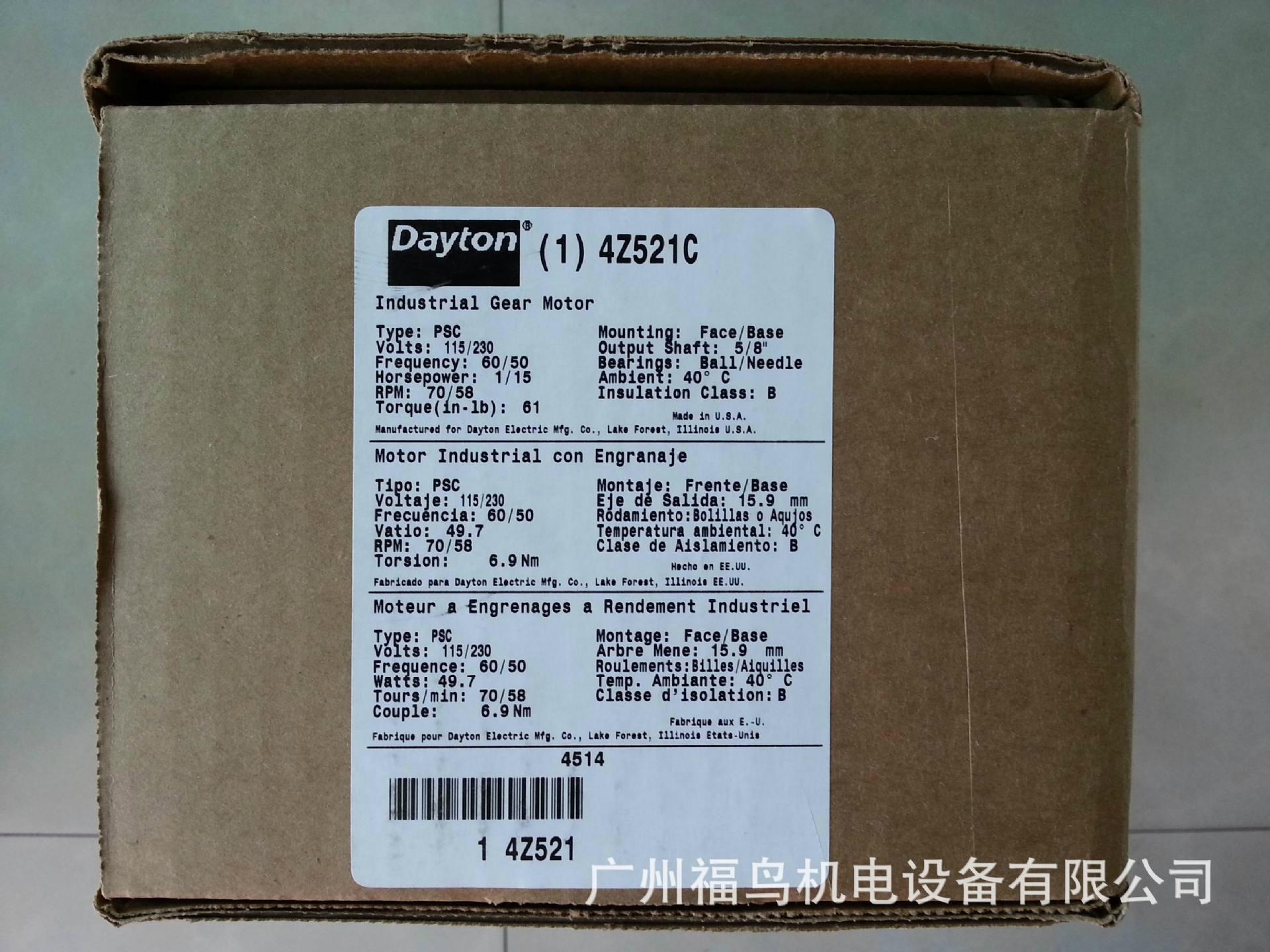

DAYTON電機, 馬達, 型號: 4Z521C
DAYTON電機, 馬達, 型號: 4Z521C
微店, 掃一掃.

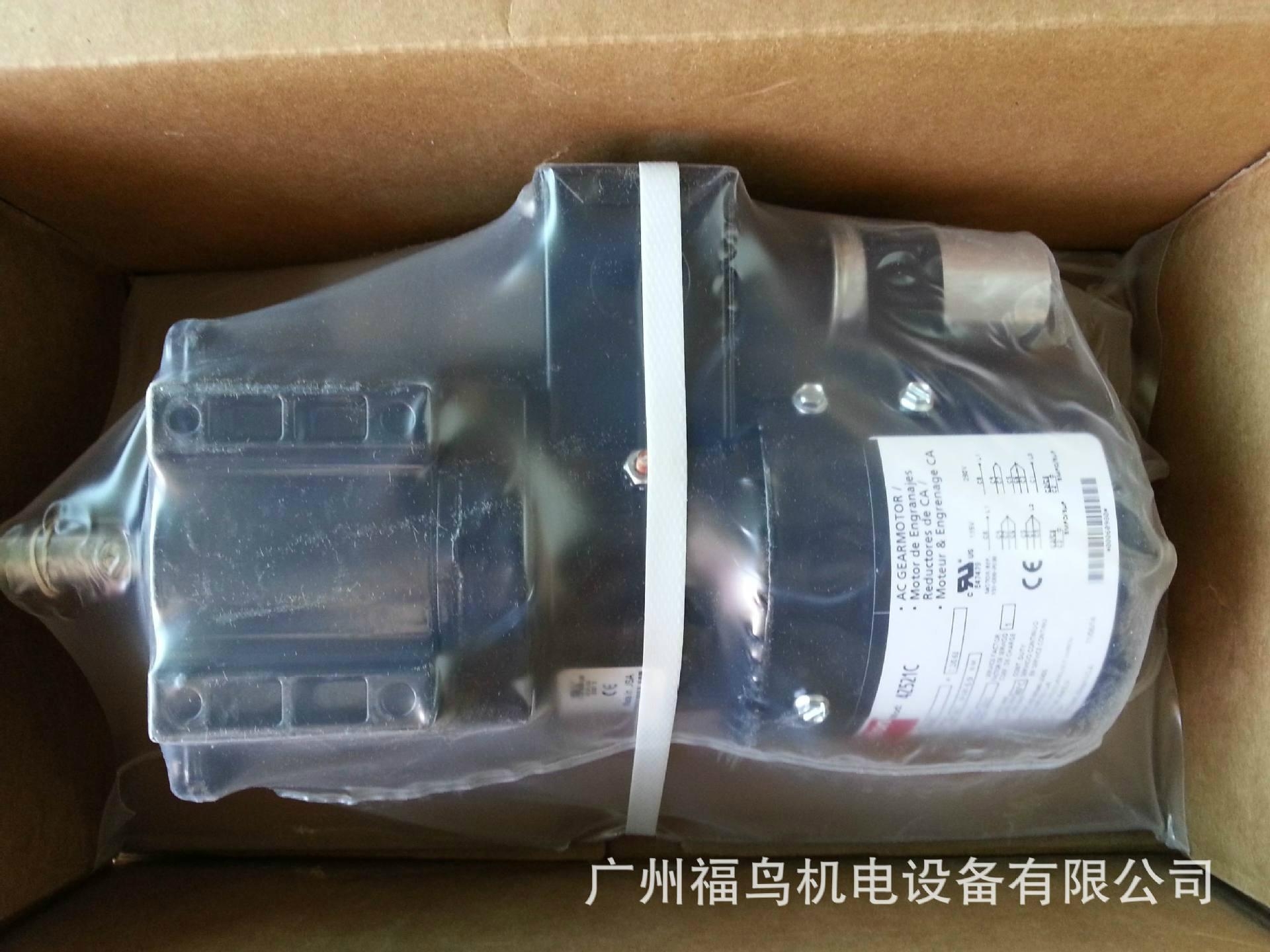

DAYTON電機, 馬達, 型號: 4Z521
DAYTON電機, 馬達, 型號: 4Z521
DAYTON電機, 馬達, 型號: 4Z521
DAYTON電機, 馬達, 型號: 4Z521
DAYTON電機, 馬達, 型號: 4Z521
DAYTON電機, 馬達, 型號: 4Z521
|
|
|
|
|
|
