供應DAYTON電機, 馬達(4Z128, 4Z128A, 4Z128B)
|
型號︰ | 4Z128, 4Z128B |
品牌︰ | DAYTON |
原產地︰ | 美國 |
單價︰ | - |
最少訂量︰ | - |
|
|
|
|
|
Technical Specs:
Item: DC Gearmotor
Voltage: 90VDC
Shaft Orientation: Parallel
Reversible Shaft Output: No
Nameplate RPM: 170
Max. Torque: 43 in.-lb.
Overhung Load: 150 lb.
Input HP: 1/8
Gear Ratio: 11:1
Full Load Amps: 1.41
Enclosure: TENV
Thermal Protection: None
Max. Ambient Temp.: 40 Degrees C
Rotation: Reversible
Mounting: All Position
Motor Type: DC
Length Less Shaft: 10-1/8"
Overall Length: 11-5/8"
Bearings: Needle Roller and Thrust Balls on Case, Ball on Motor
Lubrication: Permanent Heavy Fluid Gear Oil
Brushes: Externally Replaceable
Gear Material: Hardened Steel
Gear Case: Die Cast Aluminum
Seals: On Input and Output Shaft
Housing Material: Die Cast Aluminum
Replacement Brushes: 6YHY6
RPM Range: 151 to 200
|
|
|
|
產品規格︰ | 型號: 4Z128, 4Z128A, 4Z128B |
主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|

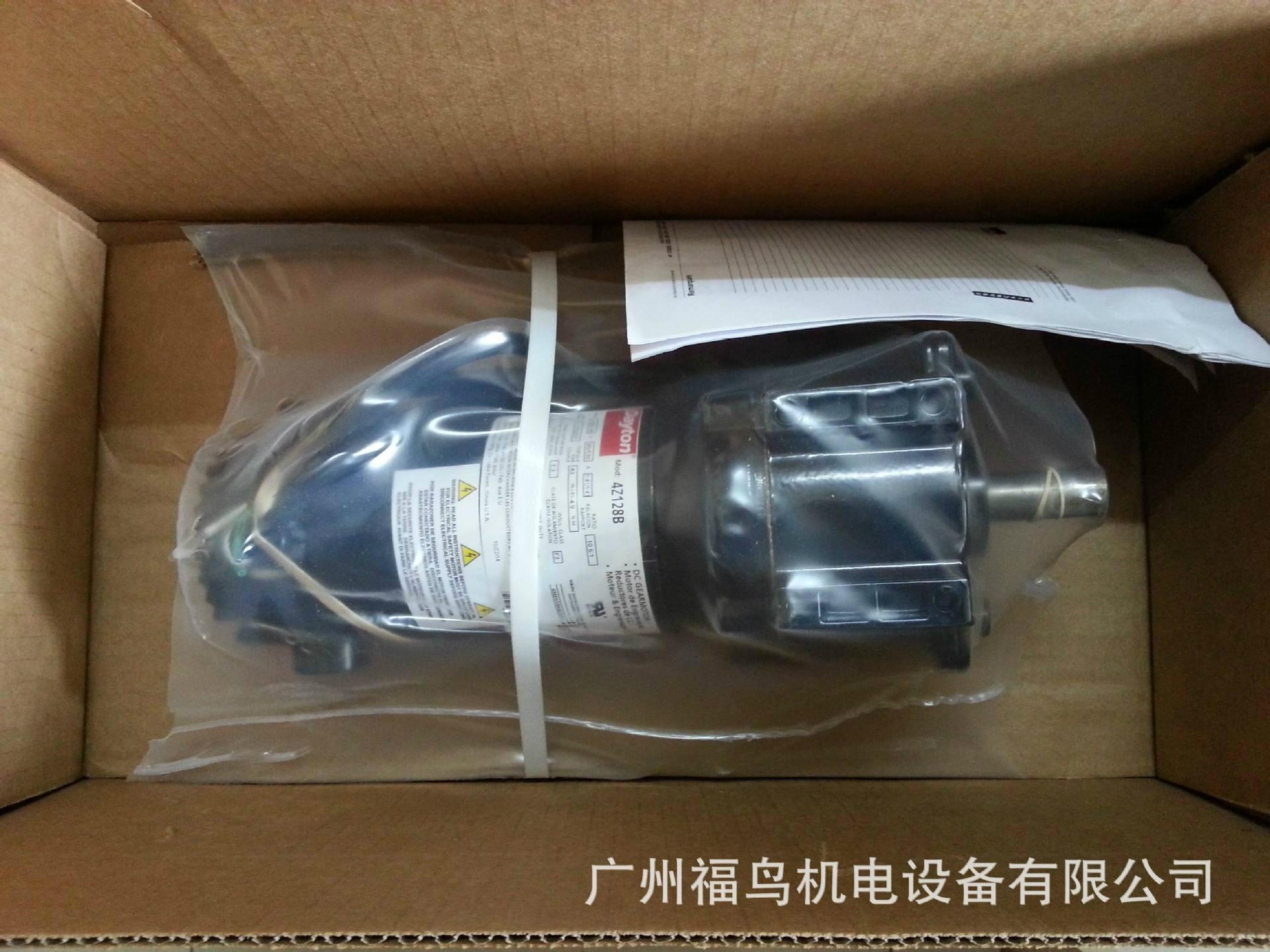

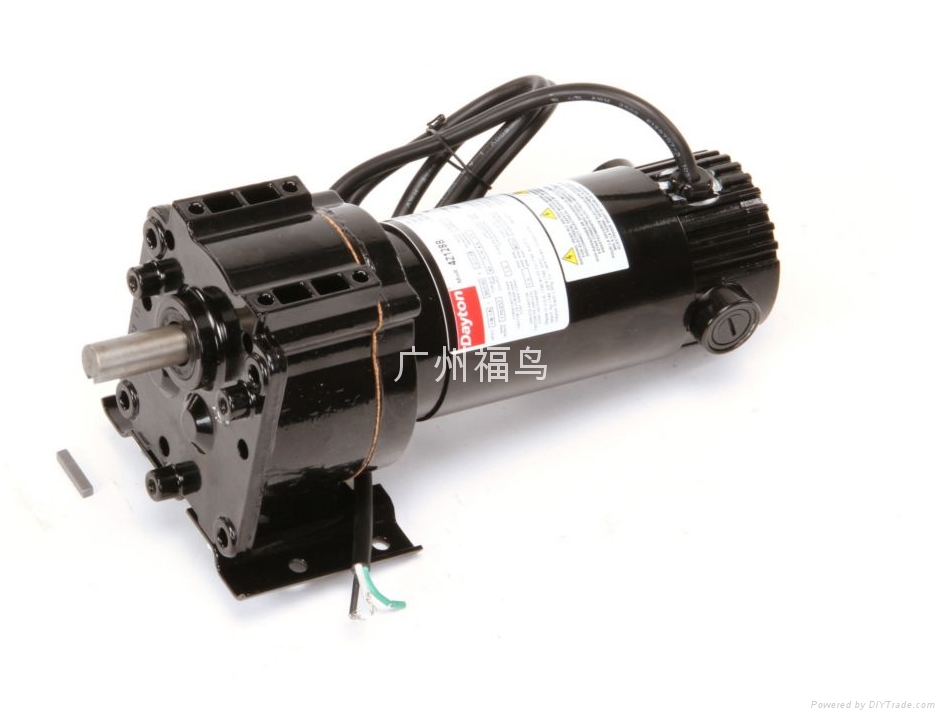

DAYTON電機, 馬達, 型號: 4Z128B
微店, 掃一掃.
DAYTON電機, 馬達, 型號: 4Z128B
微信, 掃一掃.
DAYTON電機, 馬達, 型號: 4Z128B
DAYTON電機, 馬達, 型號: 4Z128B
DAYTON電機, 馬達, 型號: 4Z128B
DAYTON電機, 馬達, 型號: 4Z128B
|
|
|
|
|
