供應DAYTON電機, 馬達(4Z129, 4Z129A, 4Z129B, 4Z129C)
|
|
| 型號︰ | 4Z129, 4Z129C |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
|
Technical Specs:
- Item: DC Gearmotor
- Voltage: 90VDC
- Shaft Orientation: Parallel
- Reversible Shaft Output: No
- Nameplate RPM: 50
- Max. Torque: 138 in.-lb.
- Overhung Load: 150 lb.
- Input HP: 1/8
- Gear Ratio: 36:1
- Full Load Amps: 1.41
- Enclosure: TENV
- Thermal Protection: None
- Max. Ambient Temp.: 40 Degrees C
- Rotation: Reversible
- Mounting: All Position
- Motor Type: DC
- Length Less Shaft: 10-1/8"
- Overall Length: 11-5/8"
- Bearings: Needle Roller and Thrust Balls on Case, Ball on Motor
- Lubrication: Permanent Heavy Fluid Gear Oil
- Brushes: Externally Replaceable
- Gear Material: Hardened Steel
- Gear Case: Die Cast Aluminum
- Seals: On Input and Output Shaft
- Housing Material: Die Cast Aluminum
- Replacement Brushes: 6YHY6
- RPM Range: 31 to 50
|
|
|
|
| 產品規格︰ | 型號: 4Z129, 4Z129A, 4Z129B, 4Z129C |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

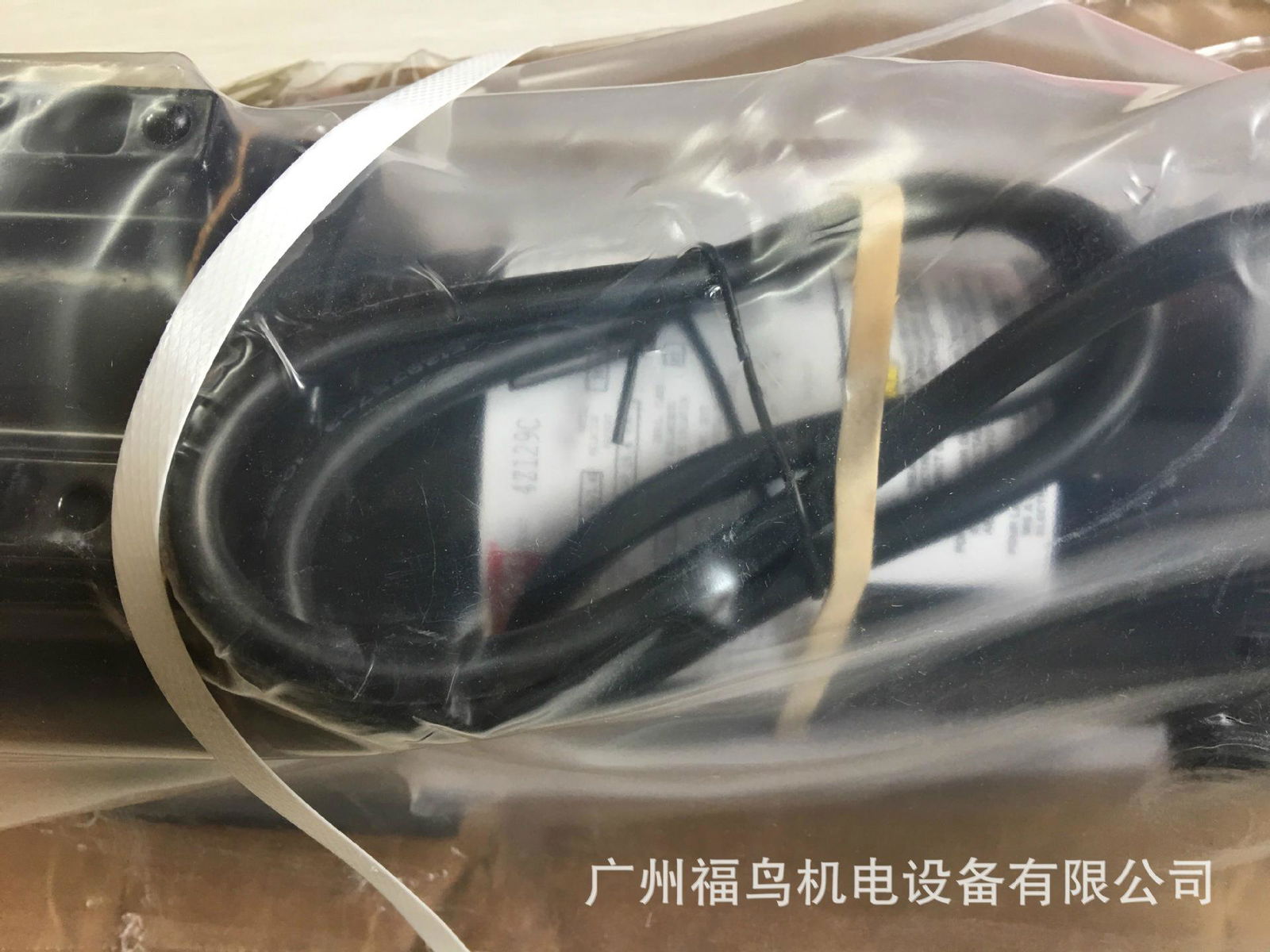

DAYTON電機, 馬達, 型號: 4Z129
DAYTON電機, 馬達, 型號: 4Z129
微店, 掃一掃.
DAYTON電機, 馬達, 型號: 4Z129
DAYTON電機, 馬達, 型號: 4Z129
DAYTON電機, 馬達, 型號: 4Z129
DAYTON電機, 馬達, 型號: 4Z129
DAYTON電機, 馬達, 型號: 4Z129
|
|
|
|
|
|
