供應DAYTON電機, 馬達( 1L527, 1L527B)
|
|
| 型號︰ | 1L527, 1L527B |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
| Item |
|
AC Gearmotor |
| Type |
|
Parallel Shaft |
| Voltage Rating |
|
230 |
| Phase |
|
1 |
| Hz |
|
60/50 |
| Shaft Orientation |
|
Parallel |
| Nameplate RPM |
|
17 |
| Full Load Torque (In.-Lbs.) |
|
100.0 |
| Overhung Load (Lb.) |
|
90 |
| Input HP |
|
1/20 |
| Gear Ratio |
|
96:1 |
| Full Load Amps |
|
0.30 |
| Enclosure |
|
TENV |
| Thermal Protection |
|
None |
| Ambient (C) |
|
40 |
| Rotation |
|
Reversible |
| Mounting |
|
All Position |
| Motor Type |
|
Permanent Split Capacitor |
| Capacitor Required |
|
Included |
| Length Less Shaft (In.) |
|
8 |
| Shaft Dimensions (In.) |
|
1/2 x 1 |
| Brake |
|
5X400 |
| Bearings |
|
Heavy Duty Needle on Case, Ball on Motor |
| Lubrication |
|
Permanent Heavy Duty Gear Oil |
| Gears |
|
1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur |
| Seals |
|
Spring Loaded Lip Type on Input and Output Shaft |
| RPM Range |
|
16 to 30 |
|
|
|
|
| 產品規格︰ | 型號: 1L527, 1L527B |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

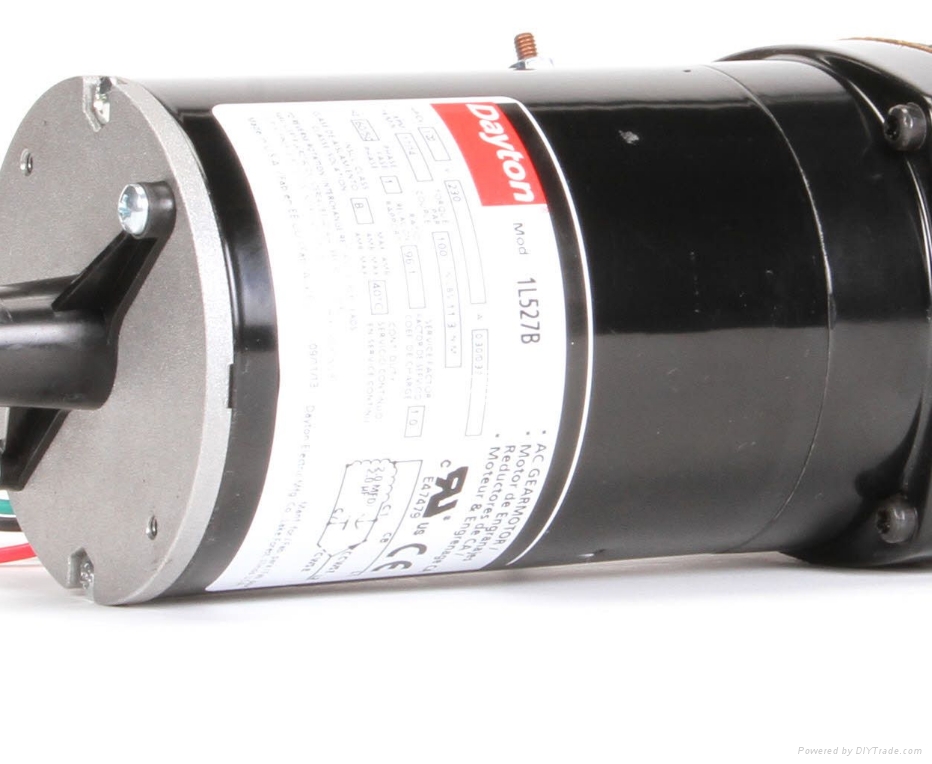

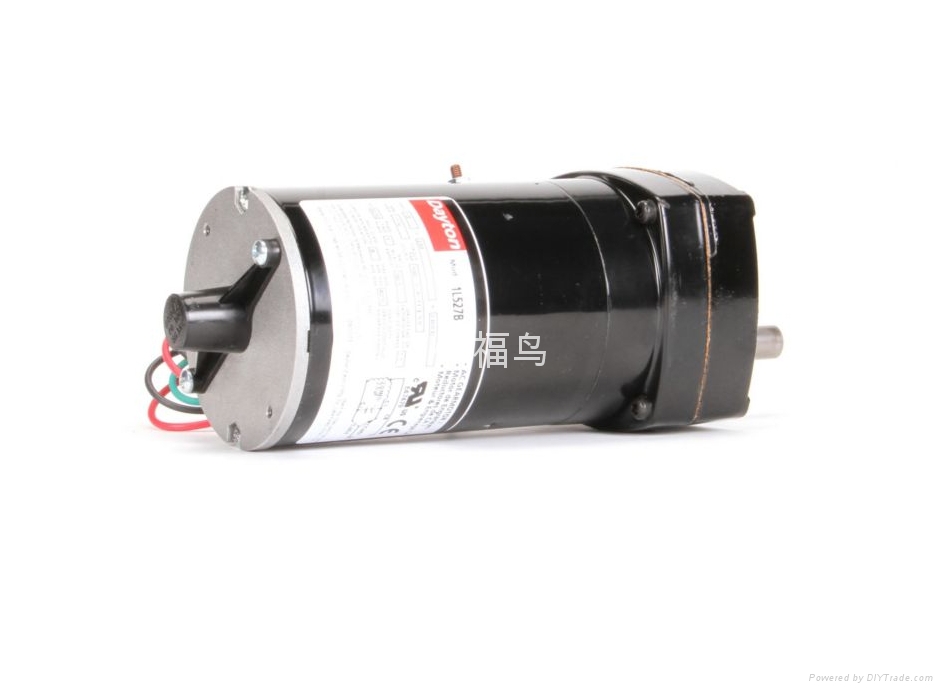

DAYTON電機, 馬達, 型號: 1L527
DAYTON電機, 馬達, 型號: 1L527
微店, 掃一掃.
DAYTON電機, 馬達, 型號: 1L527
DAYTON電機, 馬達, 型號: 1L527
DAYTON電機, 馬達, 型號: 1L527
DAYTON電機, 馬達, 型號: 1L527
|
|
|
|
|
|
