供應DAYTON電機, 馬達( 1LPN2, 3M136, 3M136B)
|
|
| 型號︰ | 1LPN2 |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
| Item |
|
AC Gearmotor |
| Type |
|
Parallel Shaft |
| Voltage Rating |
|
115 |
| Phase |
|
1 |
| Hz |
|
60 |
| Shaft Orientation |
|
Parallel |
| Reversible Shaft Output |
|
No |
| Shaft |
|
Single Output |
| Nameplate RPM |
|
13 |
| Full Load Torque (In.-Lbs.) |
|
113.0 |
| Overhung Load (Lb.) |
|
150 |
| Input HP |
|
1/10 |
| Gear Ratio |
|
128:1 |
| Full Load Amps |
|
2.60 |
| Insulation Class |
|
B |
| Enclosure |
|
Open |
| Thermal Protection |
|
None |
| Ambient (C) |
|
40 |
| Rotation |
|
CW |
| Mounting |
|
All Position |
| Motor Type |
|
Shaded Pole |

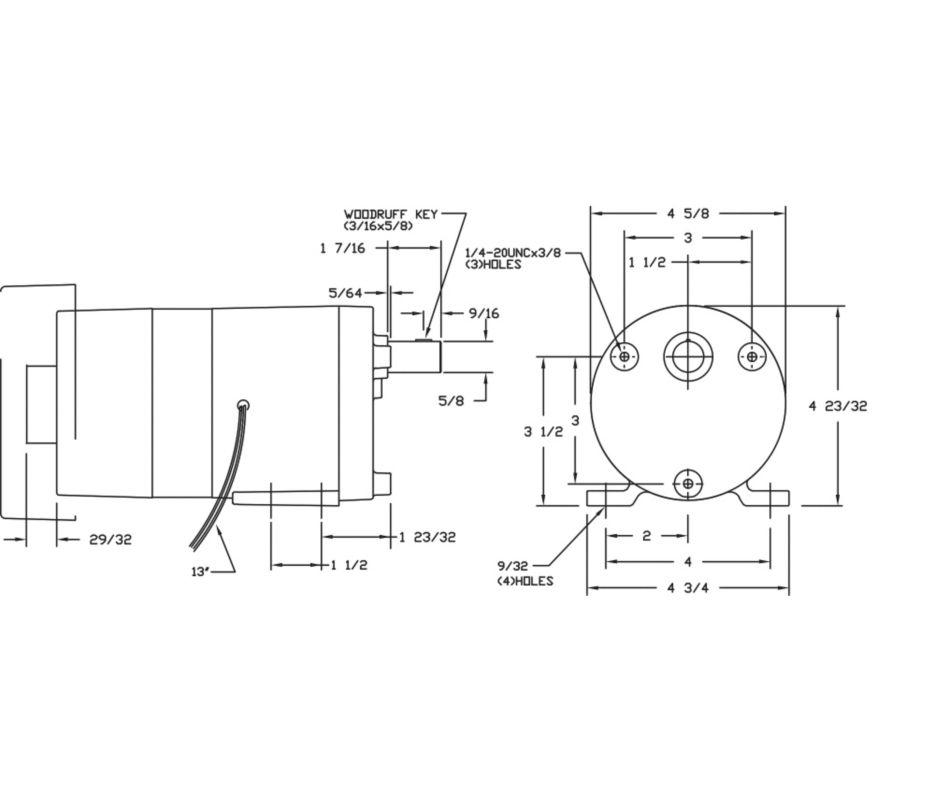

| Length Less Shaft (In.) |
|
7-7/8 |
| Shaft Dimensions (In.) |
|
5/8 x 1 1/2 |
| Keyway (In.) |
|
#605 Woodruff Key |
| Bearings |
|
Porous Bronze Sleeve on Case, Ball on Motor |
| Lubrication |
|
Grease Filled |
| Lubrication Quantity (Qt.) |
|
3.2 oz. |
| Finish |
|
Unpainted |
| Housing |
|
Zinc Die Cast |
| Gear Case |
|
Zinc Die Cast |
| Gears |
|
Acetyl/Steel |
| Seals |
|
Lip Type on Output Shaft |
| Agency Compliance |
|
RU, CSA |
| RPM Range |
|
0 to 15 |
|
|
|
|
| 產品規格︰ | 型號: 1LPN2 (替代舊型號3M136, 3M136B) |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

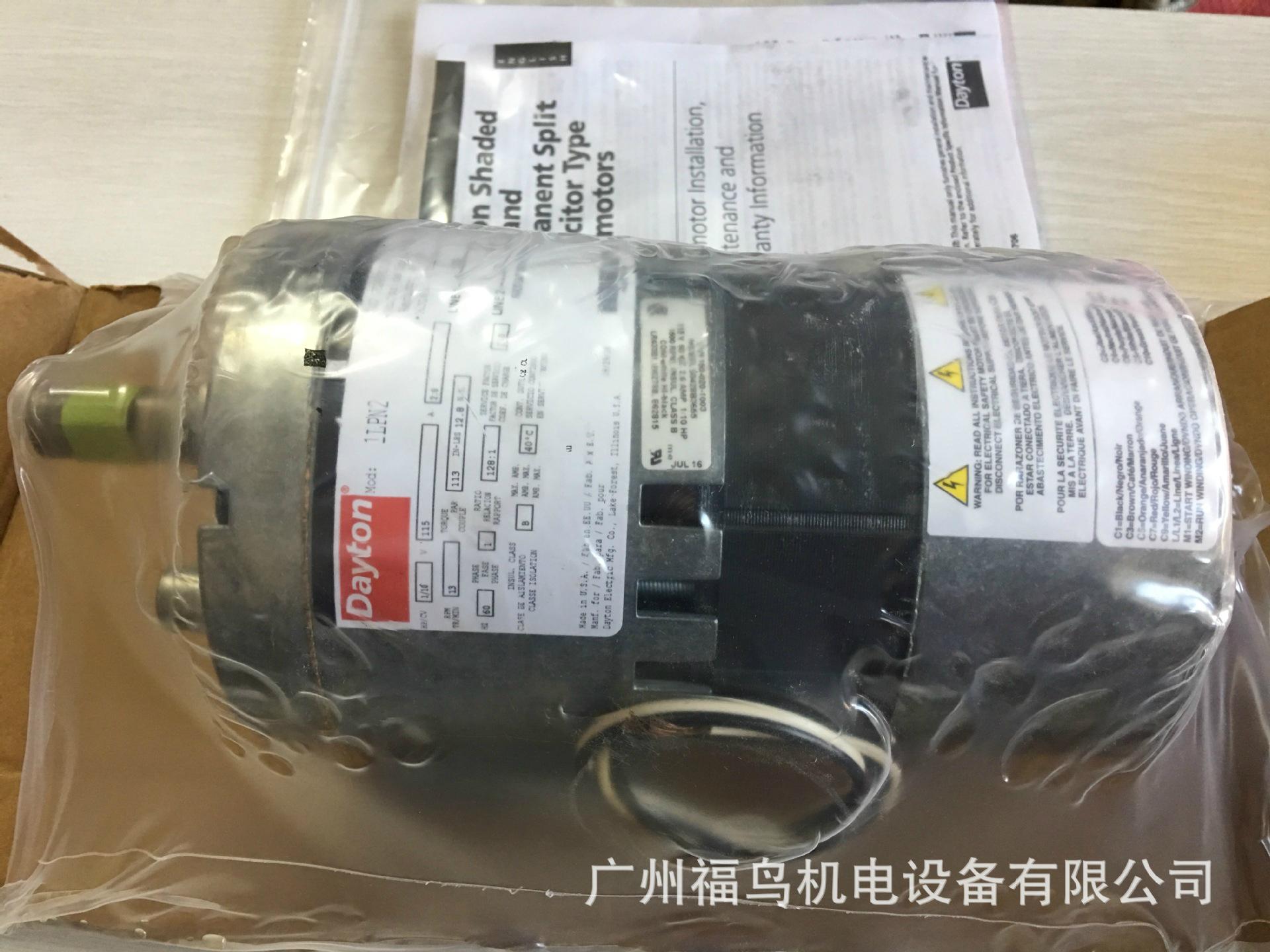

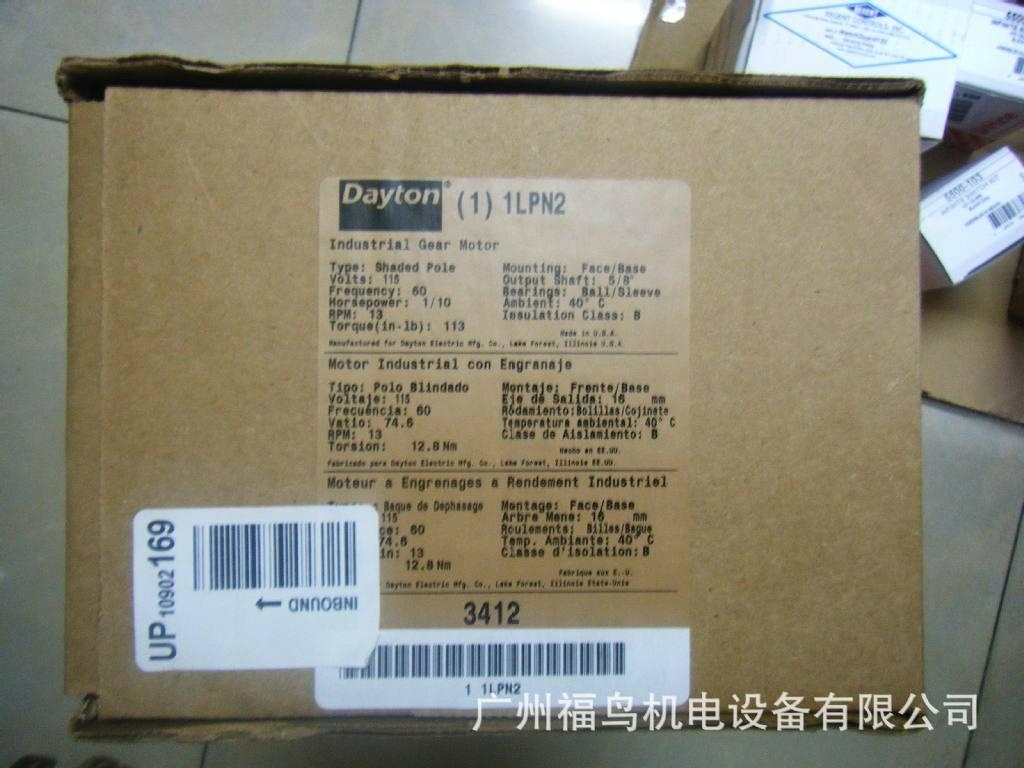

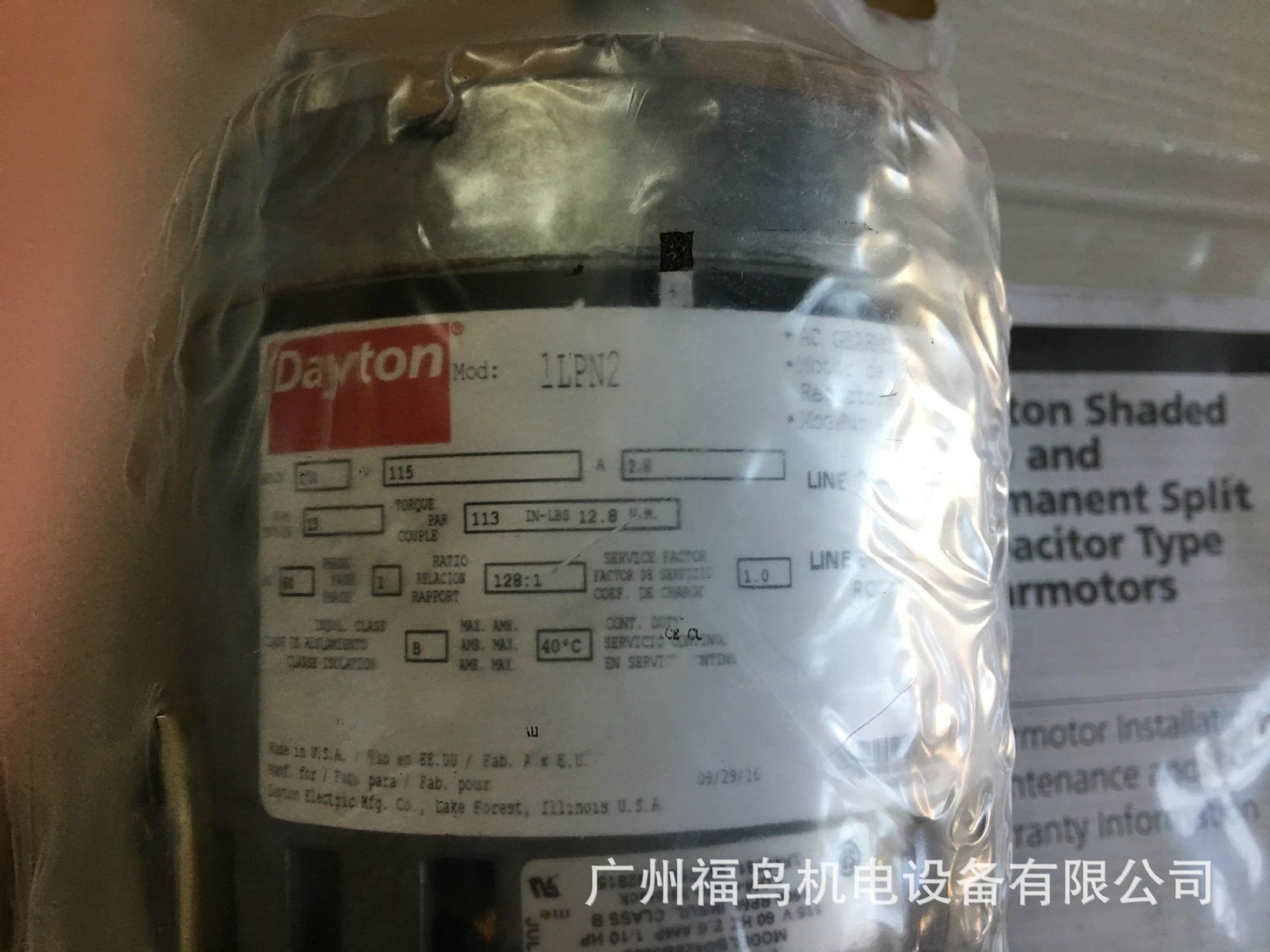

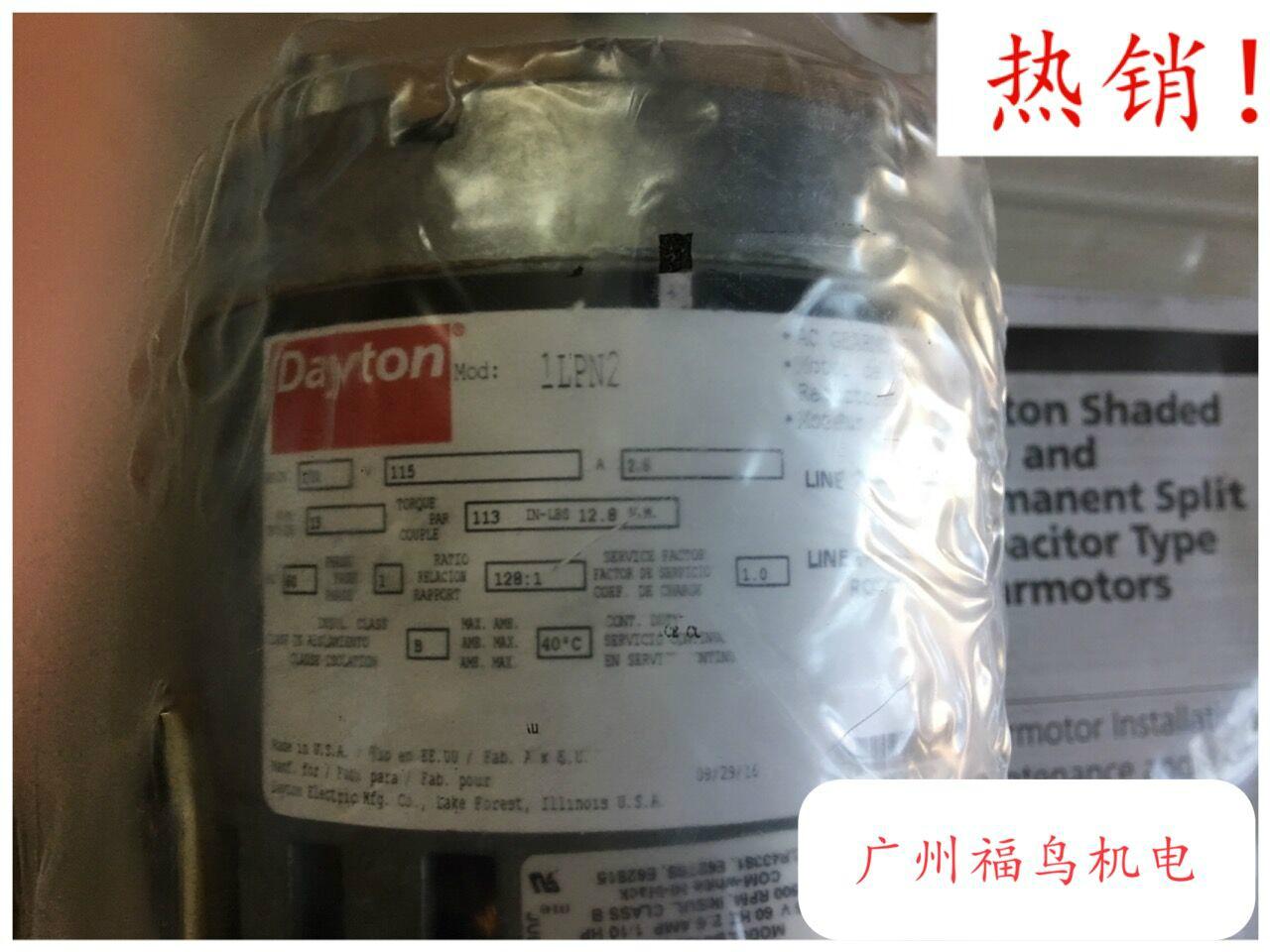

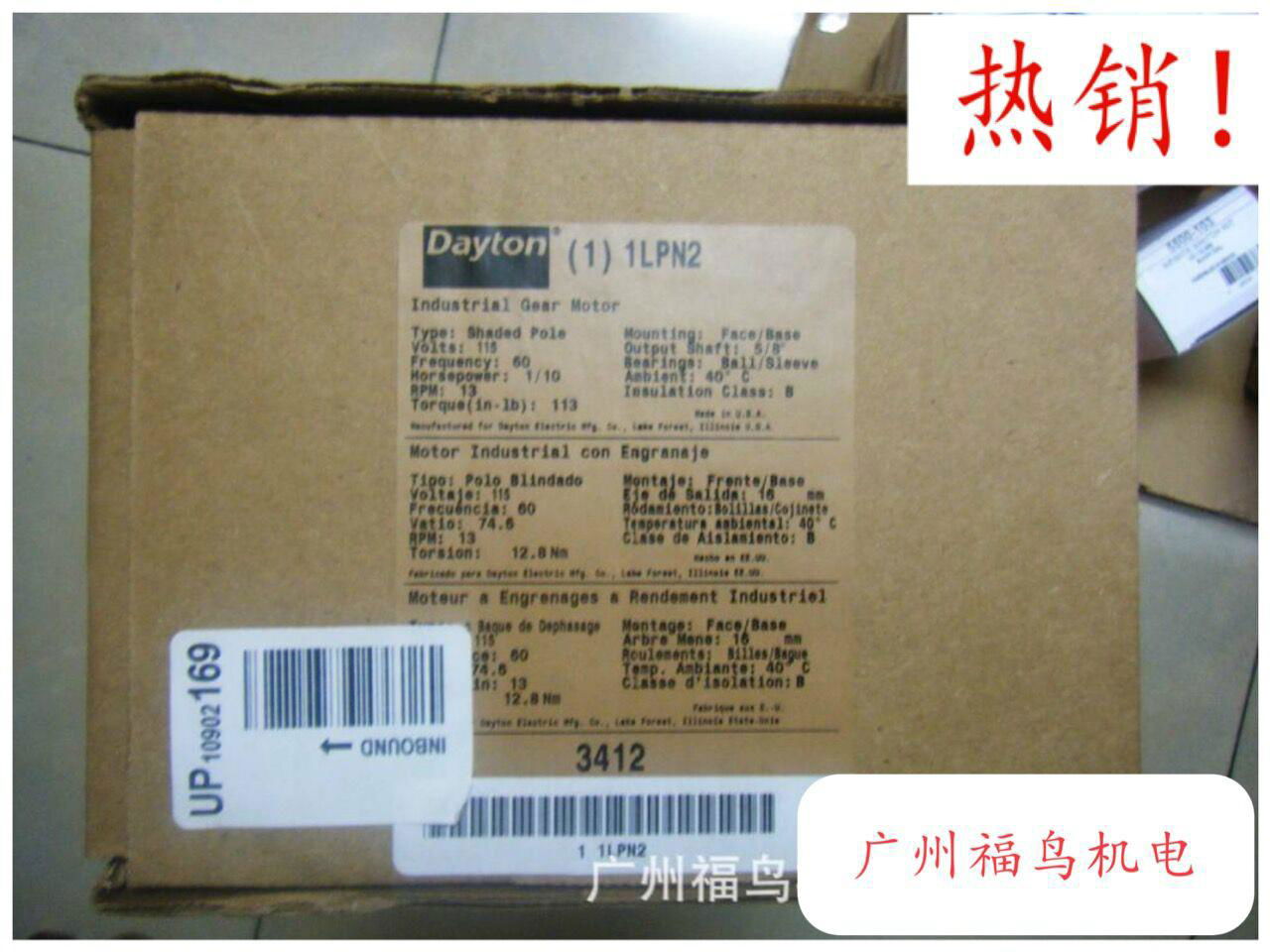

DAYTON電機, 型號: 1LPN2
DAYTON電機, 型號: 1LPN2
微店, 掃一掃.
DAYTON電機, 型號: 1LPN2
DAYTON電機, 型號: 1LPN2
DAYTON電機, 型號: 1LPN2
DAYTON電機, 型號: 1LPN2
DAYTON電機, 型號: 1LPN2
DAYTON電機, 型號: 1LPN2
|
|
|
|
|
|
