Technical Specs:
- Item: Solenoid Air Control Valve
- Air Valve Type: 4-Way, 2-Position
- Actuator/Return: Solenoid/Spring
- Body Style: Body Ported
- Pipe Size: 1/8"
- Voltage: 120VAC
- CFM: 6.9
- Coefficient of Volume: 0.144
- Electrical Connections: Lead Wire
- Shifting Technology: Direct
- Power Consumption: 4.5W
- Pressure Range: 0 to 120 psi
- Ambient Temp. Range: 32 Degrees to 125 Degrees F
- Override: Non-Locking Manual
- Overall Height: 2-3/4"
- Overall Length: 1-1/4"
- Overall Width: 1"
- NEMA Classification: NEMA 4
|
|
|
|
| 產品規格︰ | 型號: P211SC-120-A, P211SC-120-A-G
|
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

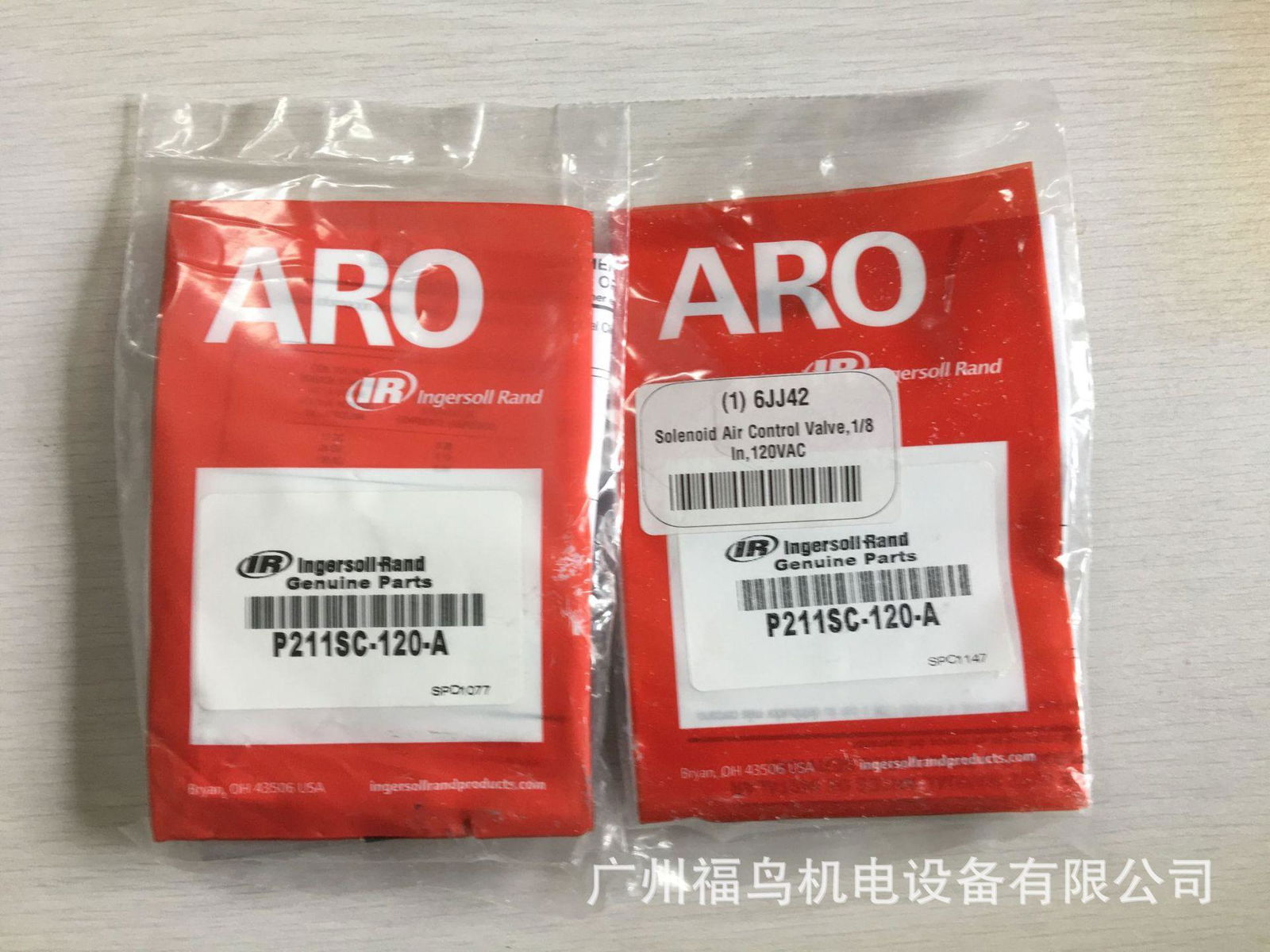

ARO電磁閥, 型號: P211SC-120-A
ARO電磁閥, 型號: P211SC-120-A
微店, 掃一掃.
ARO電磁閥, 型號: P211SC-120-A
ARO電磁閥, 型號: P211SC-120-A
ARO電磁閥, 型號: P211SC-120-A
ARO電磁閥, 型號: P211SC-120-A
ARO電磁閥, 型號: P211SC-120-A
|
|
|
|
