Technical Specs:
- Item: Solenoid Air Control Valve
- Air Valve Type: 4-Way, 2-Position
- Actuator/Return: Solenoid/Spring
- Body Style: Stackable
- Pipe Size: 1/4"
- Voltage: 120VAC
- CFM: 68
- Coefficient of Volume: 1.9
- Electrical Connections: DIN Connectors
- Shifting Technology: Solenoid/Pilot
- Power Consumption: 4.8W
- Pressure Range: 0 to 150 psi
- Ambient Temp. Range: 0 Degrees to 180 Degrees F
- Overall Height: 3-7/8"
- Overall Length: 3-15/32"
- Overall Width: 1"
- NEMA Classification: NEMA 4
|
|
|
|
| 產品規格︰ | 型號: A222SS-120-A, A222SS-120-A-G
|
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

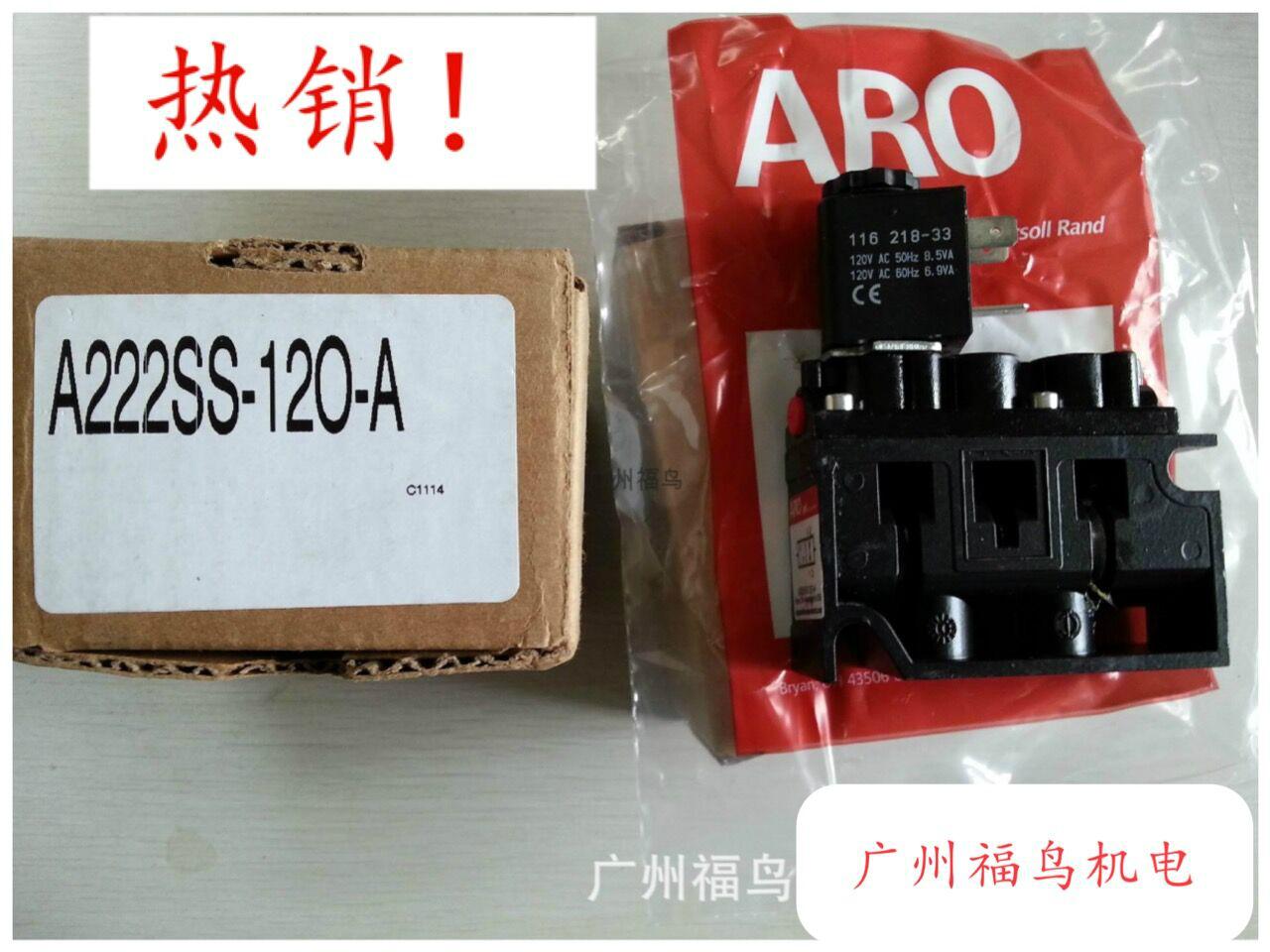

ARO電磁閥, 型號: A222SS-120-A
ARO電磁閥, 型號: A222SS-120-A
微店, 掃一掃.
ARO電磁閥, 型號: A222SS-120-A
ARO電磁閥, 型號: A222SS-120-A
ARO電磁閥, 型號: A222SS-120-A
ARO電磁閥, 型號: A222SS-120-A
ARO電磁閥, 型號: A222SS-120-A
|
|
|
|
