供應LITTLE GIANT冷卻泵(CP1-230)
|
型號︰ | CP1-230 |
品牌︰ | LITTLE GIANT |
原產地︰ | 美國 |
單價︰ | - |
最少訂量︰ | - |
|
|
|
|
|
TECHNICAL SPECS:
- Item: Pump
- Type: Evaporative Cooler
- HP: 1/70
- Voltage: 230
- Length (In.): 4-1/4
- Width (In.): 4-1/4
- Height (In.): 9
- Inlet/Outlet (In.): 1/2, 5/8, 3/4
- RPM: 3000
- Motor Type: Shaded Pole
- Motor Enclosure: OFC
- CFM: 5000-7500
- GPH of Water @ 1 Ft. of Head: 307
- GPH of Water @ 2 Ft. of Head: 288
- GPH of Water @ 3 Ft. of Head: 265
- GPH of Water @ 5 Ft. of Head: 213
- GPH of Water @ 8 Ft. of Head: 163
- GPM of Water @ 1 Ft. of Head: 5.1
- GPM of Water @ 3 Ft. of Head: 4.4
- GPM of Water @ 5 Ft. of Head: 3.5
- GPM of Water @ 9 Ft. of Head: 0.66
- Shut-Off (Ft.): 9.5
- Max. Immersion Depth (In.): 4
- Body Material: Polystyrene
- Max. Recommended Viscosity: 50 SSU
- Max. Temp.: 122
- Cord (Ft.): 4
- Application: For Evaporative Coolers, Displays, Laboratories, Water Transfer Uses
- For Use With: Nonflammable Liquids Compatible with Pump Materials
|
|
|
|
產品規格︰ | 型號: CP1-230
|
主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|

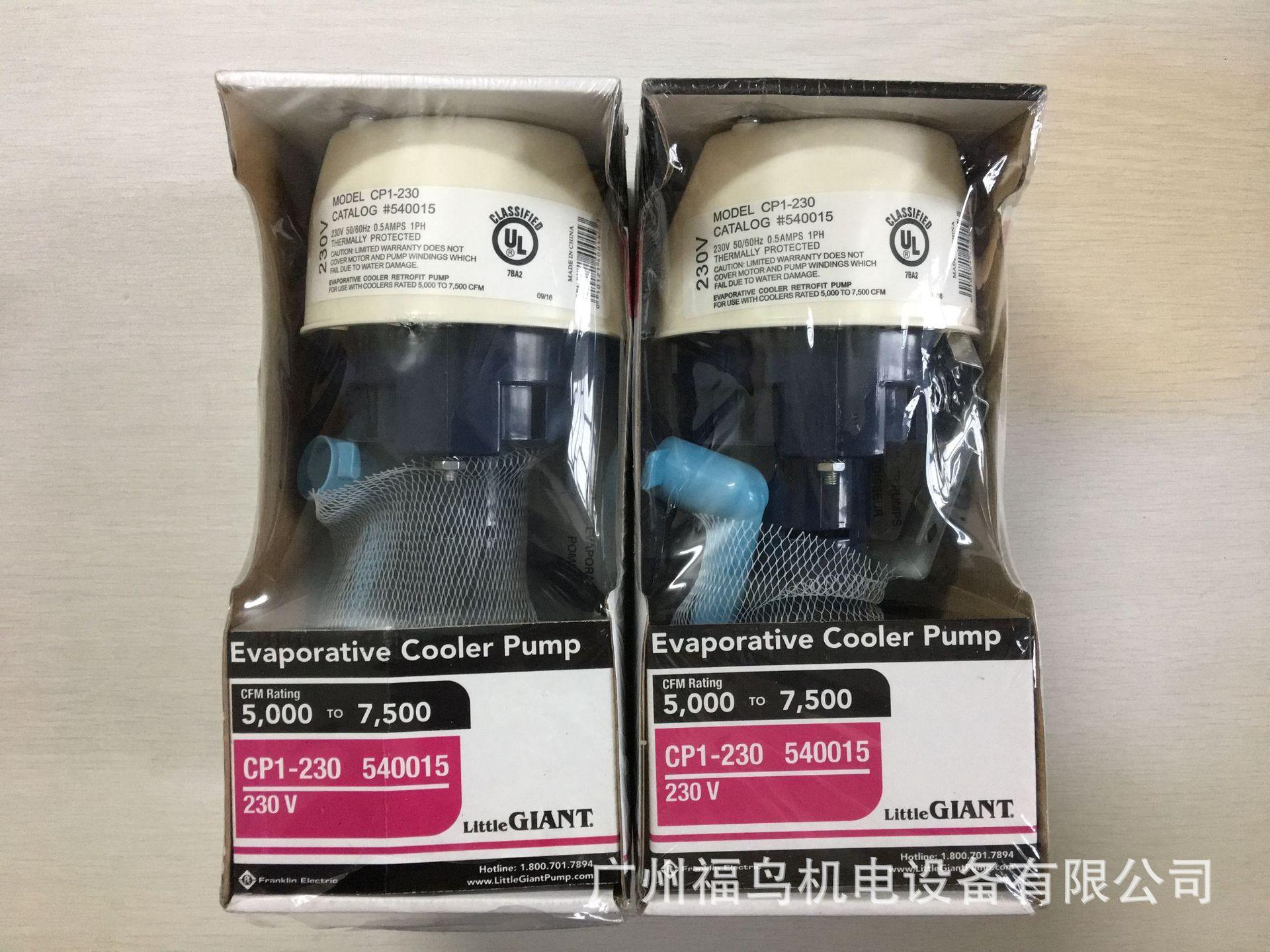

產品圖片
|
LITTLE GIANT冷卻泵, 型號: CP1-230
LITTLE GIANT冷卻泵, 型號: CP1-230
LITTLE GIANT冷卻泵, 型號: CP1-230
LITTLE GIANT冷卻泵, 型號: CP1-230
LITTLE GIANT冷卻泵, 型號: CP1-230
|
|
|
|
|
