供應CECOMP數顯壓力表(DPG1000B100PSIG-5)
型號︰
DPG1000B100PSIG
品牌︰
API
原產地︰
美國
共有
9
相關信息
1
2
3
4
5
下一個
產品描述
主要參數:
Pressure Range
0-100 PSI gauge pressure
Size
3" nominal
Connection
1/4" Male NPT lower mount
Accuracy
+/-0.25% of full scale, +/- 1 least significant digit
Wetted Parts
316 Stainless Steel
Case
Extruded aluminum, epoxy painted, polycarbonate cover
Display
3-1/2 digit LCD, 1/2" digit height
Display Resolution
0.1 PSI
Display Update
3 readings per second nominal
Auto Shut-off
auto shut-off after 5 minutes to conserve battery life
Battery Life
2500 hours typical "ON" time
Low Battery Indication
"LOBAT"=replace battery
Battery
(2) replaceable AA alkaline
Operating Temp
-4 to 185 degrees F (-20 to 85 degrees C)
Temp Compensated
32 to 158 degrees F (0 to 70 degrees C)
Temperature Stability
+/-0.003% of span/degree typical
Zero & Span Adjustment
Multi-turn pots, +/- 15% of range
Overpressure Protection
2X rated pressure
Burst Pressure
4X rated pressure
Electrical Connection
none required
Weight
9 oz. (approx.)
產品規格︰
型號: DPG1000B100PSIG-5
主要市場︰
業務QQ: 2543525125, 2054518018, 532560858.
產品圖片

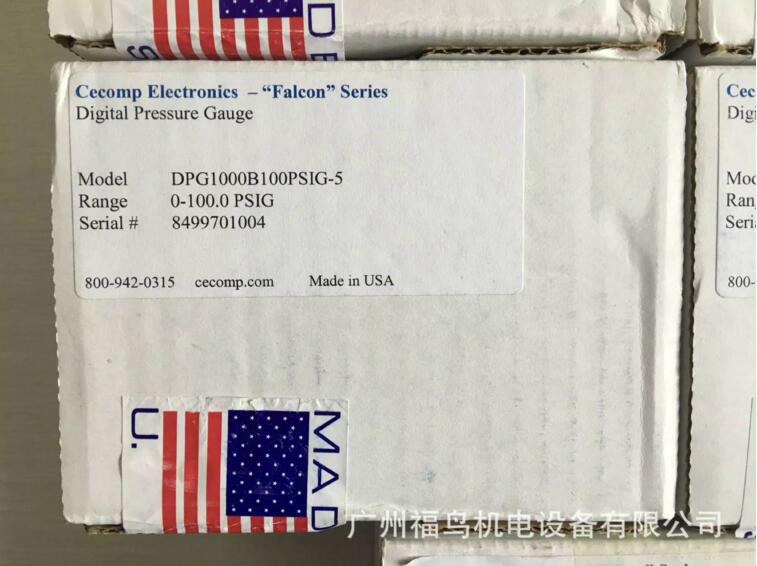

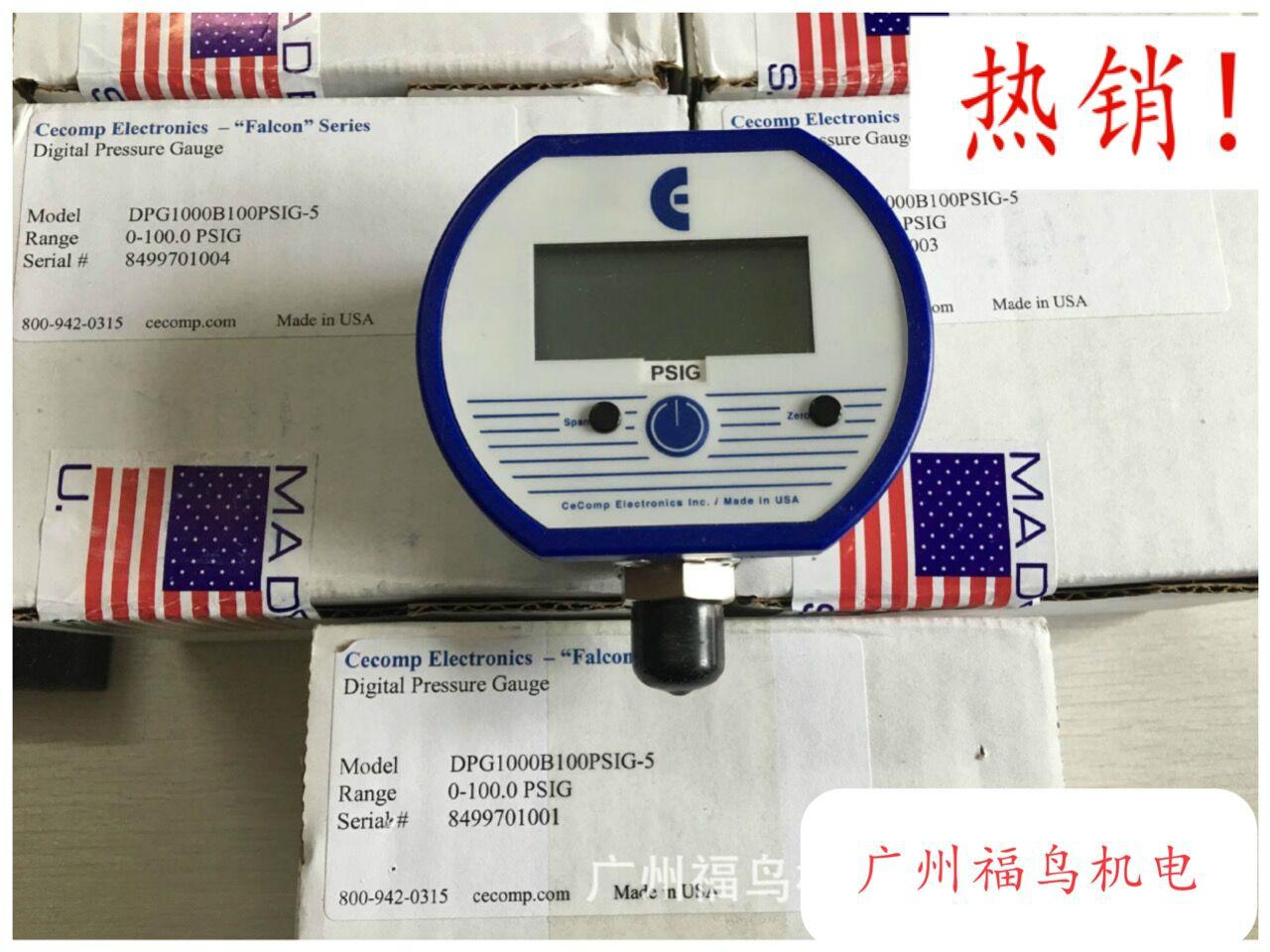

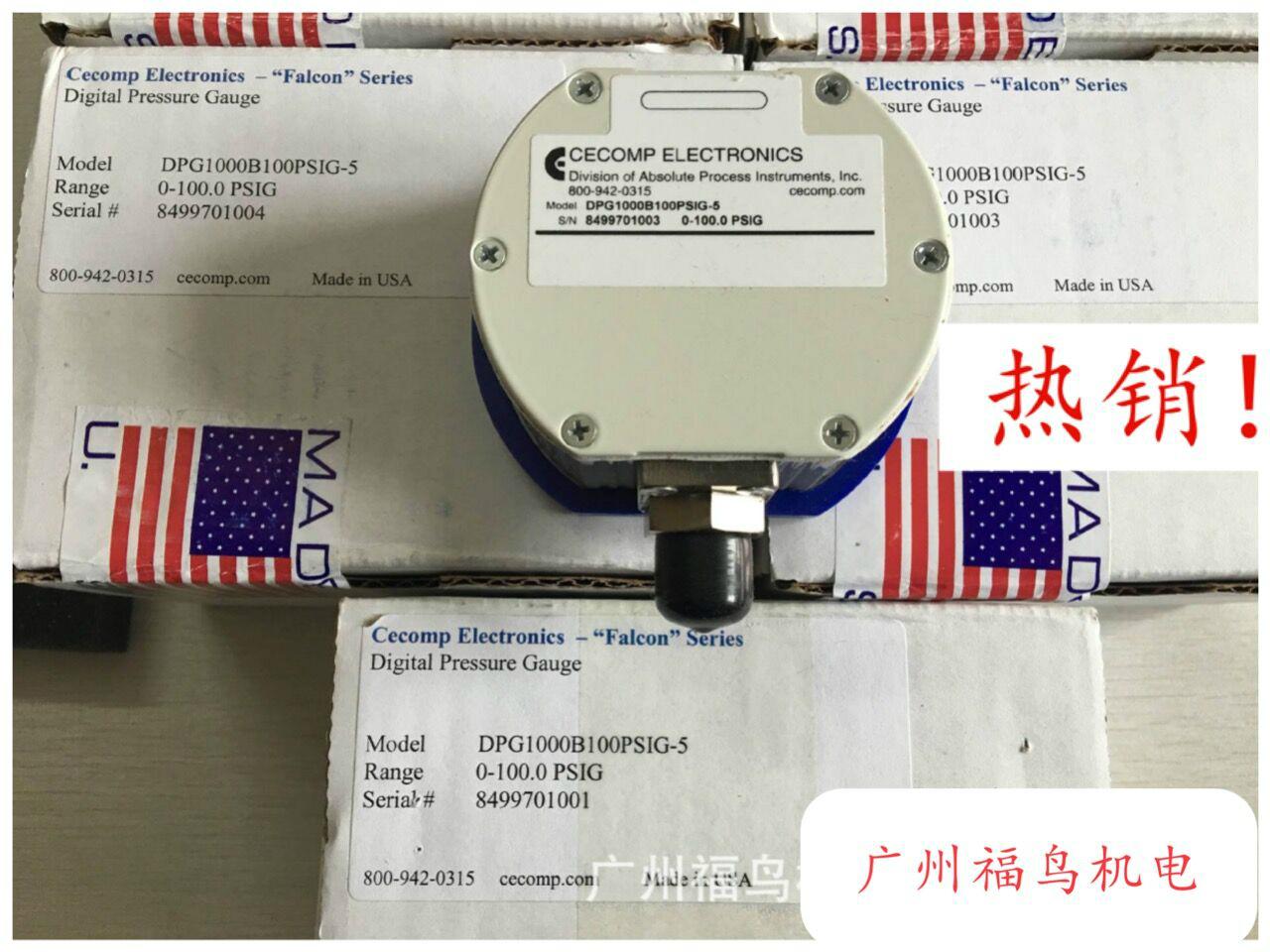

CECOMP數顯壓力表, 型號: DPG1000B100PSIG-5
CECOMP數顯壓力表, 型號: DPG1000B100PSIG-5
CECOMP數顯壓力表, 型號: DPG1000B100PSIG-5
CECOMP數顯壓力表, 型號: DPG1000B100PSIG-5
CECOMP數顯壓力表, 型號: DPG1000B100PSIG-5
