供應美國PLAST-O-MATIC電磁閥(PS050VW11-PV)
|
|
| 型號︰ | - |
| 品牌︰ | PLAST-O-MATIC |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
|
Technical Specs:
- Item: Solenoid Valve
- Body Material: PVC
- Valve Design: 3-Way/2-Position
- Valve Configuration: Normally Closed
- Pipe Size: 1/2"
- Orifice Dia.: 63/64"
- Coefficient of Volume: 5.20
- Min. Operating Pressure Differential: 5 psi
- Safe Working Water Pressure: 140 psi
- Voltage: 120VAC
- Operation: Pilot Operated
- NEMA Rating: 4X
- Max. Fluid Temp.: 140 Degrees F
- Seal Material: Viton
- Coil Insulation Class: F
- Hz: 60
- Coil Enclosure: Watertight and Dust Tight
- Electrical Connections: 1/2" Conduit
- Overall Length: 3-1/2"
- Overall Width: 3-1/2"
- Overall Height: 6-5/8"
- Application: For Use in Severe Service Applications with Most Liquids, Including Acids, Caustics, Chlorine Solutions, Solvents and Ultrapure Fluids.
|
|
|
|
| 產品規格︰ | 型號: PS050VW11-PV, 120V/60HZ |
|
|

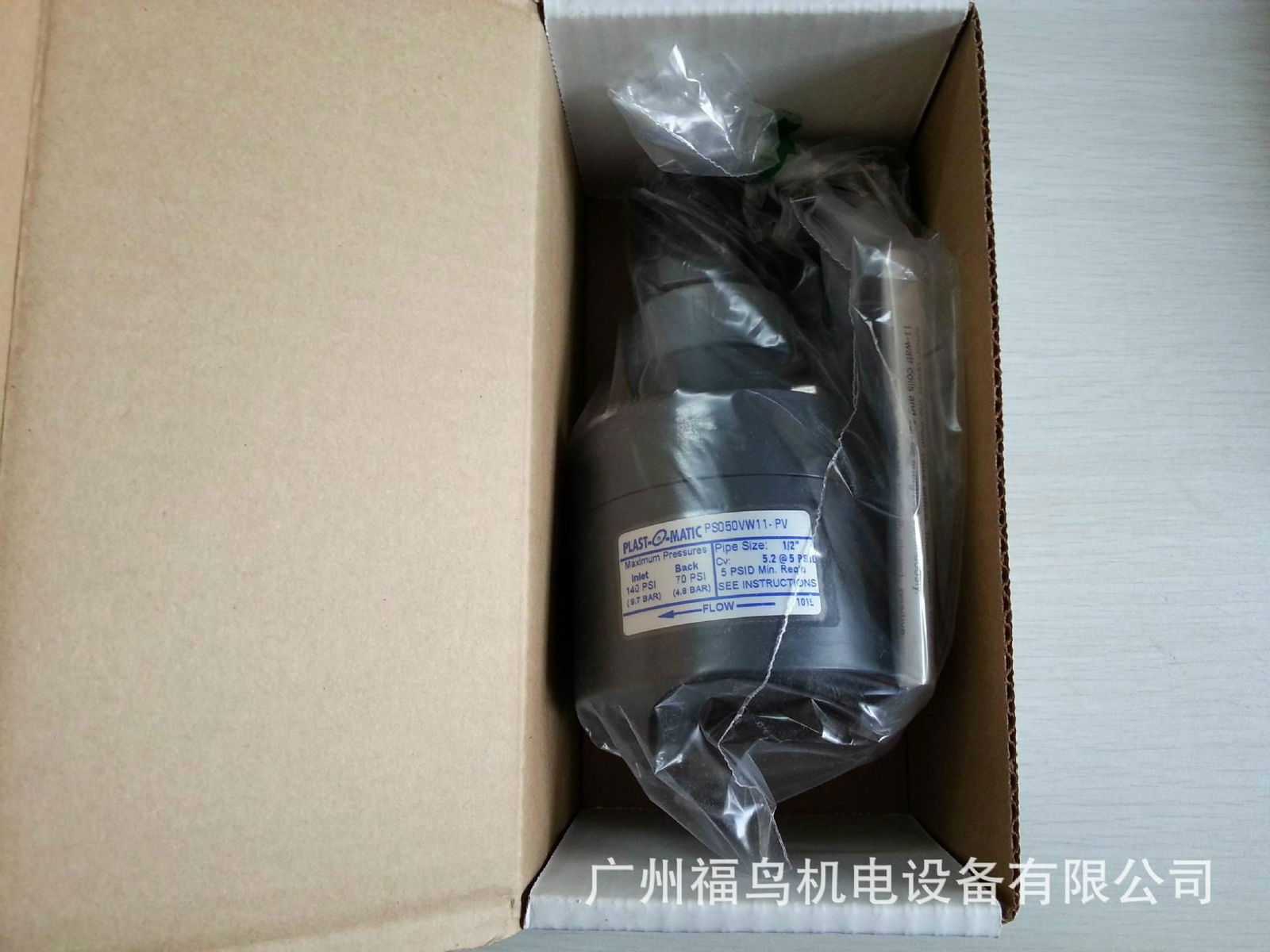

產品圖片
|
|
PLAST-O-MATIC電磁閥, 型號: PS050VW11-PV
微店, 掃一掃.
PLAST-O-MATIC電磁閥, 型號: PS050VW11-PV
微信, 掃一掃.
PLAST-O-MATIC電磁閥, 型號: PS050VW11-PV
PLAST-O-MATIC電磁閥, 型號: PS050VW11-PV
PLAST-O-MATIC電磁閥, 型號: PS050VW11-PV
|
|
|
|
|
|
|
|
|
|
|
|
|
