供應DAYTON電機, 馬達( 4Z382, 4Z382A, 4Z382B)
|
|
| 型號︰ | 4Z382, 4Z382B |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
| Item |
|
DC Gearmotor |
| Type |
|
Parallel Shaft |
| Voltage Rating |
|
90VDC |
| Phase |
|
DC |
| Shaft Orientation |
|
Parallel |
| Nameplate RPM |
|
64 |
| Full Load Torque (In.-Lbs.) |
|
220.0 |
| Overhung Load (Lb.) |
|
150 |
| Input HP |
|
1/8 |
| Gear Ratio |
|
28:1 |
| Full Load Amps |
|
1.41 |
| Enclosure |
|
TENV |
| Thermal Protection |
|
None |
| Ambient (C) |
|
40 |
| Rotation |
|
Reversible |
| Mounting |
|
All Position |
| Length Less Shaft (In.) |
|
10-1/8 |
| Shaft Dimensions (In.) |
|
5/8 x 1 1/2 |
| Bearings |
|
Needle Roller and Thrust Balls on Case, Ball on Motor |
| Lubrication |
|
Permanent Heavy Fluid Gear Oil |
| Brushes |
|
Externally Replaceable |
| Gear Case |
|
Die Cast Aluminum |
| Gears |
|
Hardened Steel |
| Seals |
|
On Input and Output Shaft |
| Replacement Brushes |
|
6YHY6 |
| RPM Range |
|
51 to 75 |
|
|
|
|
| 產品規格︰ | 型號: 4Z382, 4Z382B, 4Z382A |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

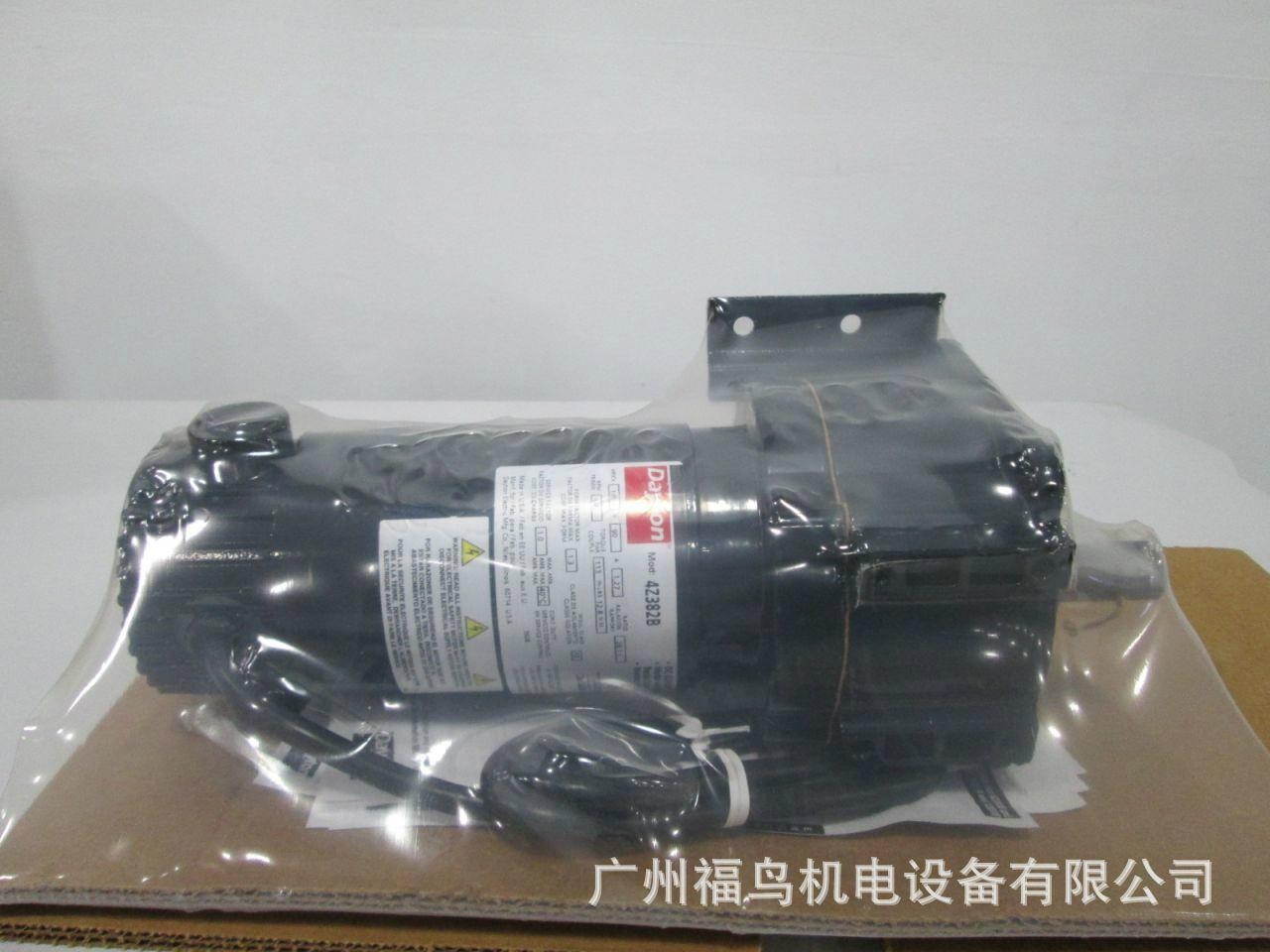

DAYTON電機, 馬達, 型號: 4Z382B
微店, 掃一掃.

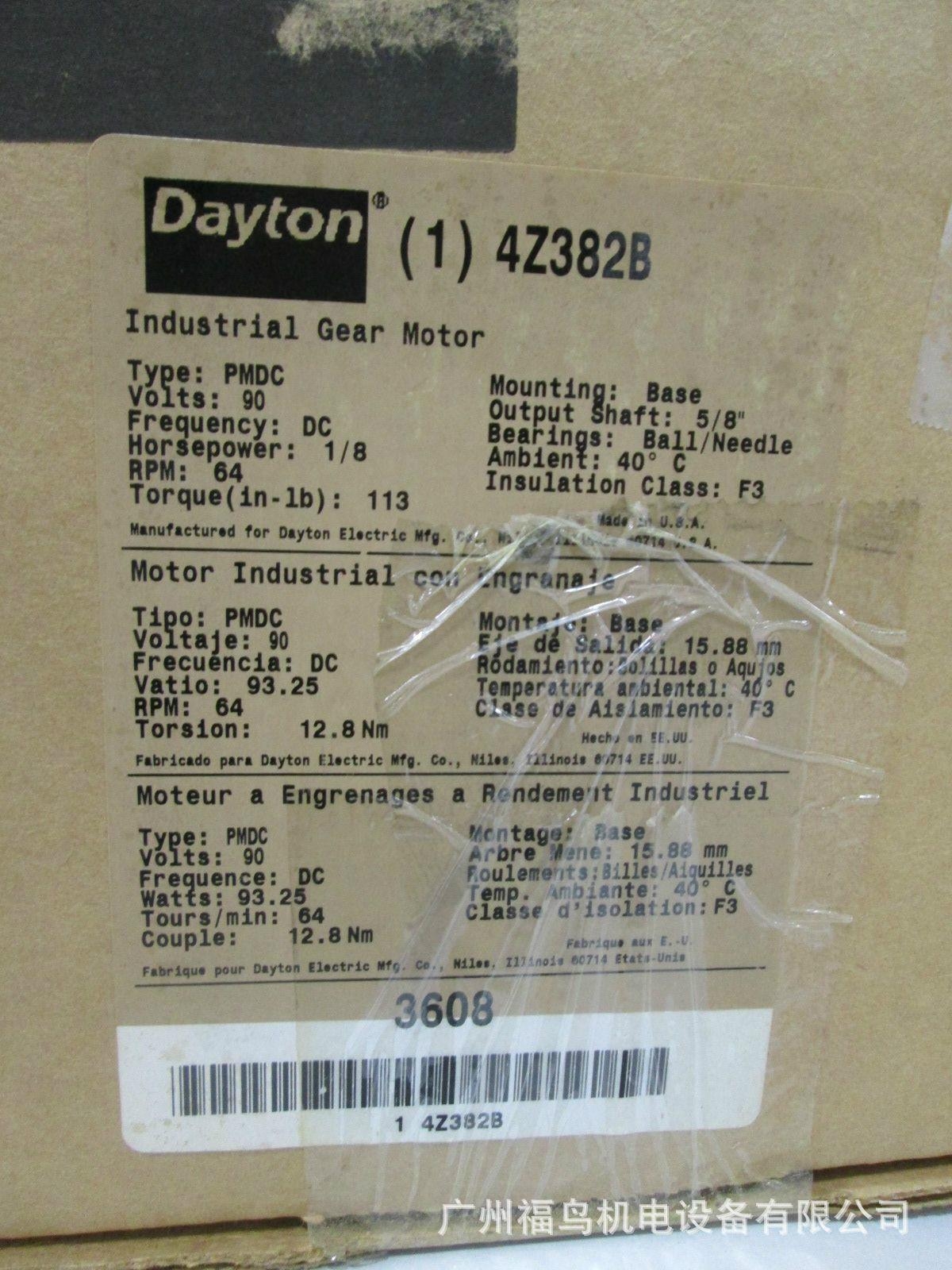

DAYTON電機, 馬達, 型號: 4Z382B
微信, 掃一掃.
DAYTON電機, 馬達, 型號: 4Z382B
DAYTON電機, 馬達, 型號: 4Z382B
DAYTON電機, 馬達, 型號: 4Z382B
|
|
|
|
|
|
