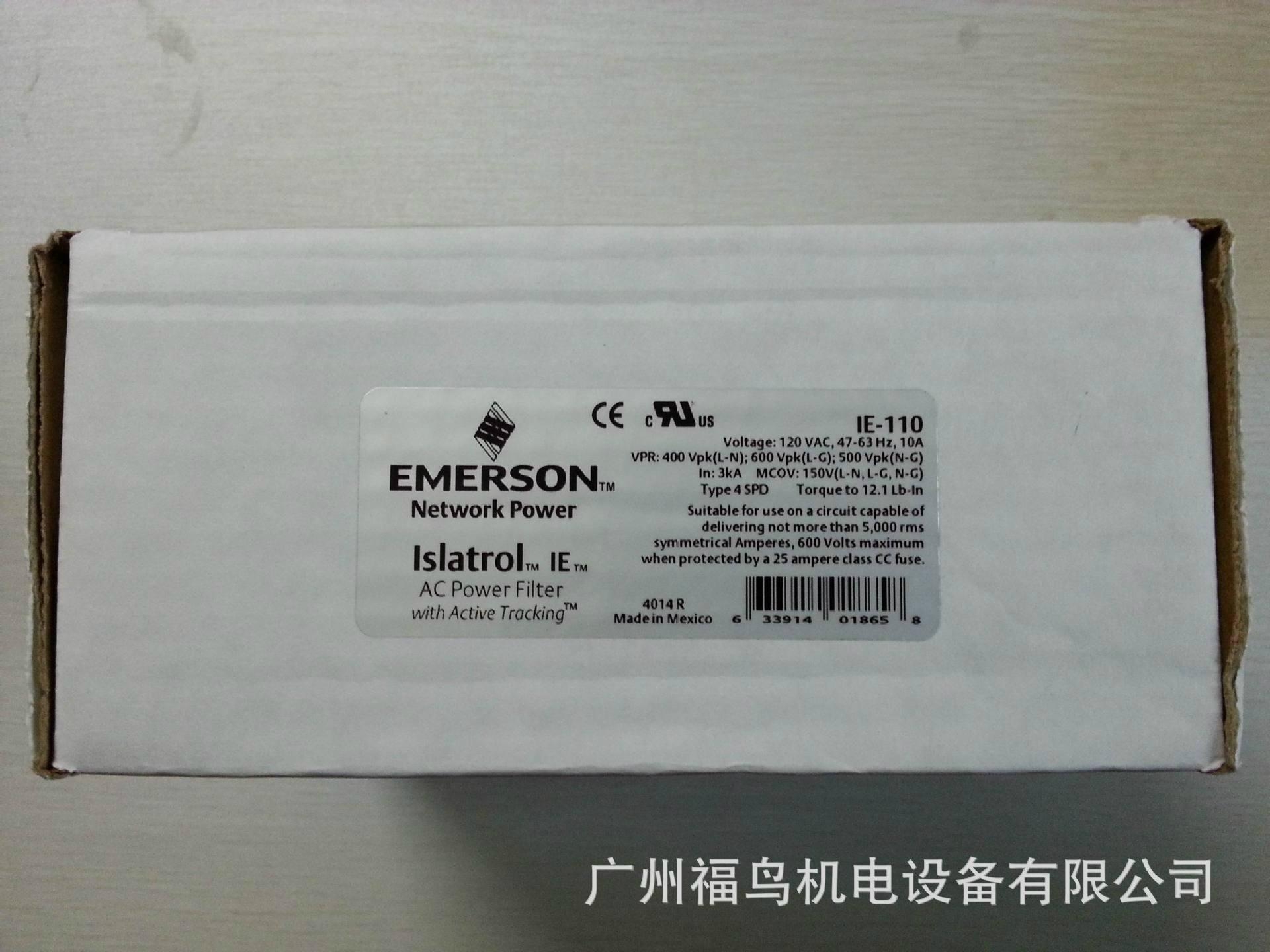

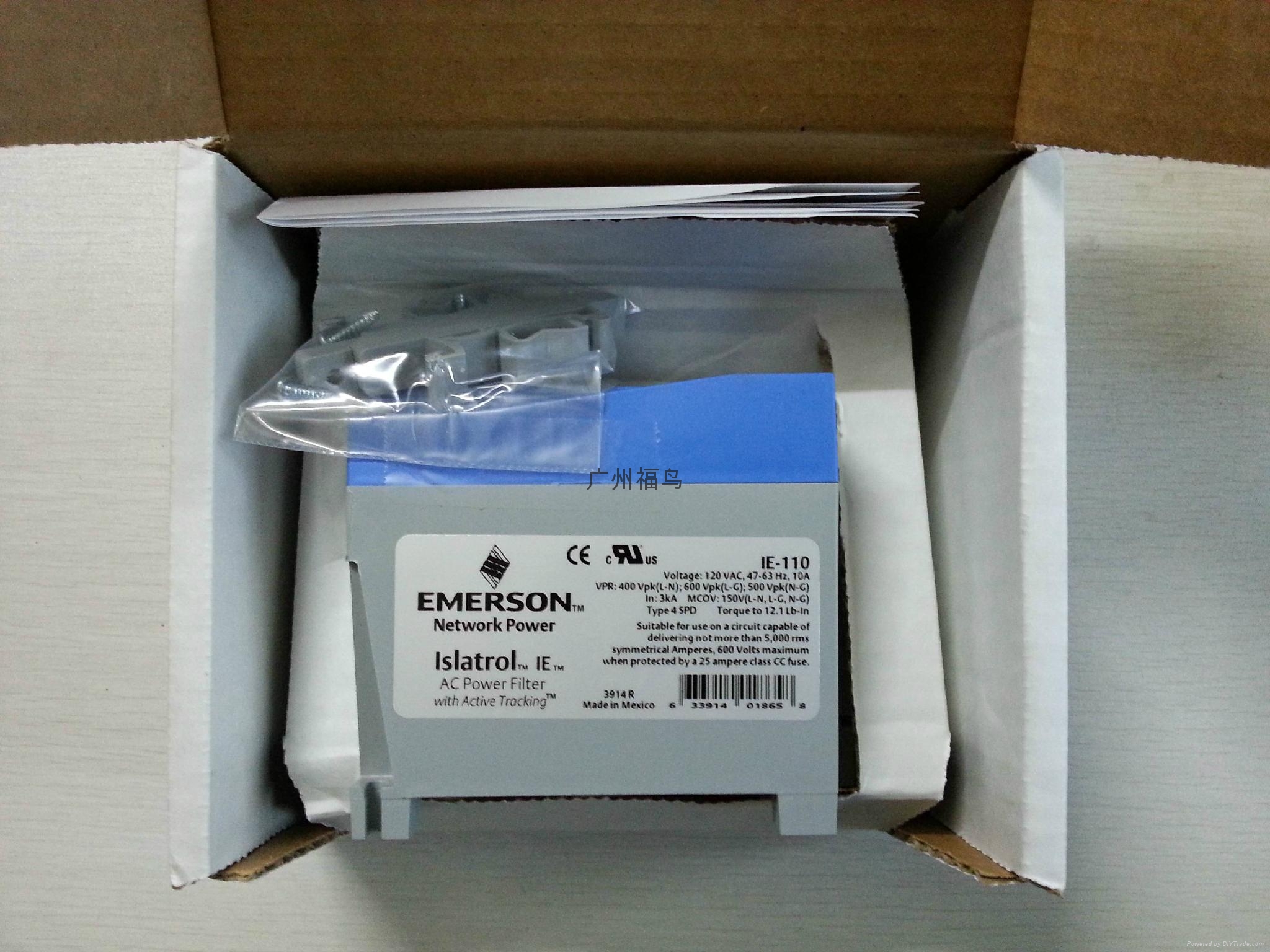

供應EMERSON (CONTROL CONCEPTS)電源濾波器(IE-110)
|
|
| 型號︰ | IE-110 |
| 品牌︰ | CONTROL CONCEPTS EMERSON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
| Application |
: |
Any microprocessor-based products, including industrial PLCs, OEM applications and motion control systems |
| Brand/Series |
: |
IE Series |
| Current, Rating |
: |
10 A |
| Current, Surge Capacity |
: |
45000 A |
| Dimensions |
: |
97.2mmH×77.7mmW×103.1mmL |
| Filter Type |
: |
Noise |
| Frequency Response |
: |
10 kHz to 50 MHz (90 dB Min.) Normal Mode, 5 MHz to 50 MHz (60 dB Min.) Common Mode |
| Frequency, Operating |
: |
47 to 63 Hz |
| Mounting Type |
: |
DIN/Flange |
| Phase |
: |
1 |
| Primary Type |
: |
Multi-Stage |
| Response Time |
: |
0.5 ns (Max.) Normal Mode, 5 ns (Max.) Common Mode |
| Standards |
: |
UL 1449, 1283, CUL Recognized, CE |
| Temperature, Operating |
: |
-40 to +45 °C |
| Type |
: |
Filter |
| Voltage, Operating |
: |
120 VAC |
| Voltage, Rating |
: |
120 VAC |
|
|
|
|
| 產品規格︰ | 型號: IE-110
|
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
