供應CLEVELAND振動器(CVT-P-10)
|
|
| 型號︰ | CVT-P-10 |
| 品牌︰ | CLEVELAND |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
|
Technical Specs:
- Item: Vibrator
- Type: Turbine
- Power Source: Pneumatic/Air
- Voltage: Non-Electric
- Phase: Non-Electric
- Force (Lb.): 25
- Duty: Continuous
- Max. Material in Bin (Lb.): 250
- Speed @ 60 psi (VPM): 20,500
- Speed @ 80 psi (VPM): 20,900
- Speed (VPM): 20,900
- CFM @ 60 psi: 1.1
- CFM @ 80 PSI: 1.4
- Inlet Port (In.): #10-32 UNF
- Outlet Port (In.): #10-32 UNF
- Muffler: Included
- Mounting: Any Position
- Mounting Plate: No
- Enclosure: 304 Stainless Steel
- Housing: Acetal Plastic
- Lubrication: Not Required or Recommended
- Overall Height (In.): 1-9/32
- Overall Length (In.): 1-1/2
- Overall Width (In.): 31/32
- Application: Small Bins and Hoppers, Parts Tracks, Packaging Feeders, Food and Pharma Clean Room, Small Screeners, Chutes and Pipes, Packers
- Includes: Grade 5 Mounting Hardware and Manual
|
|
|
|
| 產品規格︰ | 型號: CVT-P-10 |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

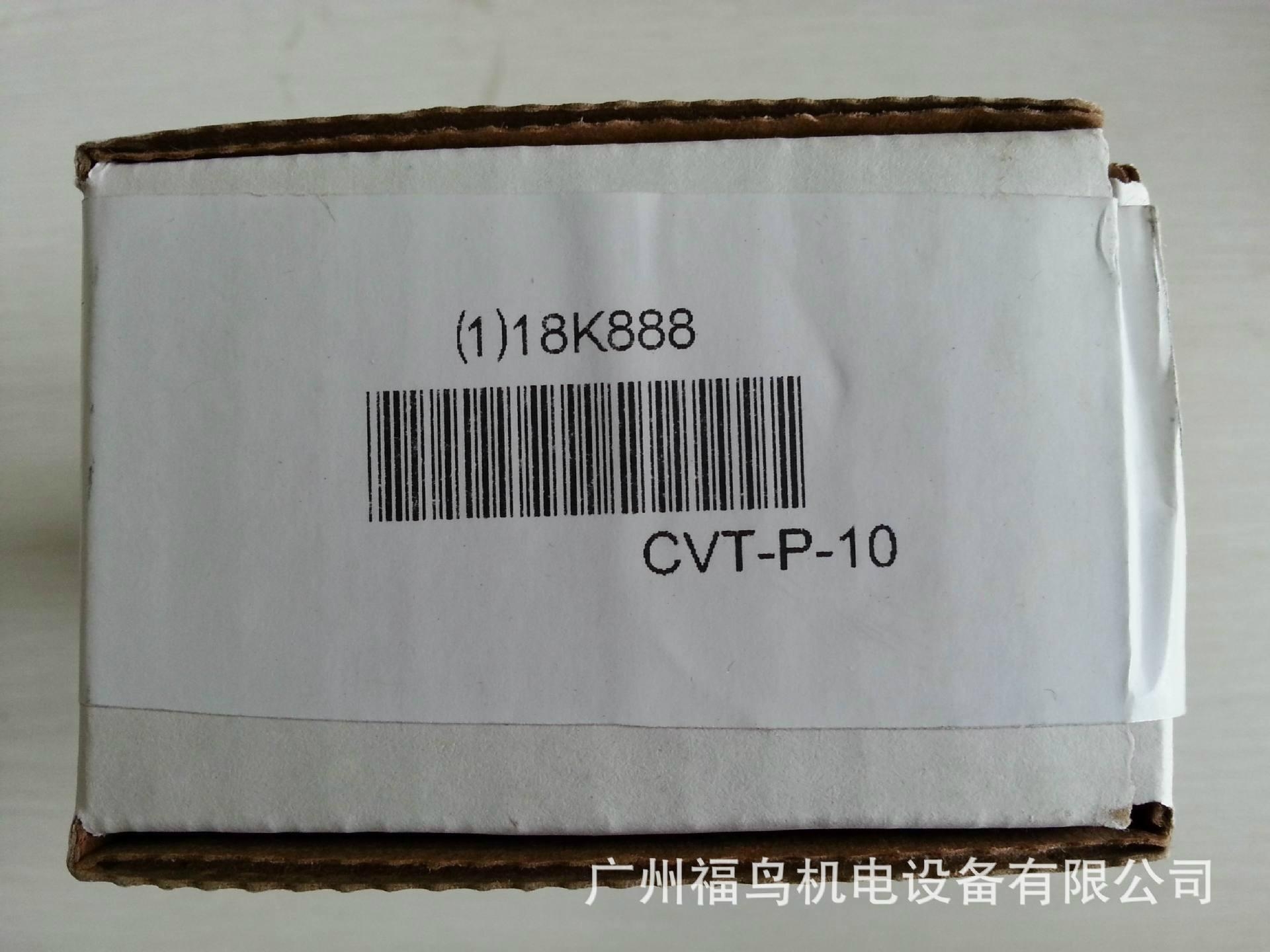

CLEVELAND振動器, 型號: CVT-P-10
