現貨供應DAYTON風機(1TDT3, 4C870, 4C870A)
|
|
| 型號︰ | 1TDT3 |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
| Item |
|
PSC Blower |
| Wheel Dia. (In.) |
|
6-1/4 |
| Wheel Width (In.) |
|
3-13/16 |
| CFM @ 0.000-In. SP |
|
559 |
| CFM @ 0.100-In. SP |
|
540 |
| CFM @ 0.200-In. SP |
|
525 |
| CFM @ 0.300-In. SP |
|
510 |
| CFM @ 0.400-In. SP |
|
480 |
| CFM @ 0.500-In. SP |
|
450 |
| CFM @ 0.600-In. SP |
|
430 |
| CFM @ 0.700-In. SP |
|
390 |
| CFM @ 0.800-In. SP |
|
360 |
| Voltage |
|
230 |
| Hz |
|
50/60 |
| Phase |
|
1 |
| Full Load Amps |
|
0.98 |
| RPM |
|
1600 |
| Bearing Type |
|
Ball |
| Motor Type |
|
Permanent Split Capacitor |
| Motor Enclosure |
|
Open |
| Motor Insulation |
|
Class B |
| Thermal Protection |
|
Auto |
| Lead Length (In.) |
|
13 |
| Conduit Box |
|
Yes |
| Ambient Temp. (Deg. F) |
|
104 |
| Max. Inlet Temp. (Deg. F) |
|
104 |

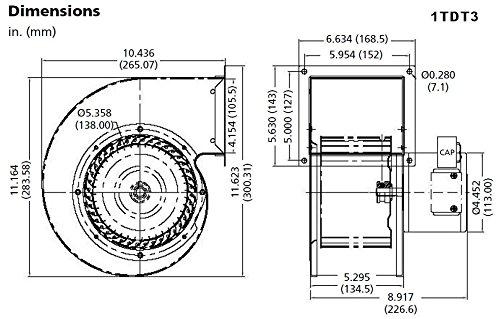

| Inlet Dia. (In.) |
|
5-5/16 |
| Outlet Height (In.) |
|
4-1/4 |
| Outlet Width (In.) |
|
5-1/4 |
| Overall Height (In.) |
|
11-1/8 |
| Overall Width (In.) |
|
9-3/16 |
| Overall Depth (In.) |
|
10-7/16 |
| Wheel Type |
|
Forward Curve |
| Drive Type |
|
Direct |
| Mounting |
|
All Position |
| Housing Finish |
|
Gray Enamel |
| Housing Material |
|
Rolled Steel |
| Agency Compliance |
|
UL Recognized US and Canada (E47479), CE |
| Replaces |
|
4C870 |
|
|
|
|
| 產品規格︰ | 型號: 1TDT3 (替代舊型號: 4C870, 4C870A) |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

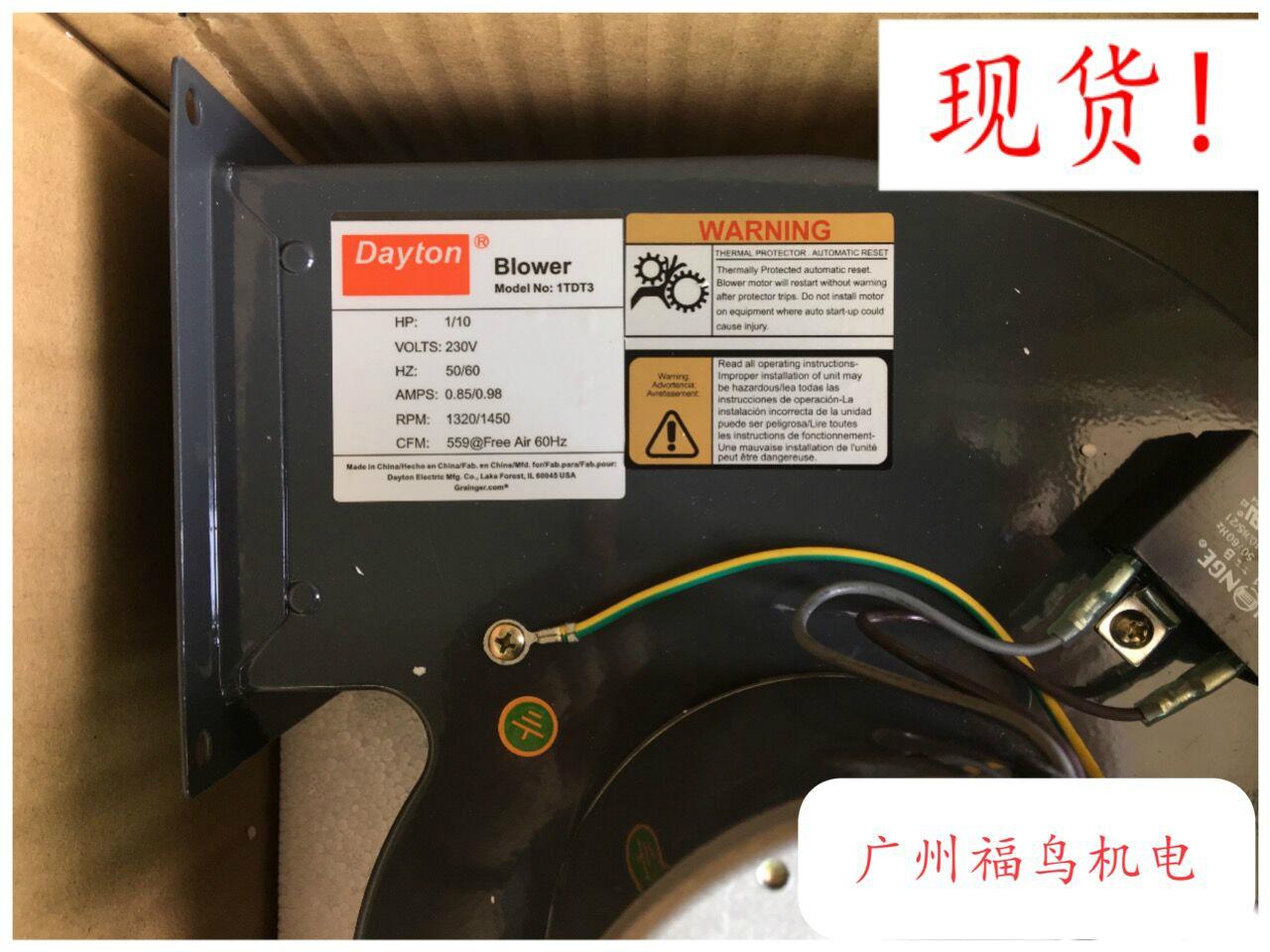

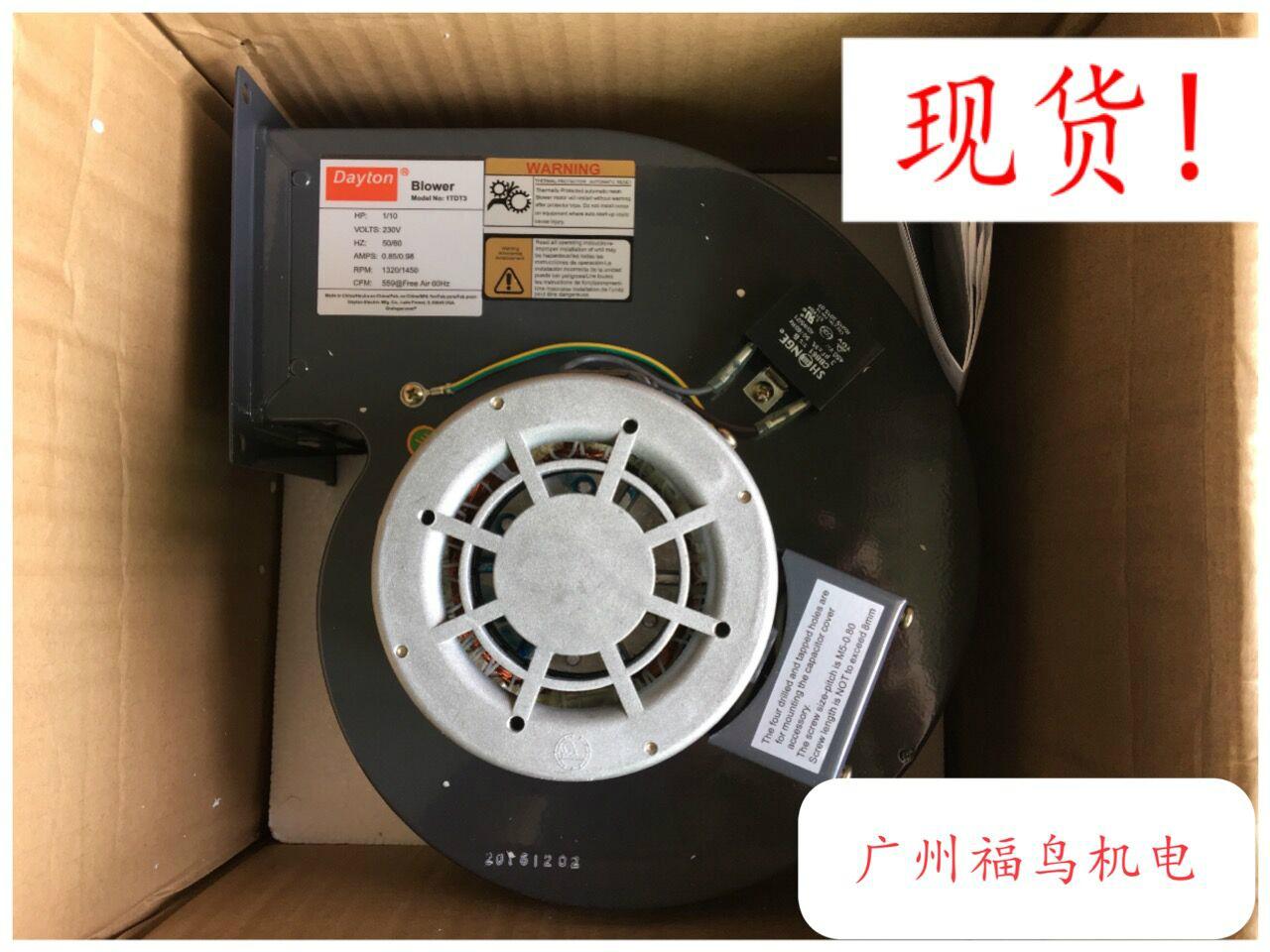

DAYTON風機, 型號: 1TDT3
DAYTON風機, 型號: 1TDT3
微店, 掃一掃.
DAYTON風機, 型號: 1TDT3
DAYTON風機, 型號: 1TDT3
DAYTON風機, 型號: 1TDT3
DAYTON風機, 型號: 1TDT3
DAYTON風機, 型號: 1TDT3
DAYTON風機, 型號: 1TDT3
|
|
|
|
|
|
