現貨供應DAYTON電機, 馬達( 4Z141, 4Z141D, 4Z141B)
|
|
| 型號︰ | 4Z141, 4Z1401D |
| 品牌︰ | DAYTON |
| 原產地︰ | 美國 |
| 單價︰ | - |
| 最少訂量︰ | - |
|
|
|
|
|
|
|
| Item |
|
DC Motor |
| Motor Type |
|
Permanent Magnet |
| Enclosure |
|
Totally Enclosed Nonventilated |
| HP |
|
1/18 |
| Nameplate RPM |
|
1800 |
| Voltage |
|
90VDC |
| Full Load Amps |
|
0.8 |
| Full Load Torque |
|
1.95 in.-lb. |
| NEMA/IEC Frame |
|
Nonstandard |
| Frame |
|
Nonstandard |
| Mounting |
|
Face/Base |
| Thermal Protection |
|
None |
| Insulation Class |
|
B |
| Bearings |
|
Ball |
| Ambient Temperature |
|
40 Degrees C |
| Rotation |
|
CW/CCW |
| Overall Length |
|
6-3/8" |
| Length Less Shaft |
|
4-15/16" |
| Shaft Dia. |
|
1/2" |
| Shaft Length |
|
1-1/2" |
| Base Mounting O.C. |
|
4-7/16 x 2" |
| Brush Type |
|
External |
| RPM Range |
|
1400 to 1800 |
| Standards |
|
UL Recognized (E61772) |
|
|
|
|
| 產品規格︰ | 型號: 4Z141, 4Z141D, 4Z141B |
| 主要市場︰ | 業務QQ: 2543525125, 2054518018, 532560858. |
|
|
產品圖片
|
|

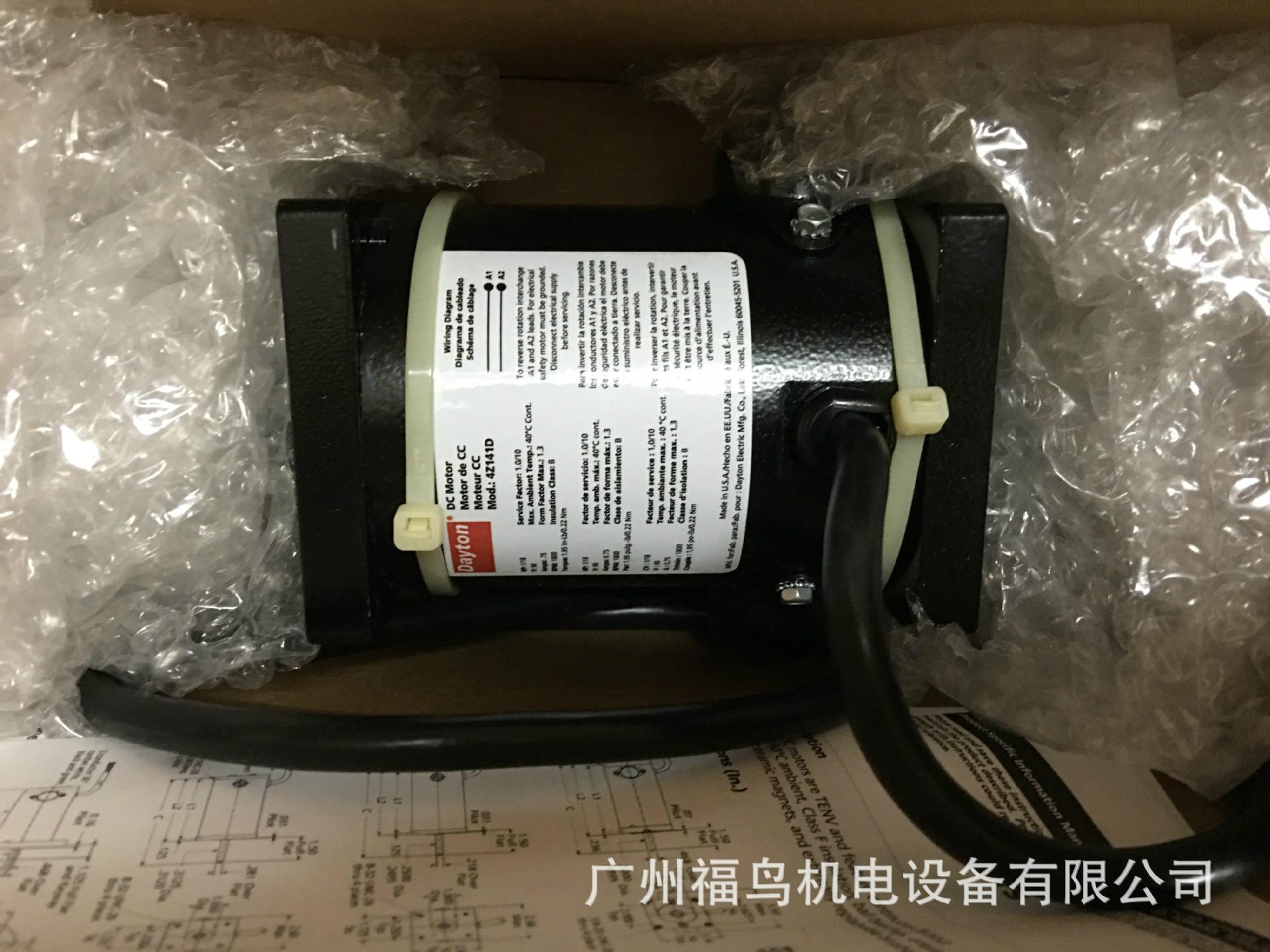

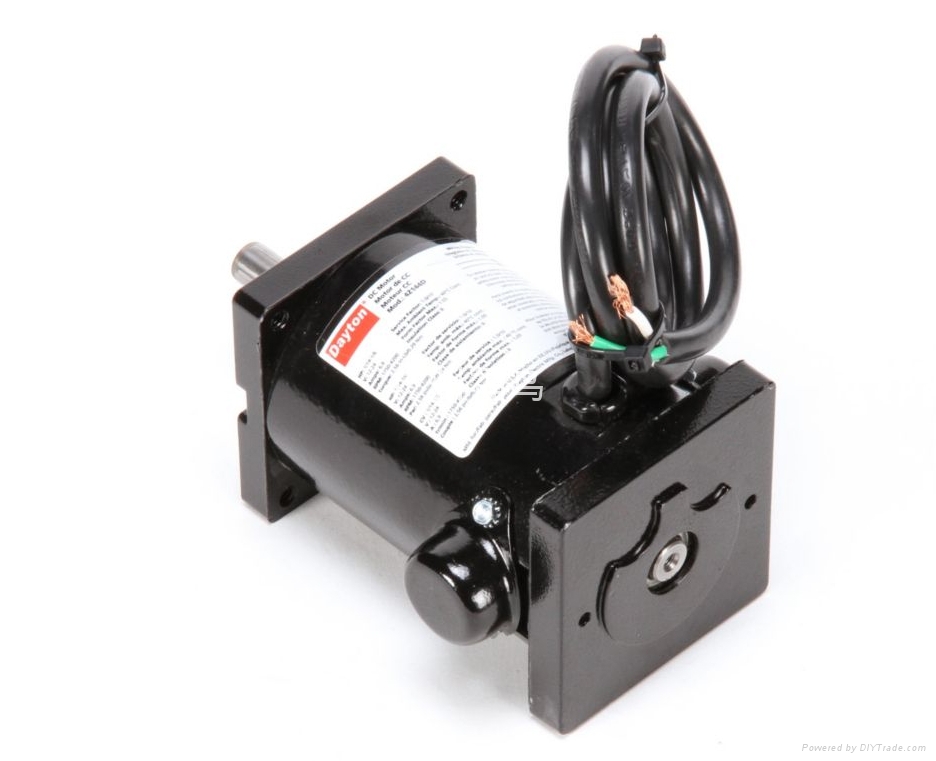

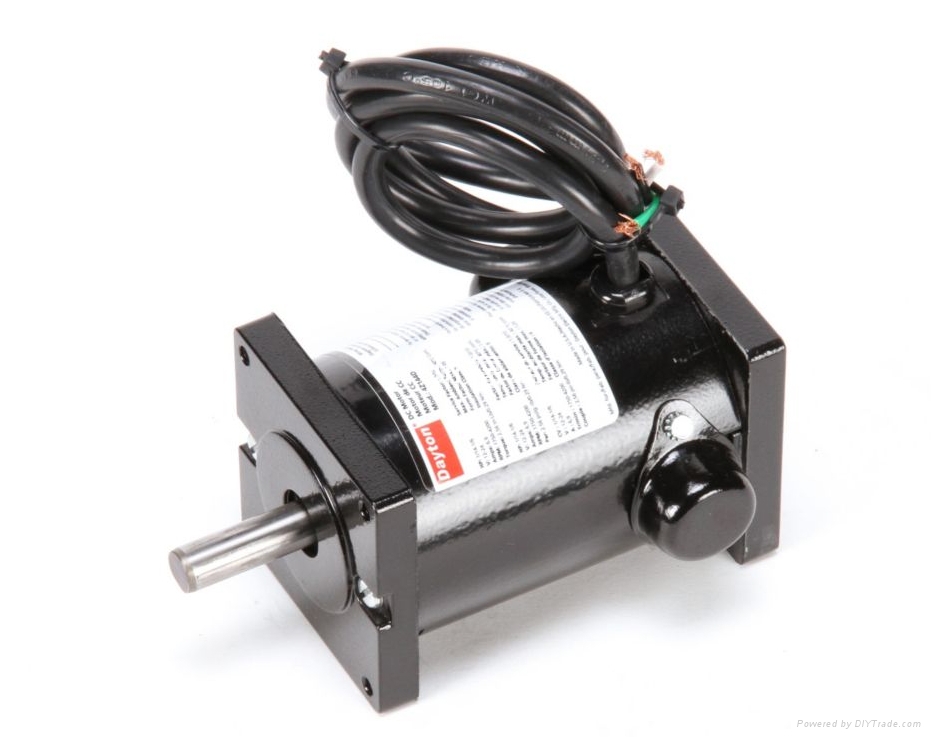

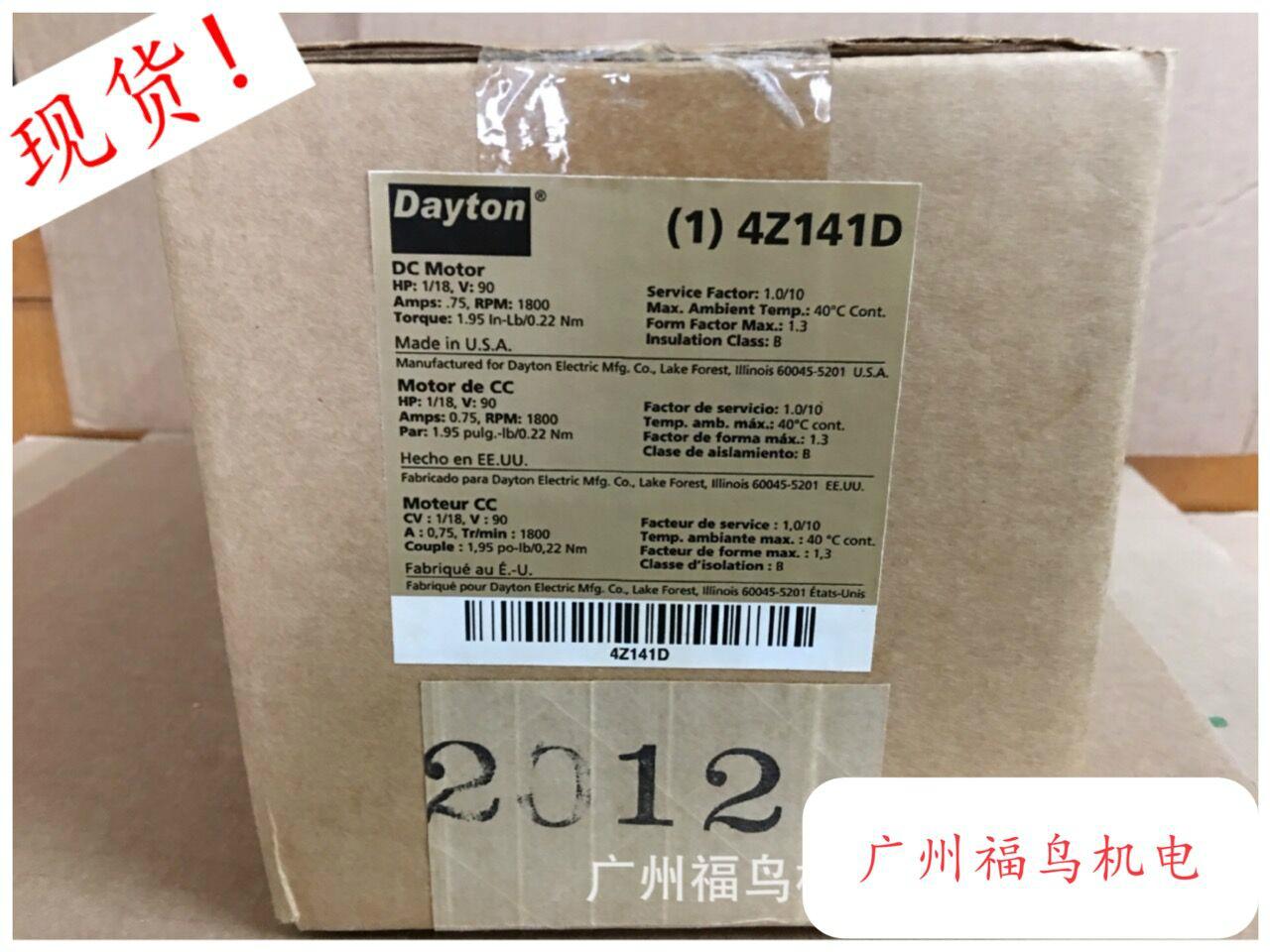

DAYTON電機, 馬達, 型號: 4Z141D
DAYTON電機, 馬達, 型號: 4Z141D
微店, 掃一掃.
DAYTON電機, 馬達, 型號: 4Z141D
DAYTON電機, 馬達, 型號: 4Z141D
DAYTON電機, 馬達, 型號: 4Z141D
DAYTON電機, 馬達, 型號: 4Z141D
DAYTON電機, 馬達, 型號: 4Z141D
DAYTON電機, 馬達, 型號: 4Z141D
|
|
|
|
|
|
