供应DAYTON电机, 马达( 4Z062, 4Z062A)
|
|
| 型号︰ | 4Z062, 4Z062A |
| 品牌︰ | DAYTON |
| 原产地︰ | 美国 |
|
|
|
|
|
|
|
| Item |
|
AC Gearmotor |
| Type |
|
Parallel Shaft |
| Voltage Rating |
|
115 |
| Phase |
|
1 |
| Hz |
|
60/50 |
| Shaft Orientation |
|
Parallel |
| Nameplate RPM |
|
28 |
| Full Load Torque (In.-Lbs.) |
|
50.0 |
| Overhung Load (Lb.) |
|
50 |
| Input HP |
|
1/25 |
| Gear Ratio |
|
58:1 |
| Full Load Amps |
|
0.51 |
| Enclosure |
|
TENV |
| Thermal Protection |
|
None |
| Ambient (C) |
|
40 |
| Rotation |
|
Reversible |
| Mounting |
|
All Position |
| Motor Type |
|
Permanent Split Capacitor |
| Capacitor Required |
|
2MDV4 |
| Length Less Shaft (In.) |
|
6-3/4 |
| Shaft Dimensions (In.) |
|
1/2 x 1 |
| Brake |
|
5X400 |
| Bearings |
|
Heavy Duty Needle on Case, Ball on Motor |
| Lubrication |
|
Grease Filled |
| Gear Case |
|
Die Cast Alloy |
| Gears |
|
Sintered and Cut Steel/Phenolic |
| Seals |
|
Grease on Input and Output Shaft |
| RPM Range |
|
16 to 30 |
|
|
|
|
| 产品规格︰ | 型号: 4Z062, 4Z062A |
| 主要市场︰ | 业务QQ: 2543525125, 2054518018, 532560858. |
|
|
产品图片
|
|

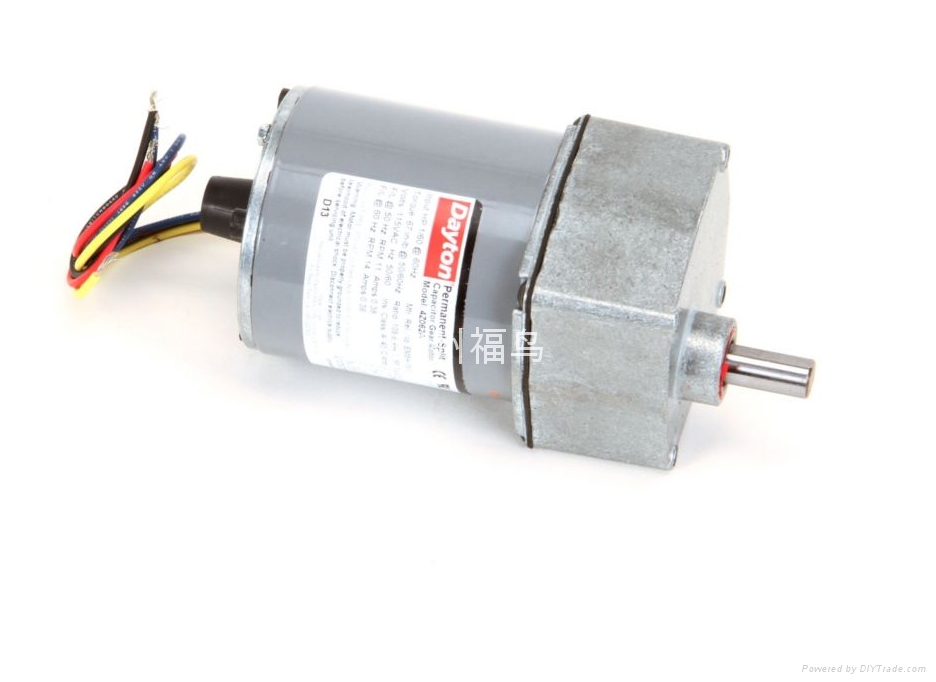

DAYTON电机, 马达, 型号: 4Z062A
微店, 扫一扫.

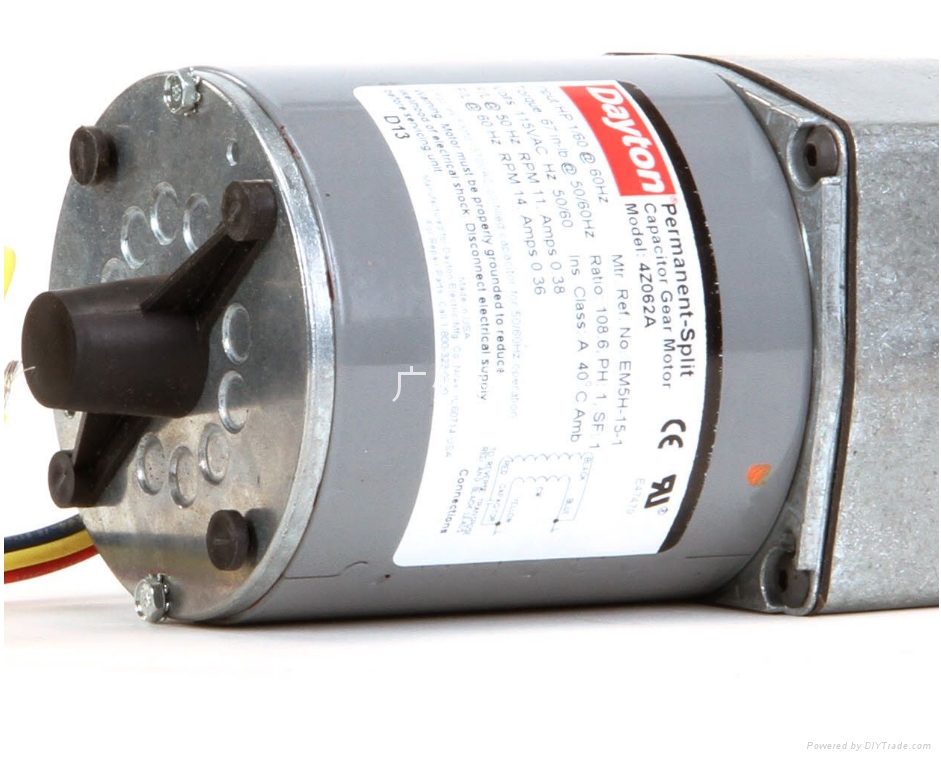

DAYTON电机, 马达, 型号: 4Z062A
微信, 扫一扫.

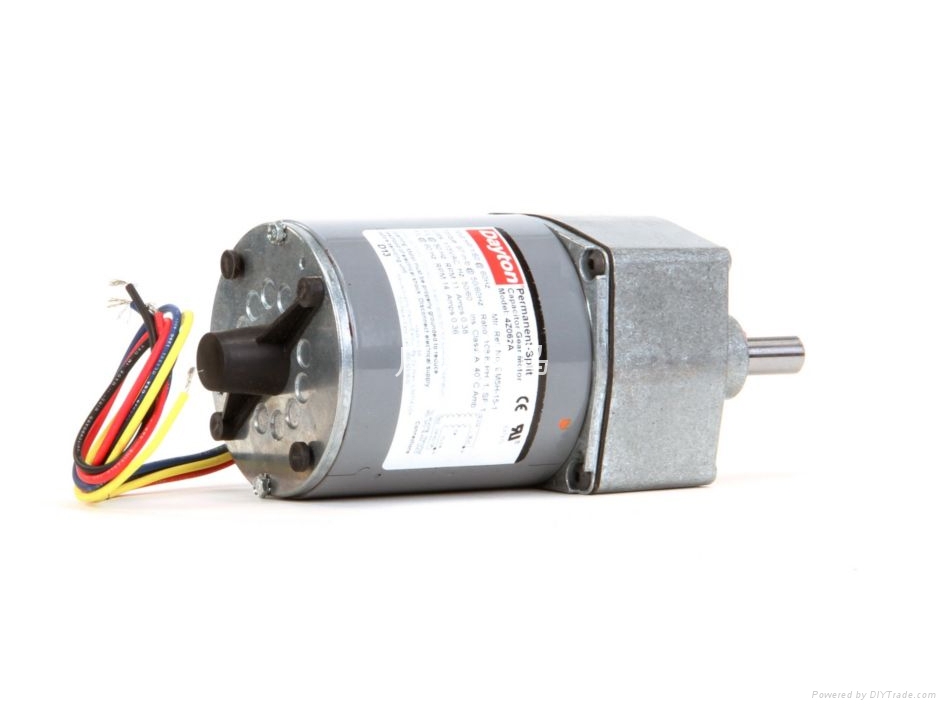

DAYTON电机, 马达, 型号: 4Z062A
