產品描述

TECHNICAL SPECS:

• Item: Solenoid
• Solenoid Type: Laminated
• Stroke Range: 1/8" to 3/4"
• Pull Force Range: 14.4 to 48.0 oz.
• Width: 1-3/16"
• Depth: 1-7/16"
• Length: 1-5/8"
• Coil Volts: 120VAC
• Seated Amps: 0.24
• Seated Watts: 9.5
• Coil Resistance: 88.0 ohm
• Terminals: Solder Lug Coil

• Amps @ Max. Stroke: 1.25
• Duty Cycle: Continuous
• Mounting Holes: 1-3/8 x 7/8"
• Gravity Value: 1.76 oz.
• Pull @ 3/4 In. Stroke: 184.0 oz.
• Pull @ 1-1/4 In. Stroke: 176.0 oz.
• Pull @ 1 In. Stroke: 224.0 oz.
• Pull @ 5/8 In. Stroke: 184.0 oz.
• Pull @ 3/8 In. Stroke: 160.0 oz.
• Pull @ 1/4 In. Stroke: 168.0 oz.
• Pull @ 1/8 In. Stroke: 192.0 oz.
• Pull @ 7/8 In. Stroke: 200.0 oz.

產品規格︰ 型號: 1000-M-1

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

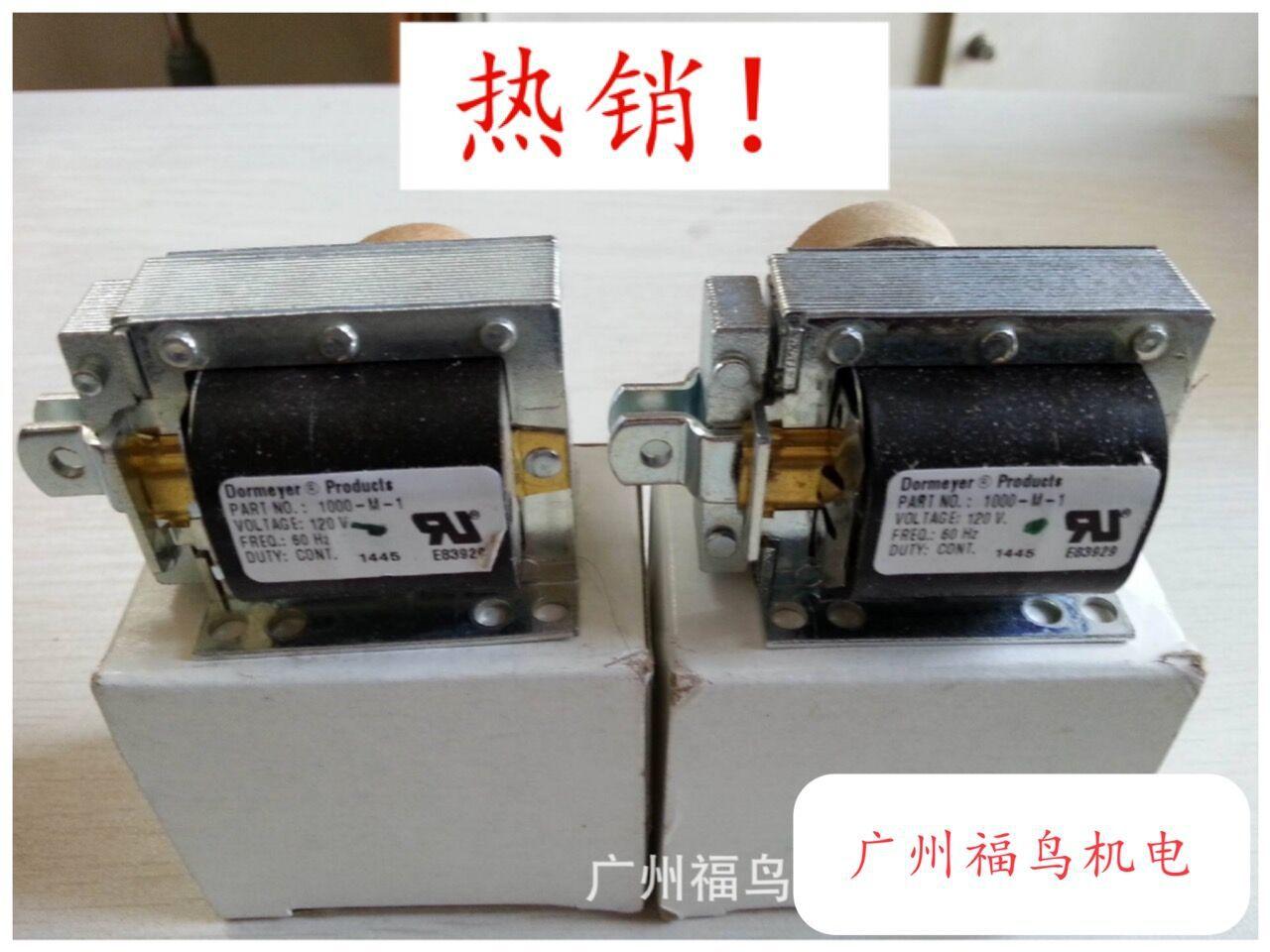

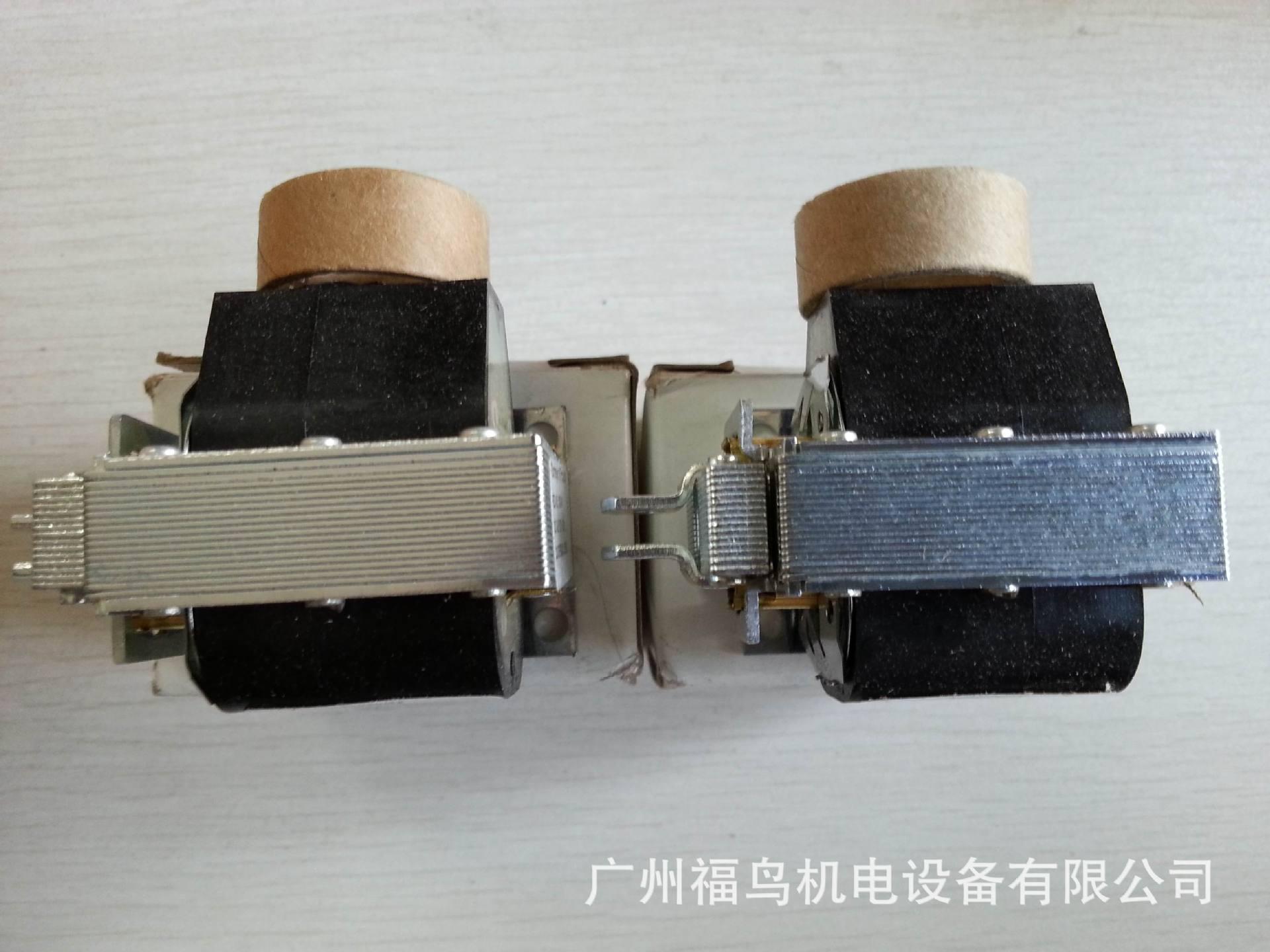

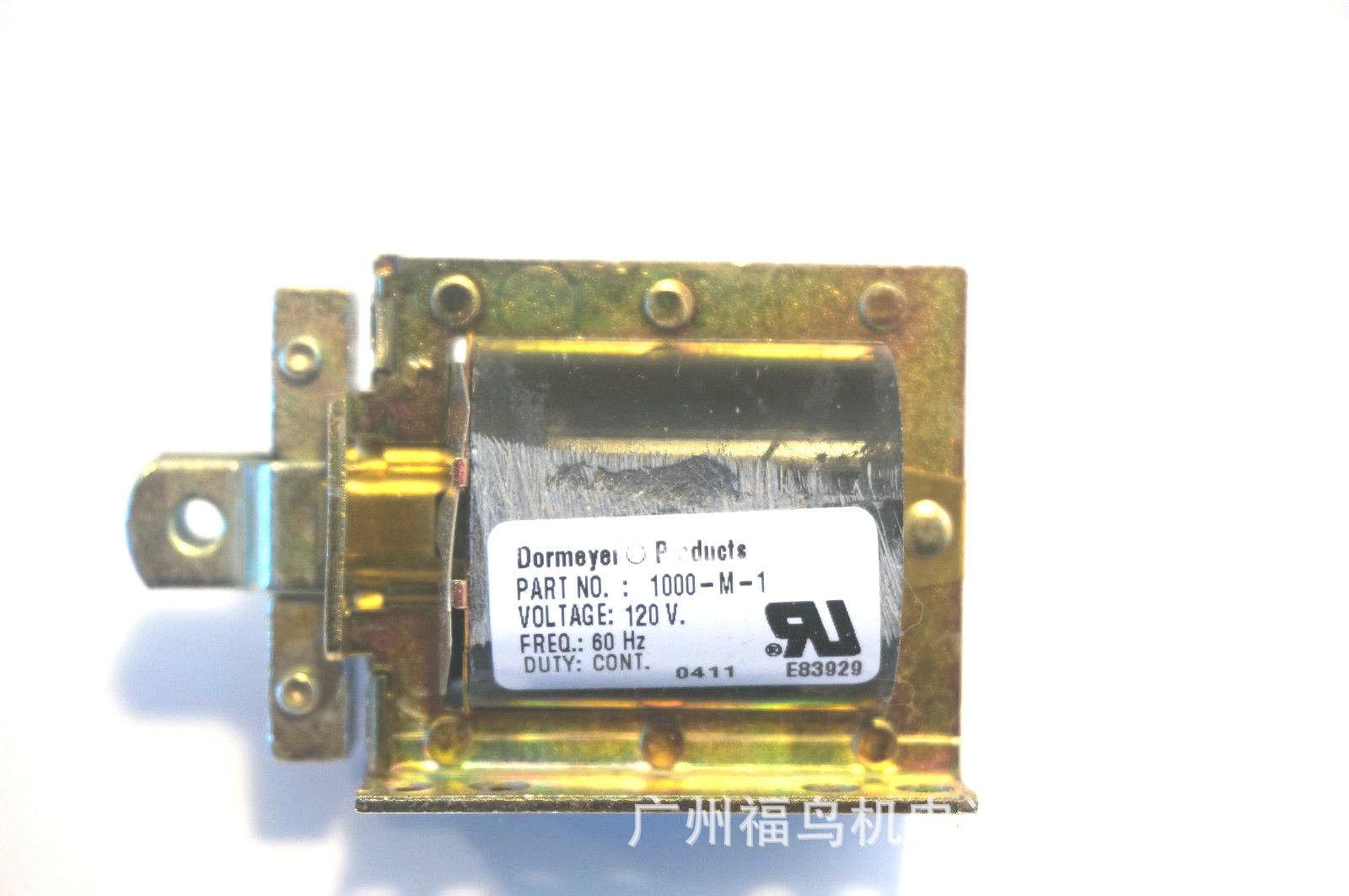

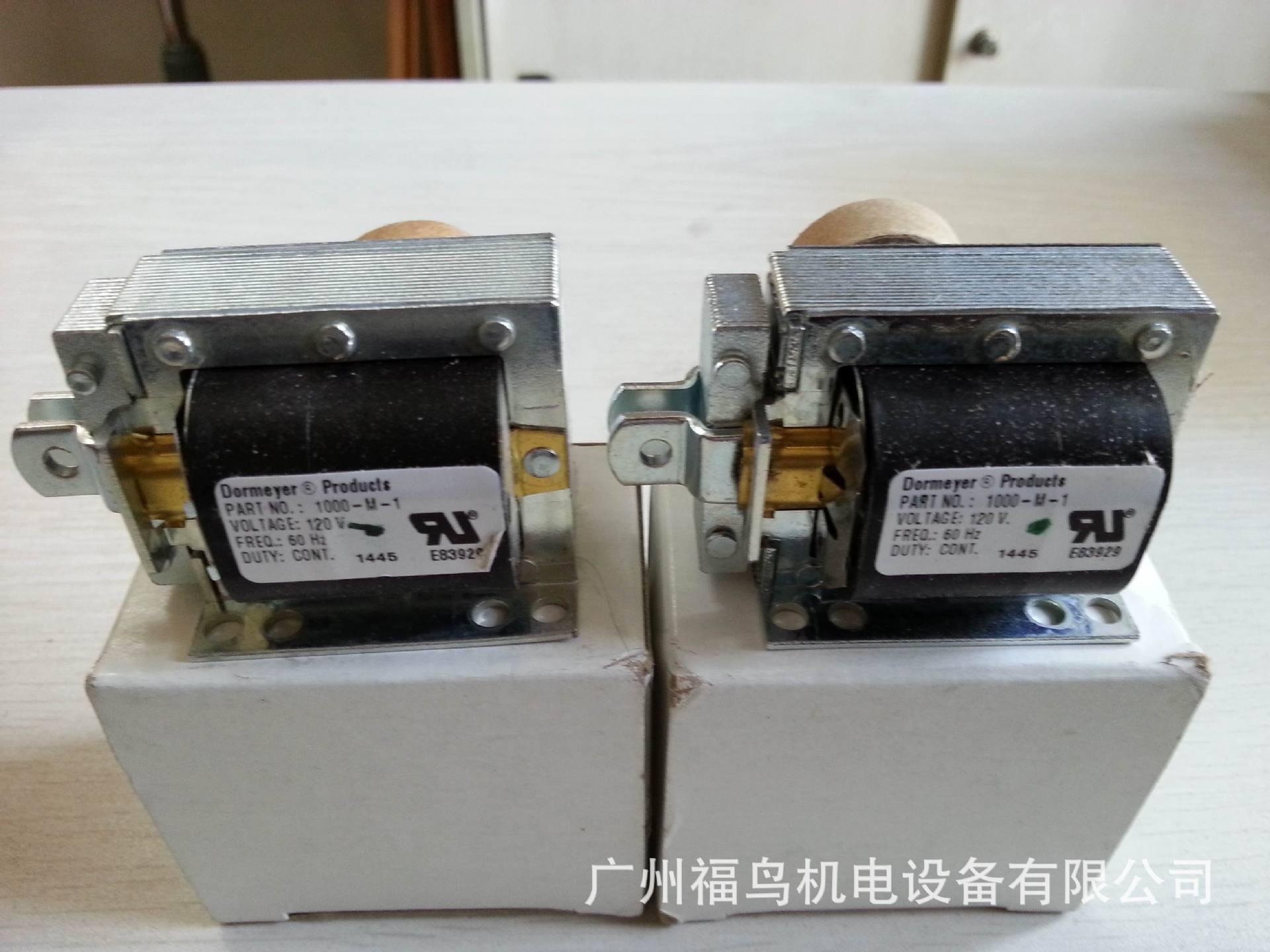

產品圖片
