產品描述
TECHNICAL SPECS:
- Item: DC Gearmotor
- Gearmotor Type: DC Gearmotor
- Gearmotor Voltage: 90VDC
- Max. Torque: 100.0 in.-lb.
- Gearmotor Shaft Type: Single
- Gearmotor Shaft Orientation: Parallel
- Rear Shaft Encoder/Pulse Generator Mounting: Yes
- Nameplate RPM: 2.6
- Gearmotor Enclosure: Totally Enclosed Nonventilated
- Gearmotor Mounting Position: All Angle
- Length Less Shaft: 7-3/8"
- Overhung Load: 90 lb.
- Input HP: 1/40
- Gear Ratio: 702:1
- Full Load Amps: 0.36
- Thermal Protection: None
- Max. Ambient Temp.: 40 Degrees C
- Gearmotor Rotation: CW/CCW
- Motor Type: Permanent Magnet DC
- Shaft Dia. (Dimension U): 1/2"
- Shaft Length (Dimension V): 1"
- Bearings: Needle on Case Output Shaft, Ball on Motor
- Lubrication: Permanent Heavy Fluid Gear Oil
- Brushes: Externally Replaceable
- Gear Type: 1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
- Gear Case: Die Cast Aluminum
- Seals: Spring Loaded Lip Type on Input and Output Shaft
- Replacement Brushes: 6YHY3
產品規格︰
型號: 6Z910, 6Z910B, 6Z910A
主要市場︰
業務QQ: 2543525125, 2054518018, 532560858.

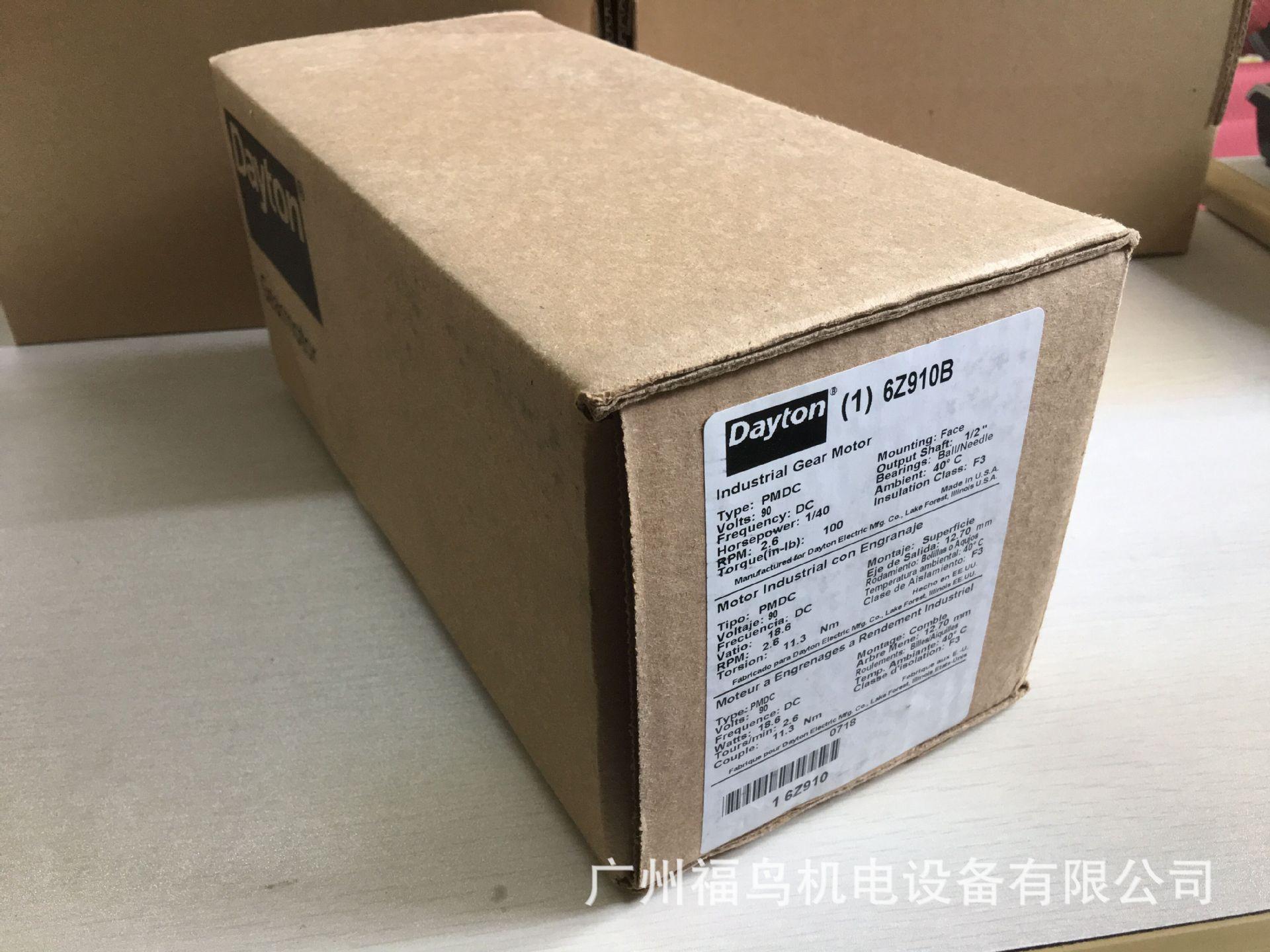

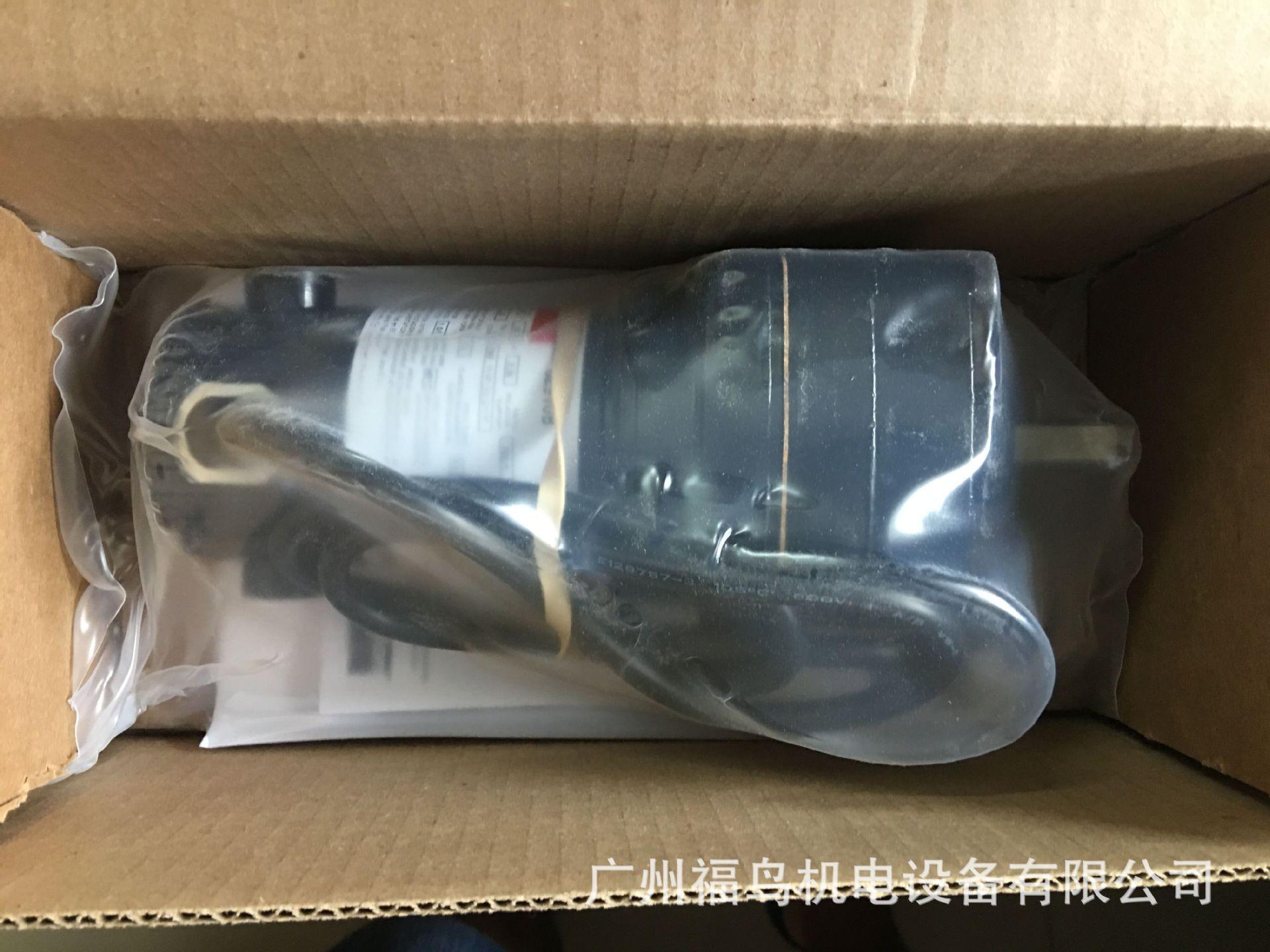

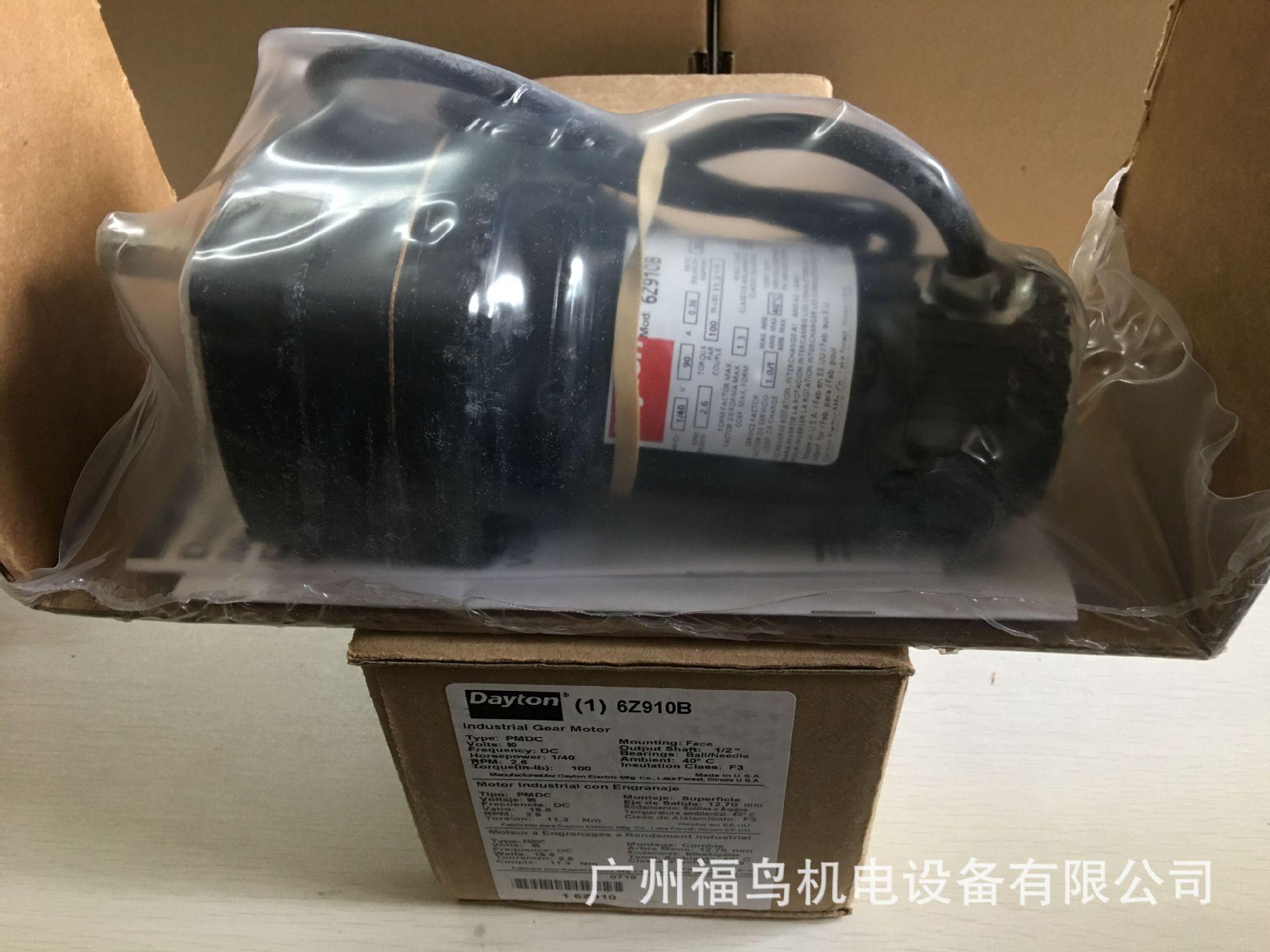

產品圖片
