產品描述

TECHNICAL SPECS:

• Item: AC Gearmotor
• Gearmotor Type: AC Gearmotor
• Gearmotor Voltage: 115VAC
• Gearmotor Phase: 1
• Max. Torque: 100.0 in.-lb.
• Gearmotor Shaft Type: Single
• Gearmotor Shaft Orientation: Parallel
• Gearmotor Rotation: CW/CCW
• Nameplate RPM: 4.5
• Gearmotor Enclosure: Open
• Gearmotor Mounting Position: All Angle
• Gearmotor Brake Type: None
• Length Less Shaft: 7-1/4"
• Hz: 60/50
• Overhung Load: 90 lb.
• Input HP: 1/80

• Gear Ratio: 361:1
• Full Load Amps: 0.3
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C
• Motor Type: PSC
• Capacitor Required: 2MDV3
• Shaft Dia. (Dimension U): 1/2"
• Shaft Length (Dimension V): 1"
• Bearings: Heavy Duty Needle on Case, Ball on Motor
• Lubrication: Permanent Heavy Duty Gear Oil
• Housing: Die Cast Aluminum
• Gear Case Material: Die Cast Aluminum
• Gears: 1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
• Gear Material: Steel or Heat Treated Powdered Metal
• Gear Type: Helical First Stage/Spur
• Seals: Spring Loaded Lip Type on Input and Output Shaft

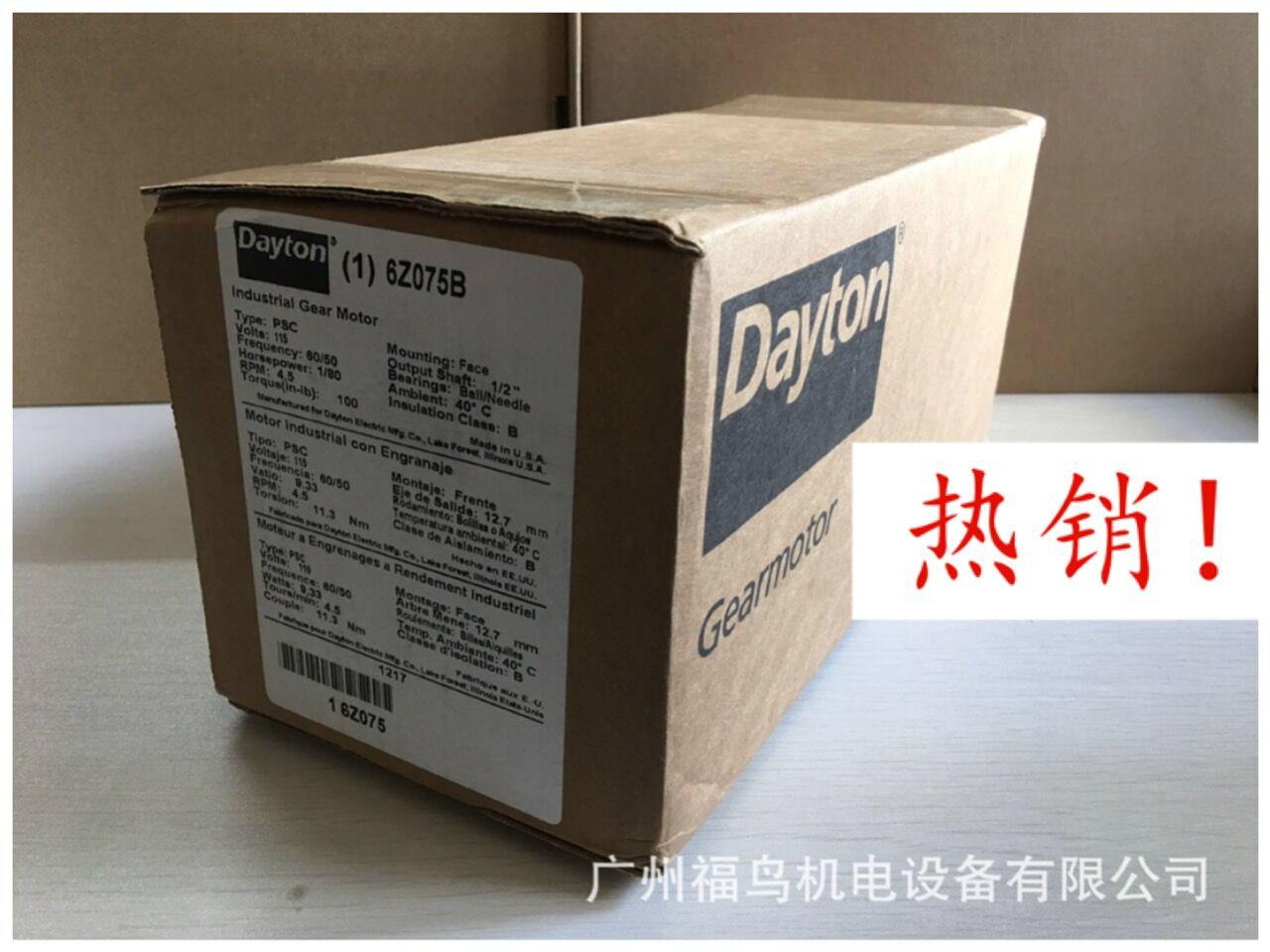

產品規格︰ 型號: 6Z075, 6Z075B, 6Z075A

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

產品圖片
