產品描述

TECHNICAL SPECS:

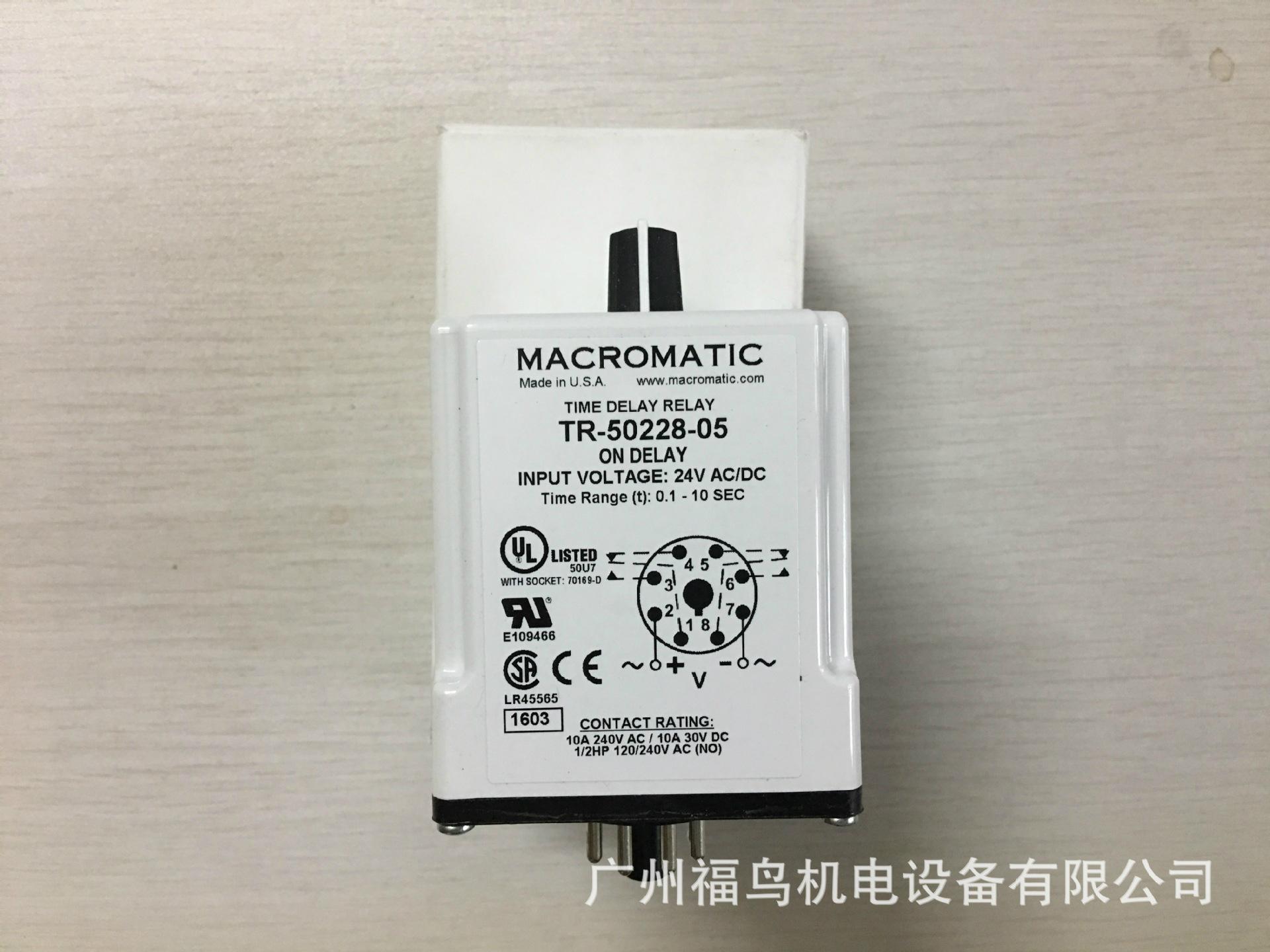

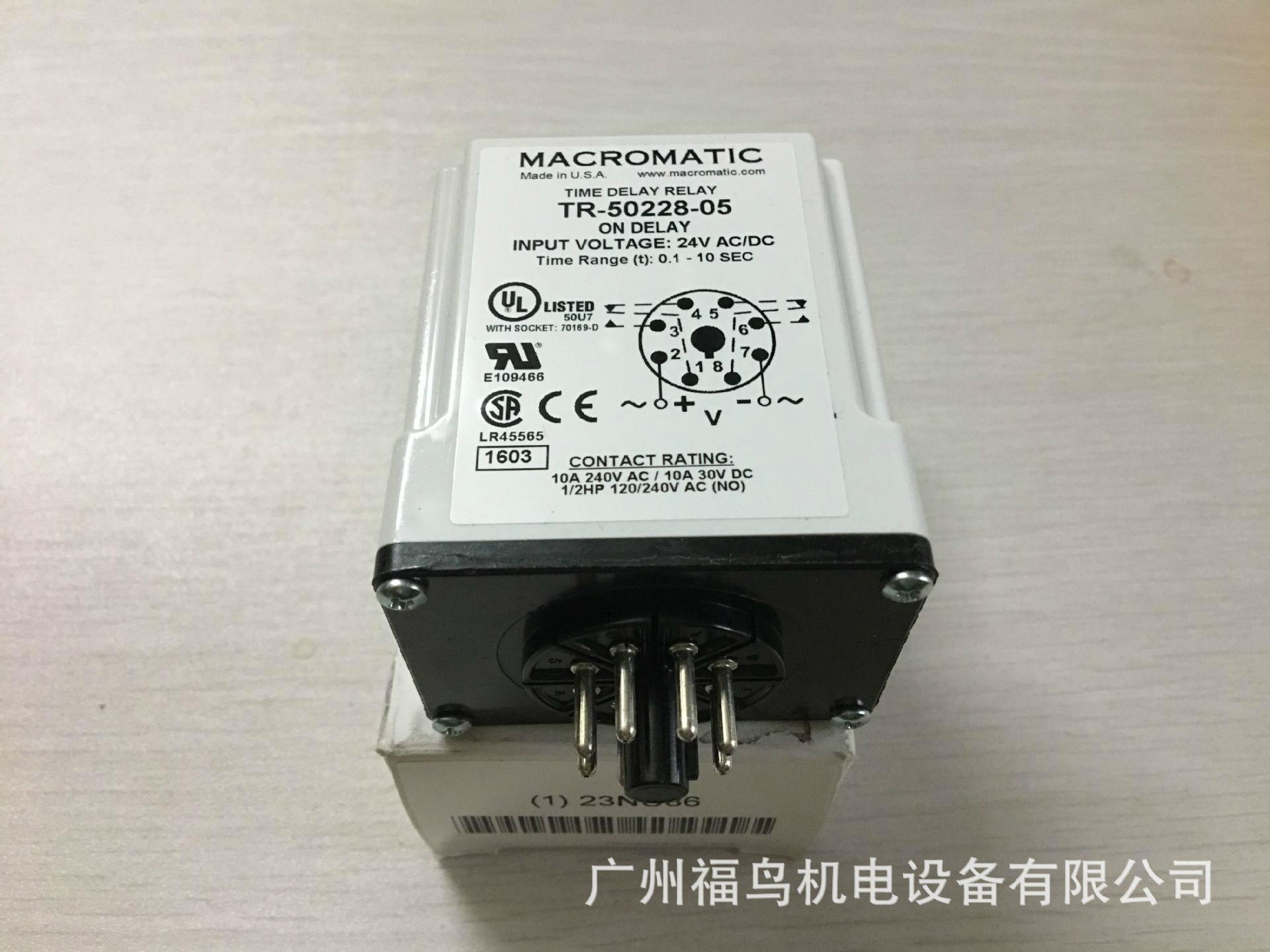

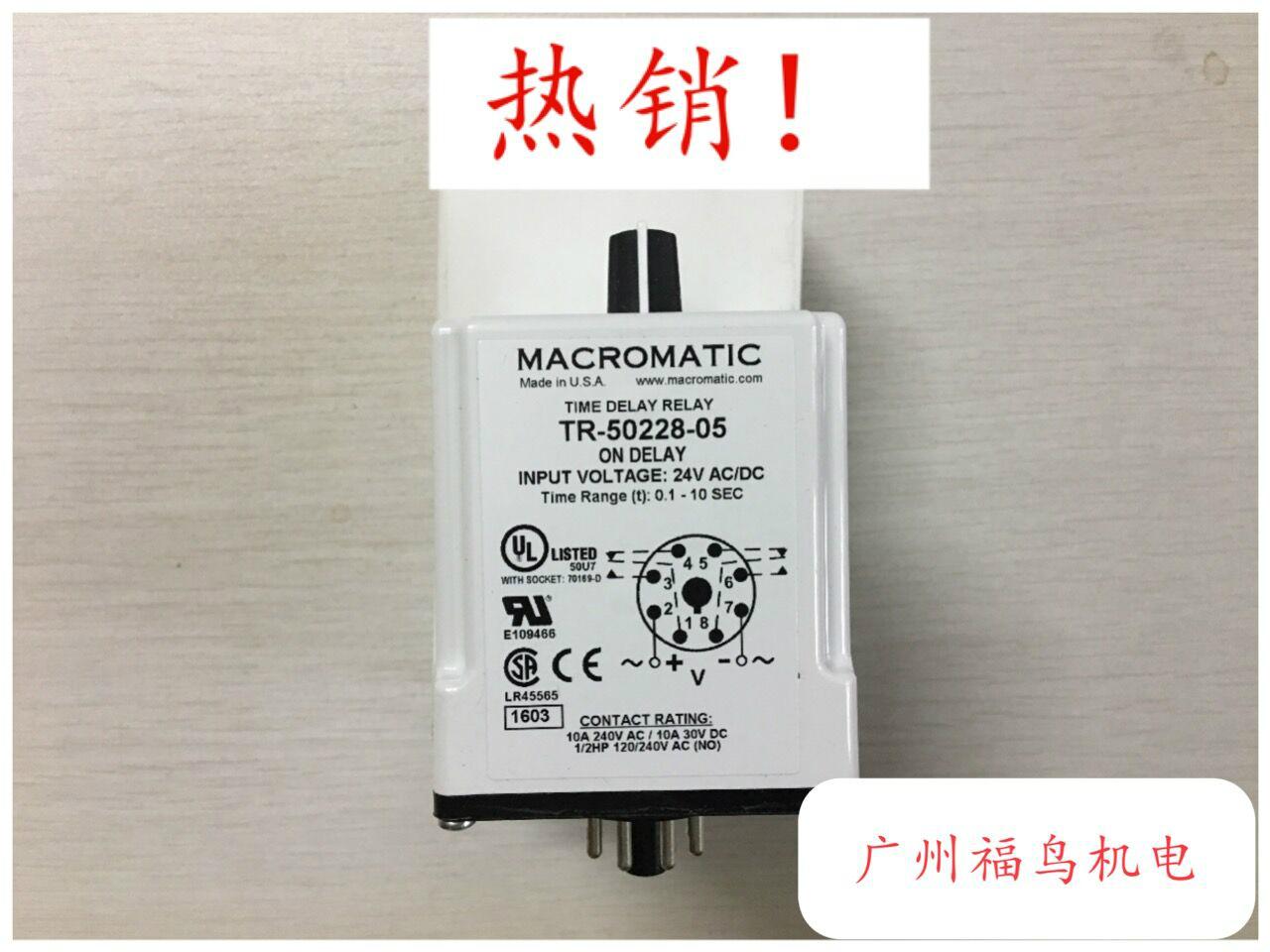

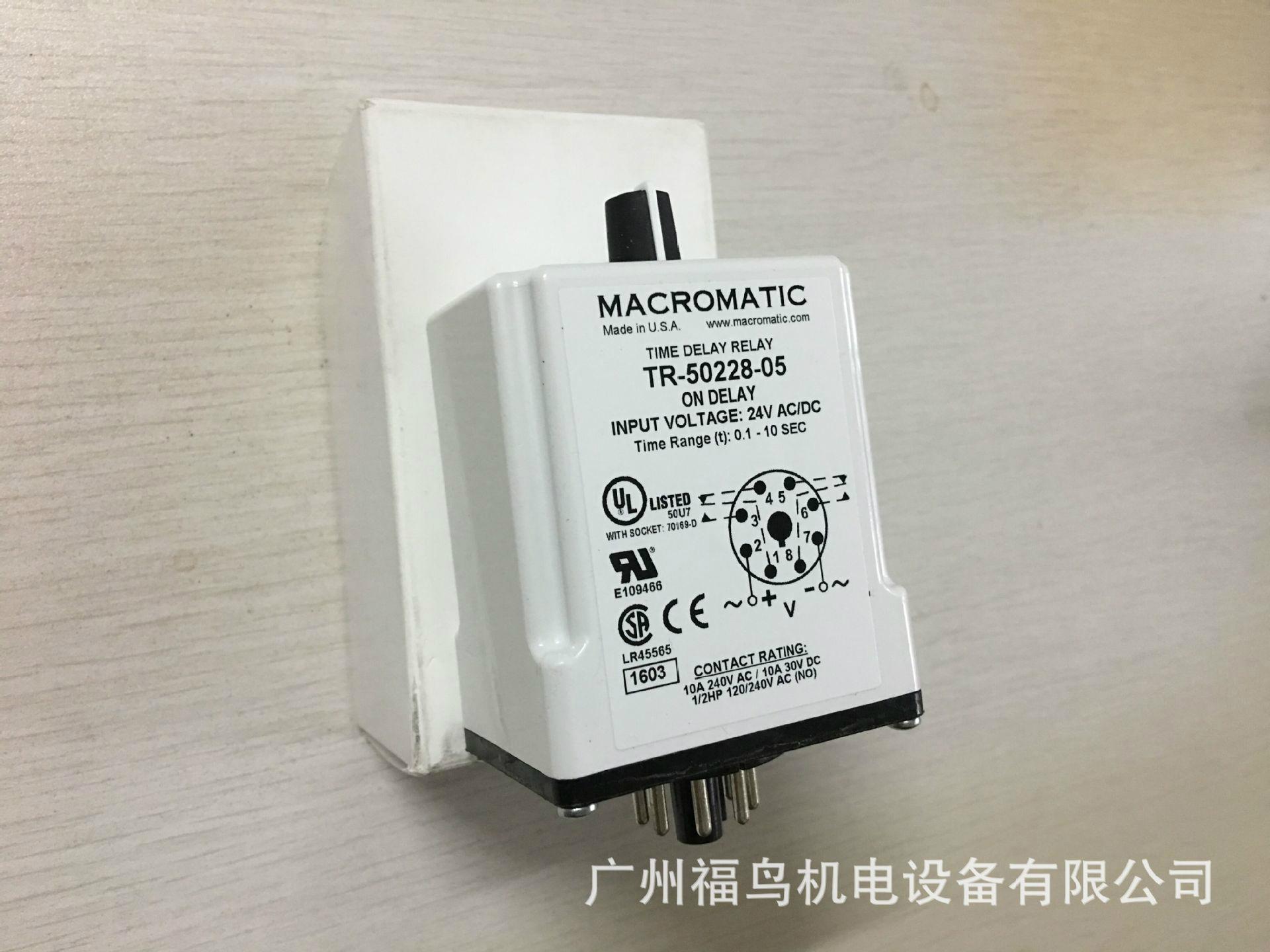

• Item: Time Delay Relay
• Coil Volts: 24VAC/DC
• Contact Amp Rating (Resistive): 10A
• Contact Form: DPDT
• Min. Time Setting: 0.10 sec.
• Max. Time Setting: 10 sec.
• Function: On Delay
• Electrical Connection: Socket
• Base Type: Octal
• Pins: 8

• Standards: UR, CSA, CE
• Operating Functions: 1
• Coil Rating: 2VA
• Mounting: Plug In
• Socket: 5X852, 1EGP3, 1EGP5
• Contact Material: Silver Nickel
• Hz: 50/60
• Adjustment Method: Potentiometer
• Status Indicator: None
• Socket Code: A

產品規格︰ 型號：TR-50228-05

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

產品圖片
