產品描述

TECHNICAL SPECS:

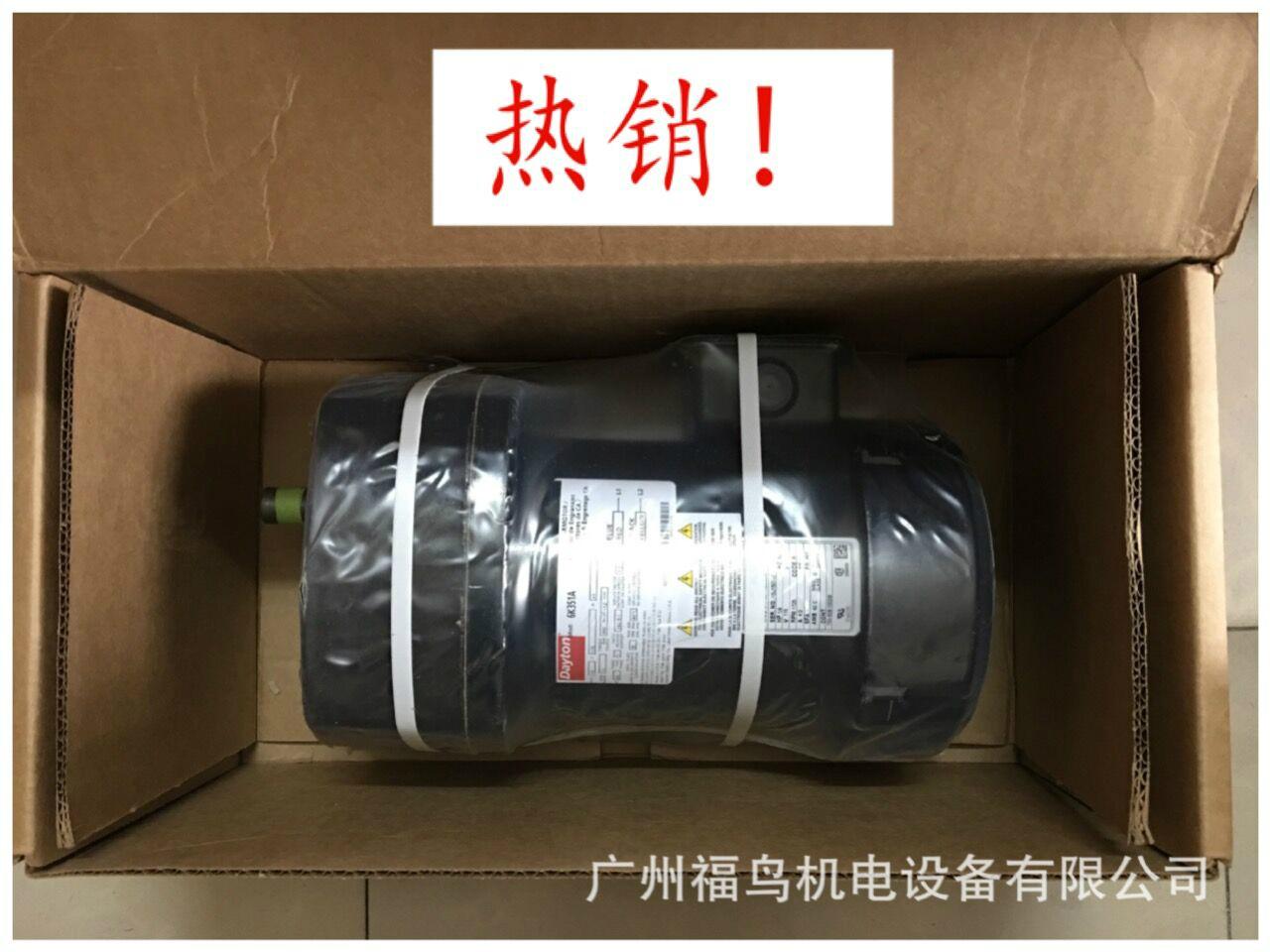

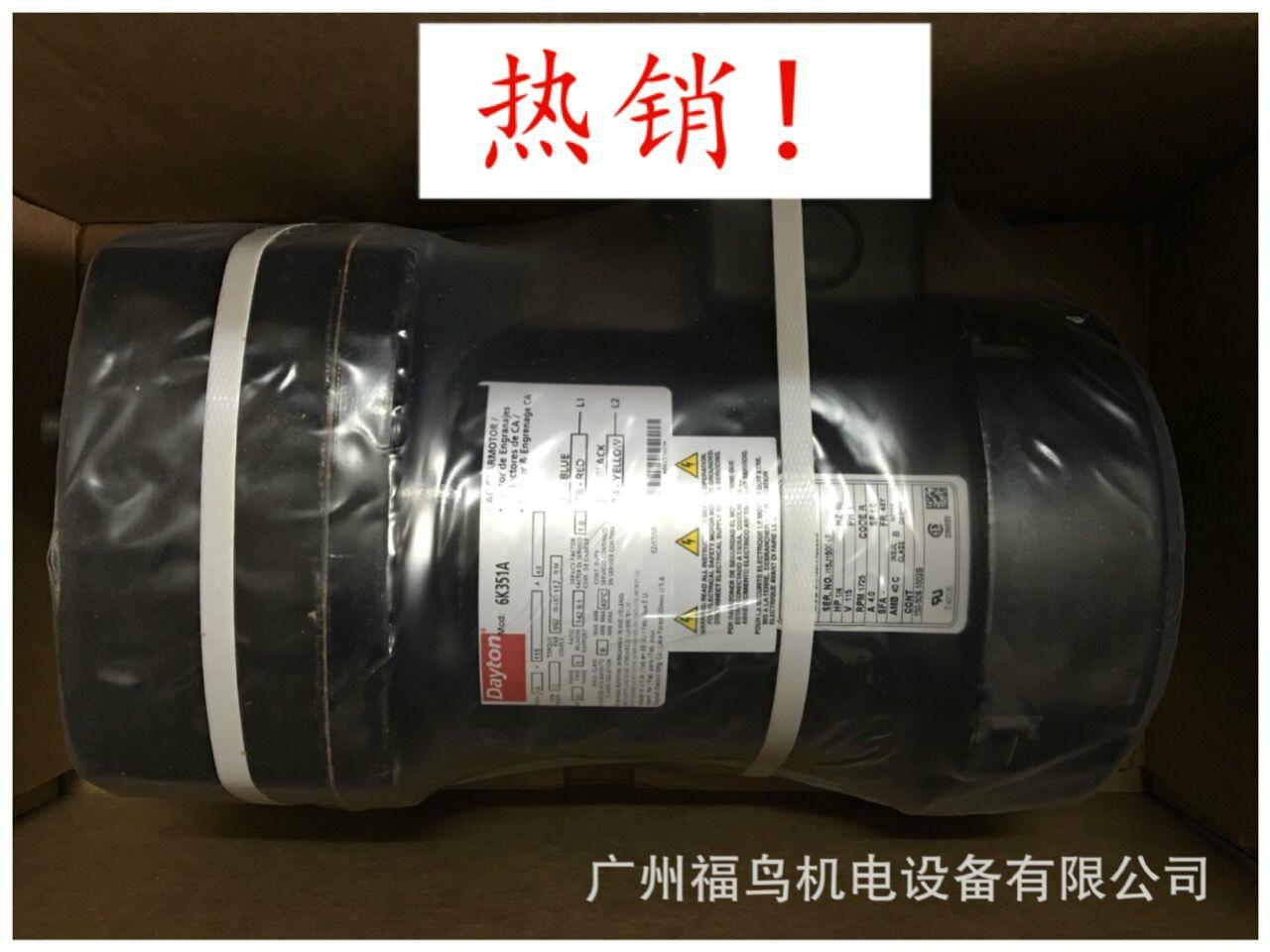

• Item: AC Gearmotor
• Voltage: 115
• Phase: 1
• Hz: 60
• Shaft Orientation: Parallel
• Nameplate RPM: 12
• Max. Torque: 992 in.-lb.
• Overhung Load: 325 lb.
• Input HP: 1/4
• Gear Ratio: 143:1
• Full Load Amps: 4
• EnclosureTEFC
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C
• Rotation: Reversible

• Mounting: All Position
• Motor Type: Split-Phase
• Length Less Shaft: 12-5/16"
• Shaft Dia. (Dimension U): 3/4"
• Shaft Length (Dimension V): 1.5"_x000D_
• Brake: Adaptable to 4Z447
• Bearings: Heavy Duty Ball, Needle Roller and Thrust Balls on Case, Ball on Motor
• Lubrication: Permanent Heavy Duty Gear Oil
• Housing: Die Cast Aluminum
• Gear Case Material: Die Cast Aluminum
• Gears: Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9
• Gear Material: Hardened Steel
• Gear Type: Helical First Stage/Subsequent Stages Spur/AGMA Class 9
• Seals: Lip Type on Input and Output Shaft

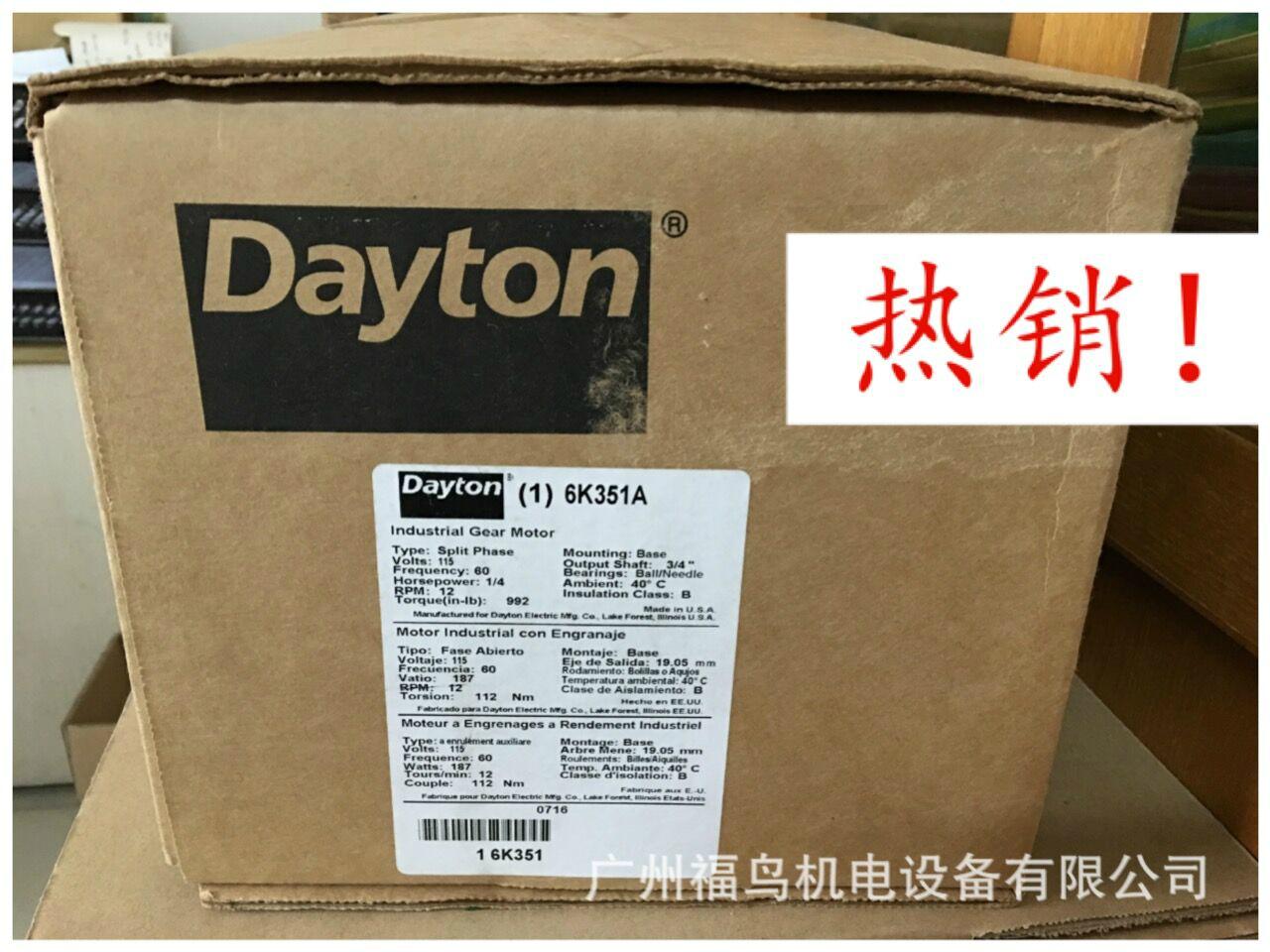

產品規格︰ 型號: 6K351, 6K351A, 6K351B

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

產品圖片
