TECHNICAL SPECS:

• Item: AC Gearmotor
• Voltage: 115
• Phase: 1
• Hz: 50/60
• Shaft Orientation: Parallel
• Nameplate RPM: 32
• Max. Torque: 96.0 in.-lb.
• Overhung Load: 90 lb.
• Input HP: 1/20
• Gear Ratio: 49:1
• Full Load Amps: 0.62
• Enclosure: Open
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C

• Rotation: Reversible
• Mounting: All Position
• Motor Type: PSC
• Capacitor Required: 2MDV6
• Length Less Shaft: 7-3/8"
• Brake: Adaptable to 5X400
• Bearings: Heavy Duty Needle on Case, Ball on Motor
• Lubrication: Permanent Heavy Duty Gear Oil
• Housing: Die Cast Aluminum
• Gear Case Material: Die Cast Aluminum
• Gears: 1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
• Gear Material: Steel or Heat Treated Powdered Metal
• Gear Type: Helical First Stage/Spur
• Seals: Spring Loaded Lip Type on Input and Output Shaft

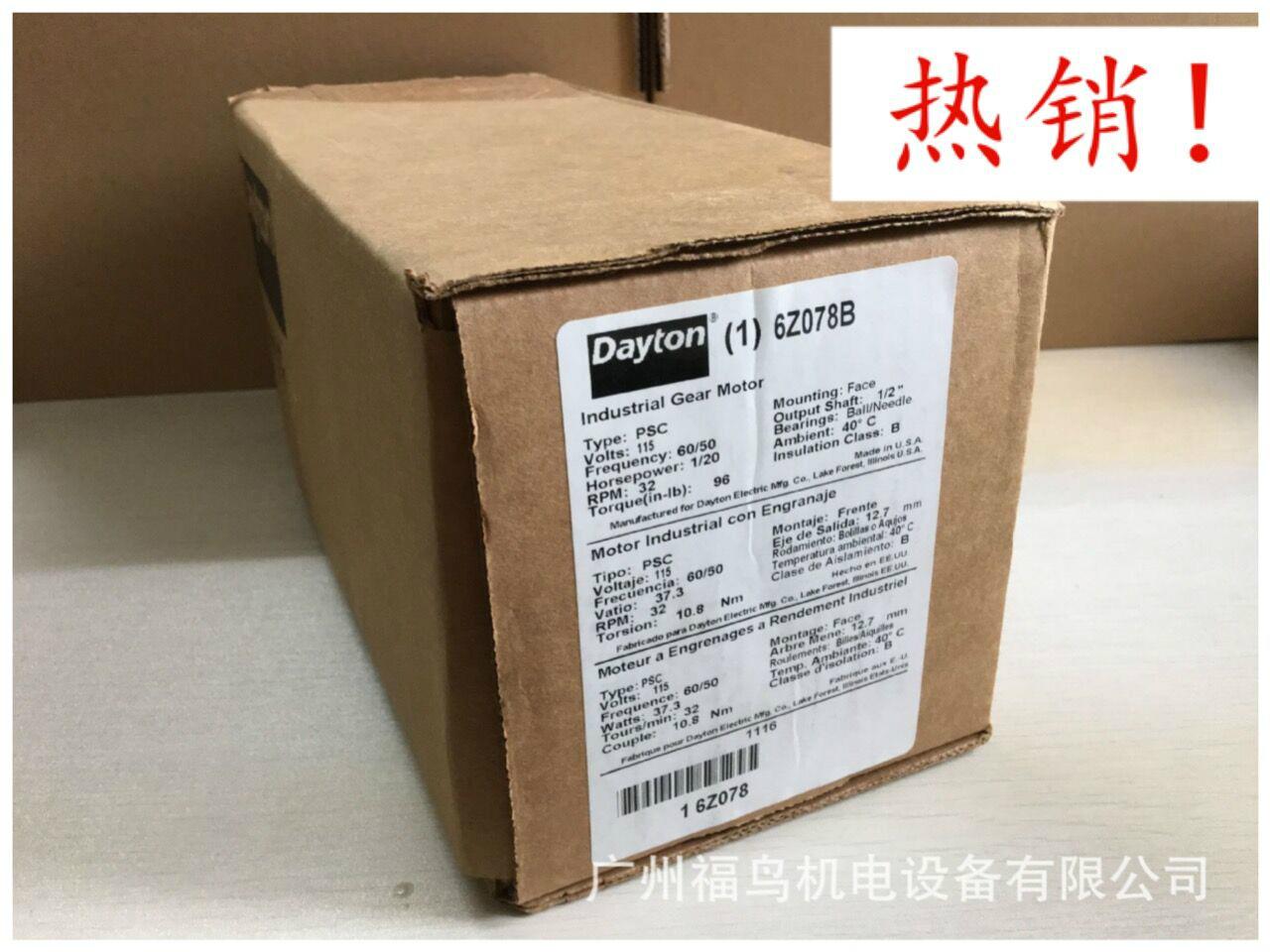

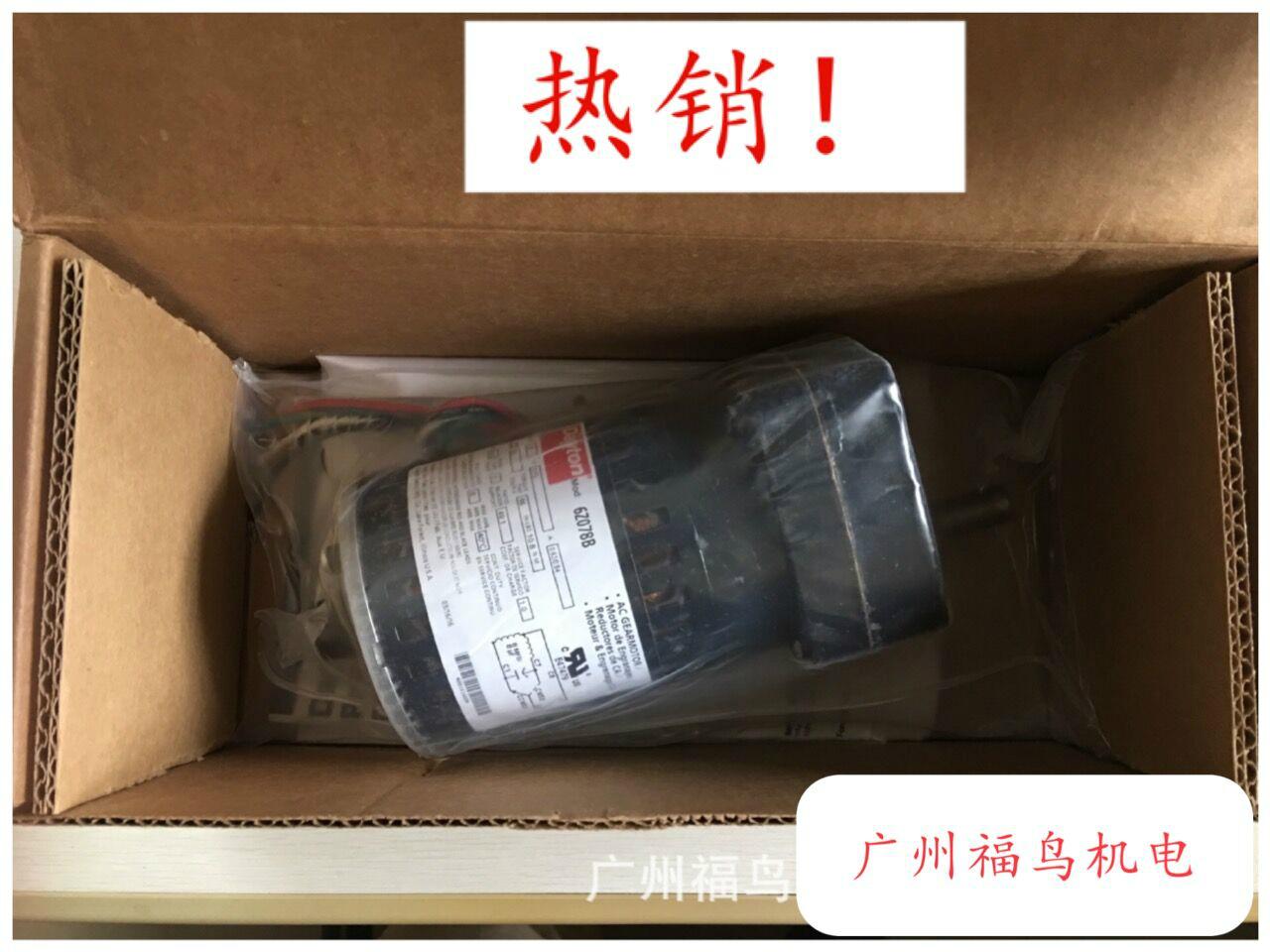

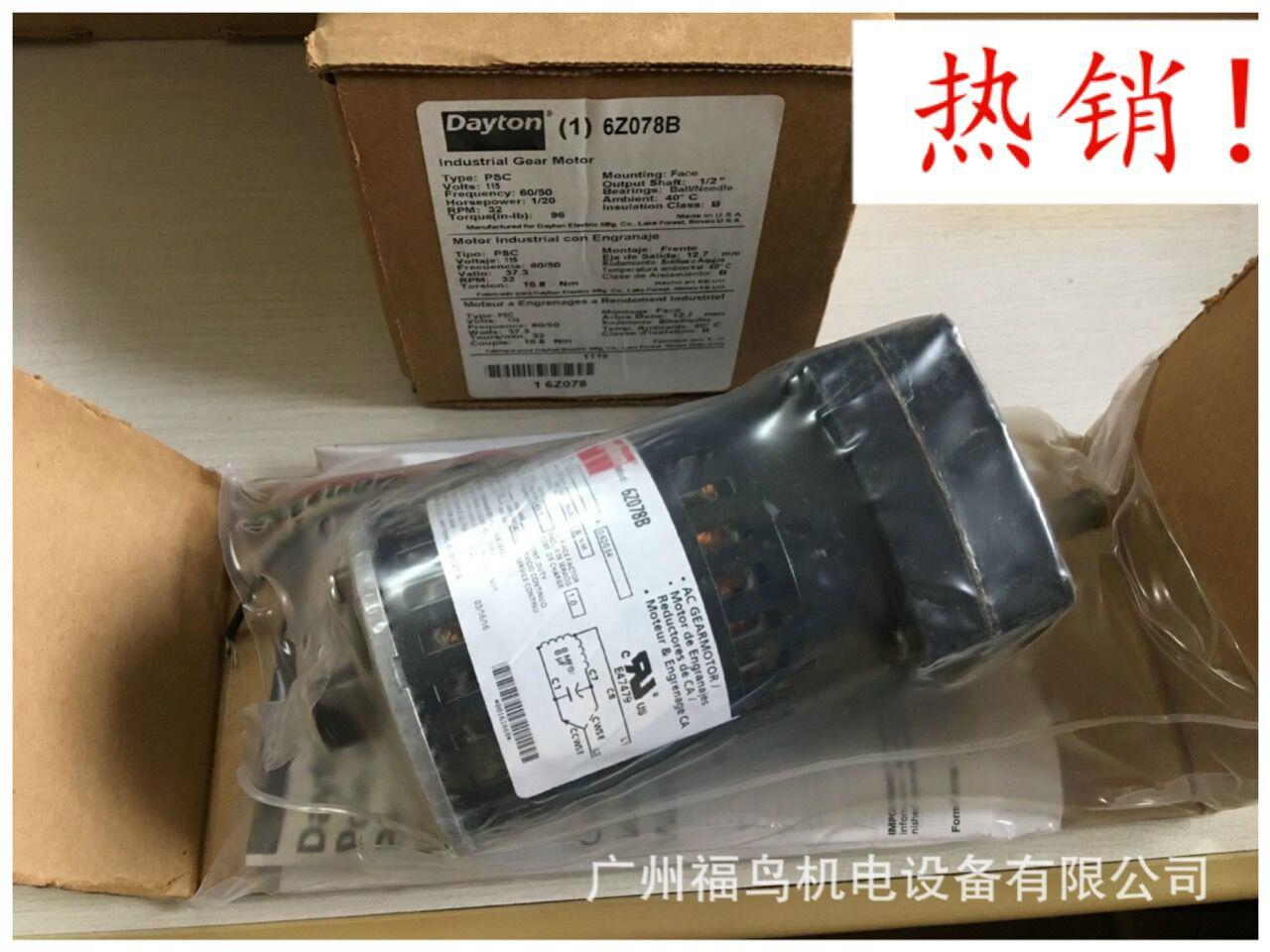

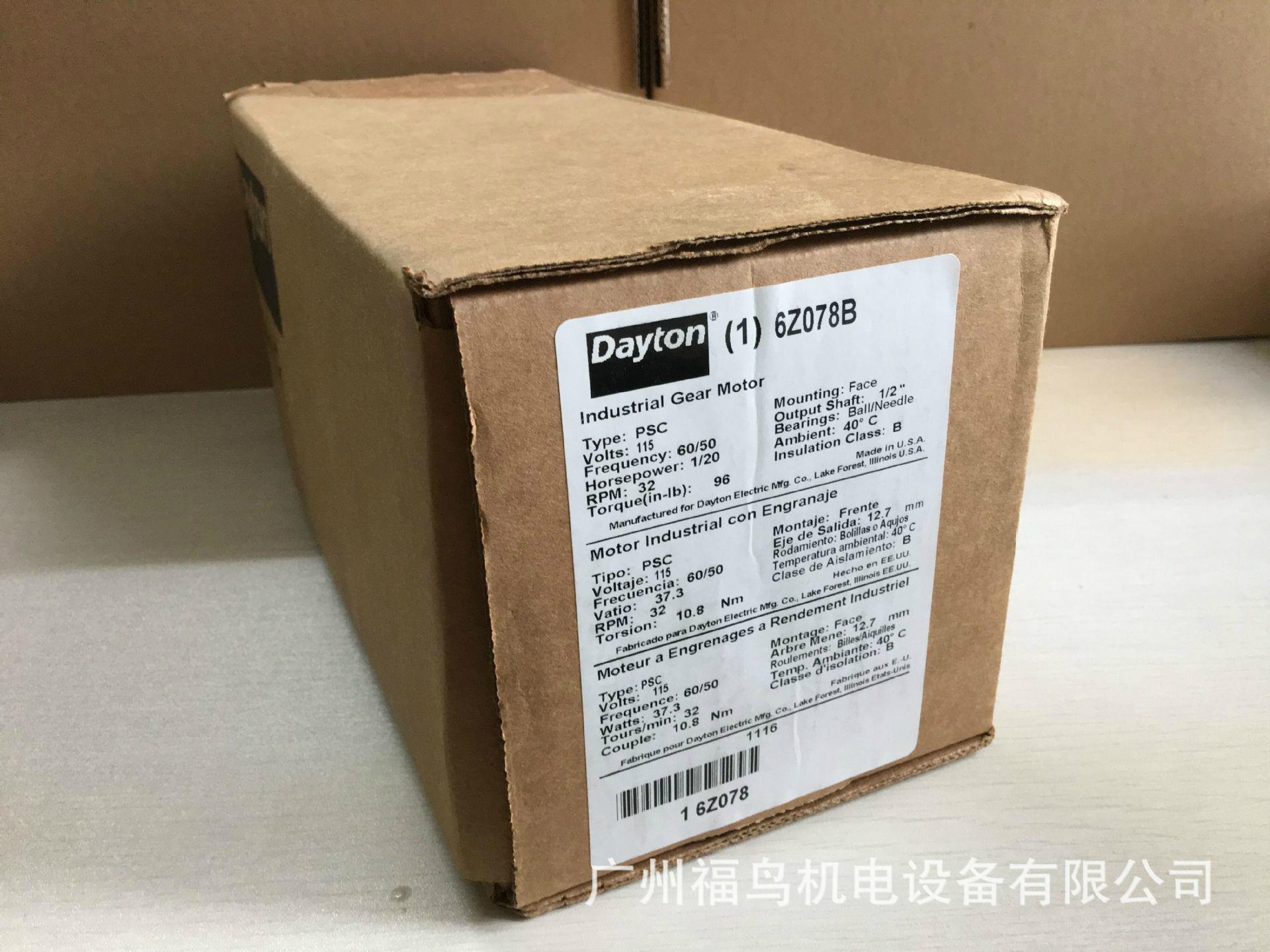

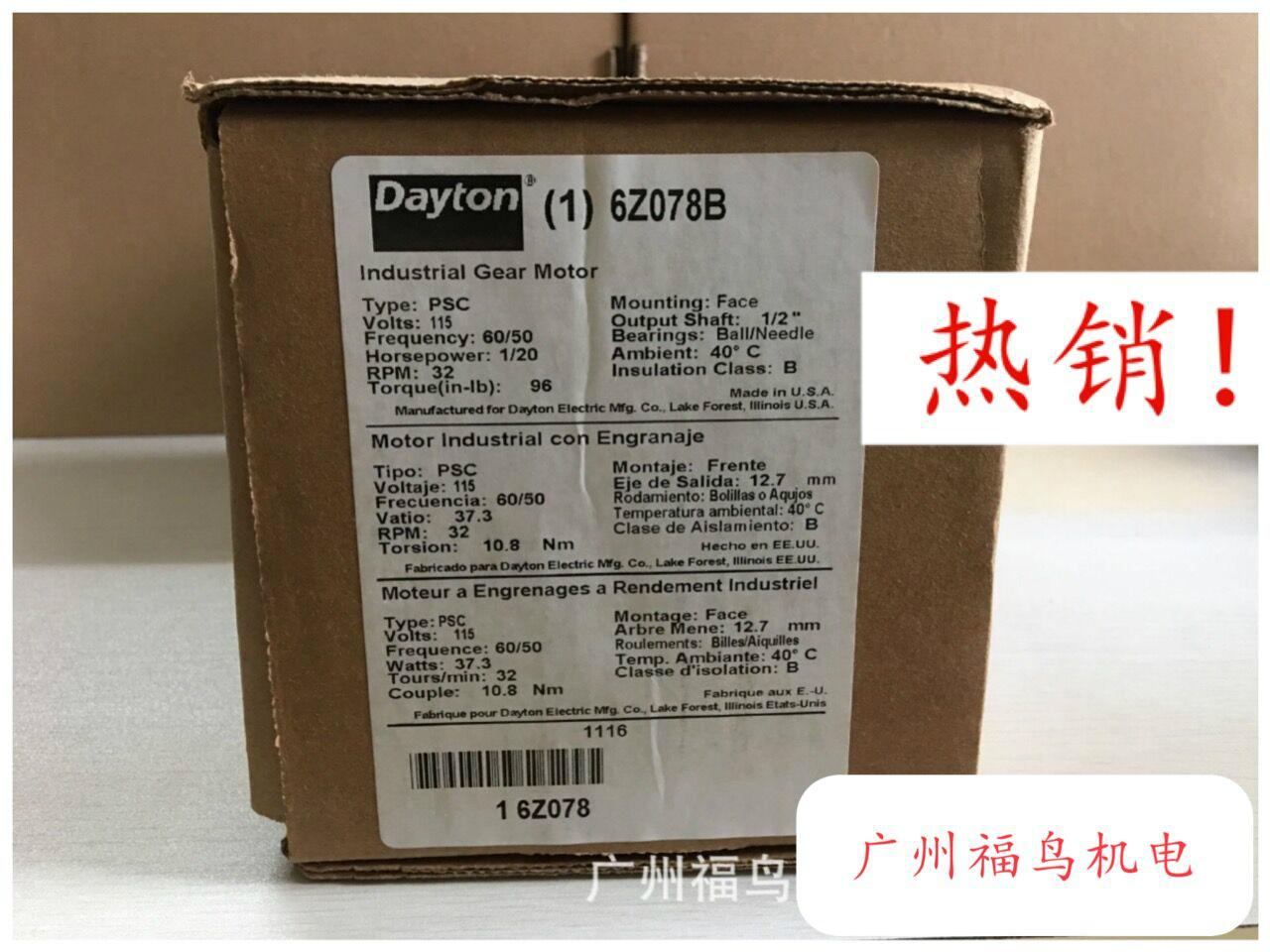

產品規格︰ 型號: 6Z078, 6Z078B, 6Z078A
