供應DAYTON電機, 馬達( 1LPN8, 3M125, 3M125B)

供應DAYTON電機, 馬達( 1LPN8, 3M125, 3M125B)

型號︰1LPN8

品牌︰DAYTON

原產地︰美國

單價︰-

最少訂量︰-

現在查詢

產品描述

Technical Specs:

  • Item: AC Gearmotor
  • Voltage: 115
  • Phase: 1
  • Hz: 60
  • Shaft Orientation: Parallel
  • Reversible Shaft Output: No
  • Shaft: Single Output
  • Nameplate RPM: 2
  • Max. Torque: 113 in.-lb.
  • Overhung Load: 150 lb.
  • Input HP: 1/20
  • Gear Ratio: 750:1
  • Full Load Amps: 1.6
  • Insulation Class: B
  • Enclosure: TEFC
  • Thermal Protection: None
  • Max. Ambient Temp.: 40 Degrees C
  • Rotation: CW
  • Mounting: All Position
  • Motor Type: Shaded Pole
  • Length Less Shaft: 7-1/2"
  • Keyway Size: #605 Woodruff Key
  • Bearings: Porous Bronze Sleeve on Case, Ball on Motor
  • Lubrication: Grease Filled
  • Finish: Unpainted
  • Housing: Die Cast Zinc
  • Gear Case Material: Die Cast Zinc
  • Gears: Acetyl/Steel
  • Gear Material: Acetyl/Steel
  • Seals: Lip Type on Output Shaft
  • Standards: RU/CSA
  • RPM Range: 0 to 15

產品規格︰ 型號: 1LPN8 (替代舊型號3M125, 3M125B)

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

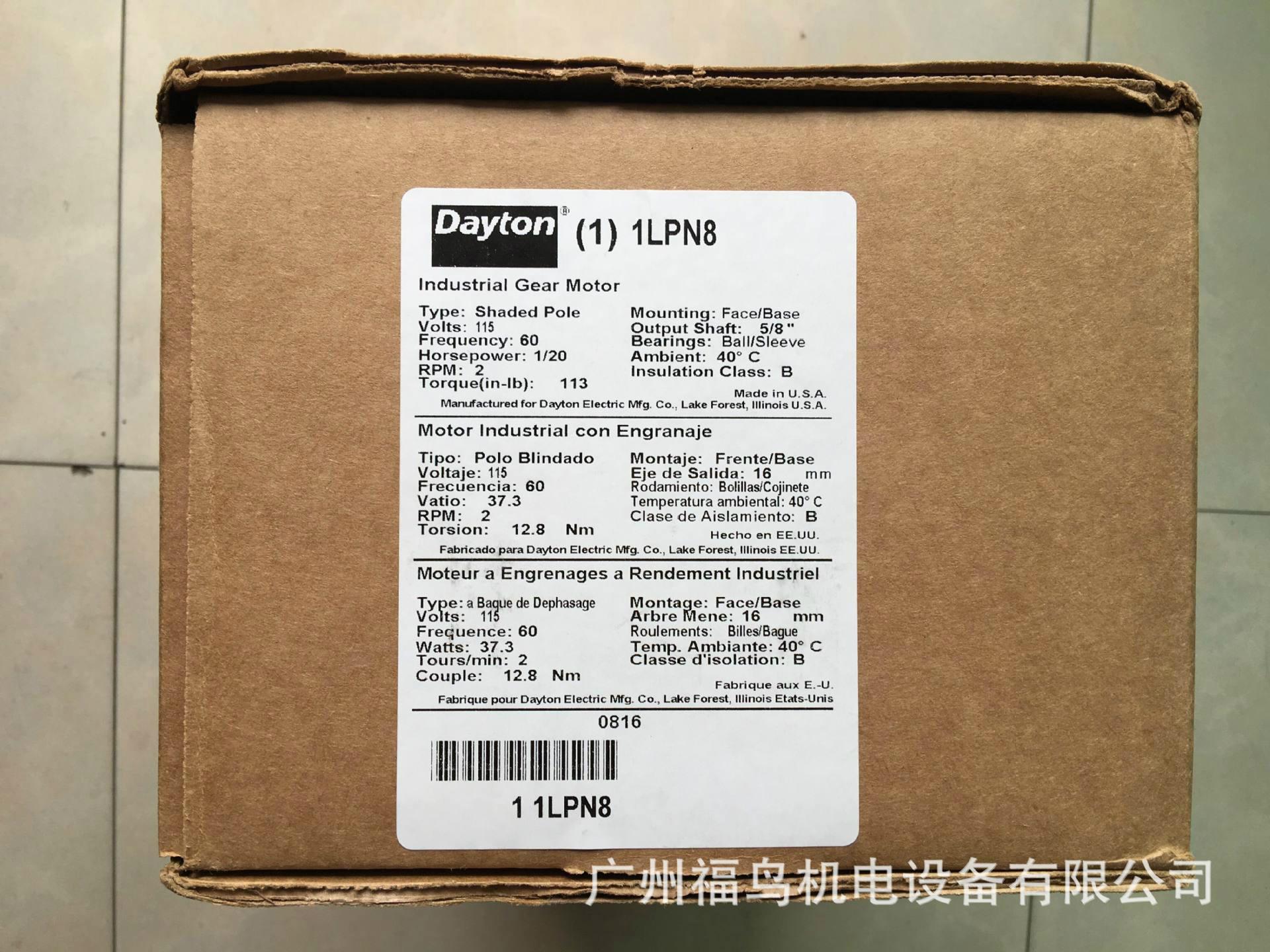

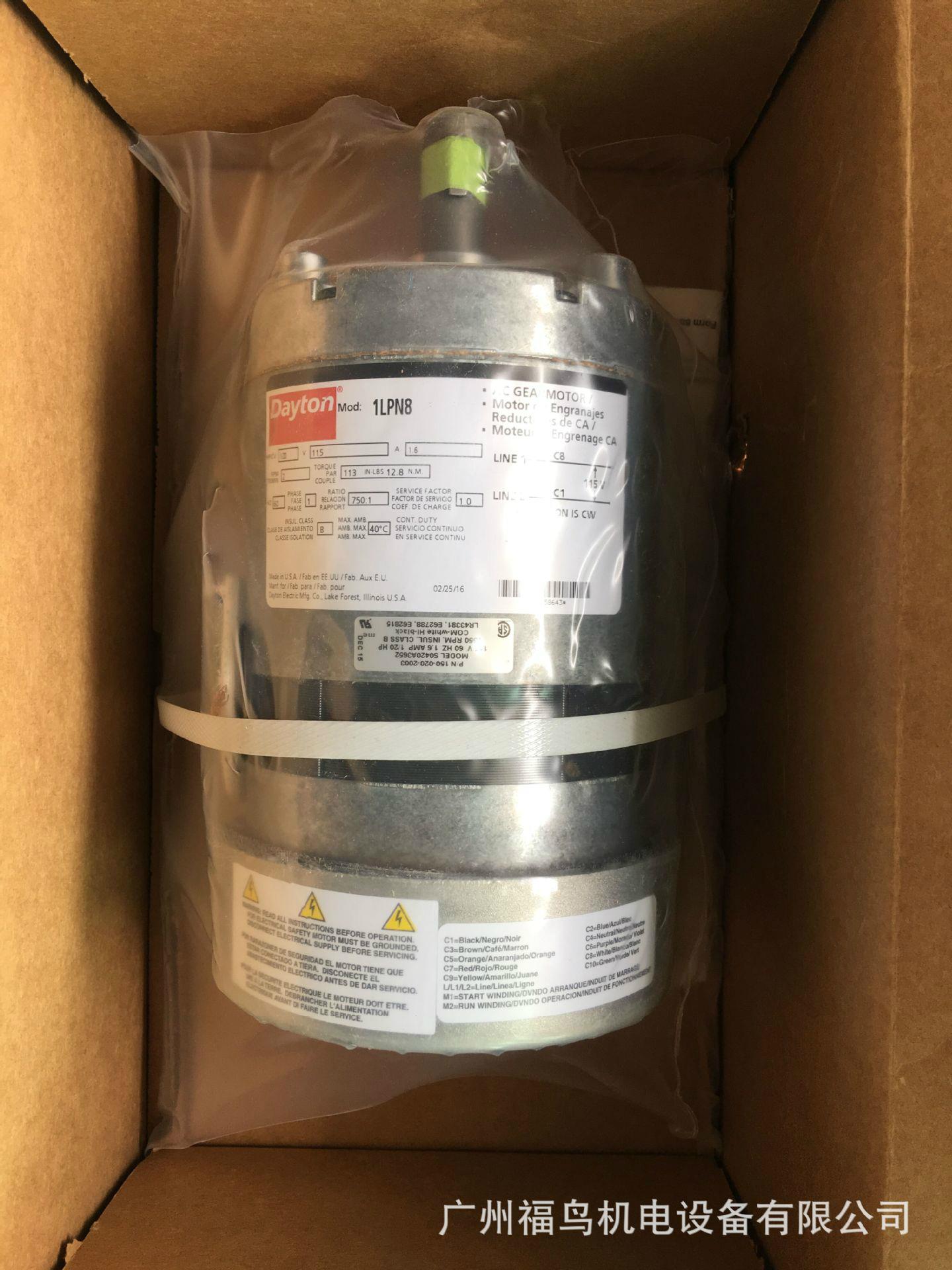

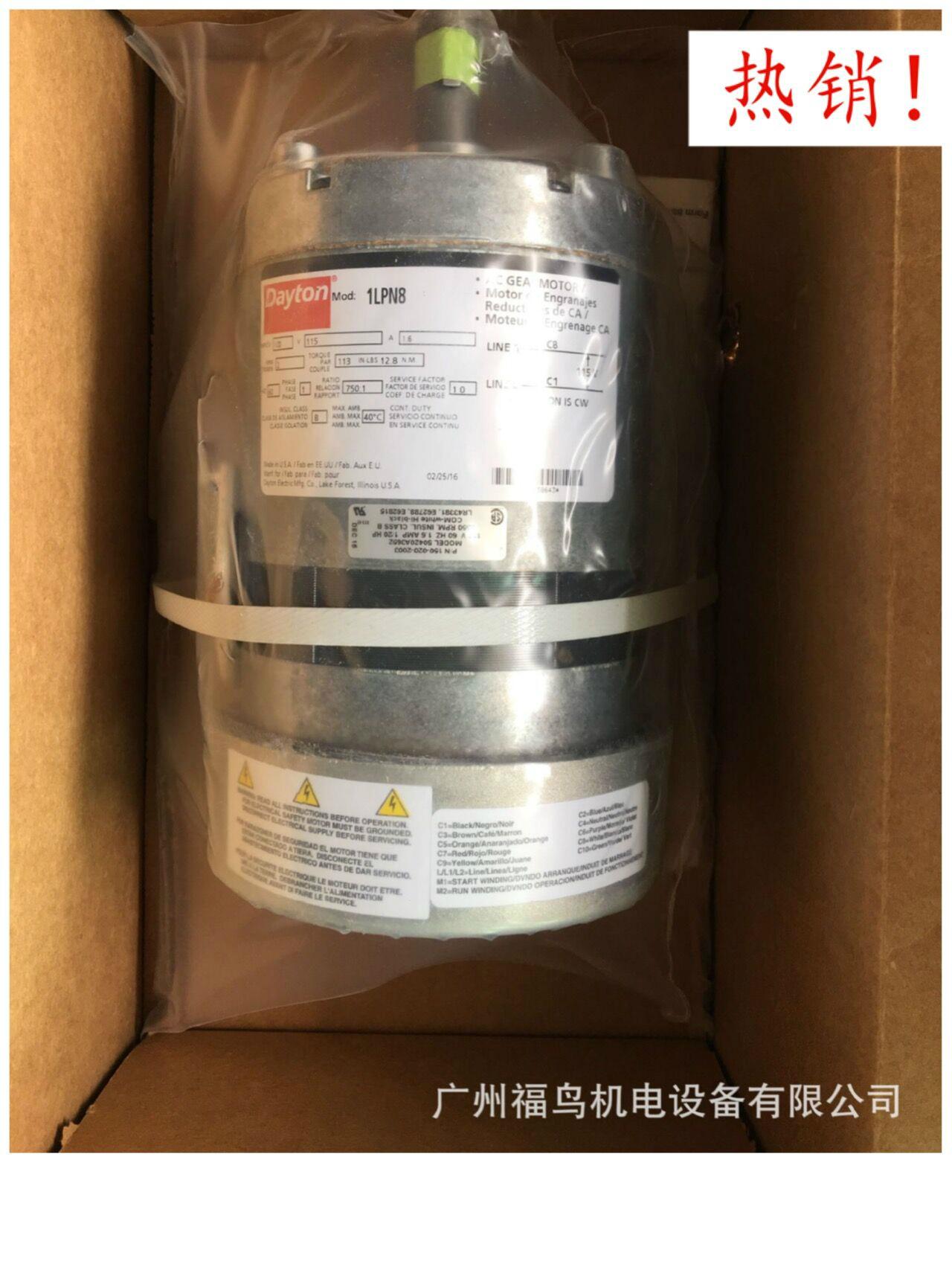

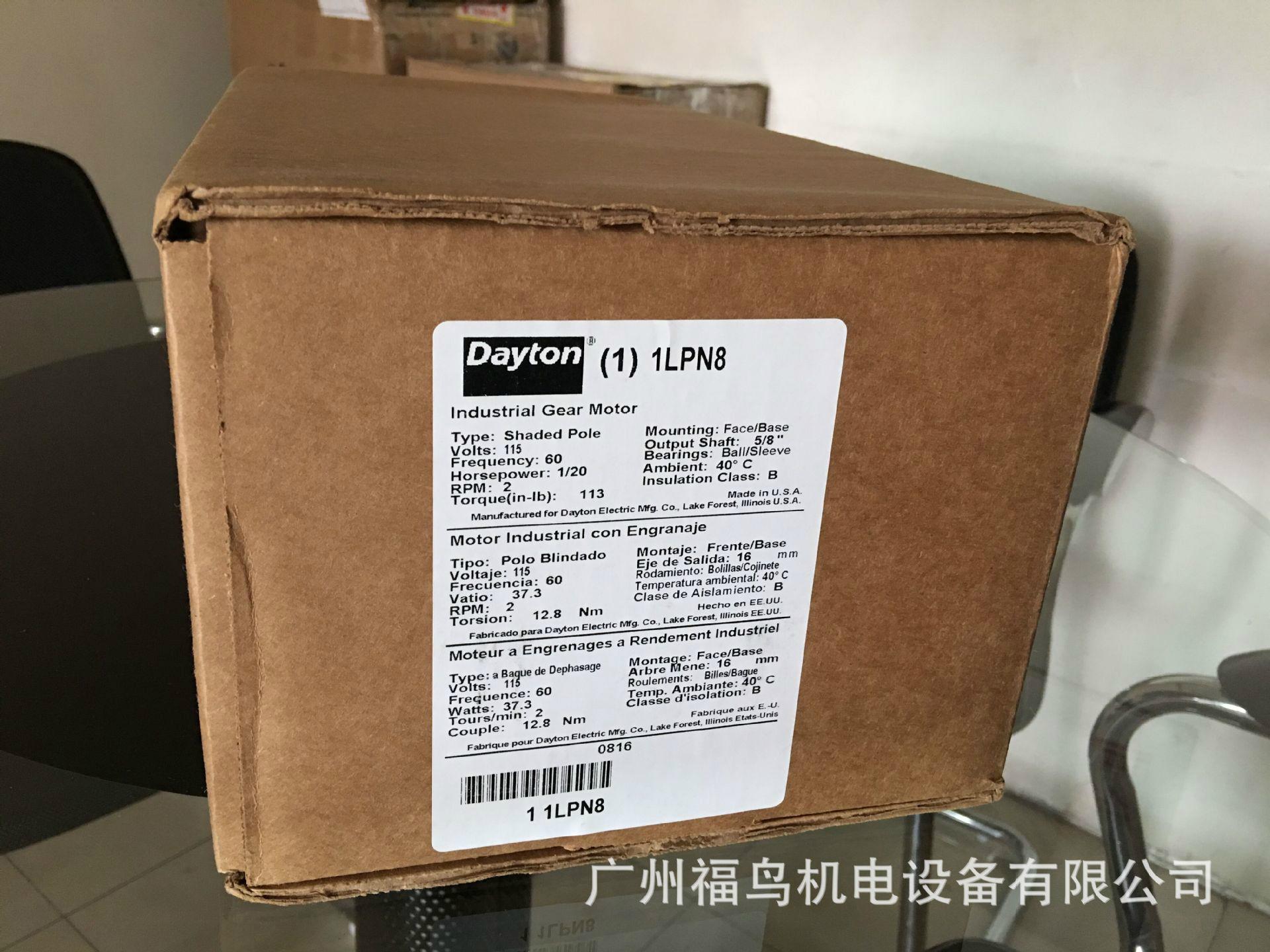

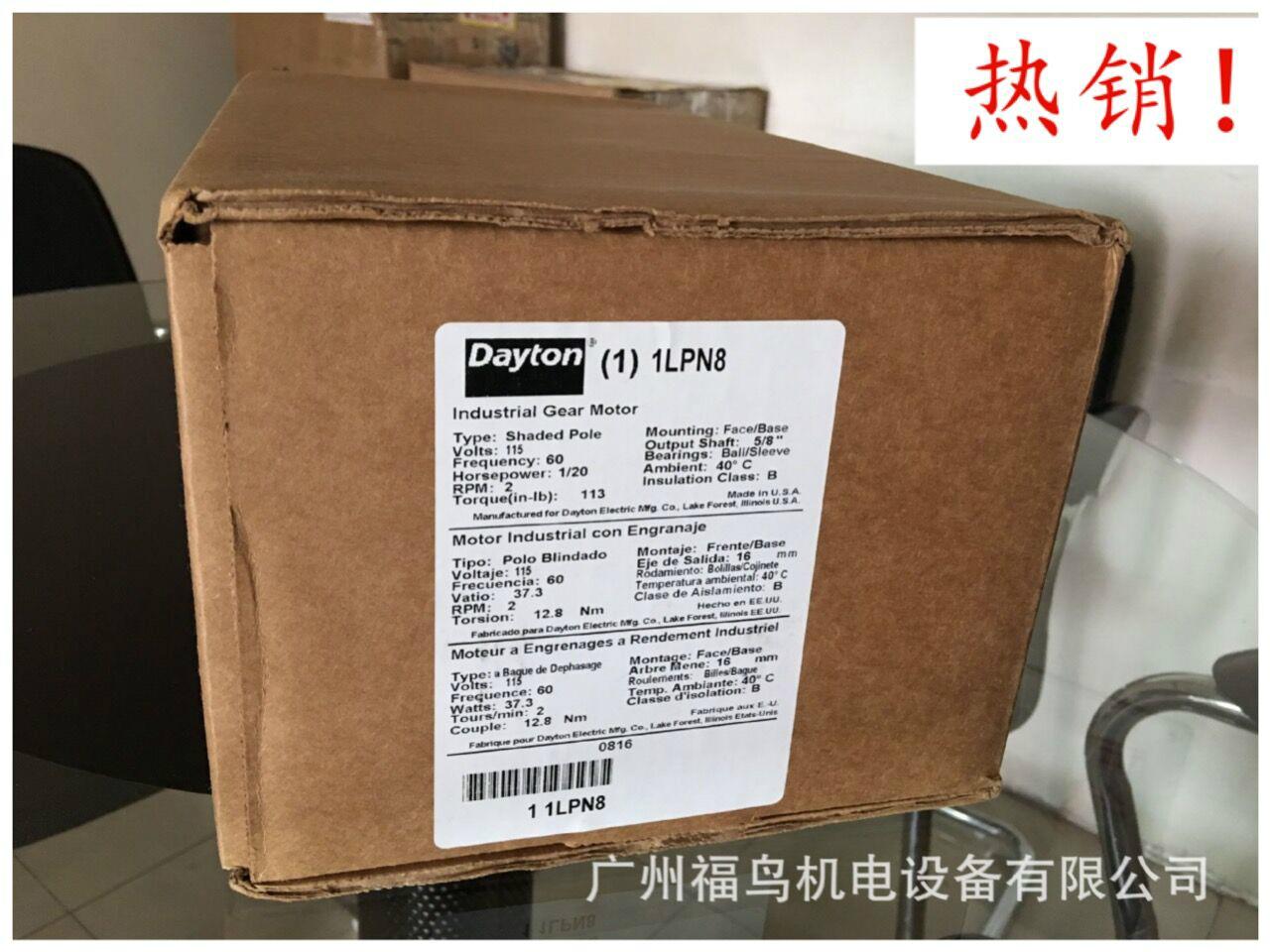

產品圖片
