產品描述

Technical Specs:

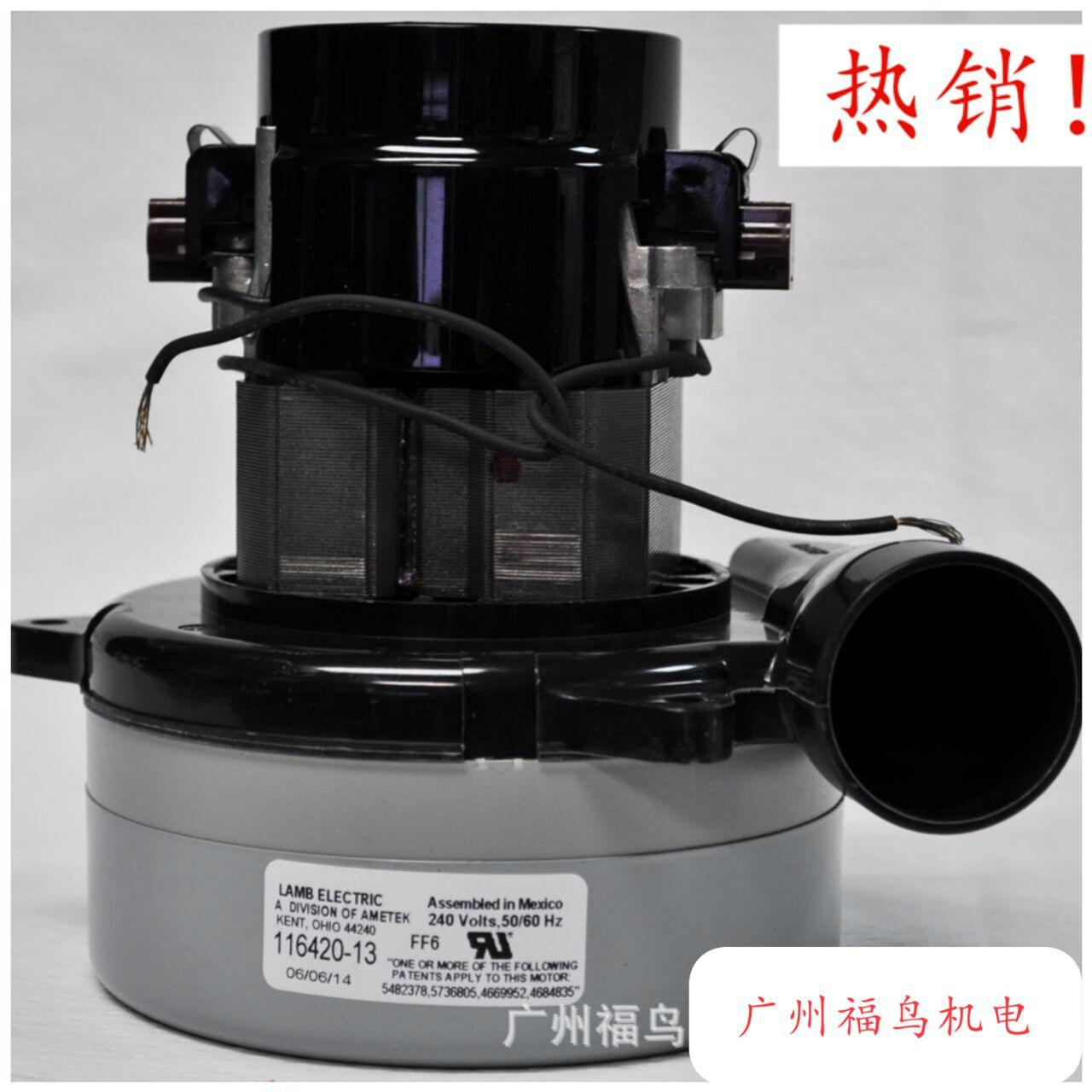

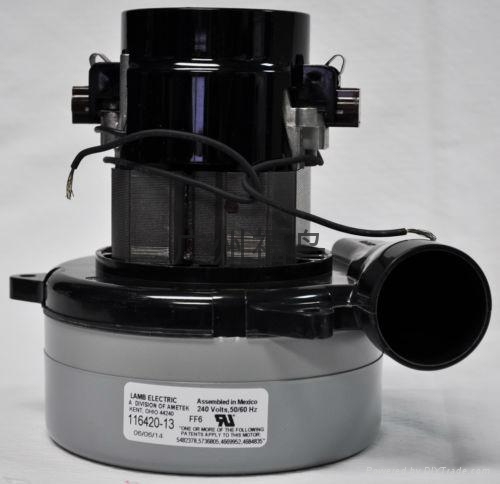

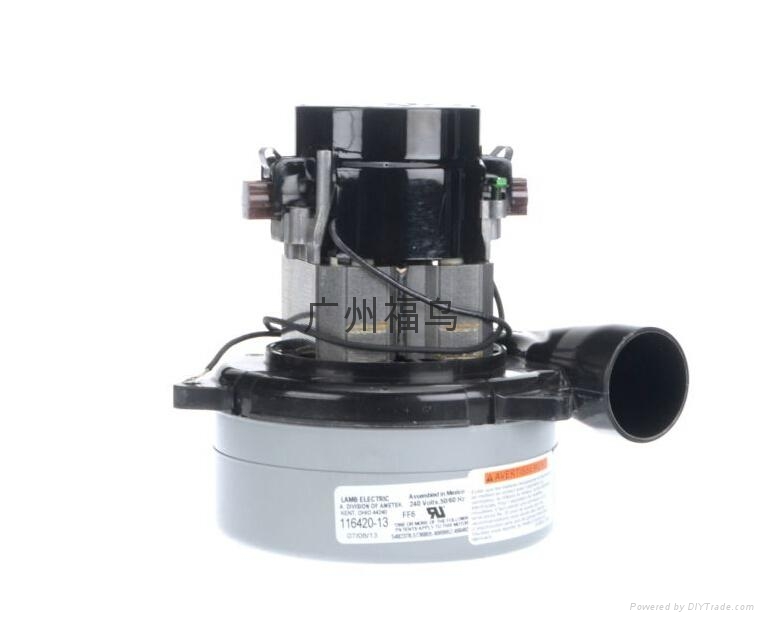

• Item: Vacuum Motor
• Motor/Blower Type: Bypass
• Discharge: Tangential
• Blower Stages: 2
• Number of Speeds: 1
• Motor Enclosure Design: Open
• CFM @ 2-In. Orifice: 108.0
• Vacuum (H2O Sealed): 87.5
• Voltage: 240
• Hz: 60/50
• Phase: 1
• Max. Amps: 4.4
• Max. Air Watts: 317
• Motor Mounting Type: Lug

• Motor Design: Universal AC/DC
• Motor Mounting Position: All Angle
• Thermal Protection: None
• Insulation Class: A
• Bearings: Ball
• Ambient Temperature: 40 Degrees C
• Body Dia.: 5.7"
• Overall Height: 6-15/16"
• Mounting Brackets: Thermoset
• Duty: Intermittent
• Average Life: 500 hr.
• Standards: UL Recognized (E47185), CSA Certified (LR31393)
• Replacement Brushes: Mfr. No. 833378-50

產品規格︰ 型號: 116420-13
