產品描述

Technical Specs:

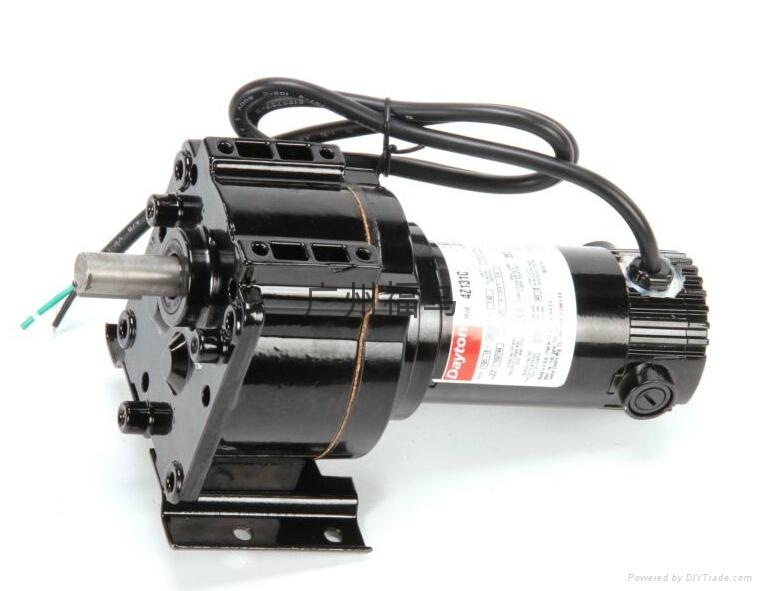

• Item: DC Gearmotor
• Voltage: 90VDC
• Shaft Orientation: Parallel
• Reversible Shaft Output: No
• Nameplate RPM: 109
• Max. Torque: 27 in.-lb.
• Overhung Load: 150 lb.
• Input HP: 1/20
• Gear Ratio: 17:1
• Full Load Amps: 0.62
• Enclosure: TENV
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C
• Rotation: Reversible

• Mounting: All Position
• Motor Type: DC

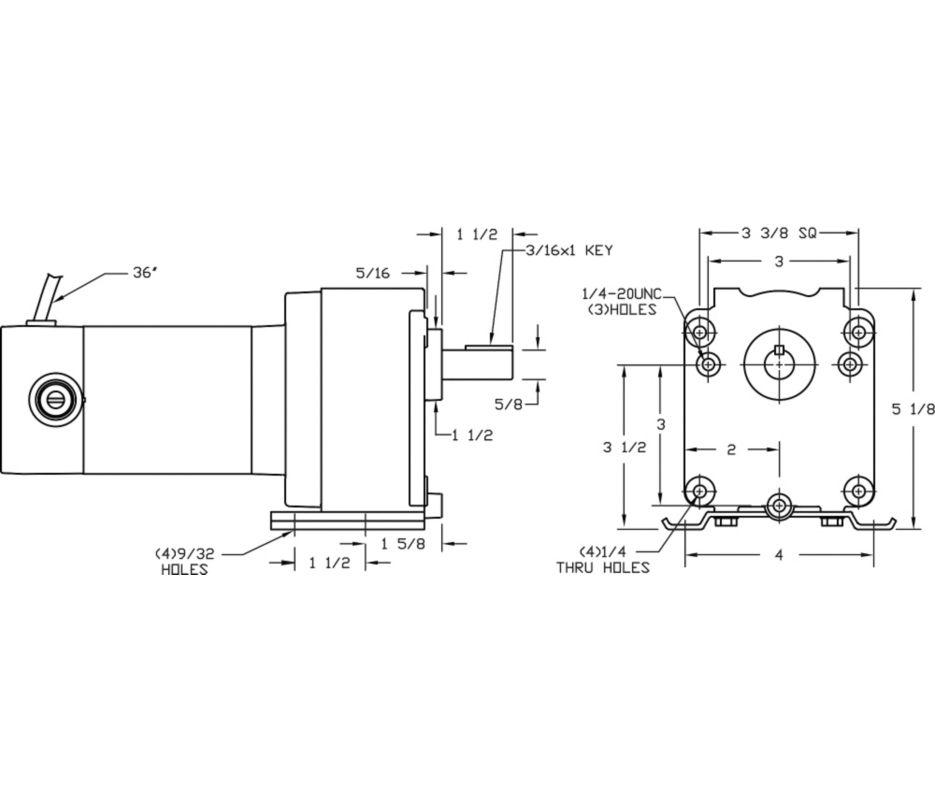

• Length Less Shaft: 8-5/8"
• Overall Length: 10-1/8"
• Bearings: Needle Roller and Thrust Balls on Case, Ball on Motor
• Lubrication: Permanent Heavy Fluid Gear Oil
• Brushes: Externally Replaceable
• Gear Material: Hardened Steel
• Gear Type: Helical and Spur
• Gear Case: Die Cast Aluminum
• Seals: Spring Loaded Lip Type on Input and Output Shaft
• Housing Material: Die Cast Aluminum
• Replacement Brushes: 6YHY3
• RPM Range: 100 to 150

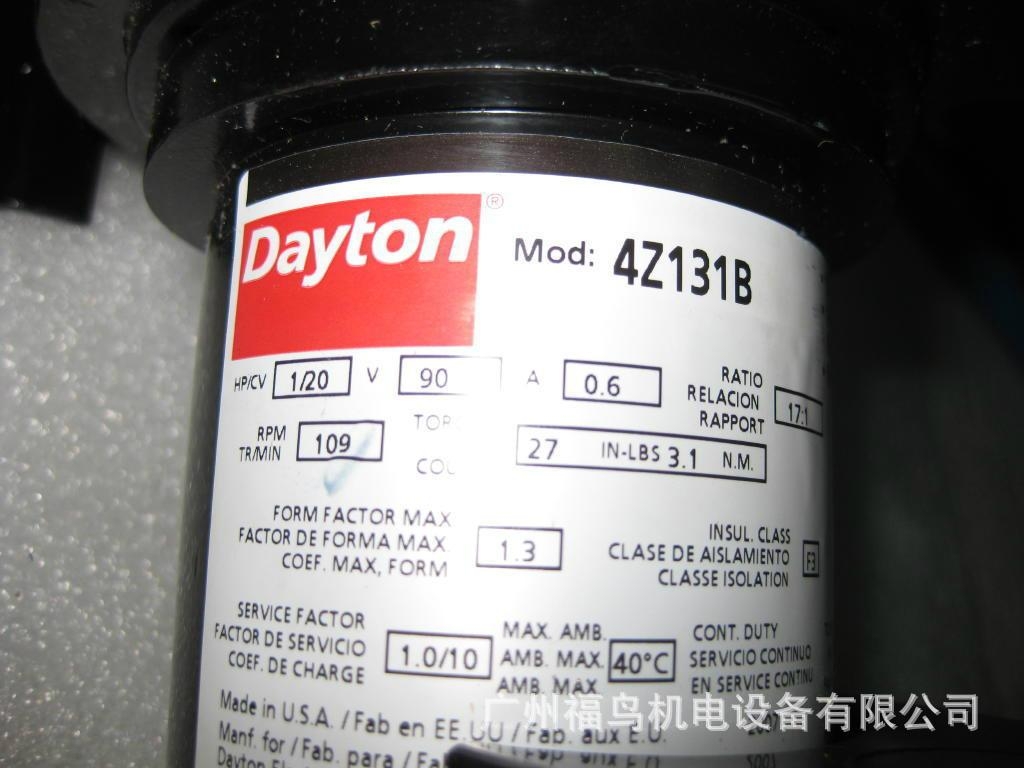

產品規格︰ 型號: 4Z131, 4Z131C, 4Z131B, 4Z131A

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

產品圖片
