型號︰1TDT8, 1TDT8A

品牌︰DAYTON

原產地︰美國

單價︰-

最少訂量︰-

現在查詢

產品描述

Technical Specs:

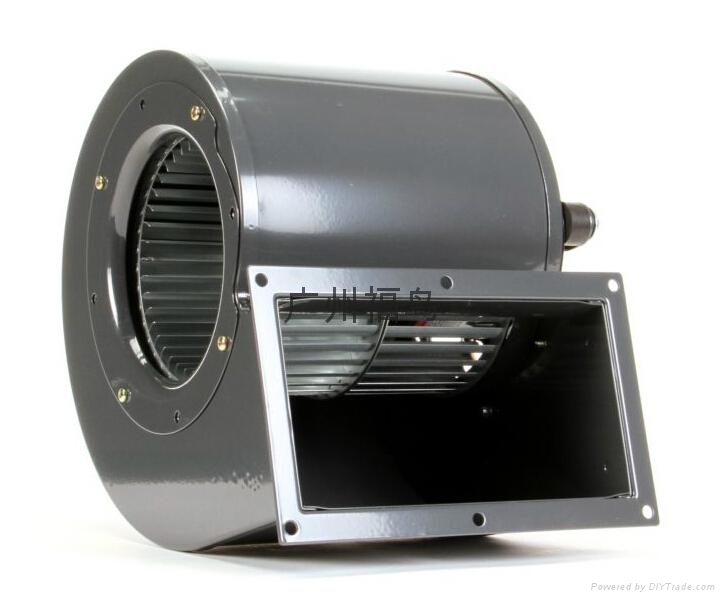

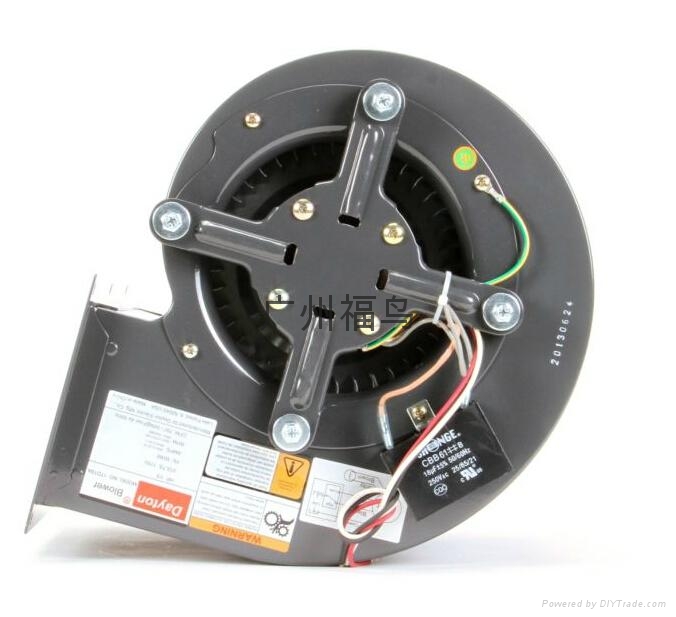

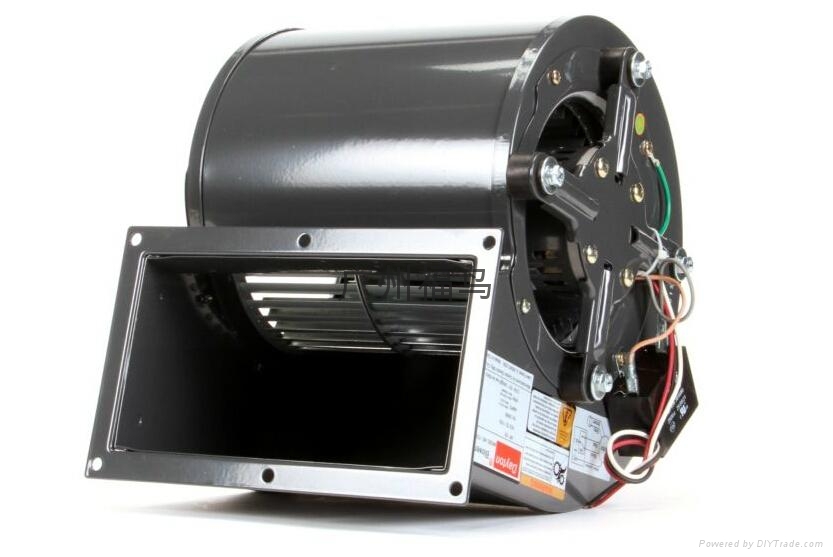

  • Item: OEM Blower
  • Outlet Shape: Rectangular
  • With/Without Flange: With Flange
  • Wheel Dia.: 6-5/16"
  • Wheel Width: 6-1/2
  • CFM @ 0.000-In. SP: 797/549
  • CFM @ 0.100-In. SP: 780/546
  • CFM @ 0.200-In. SP: 730/536
  • CFM @ 0.300-In. SP: 720/532
  • CFM @ 0.400-In. SP: 680/518
  • CFM @ 0.500-In. SP: 640/504
  • CFM @ 0.600-In. SP: 620/490
  • CFM @ 0.700-In. SP: 560/474
  • CFM @ 0.800-In. SP: 500/392
  • Voltage: 115
  • Hz: 50/60
  • Phase: 1
  • Full Load Amps: 3.30/2.20
  • RPM: 1360/970
  • Bearing Type: Ball
  • Motor Type: Permanent Split Capacitor
  • Motor Enclosure: Open
  • Motor Insulation: Class B
  • Thermal Protection: Auto
  • Lead Length: 13"
  • Conduit Box: No
  • Max. Ambient Temp.: 104 Degrees F
  • Max. Inlet Temp.: 104 Degrees F

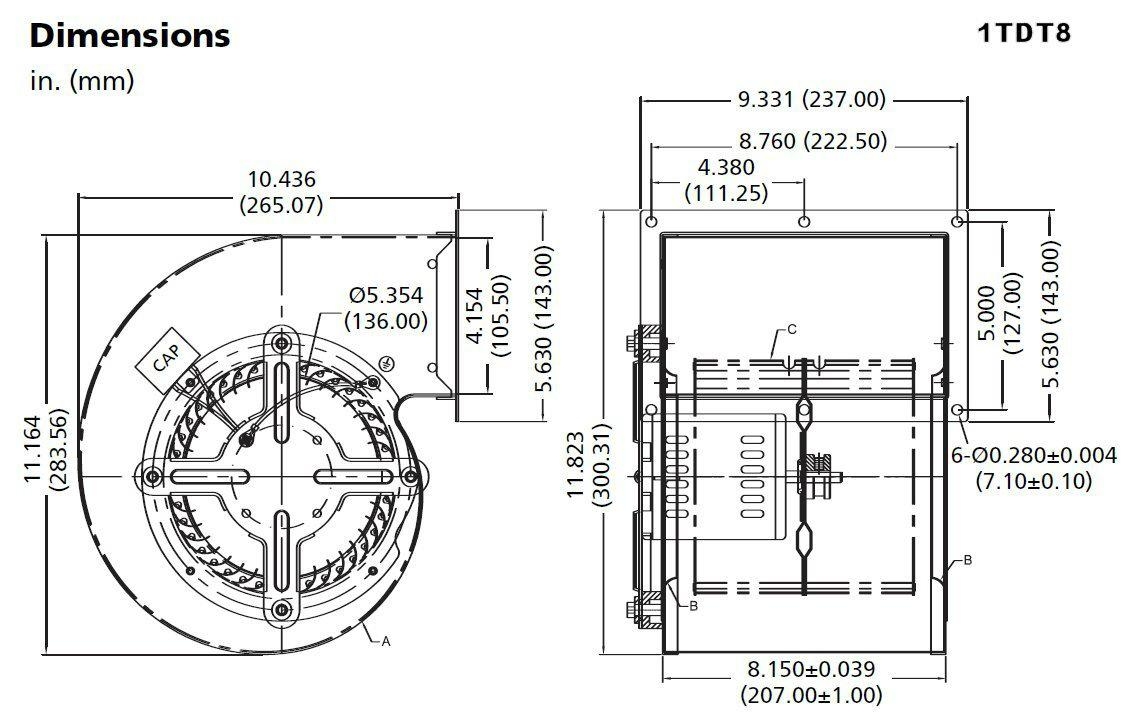

  • Inlet Dia.: 5-5/16"
  • Outlet Height: 4-1/4"
  • Outlet Width: 8-1/16"
  • Overall Height: 11-1/8"
  • Overall Width: 9-1/4"
  • Overall Depth: 10-7/16"
  • Wheel Type: Forward Curve
  • Drive Type: Direct
  • Mounting Position: All Position
  • Housing Finish: Enamel
  • Housing Material: Rolled Steel
  • Housing Color: Gray
  • Agency Compliance: UL Recognized US and Canada (E47479), CE
  • Replaces: 5C508
  • Includes: Discharge Mounting Flange

產品規格︰ 型號: 1TDT8, 1TDT8A (替代舊型號: 5C508, 5C508A)
