Technical Specs:

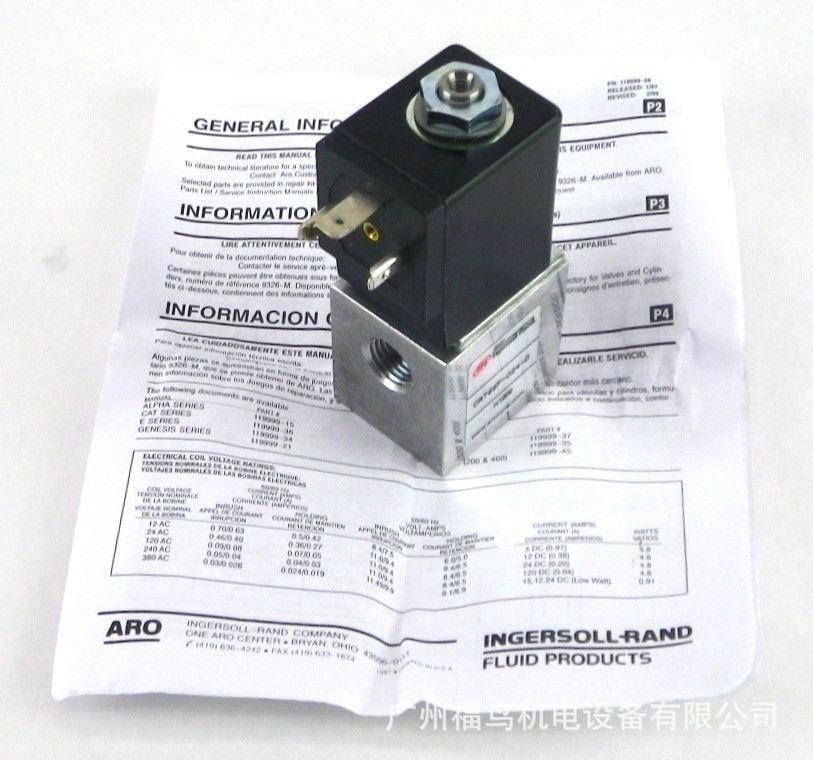

• Item: Solenoid Air Control Valve
• Air Valve Type: 3-Way, 2-Position
• Normally Open/Normally Closed: Normally Closed
• Actuator/Return: Solenoid/Spring
• Body Style: Body Ported
• Pipe Size: 1/4"
• Voltage: 24VDC
• CFM: 7.0
• Coefficient of Volume: 0.2
• Electrical Connections: DIN Connectors

• Shifting Technology: Direct
• Power Consumption: 15W
• Pressure Range: 0 to 150 psi
• Ambient Temp. Range: 0 Degrees to 122 Degrees F
• Overall Height: 3-1/2"
• Overall Length: 2-1/8"
• Overall Width: 1-1/4"
• NEMA Classification: NEMA 4
• Standards: CSA #LR51090, UL #MH13513

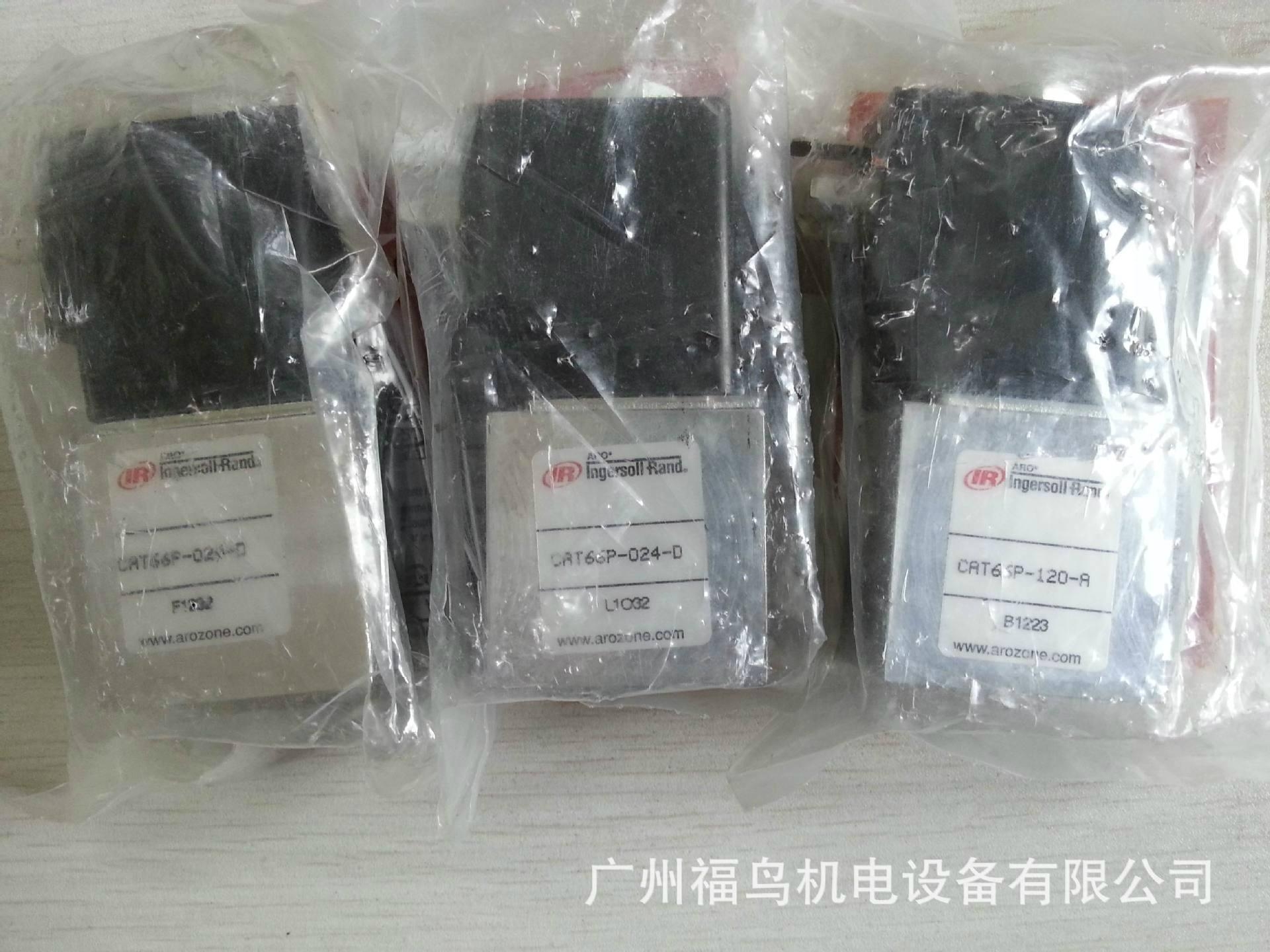

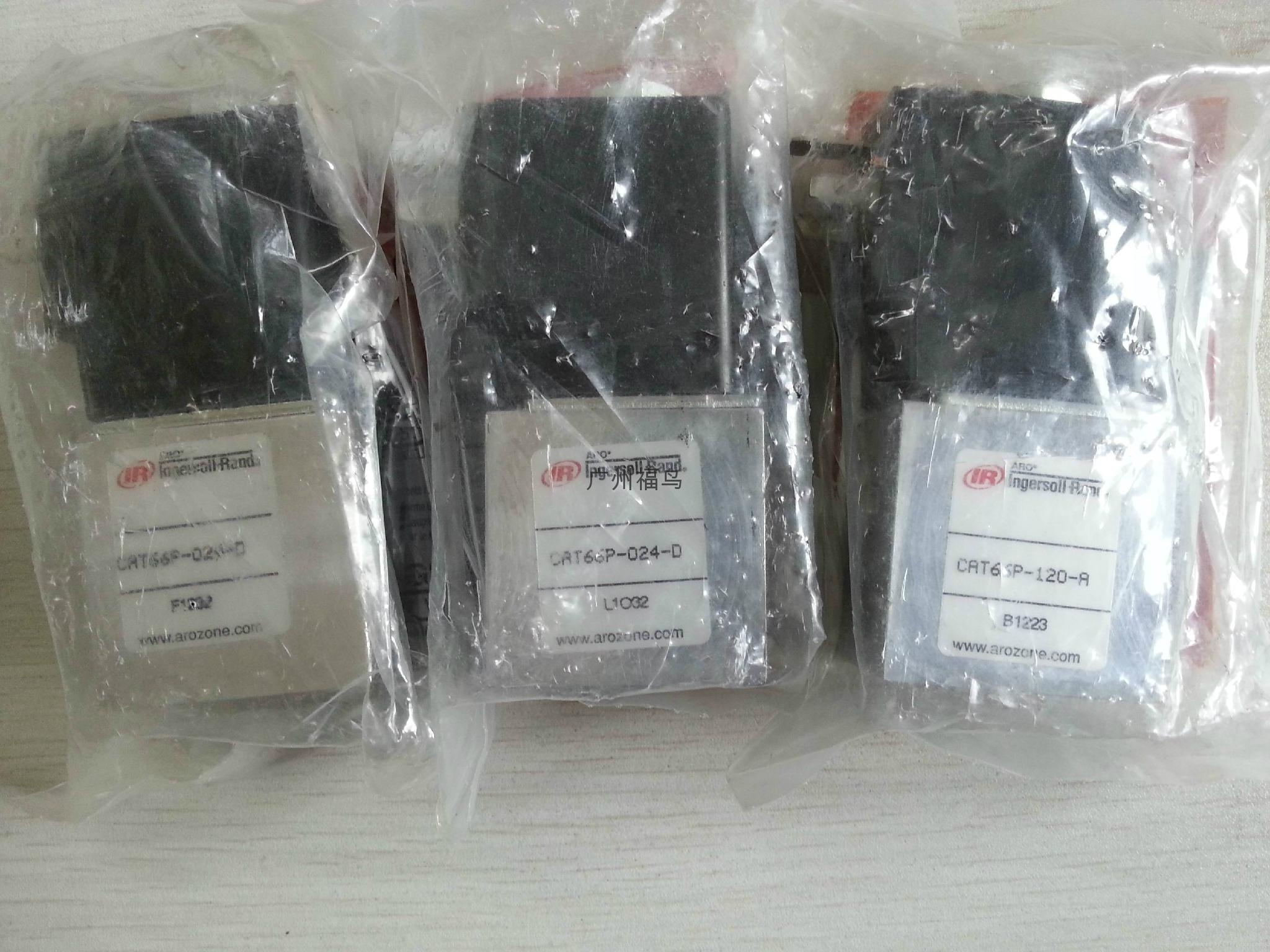

產品規格︰ 型號: CAT66P-024-D, CAT66P-024-D-G
