產品描述

Technical Specs:

• Item: Solenoid Air Control Valve
• Air Valve Type: 4-Way, 2-Position
• Actuator/Return: Solenoid/Spring
• Body Style: Body Ported
• Pipe Size: 1/4"
• Voltage: 24VDC
• CFM: 50
• Coefficient of Volume: 1.5
• Electrical Connections: DIN Connectors

• Shifting Technology: Solenoid/Pilot
• Power Consumption: 4.8W
• Pressure Range: 50 to 150 psi
• Vacuum Range: 29" Hg
• Ambient Temp. Range: 0 Degrees to 180 Degrees F
• Overall Height: 3-1/4"
• Overall Length: 3-1/2"
• Overall Width: 1-15/16"
• NEMA Classification: NEMA 4

產品規格︰ 型號: A212SS-024-D, A212SS-024-D-G

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

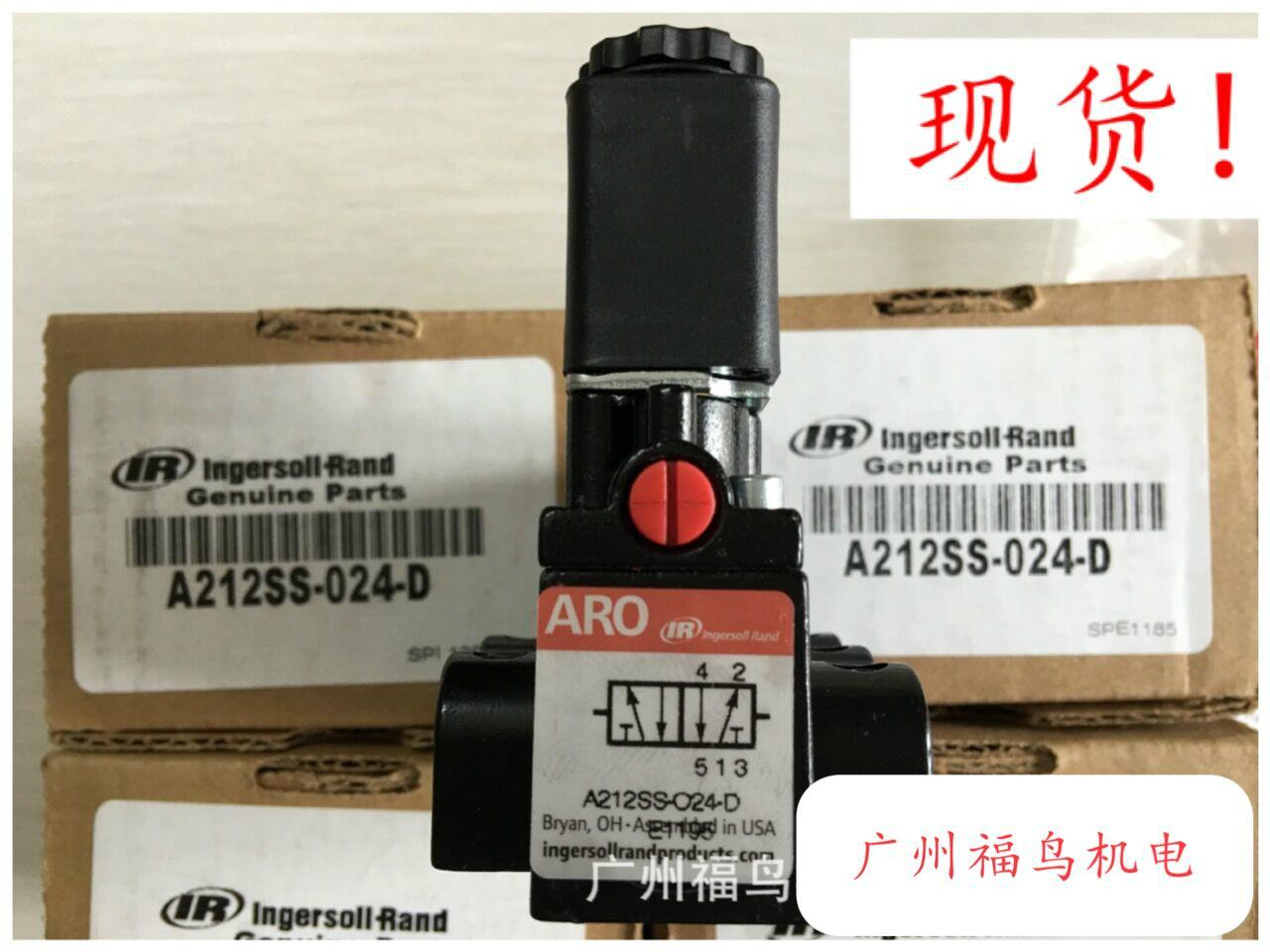

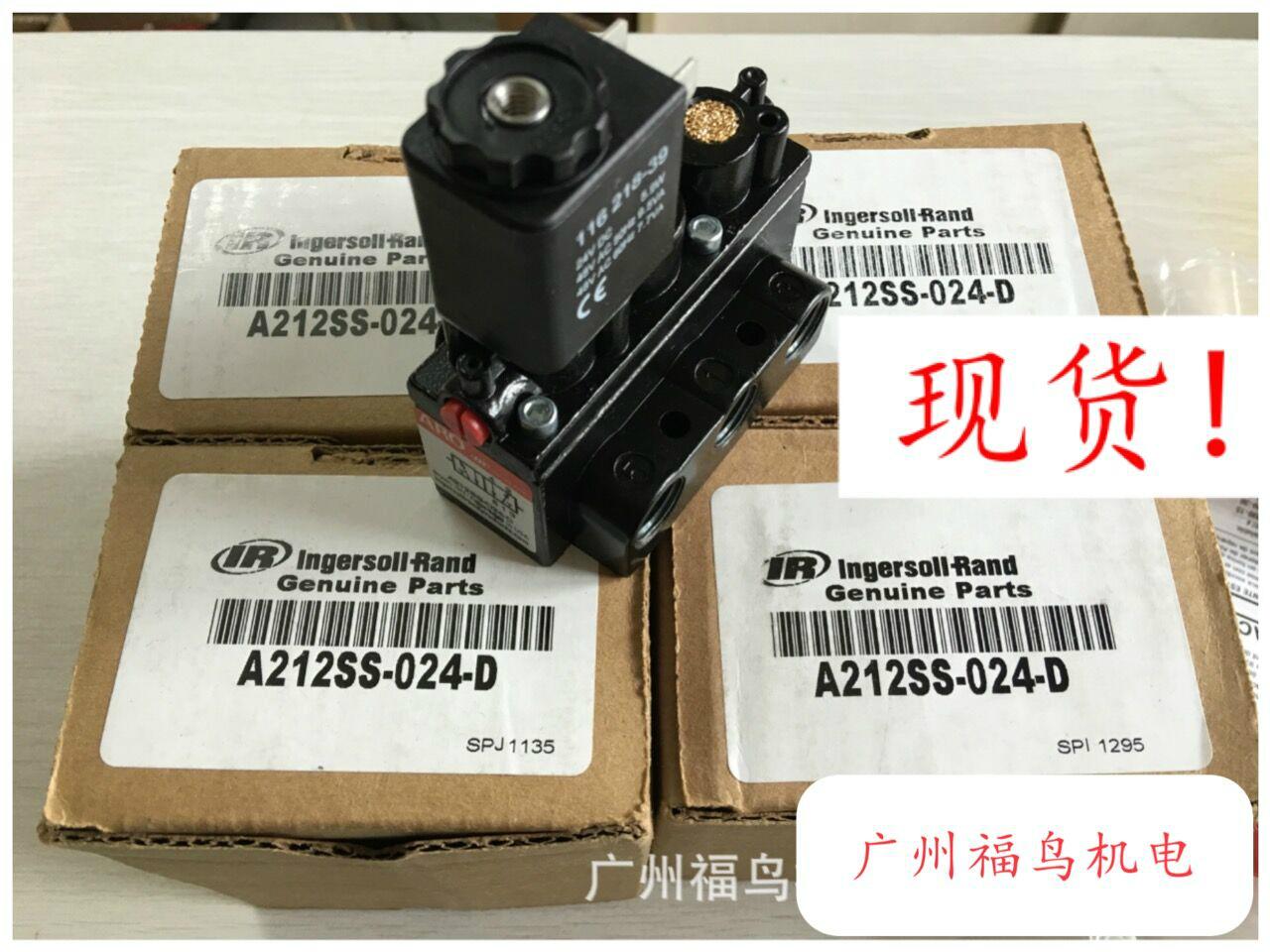

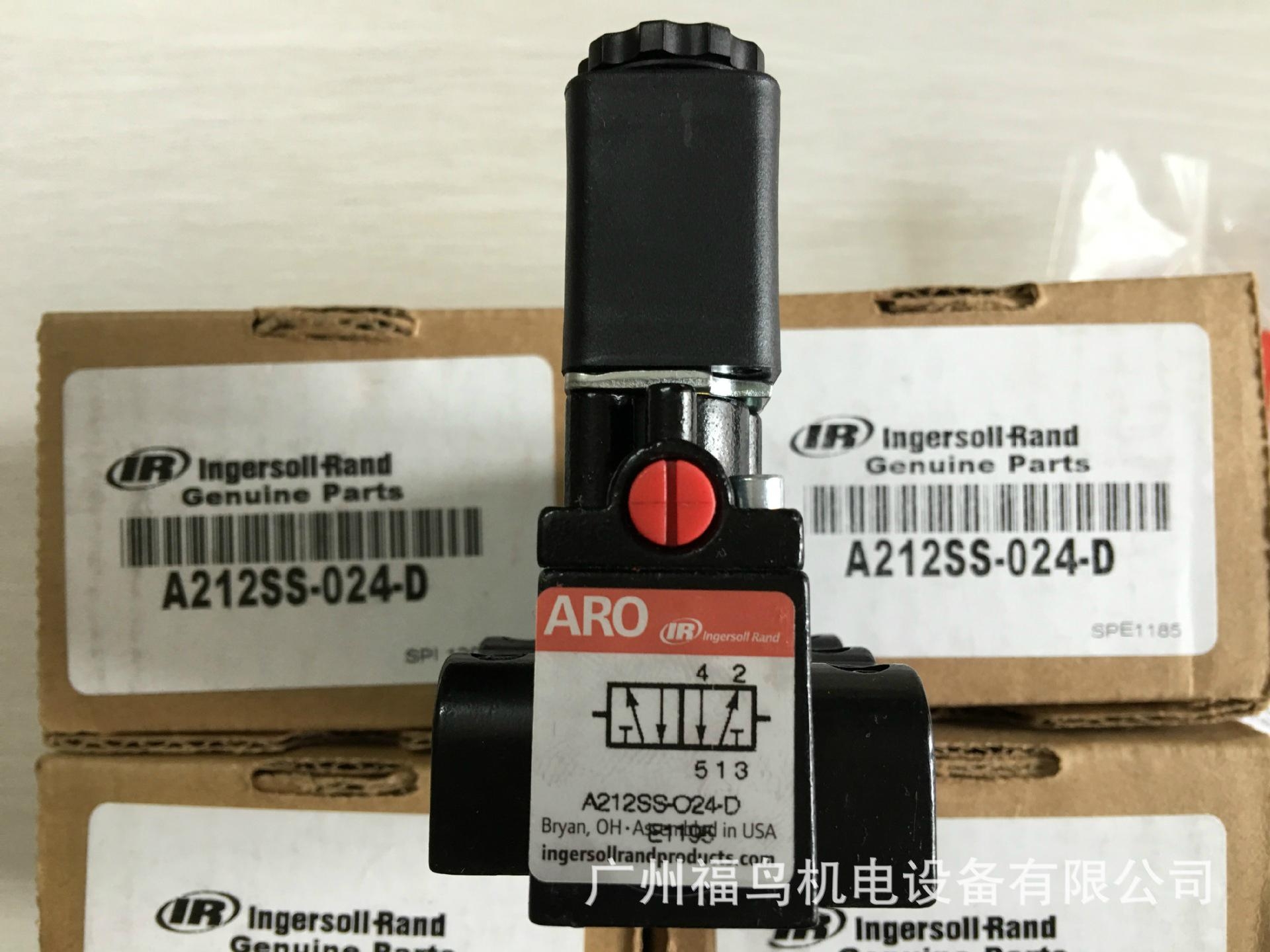

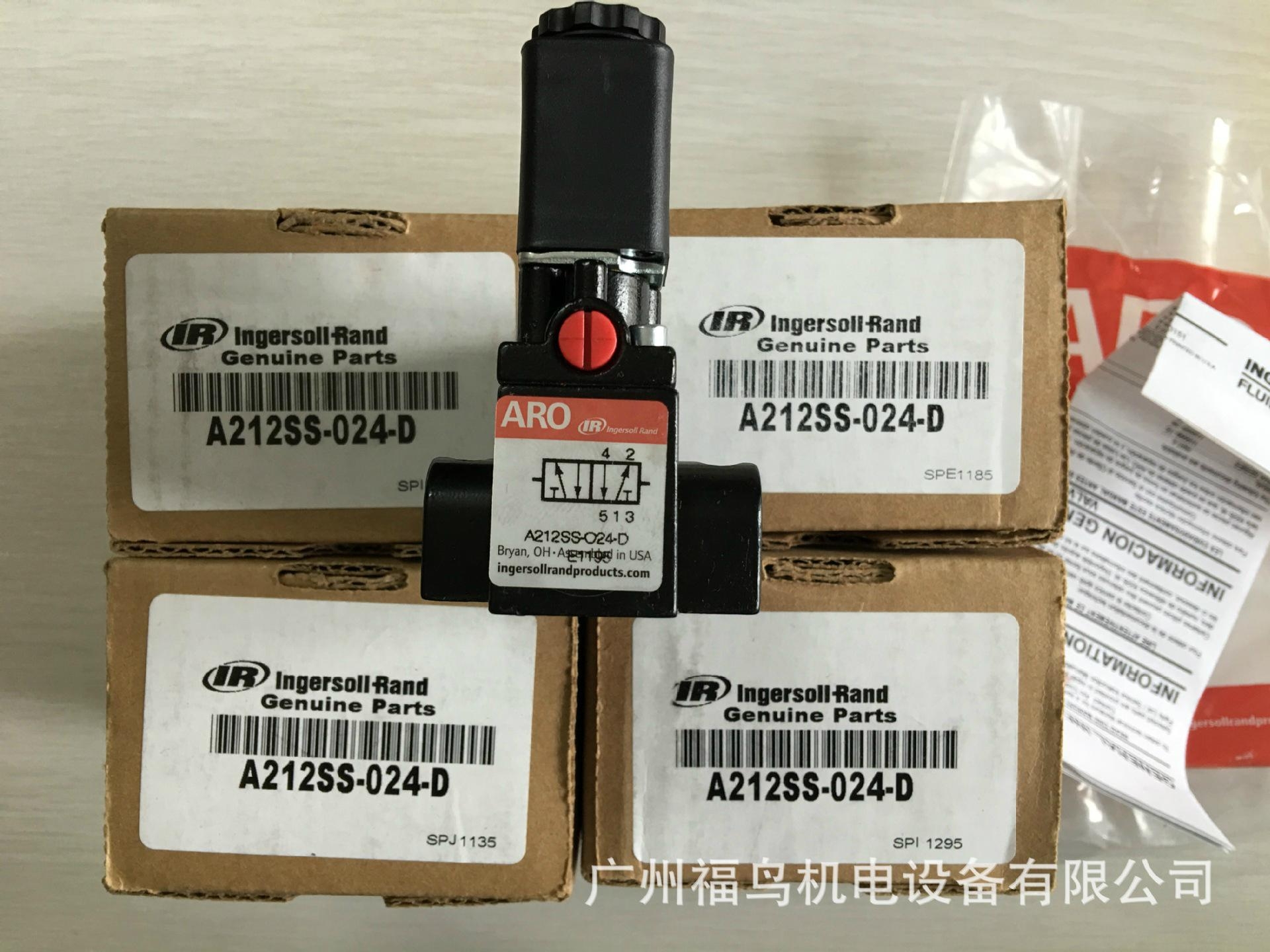

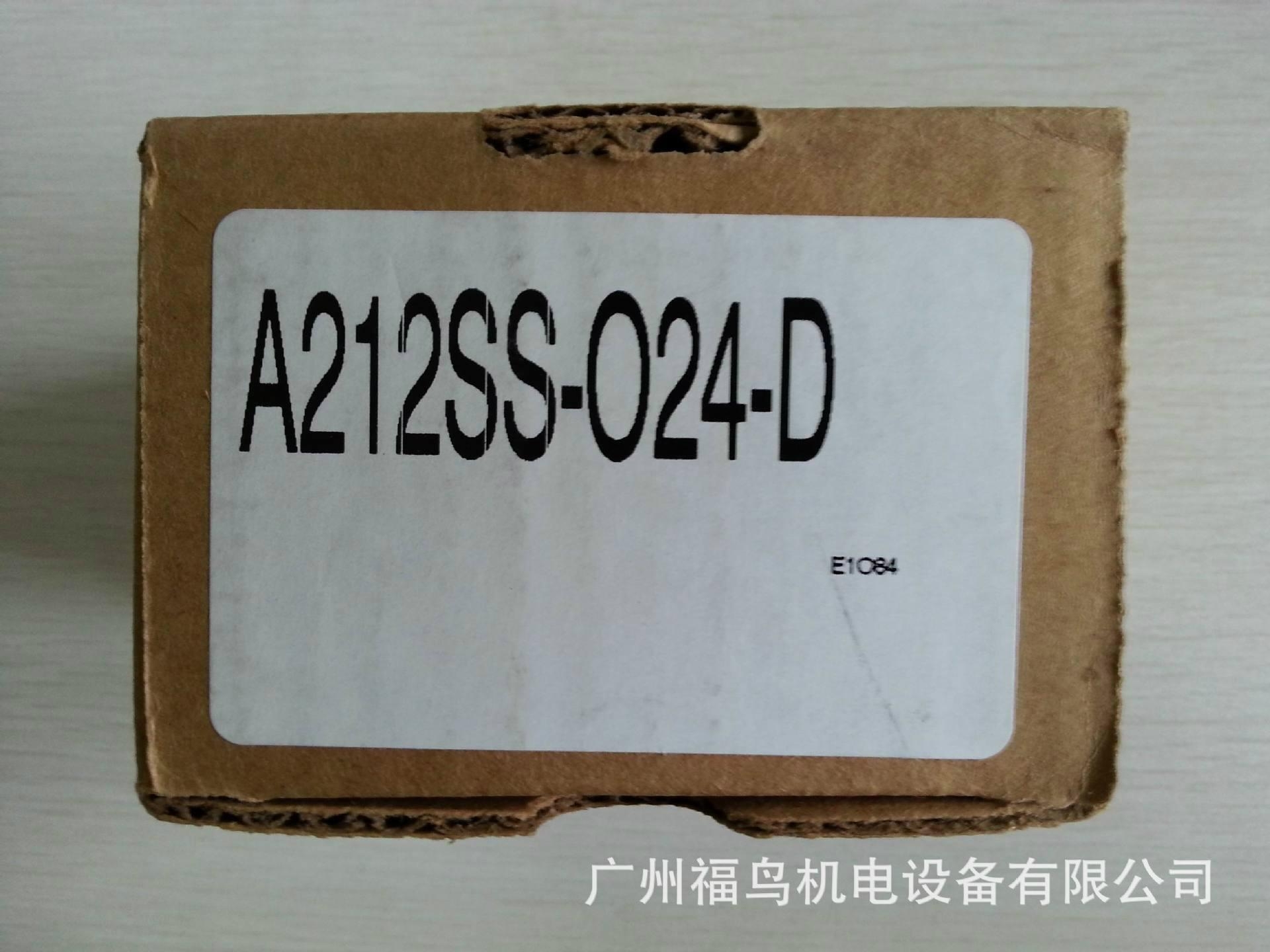

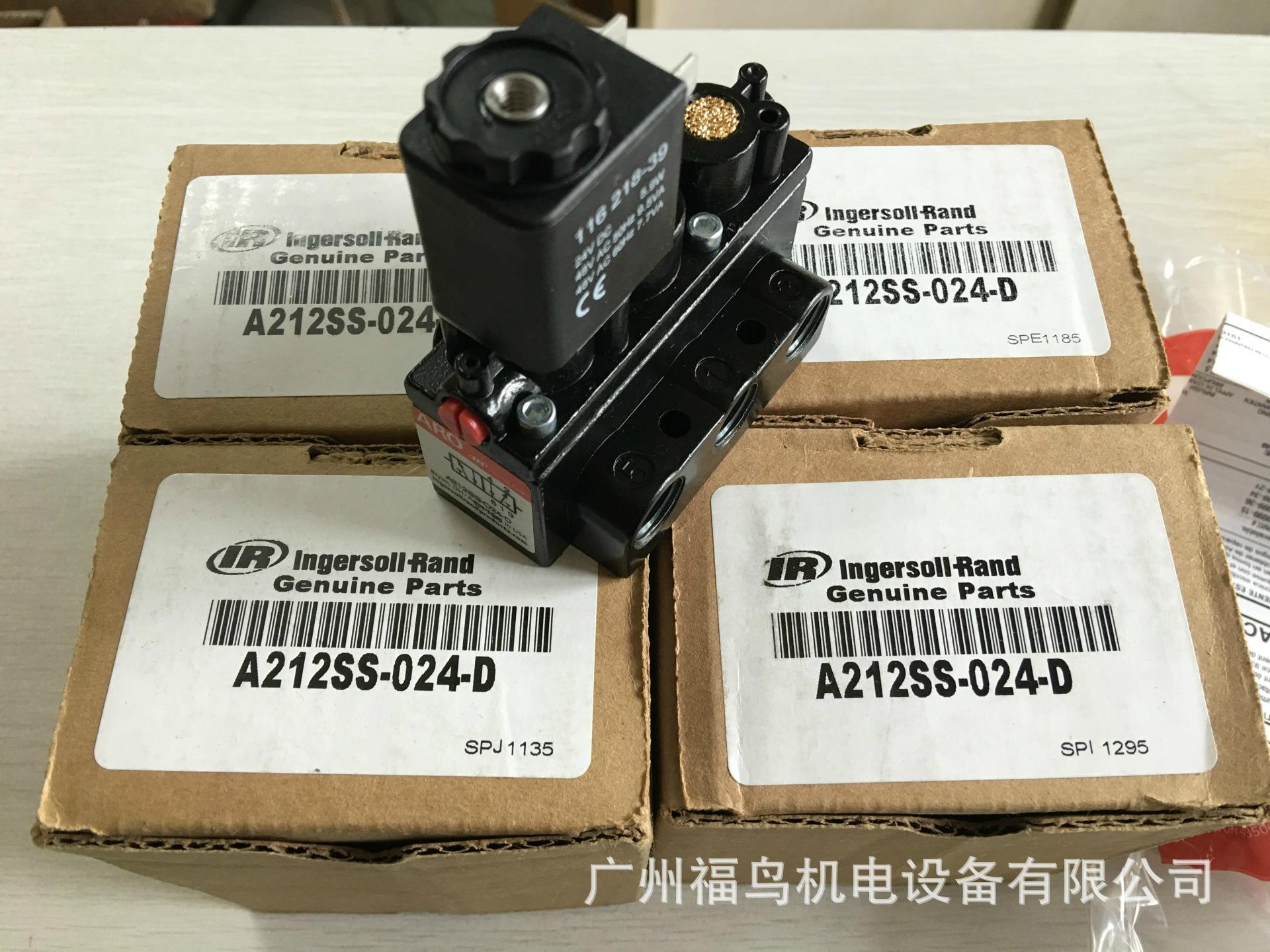

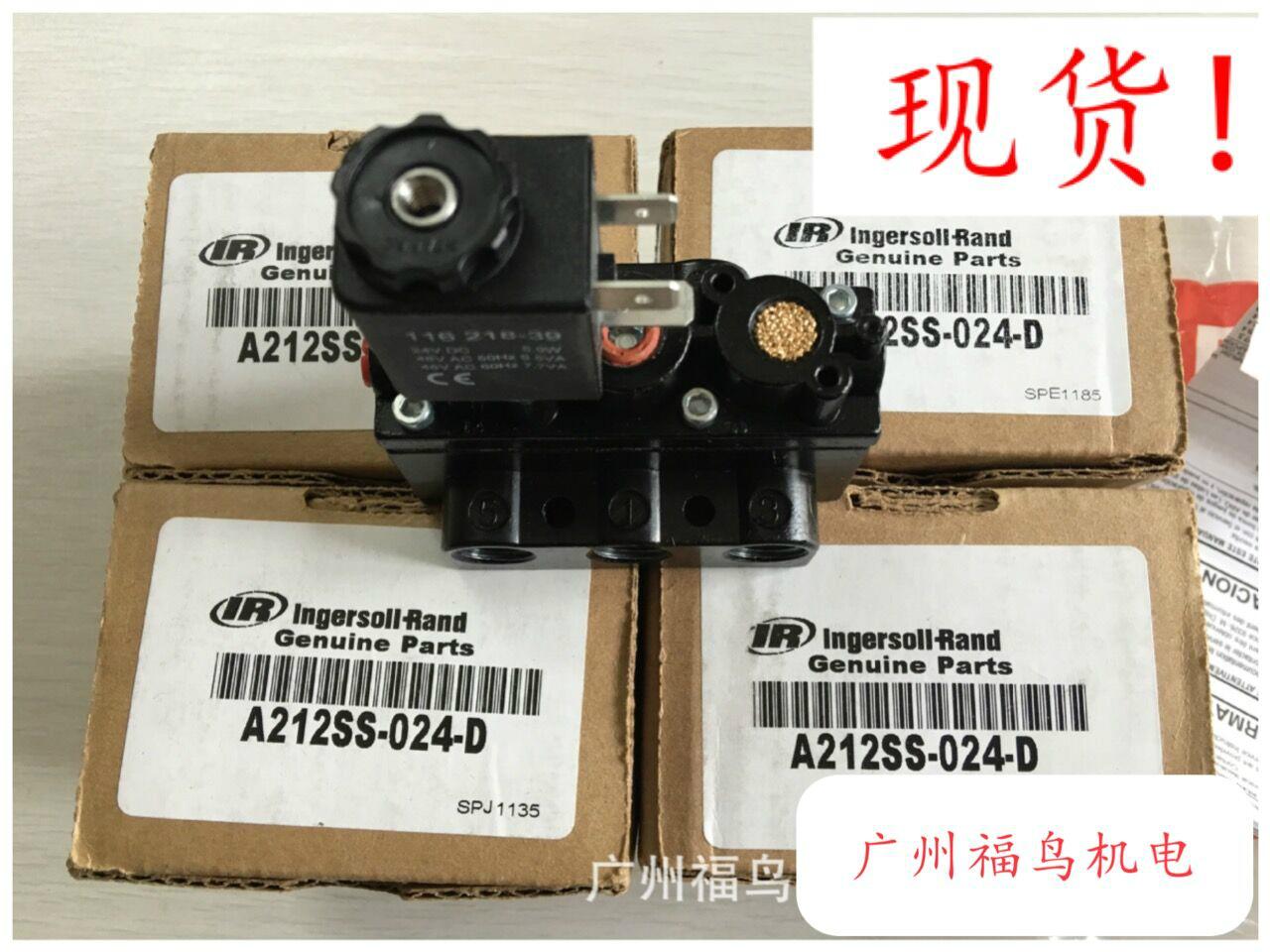

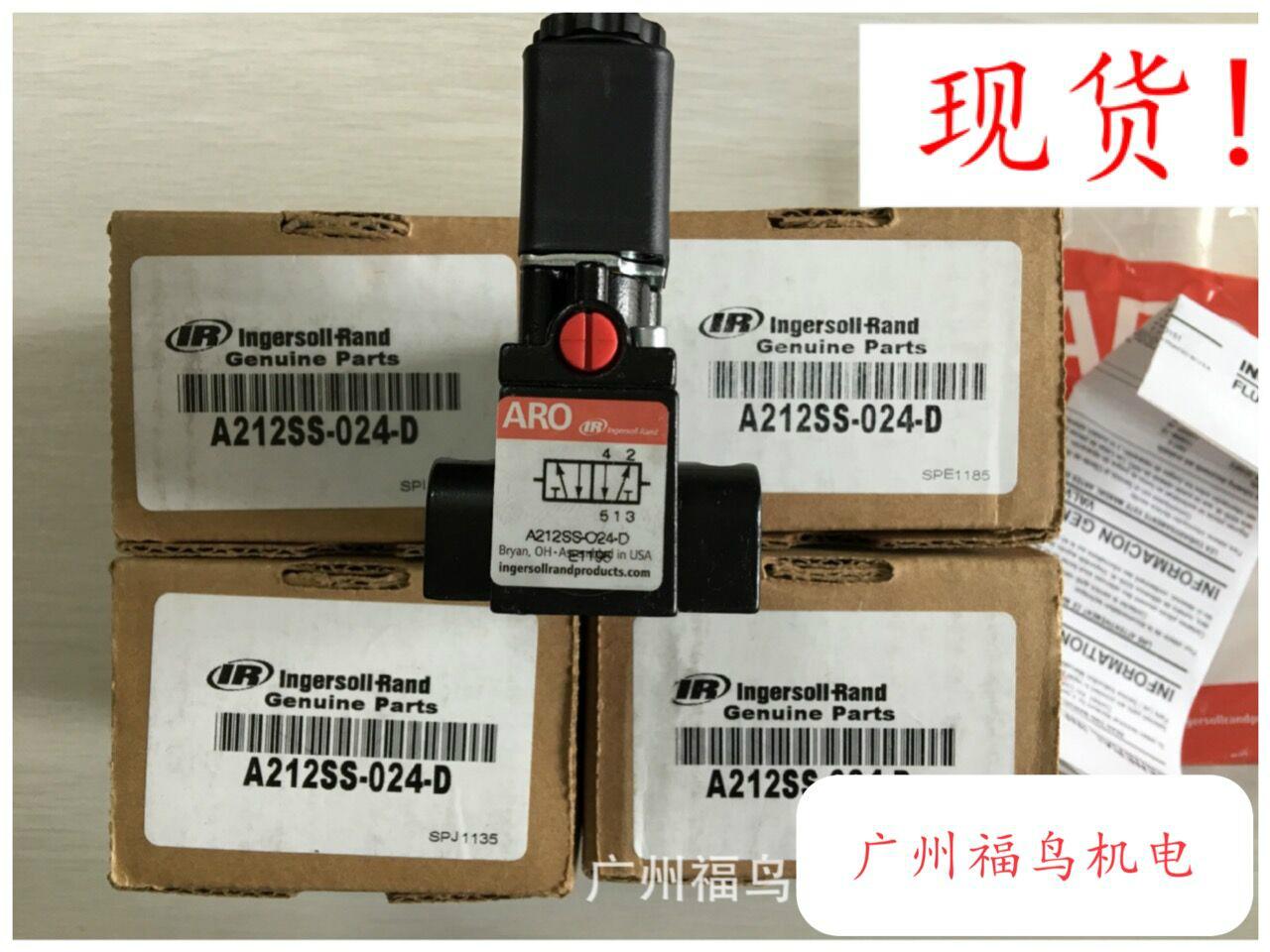

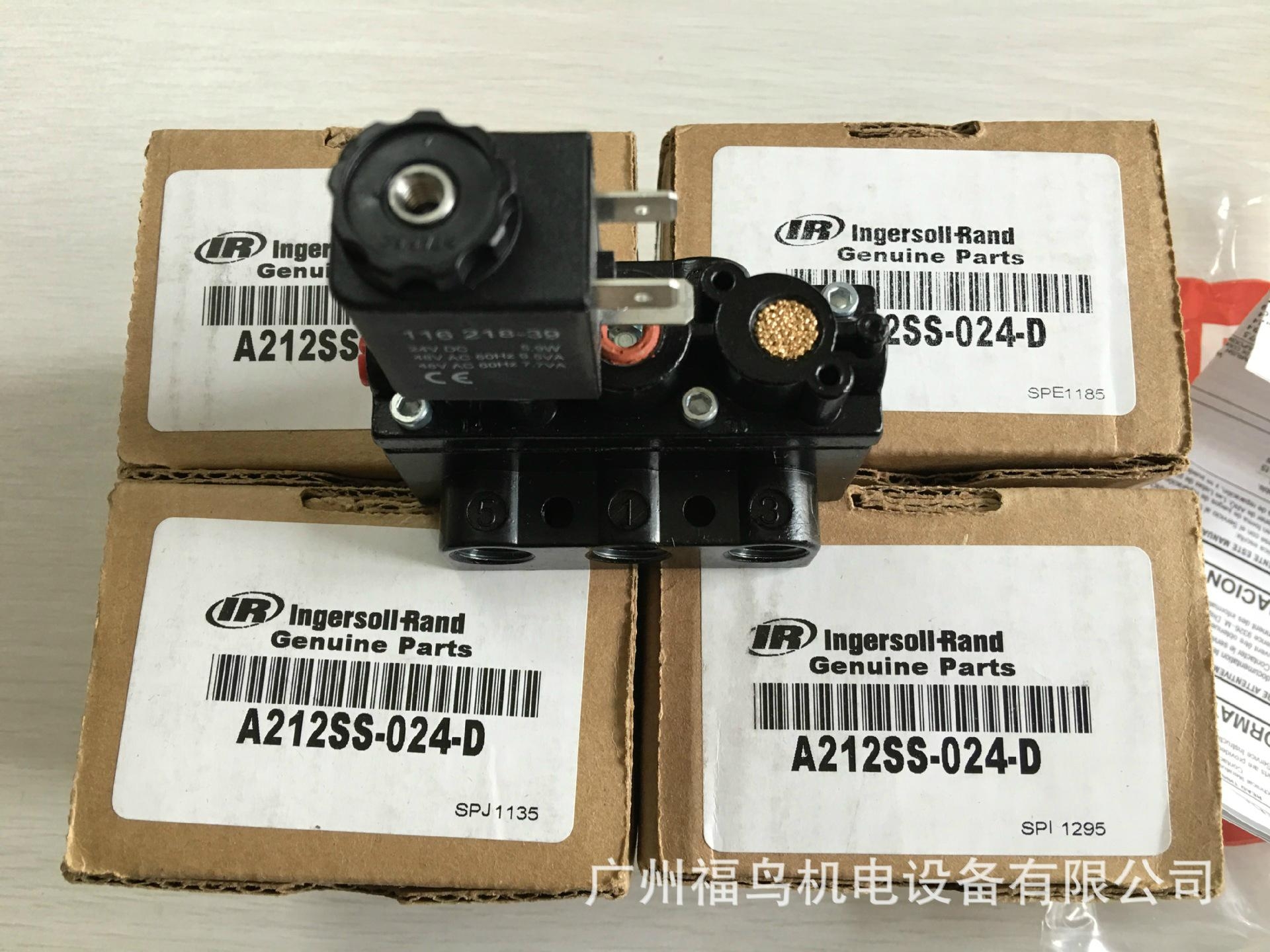

產品圖片
