供應ARO Ingersoll Rand電磁閥(P251SS-024-D)

供應ARO Ingersoll Rand電磁閥(P251SS-024-D)

型號︰P251SS-024-D

品牌︰ARO

原產地︰美國

單價︰-

最少訂量︰-

現在查詢

產品描述



Technical Specs:

  • Item: Solenoid Air Control Valve
  • Air Valve Type: 3-Way, 2-Position
  • Actuator/Return: Solenoid/Spring
  • Body Style: Body Ported
  • Pipe Size: 1/8"
  • Voltage: 24VDC
  • CFM: 6.9
  • Coefficient of Volume: 0.144
  • Electrical Connections: Lead Wire
  • Shifting Technology: Direct
  • Power Consumption: 4.5W
  • Pressure Range: 0 to 120 psi
  • Ambient Temp. Range: 32 Degrees to 125 Degrees F
  • Override: Non-Locking Manual
  • Overall Height: 2-1/2"
  • Overall Length: 1-1/4"
  • Overall Width: 1"
  • NEMA Classification: NEMA 4

產品規格︰ 型號: P251SS-024-D, P251SS-024-D-G

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

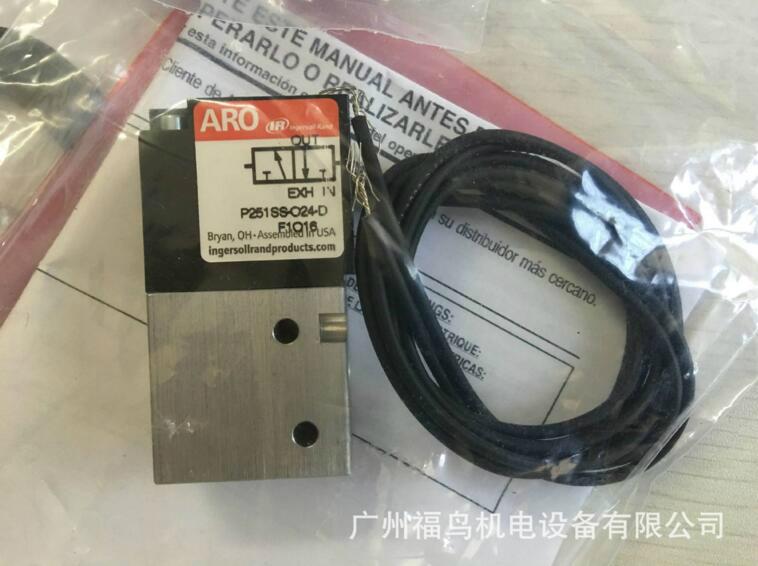

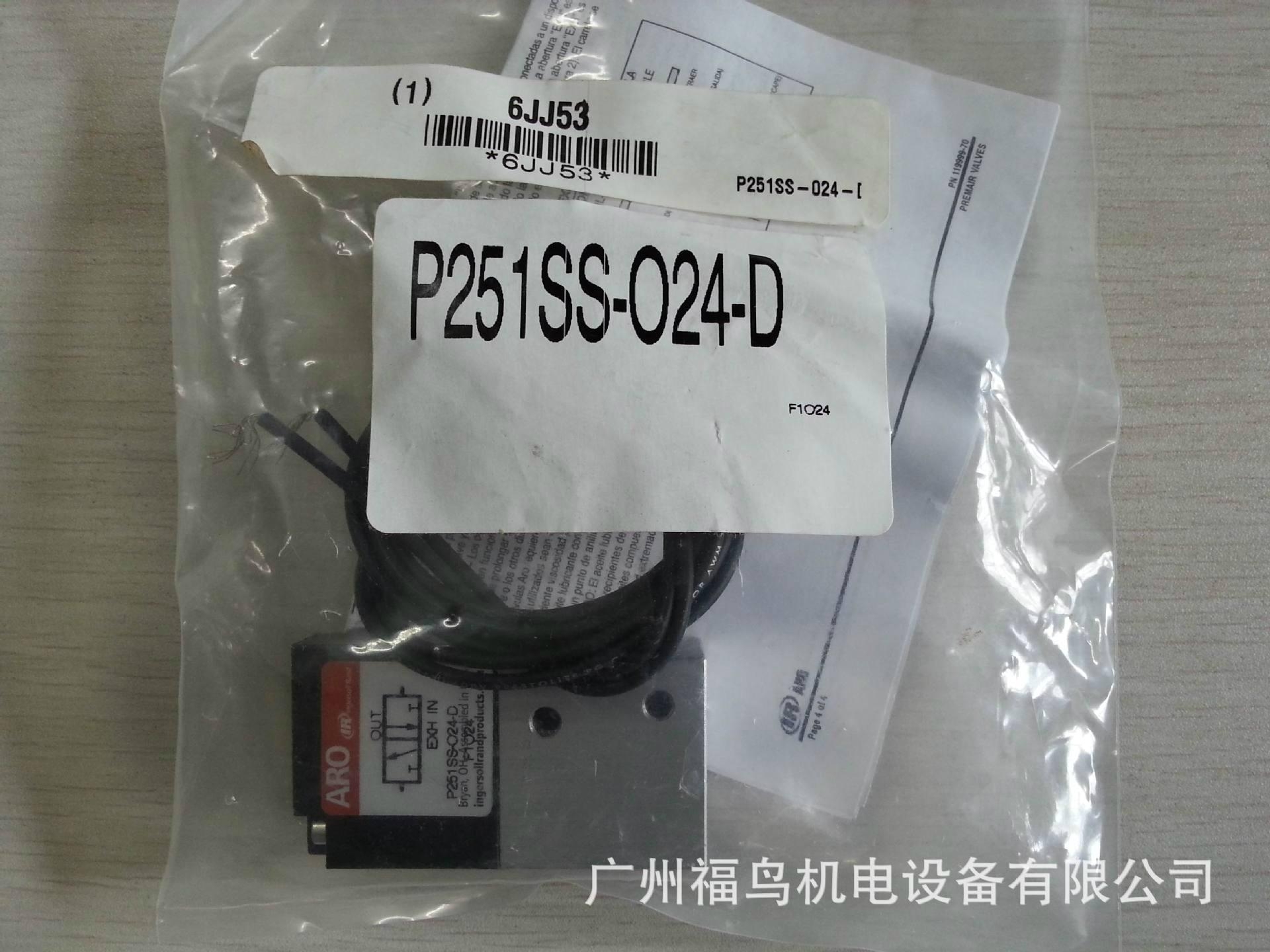

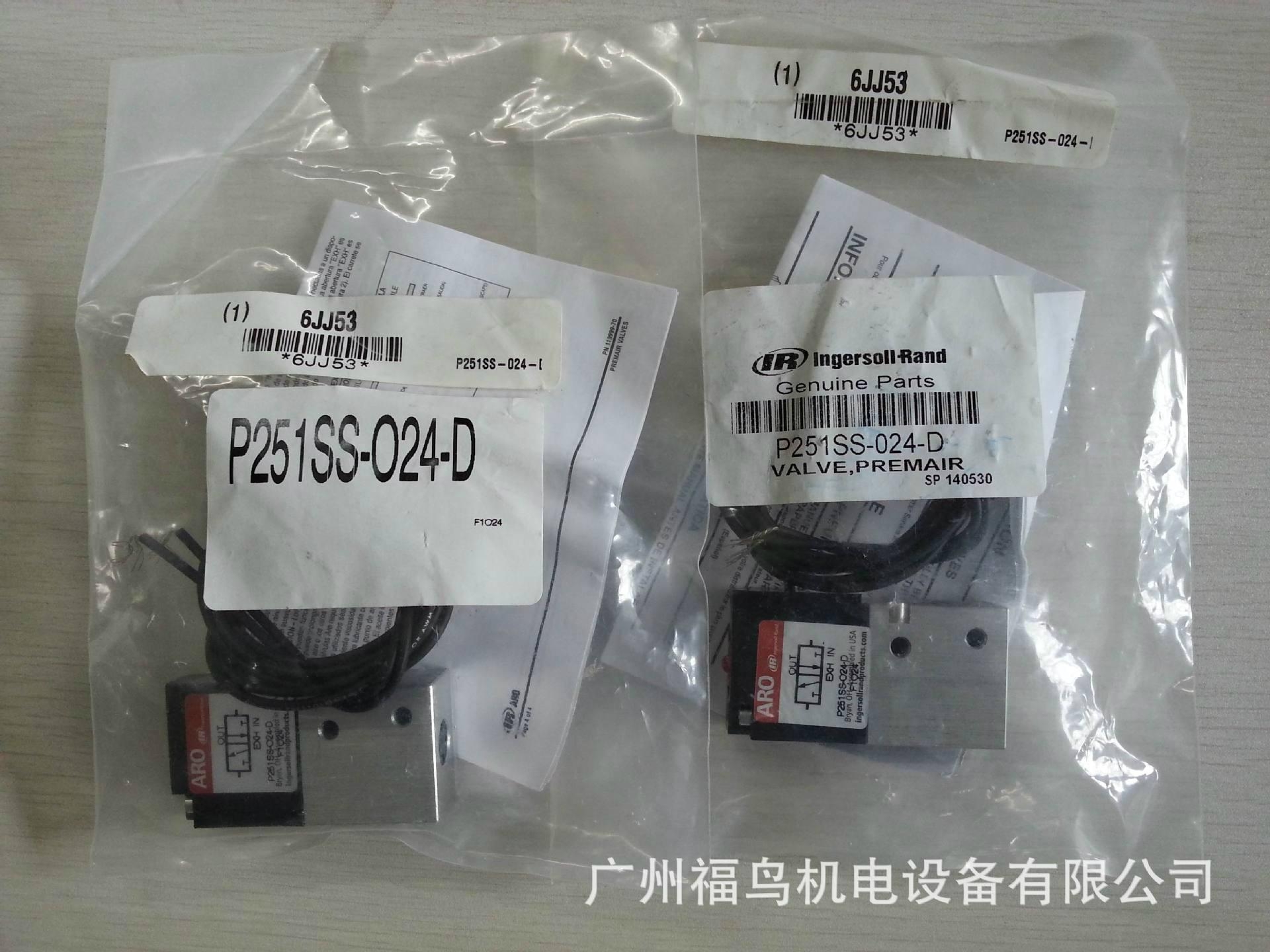

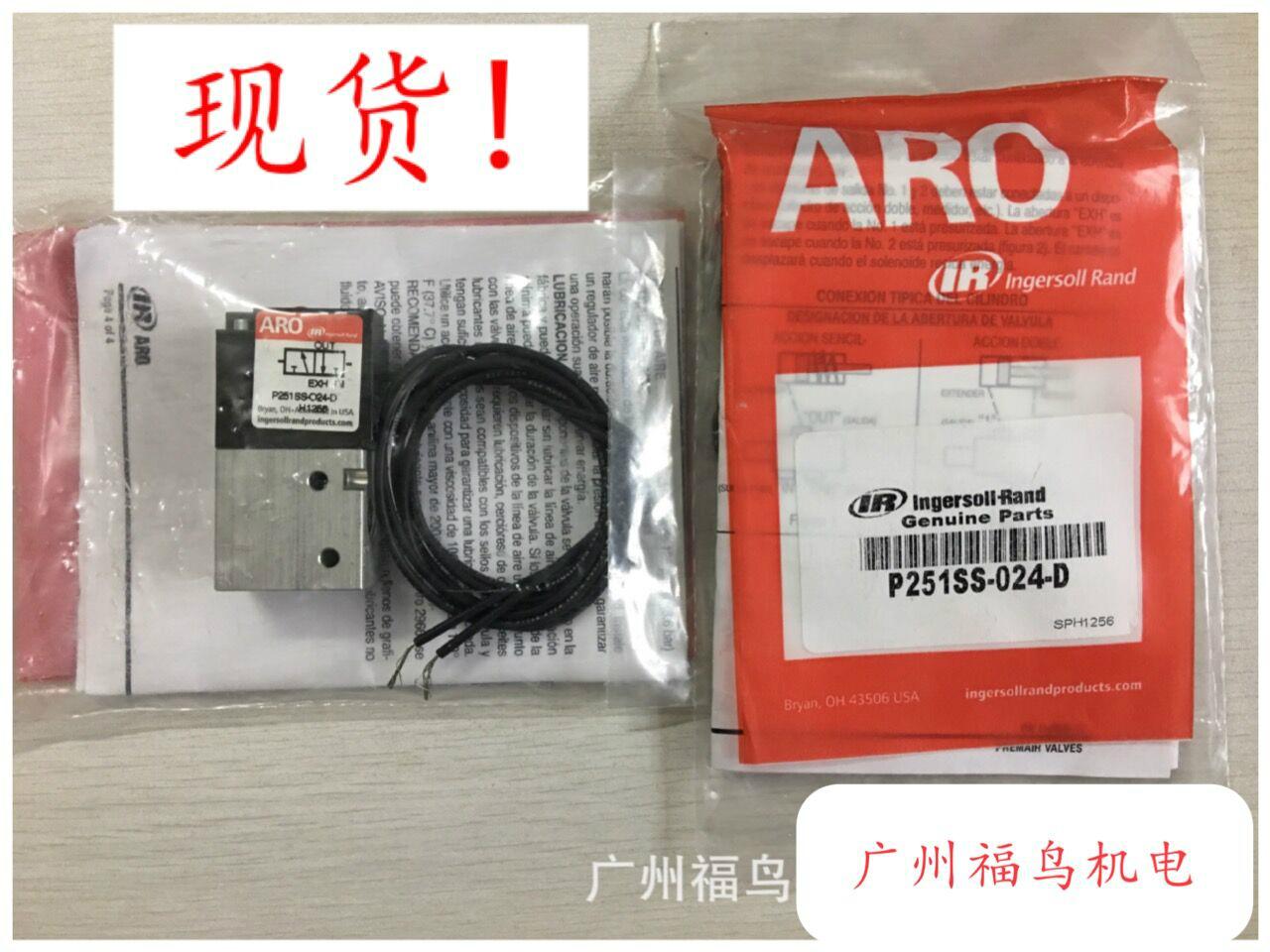

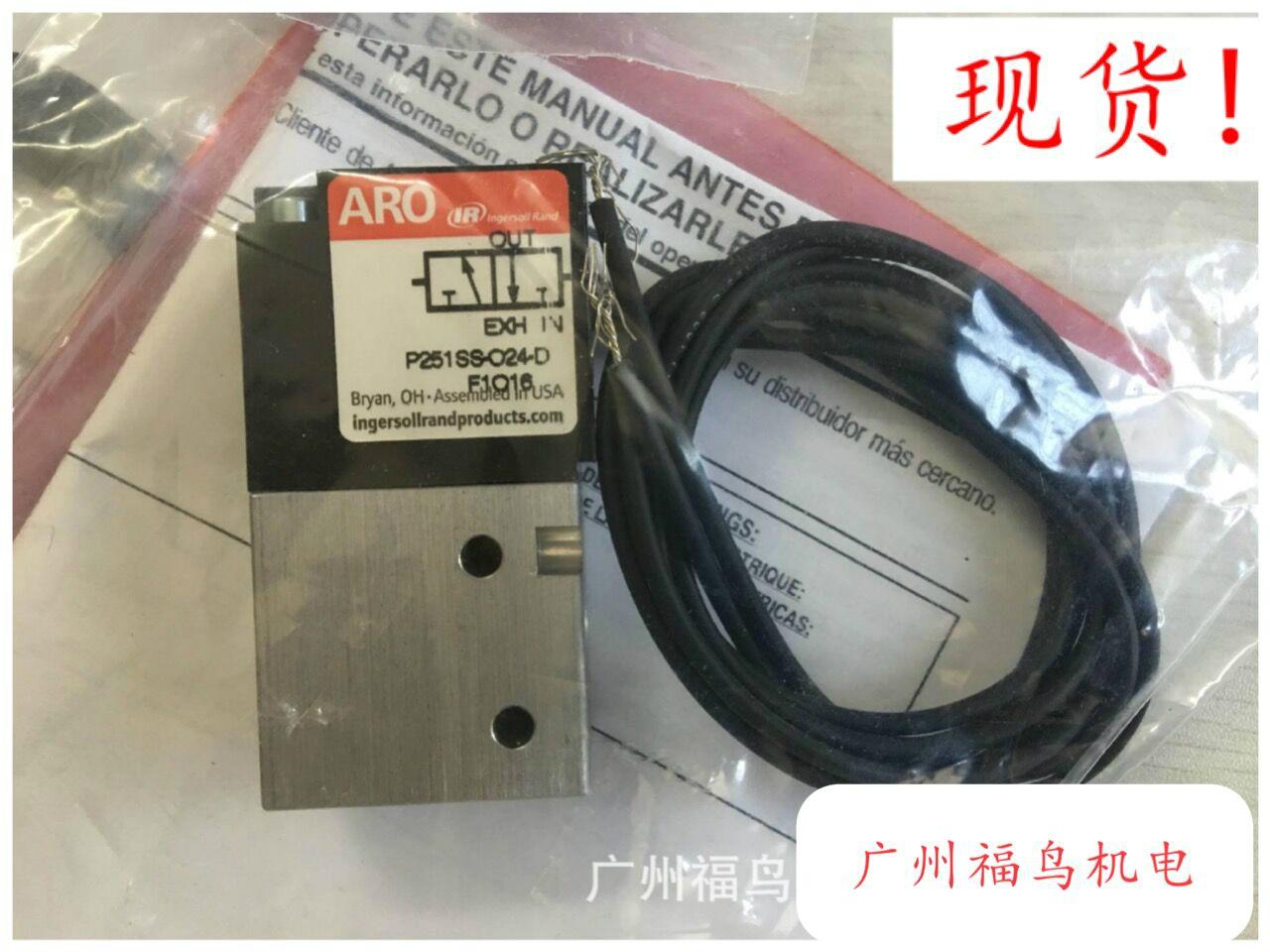

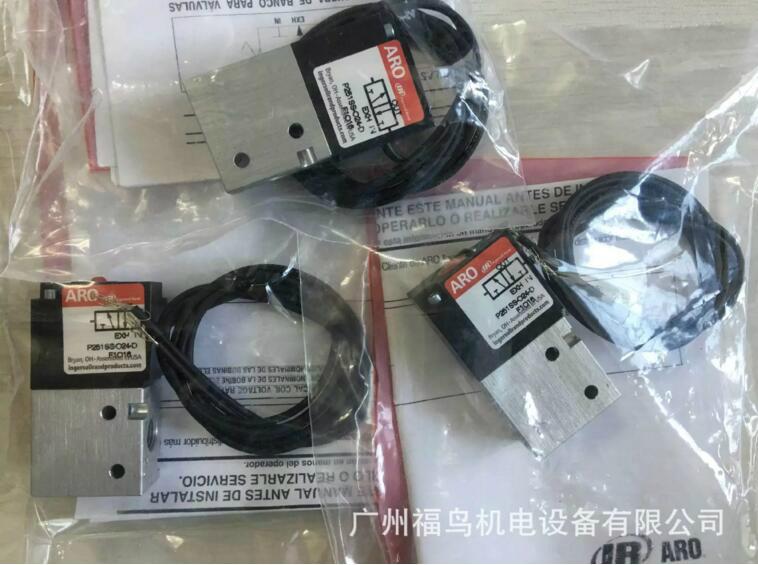

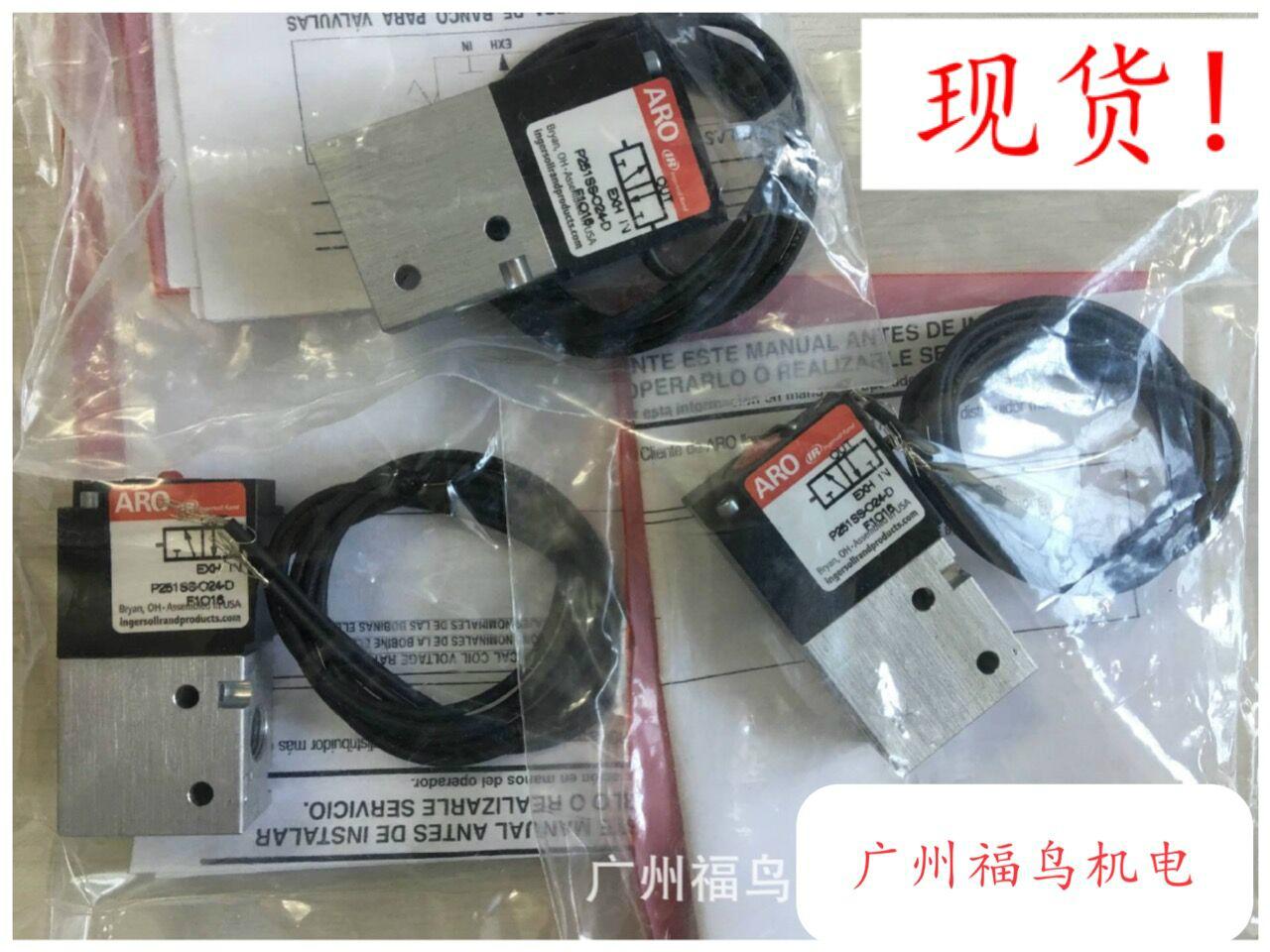

產品圖片
