產品描述

• Shunt Wound Volts: 100/200VDC
• Voltage Output: 90/180VDC
• Input Voltage: 115/230VAC
• Enclosure: Chassis
• HP @ Higher Volts: 1/4 to 1
• HP @ Lower Volts: 1/8 to 1/2
• Speed Range: 50:1
• Speed Regulation: +/-1% with Armature Voltage Feedback, +/-0.5% with Tach Feedback
• Current/Torque Limit: Adjustable
• Accepts Tach Feedback: Yes
• Max. Amps: 5
• Dynamic Braking: No
• Linear Acceleration: Fixed 6 sec.

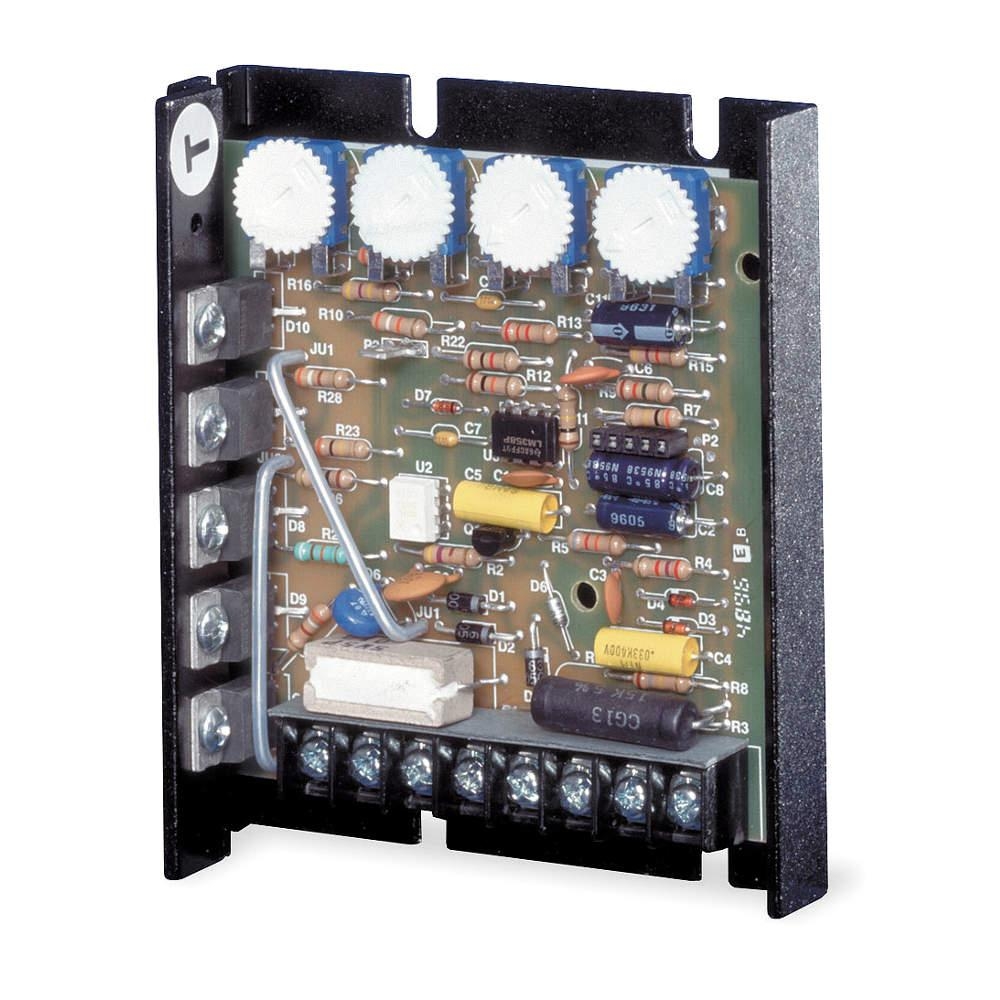

Item: DC Speed Control

• Linear Deceleration: Fixed 6 sec.
• Rotation: Single Direction
• IR Compensation: Adjustable
• Follower Circuit: No
• Mount Type: Chassis
• Height: 4.25"
• Depth: 1.3"
• Width: 3.63"
• Operating Temp.: -10 Degrees to 45 Degrees C
• External Switches: None
• For Use With: Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
• Standards: cULus Recognized and CE Certified
• Includes: Speed Potentiometer Knob and Dial Plate

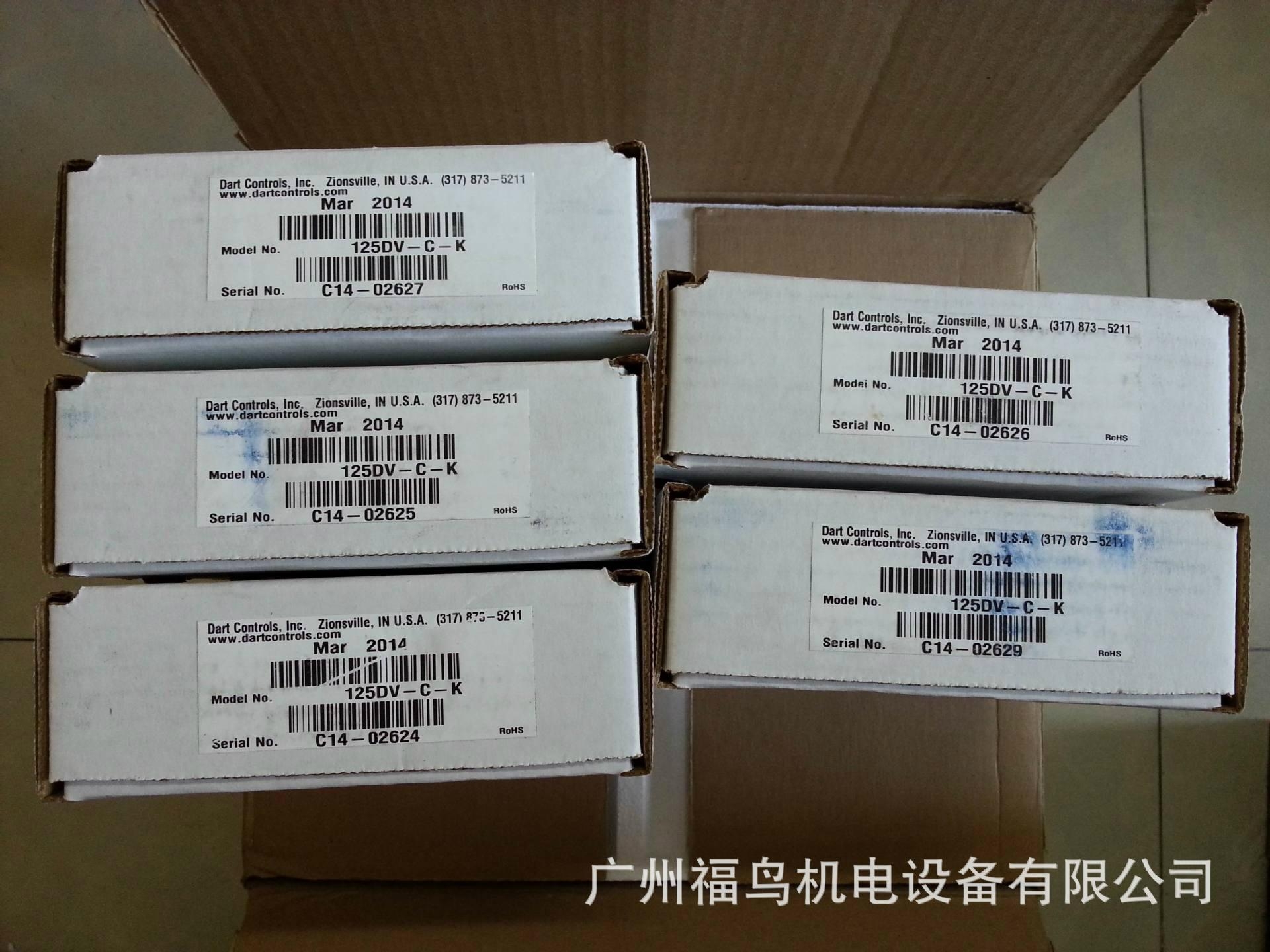

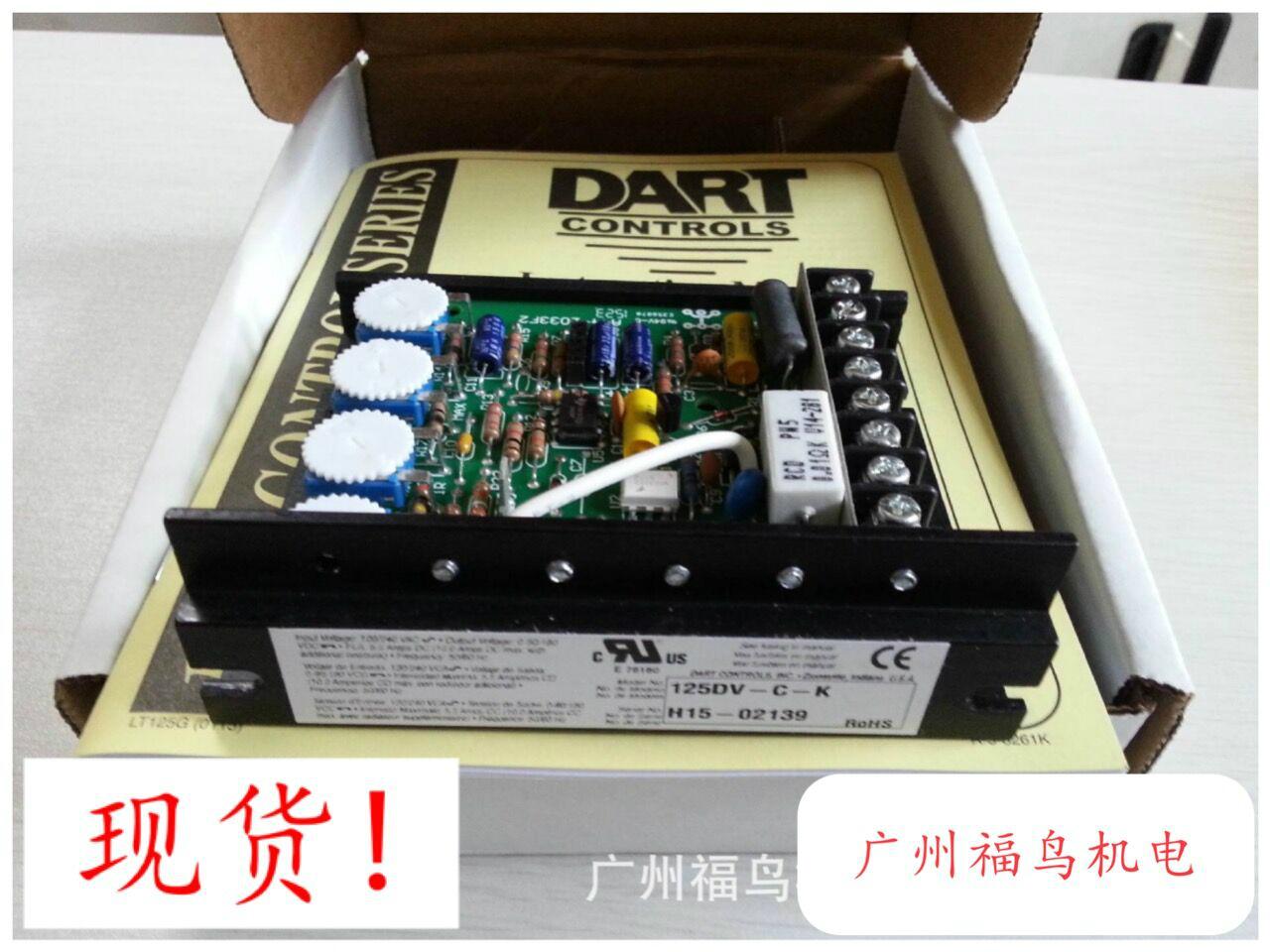

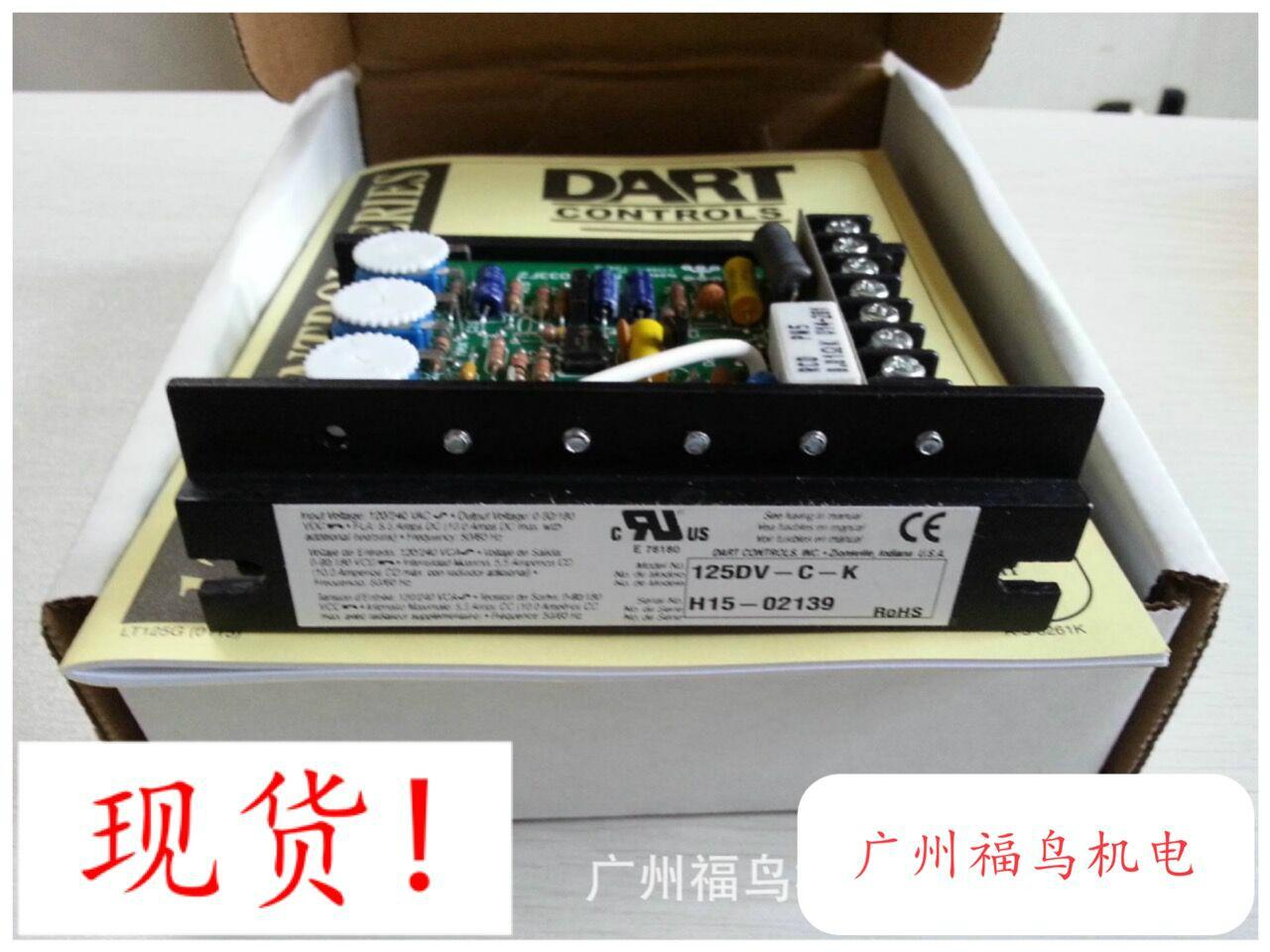

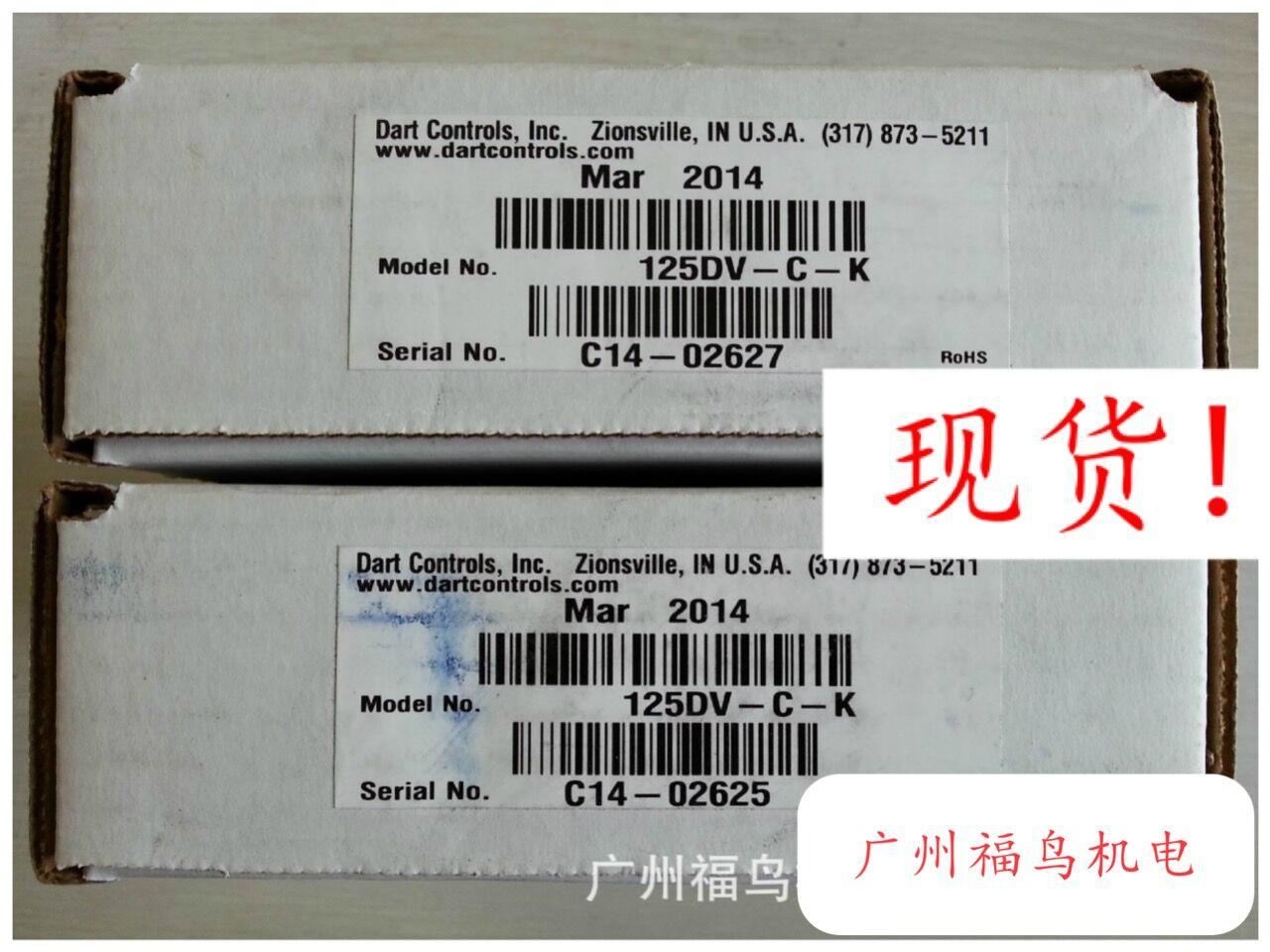

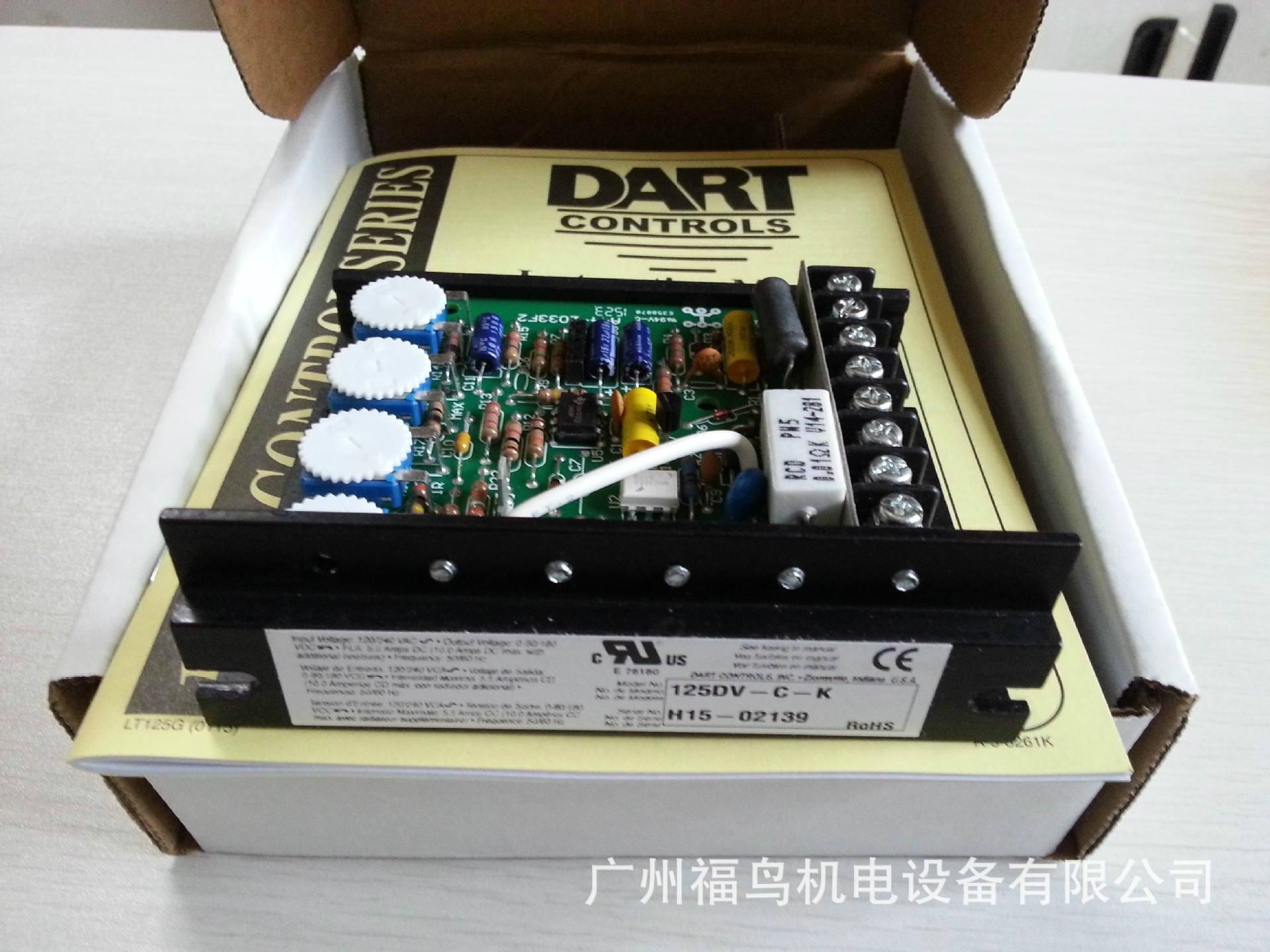

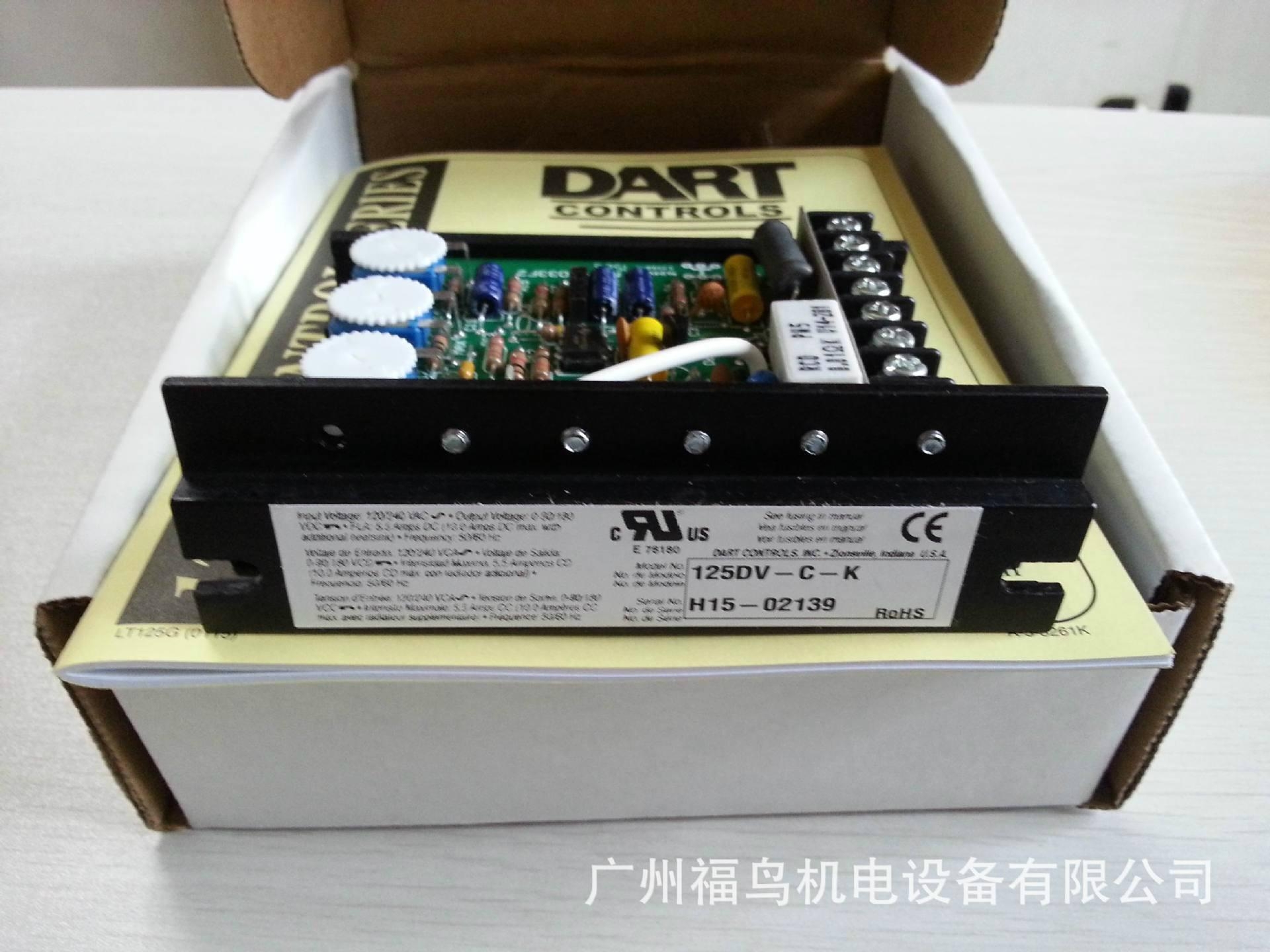

產品規格︰ 型號: 125DV-C-K
