Technical Specs:

• Item: AC Gearmotor
• Voltage: 115VAC
• Phase: 1
• Hz: 50/60
• Shaft Orientation: Parallel
• Nameplate RPM: 154
• Max. Torque: 20 in.-lb.
• Overhung Load: 90 lb.
• Input HP: 1/20
• Gear Ratio: 10:1
• Full Load Amps: 0.62
• Enclosure: Open
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C
• Rotation: Reversible

• Mounting: All Position
• Motor Type: Permanent Split Capacitor
• Capacitor Required: 2MDV6
• Length Less Shaft: 7-3/8"
• Brake: Adaptable to 5X400
• Bearings: Heavy Duty Needle on Case, Ball on Motor
• Lubrication: Permanent Heavy Duty Gear Oil
• Housing: Die Cast Aluminum
• Gear Case Material: Die Cast Aluminum
• Gears: 1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
• Gear Material: Steel or Heat Treated Powdered Metal
• Gear Type: Helical First Stage/Spur
• Seals: Spring Loaded Lip Type on Input and Output Shaft
• RPM Range: 151 to 200

產品規格︰ 型號: 6A198, 6A198A, 6A198B

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

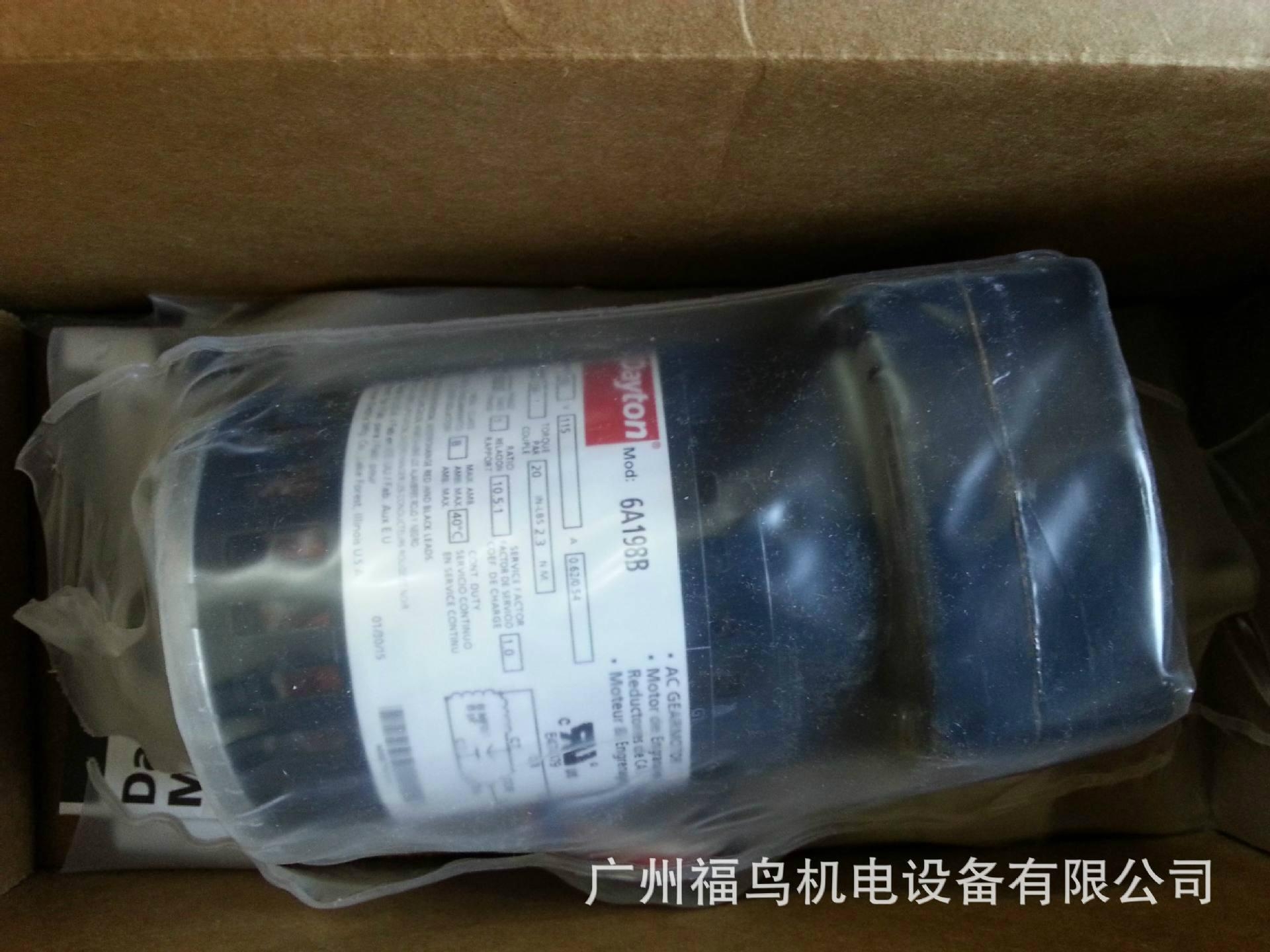

產品圖片
