產品描述

Technical Specs:

• Item: General Purpose Motor
• Motor Application: General Application
• Motor Type: 3-Phase
• Enclosure: Open Dripproof
• HP: 2
• Nameplate RPM: 3450
• Frame: 56C
• Voltage: 208-230/460
• Hz: 60
• Phase: 3
• Full Load Amps: 6.0-6.0/3.0
• Number of Speeds: 1
• Mounting: Face
• Thermal Protection: None
• Insulation Class: B

• Service Factor: 1.20
• Bearings: Ball
• Frame Material: Rolled Steel
• Max. Ambient Temp.: 40 Degrees C
• Rotation: CW/CCW
• Shaft Dia.: 5/8"
• Shaft Length: 1-7/8"
• Length Less Shaft: 9-7/16"
• Overall Length: 11-5/16"
• Shaft Type: Keyed
• RPM Range: 3001-3600
• Standards: UL Recognized, CSA Certified, CE
• Duty: Continuous
• Nominal Efficiency: 80.0%
• Warranty (Years): 1

產品規格︰ 型號: 5K49NN2180

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

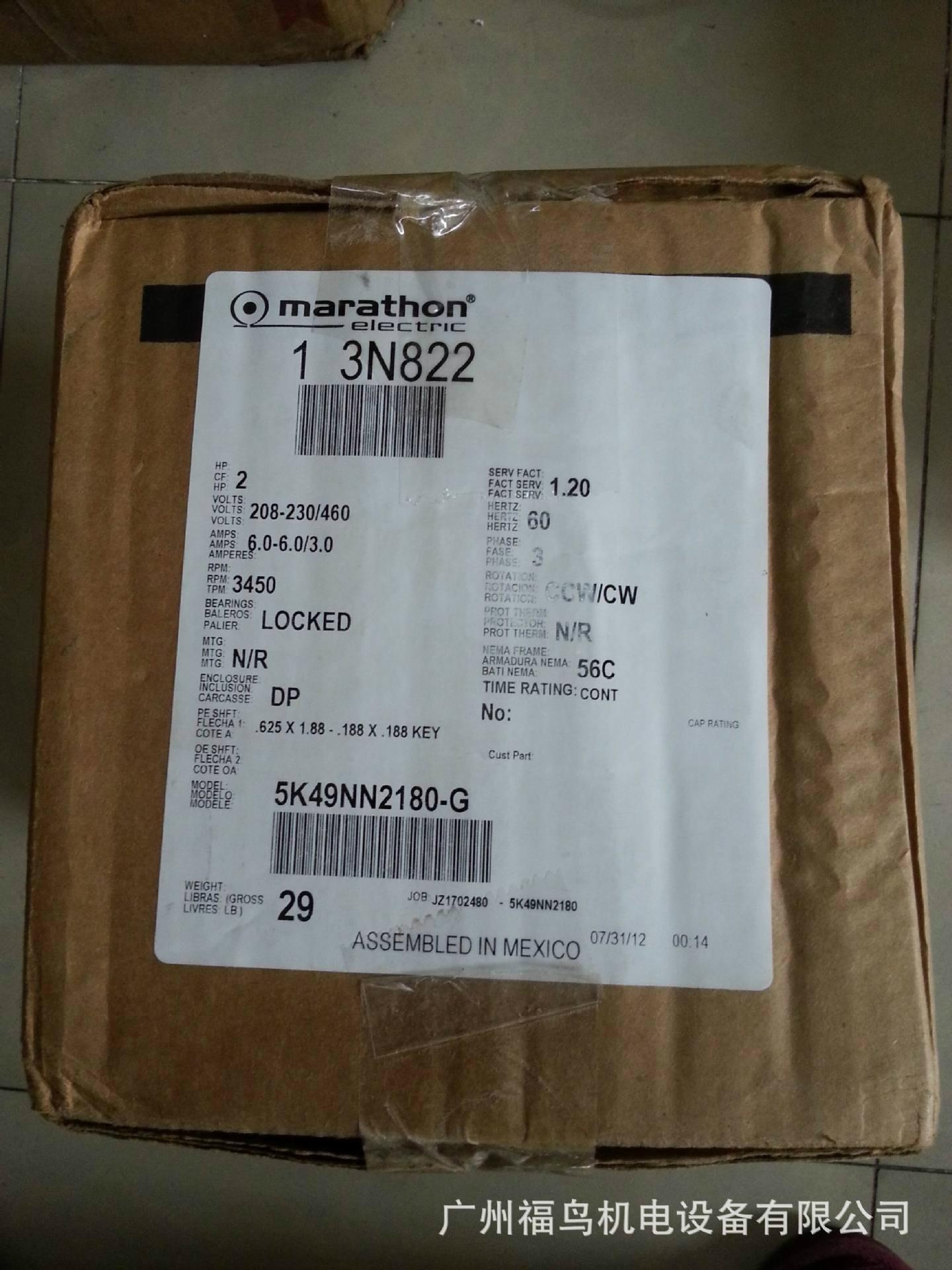

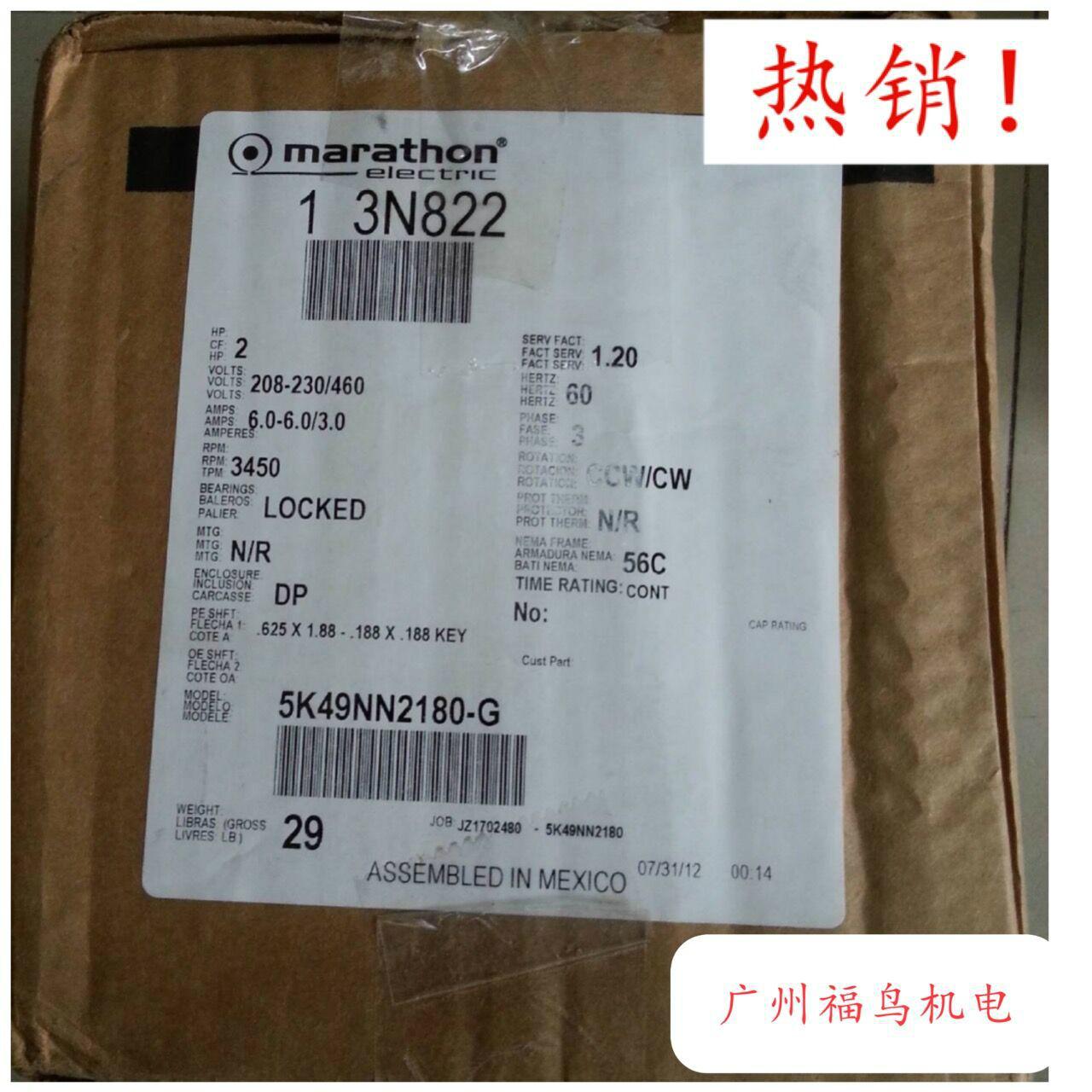

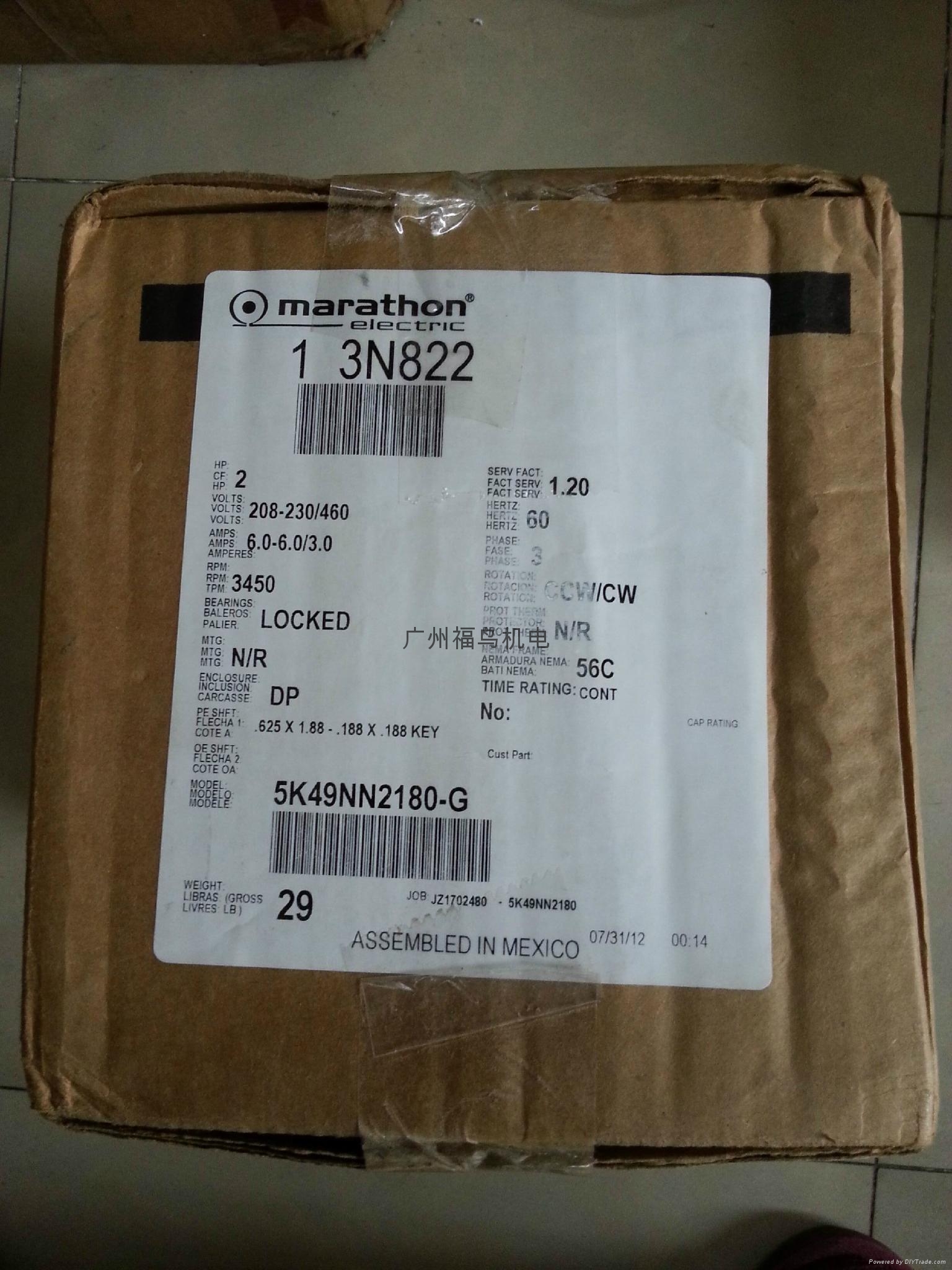

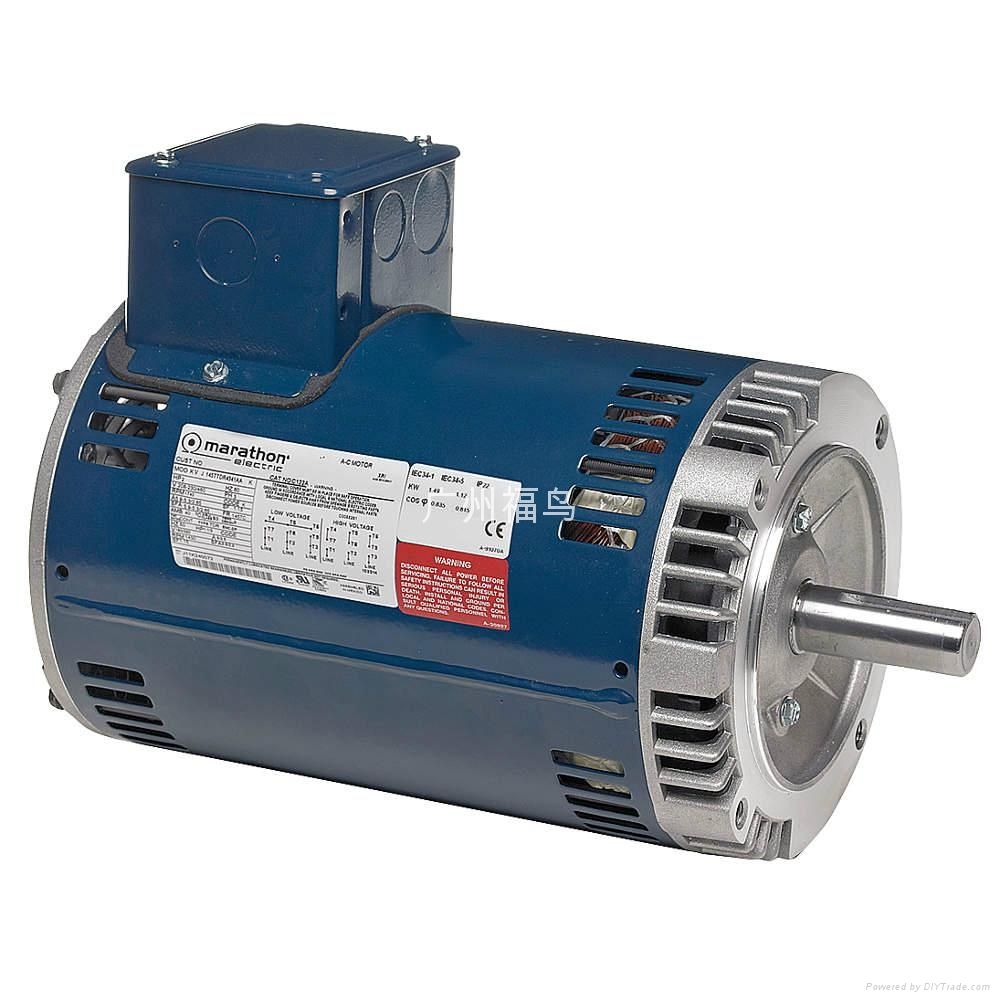

產品圖片
