產品描述

泵用電機.

Technical Specs:

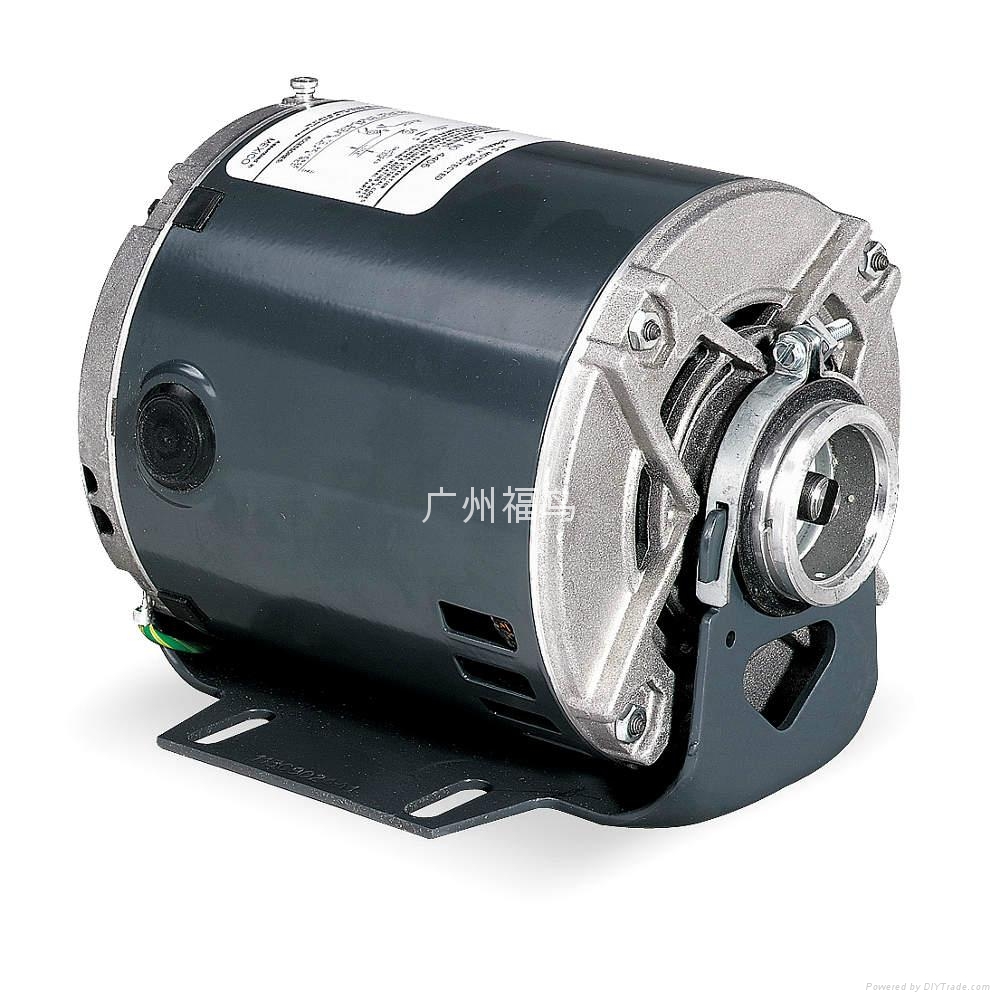

• Item: Carbonator Pump Motor
• Motor Application: Pumps
• Motor Sub Application: Carbonator Pumps
• Motor Type: Split-Phase
• Enclosure: Open Dripproof
• HP: 1/4
• Nameplate RPM: 1725
• Frame: 48Y
• Voltage: 208-240
• Hz: 60/50
• Phase: 1

• Full Load Amps: 2.3-2.4
• Mounting: Cradle
• Thermal Protection: Auto
• Insulation Class: B
• Service Factor: 1.0
• Max. Ambient Temp.: 40 Degrees C
• Rotation: CW/CCW
• Overall Length: 7-11/16"
• Shaft Dia.: 5/8"
• Shaft Length: 1-1/2"
• RPM Range: 1701-1800

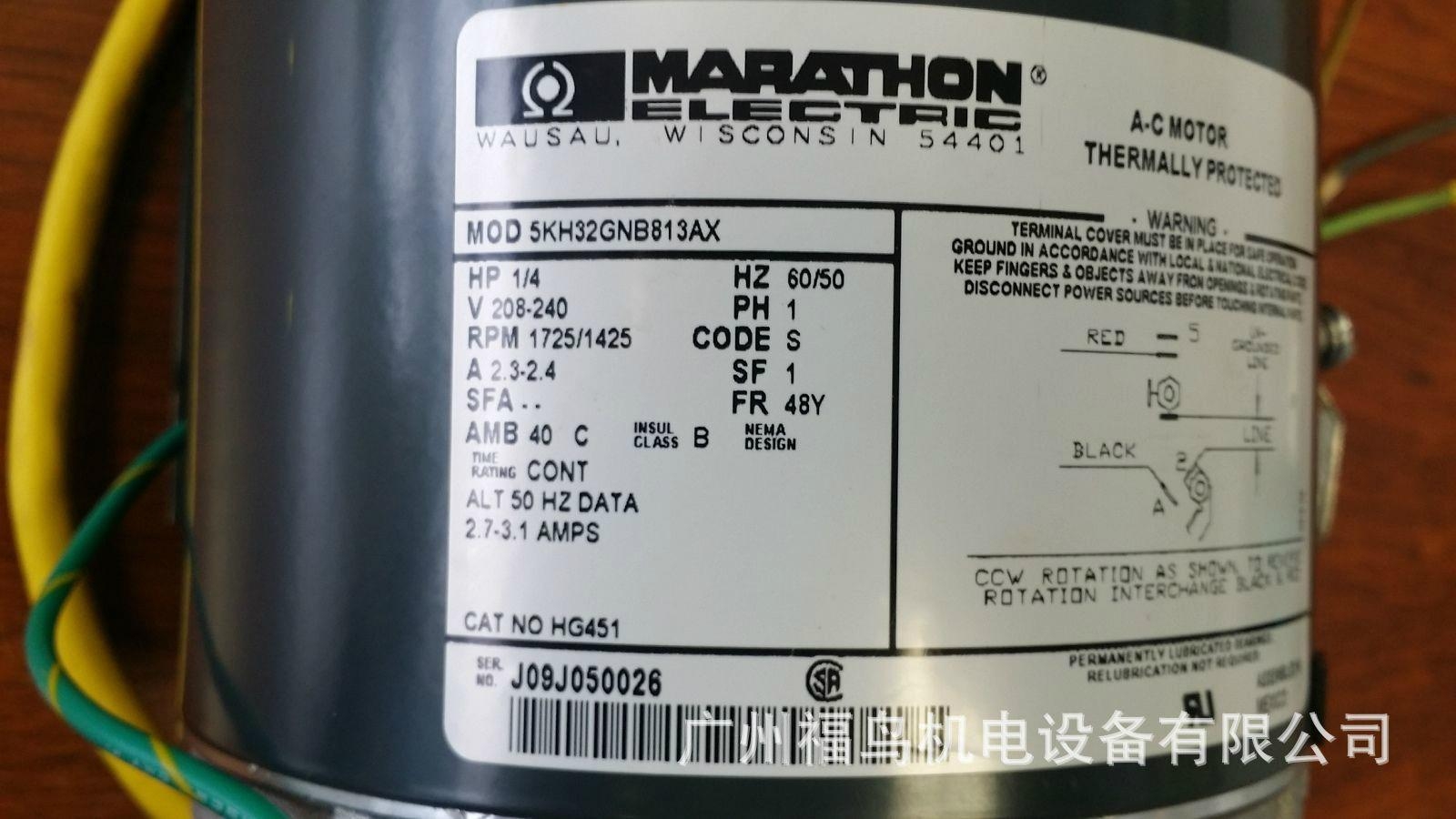

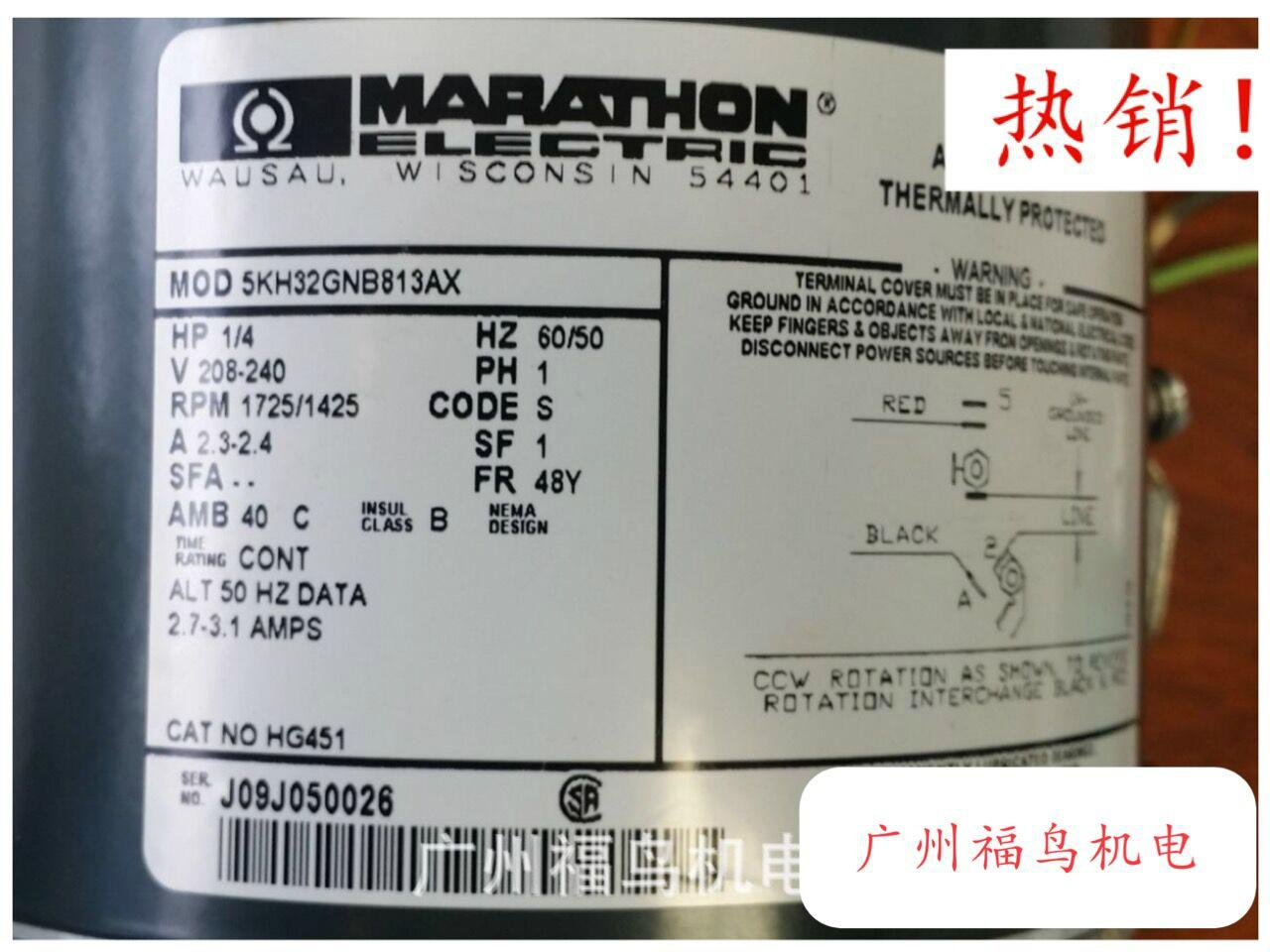

產品規格︰ 型號: 5KH32GNB813AX

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

產品圖片
