產品描述

Technical Specs:

• Item: Vibrator
• Type: Piston
• Power Source: Pneumatic/Air
• Voltage: Non-Electric
• Phase: Non-Electric
• Force (Lb.): 15
• Force: Linear
• Duty: Intermittent
• Max. Material in Bin (Lb.): 100 to 175
• Speed @ 80 psi (VPM): 16,000
• Speed (VPM): 16,000
• CFM @ 80 PSI: 2

• PSI: 80
• Inlet Port (In.): 1/4
• Outlet Port (In.): #10-32 Tapped Exh
• Muffler: 1EJX3
• Mounting: Any Position
• Housing: 304 Stainless Steel
• Lubrication: Suggested
• Overall Height (In.): 1-1/4
• Overall Length (In.): 2-3/16
• Overall Width (In.): 5/8
• Application: Manufacturing, Chemical Plants, Pharmacuetical, Packaging
• Includes: Grade 5 Mounting Hardware and Manual

產品規格︰ 型號: VM-25

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

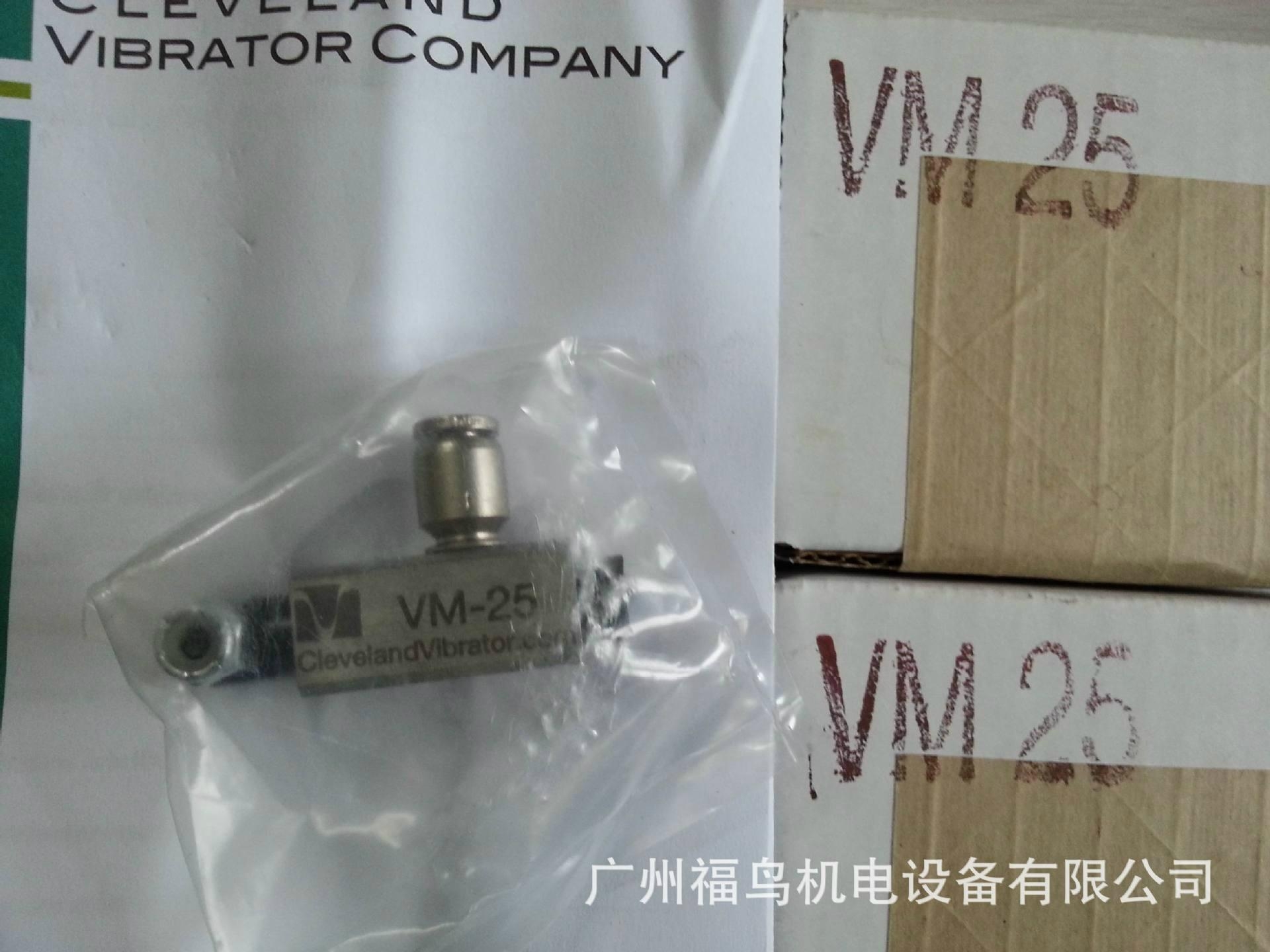

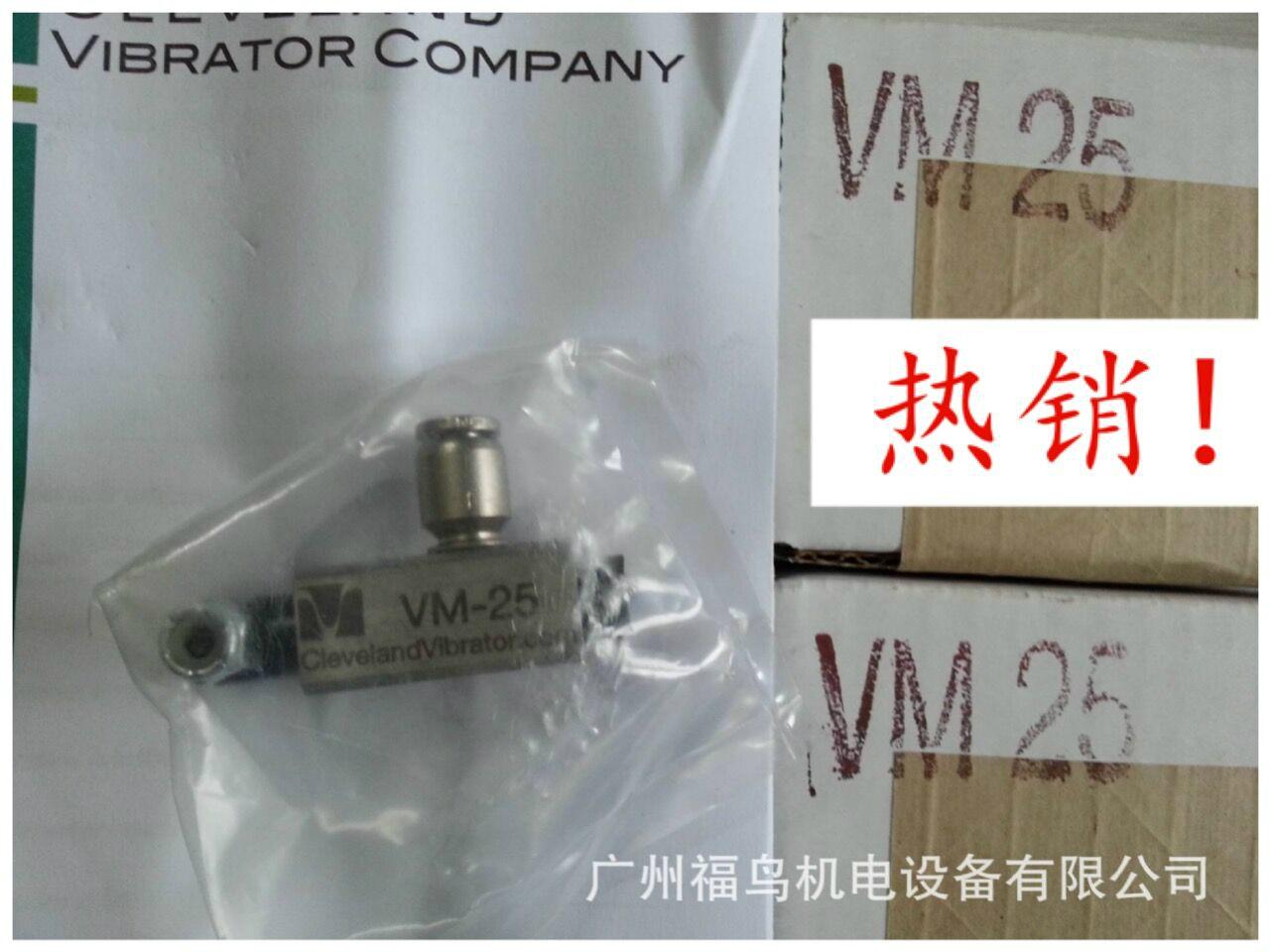

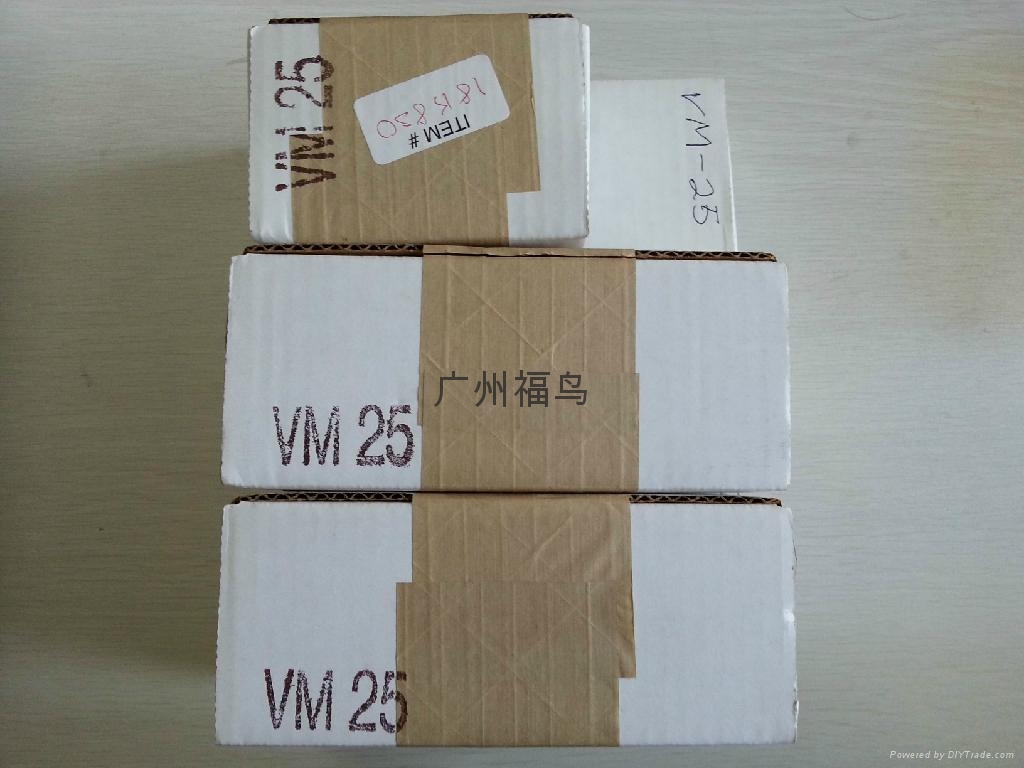

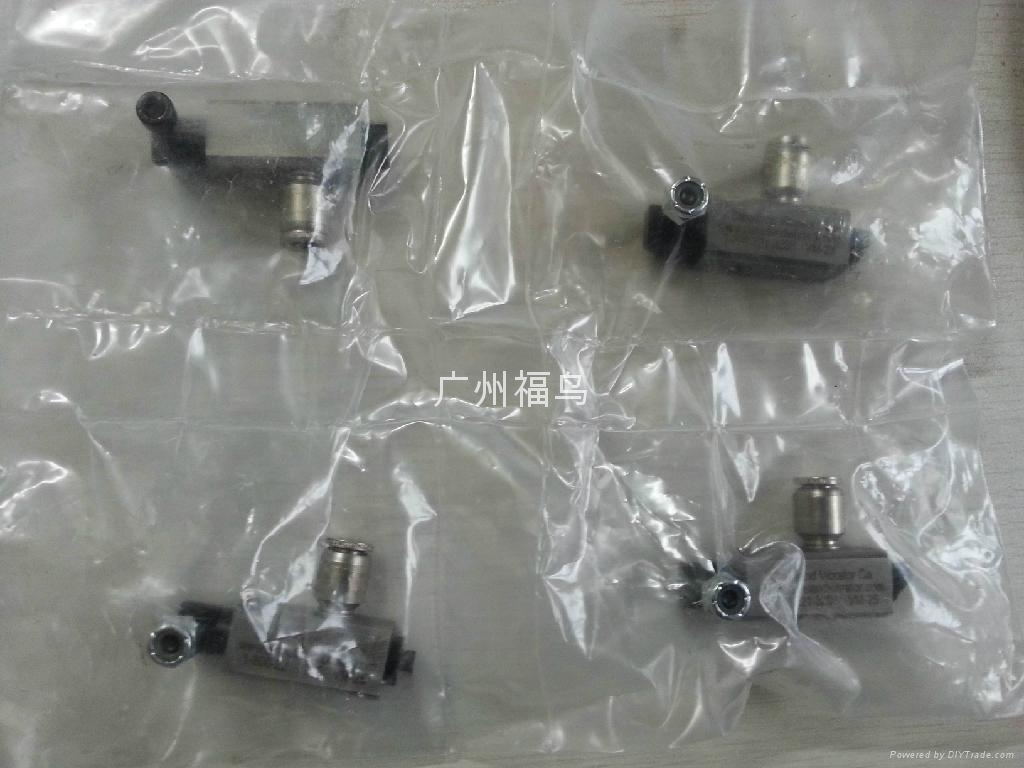

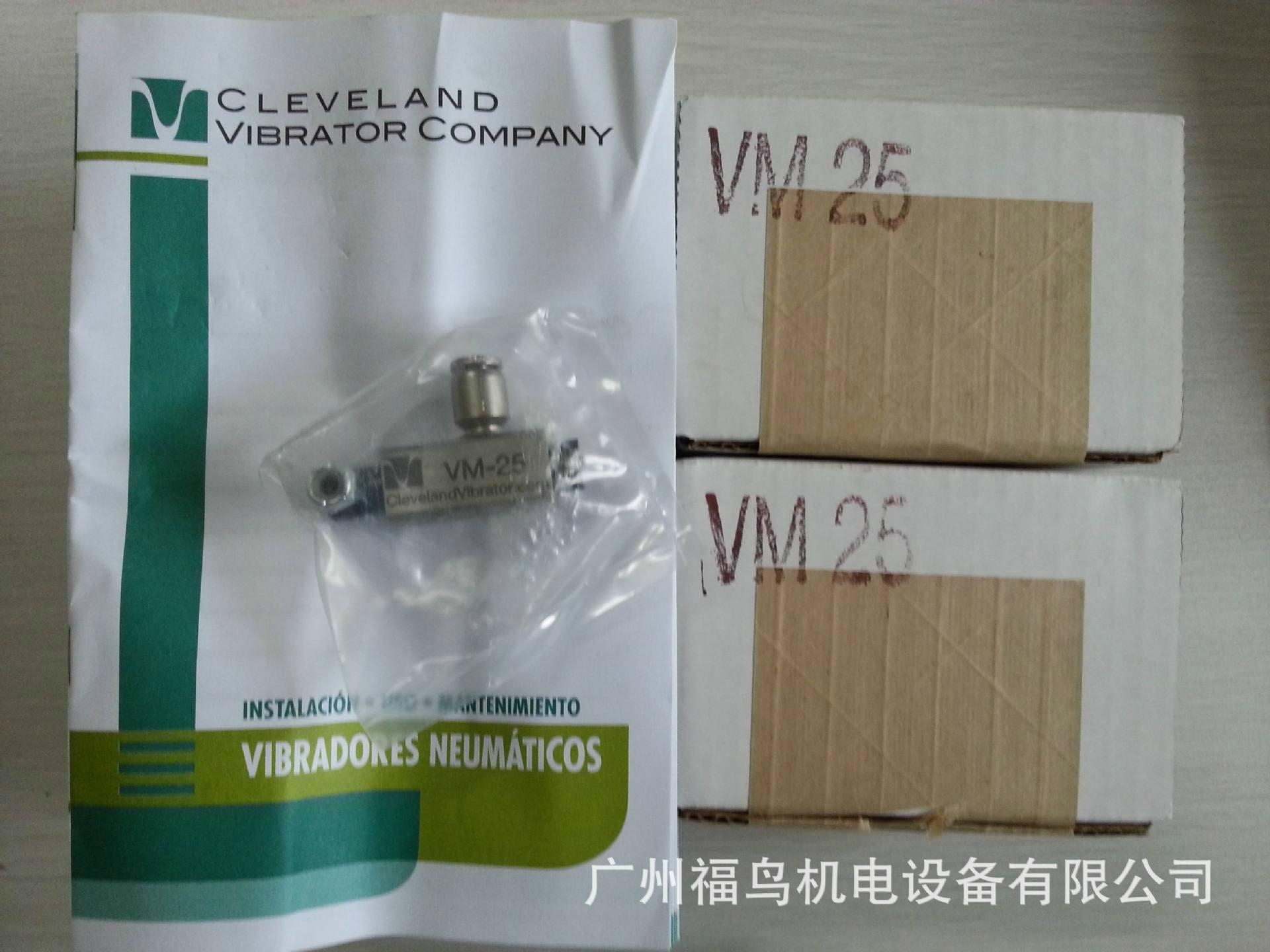

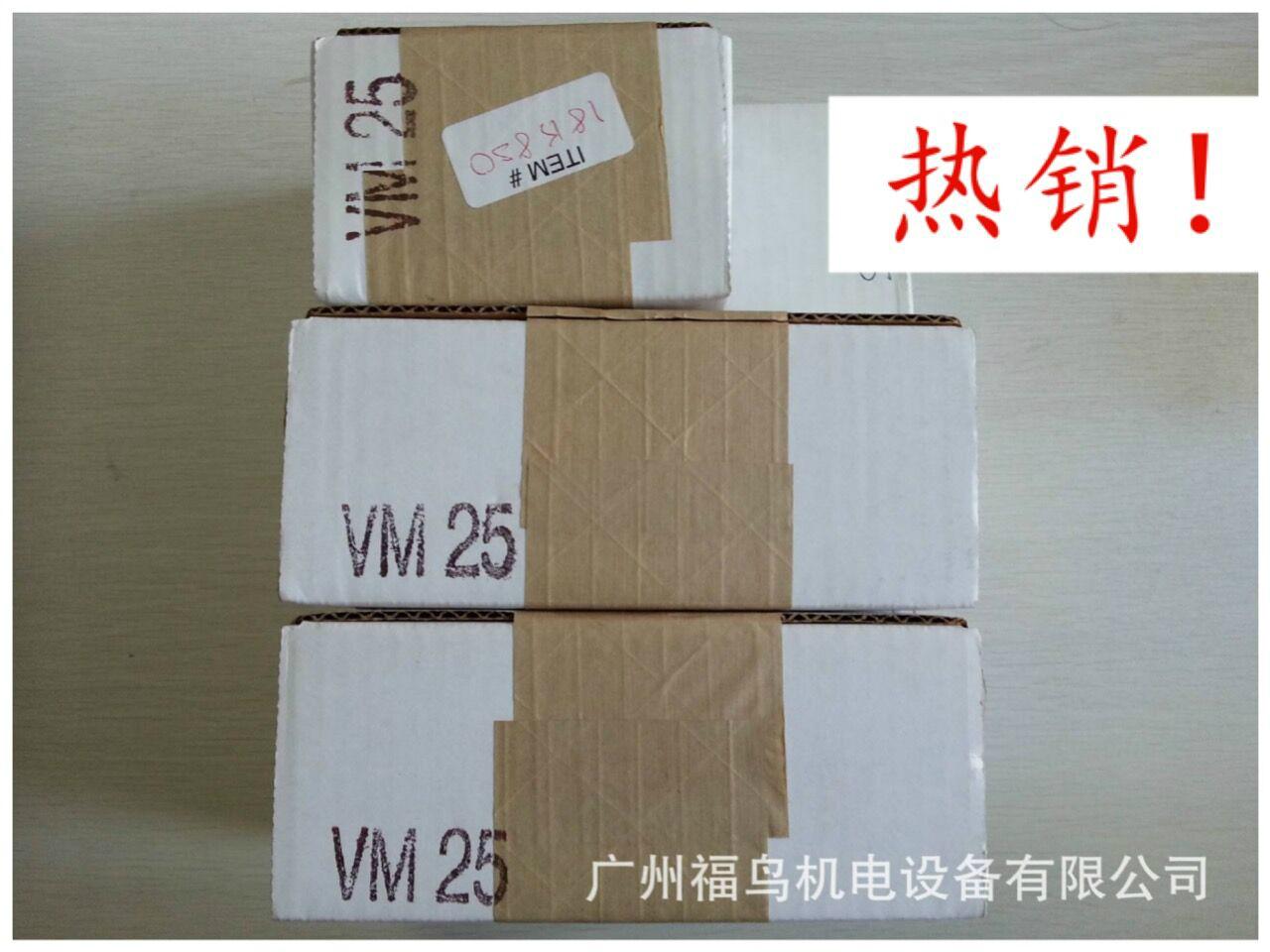

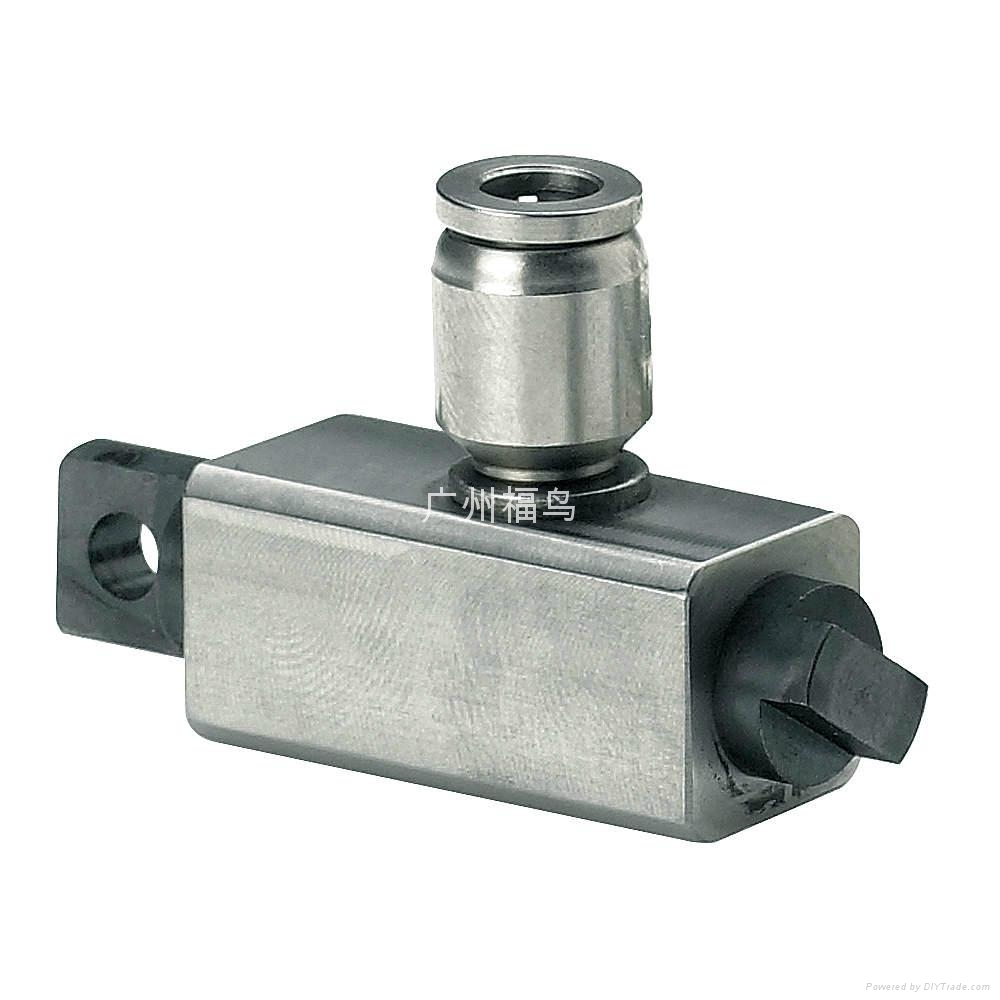

產品圖片
