產品描述

Technical Specs:

• Item: Direct Drive Blower Motor
• Motor Application: Heating And Air Conditioning
• Motor Sub Application: Direct Drive Blowers
• Motor Type: PSC
• Enclosure: Open Air-Over
• HP: 1/2
• Nameplate RPM: 1075
• Voltage: 208-230
• Full Load Amps: 3.9-4.3
• Hz: 60
• Phase: 1
• Frame: 48YZ
• Service Factor: 1.0
• Max. Ambient Temp.: 40 Degrees C
• Insulation Class: B

• Number of Speeds: 3
• Mounting: Ring/Stud
• Bearings: Sleeve
• Thermal Protection: Auto
• Rotation: CW/CCW
• Body Dia.: 5-5/8"
• Length Less Shaft: 6-3/16"
• Overall Length: 10-3/16"
• Shaft Dia.: 1/2"
• Shaft Length: 4"
• Capacitor Included: No
• Capacitor Required: 2MDV4
• Ring to Ring Center: 5-3/4"
• RPM Range: 1000-1100
• Application: Direct-drive Furnace Blowers, Unit Heaters, Air Conditioners and many other Shaft-mounted Fan and Blower Uses

產品規格︰ 型號: 4M101, 4M101B, 4M101J

主要市場︰ 業務QQ: 2543525125, 2054518018, 532560858.

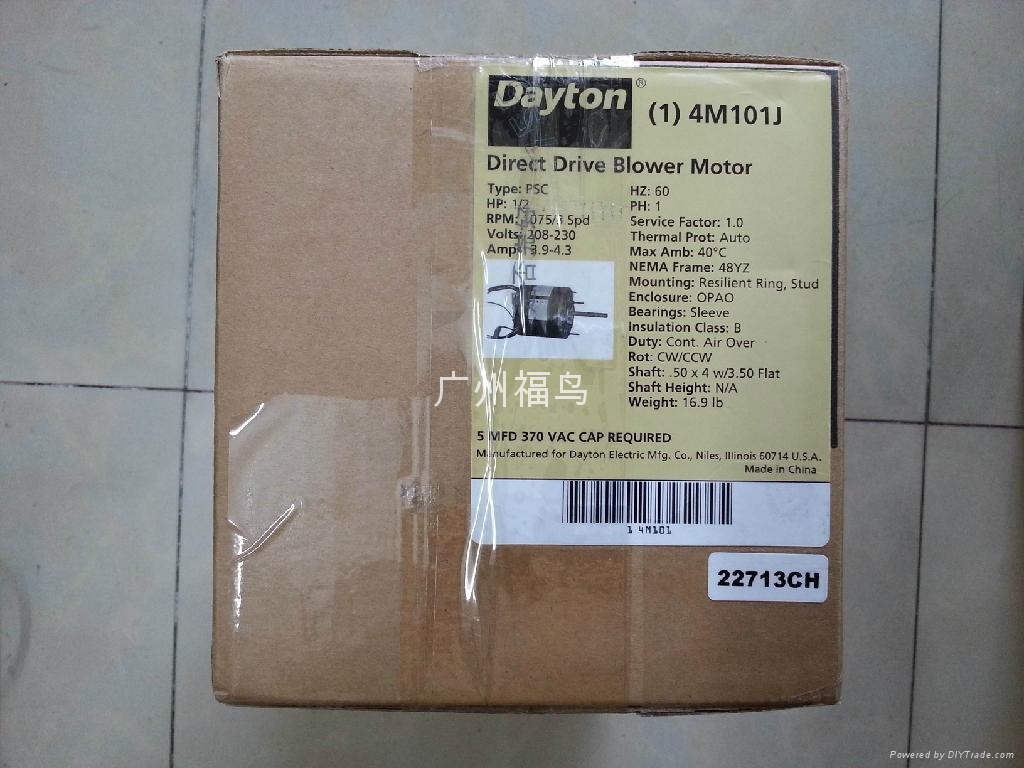

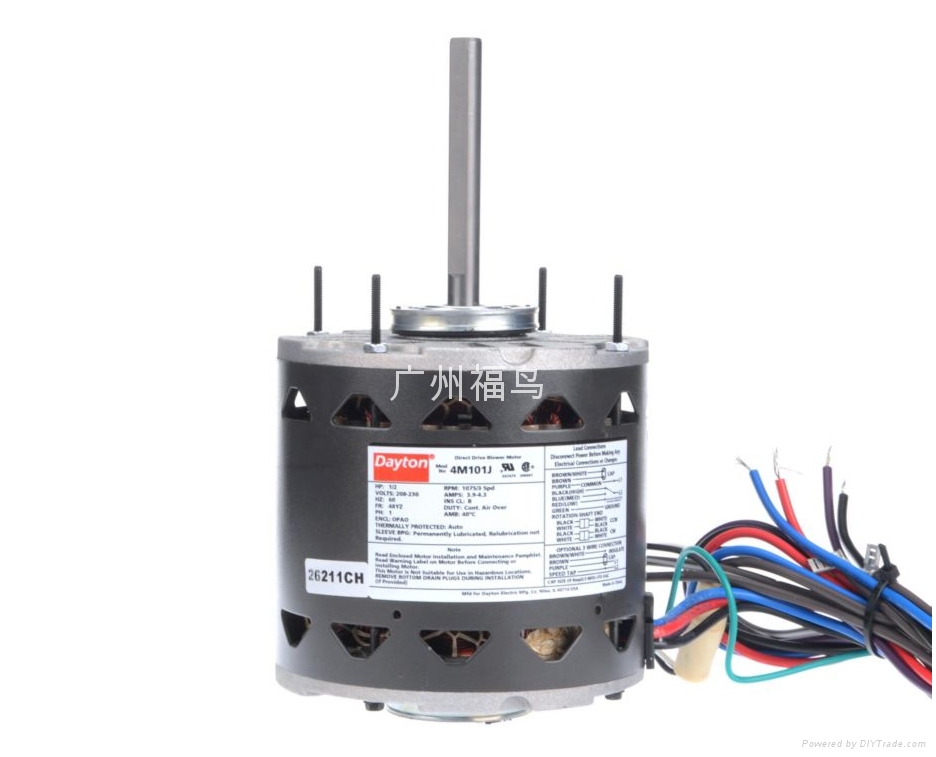

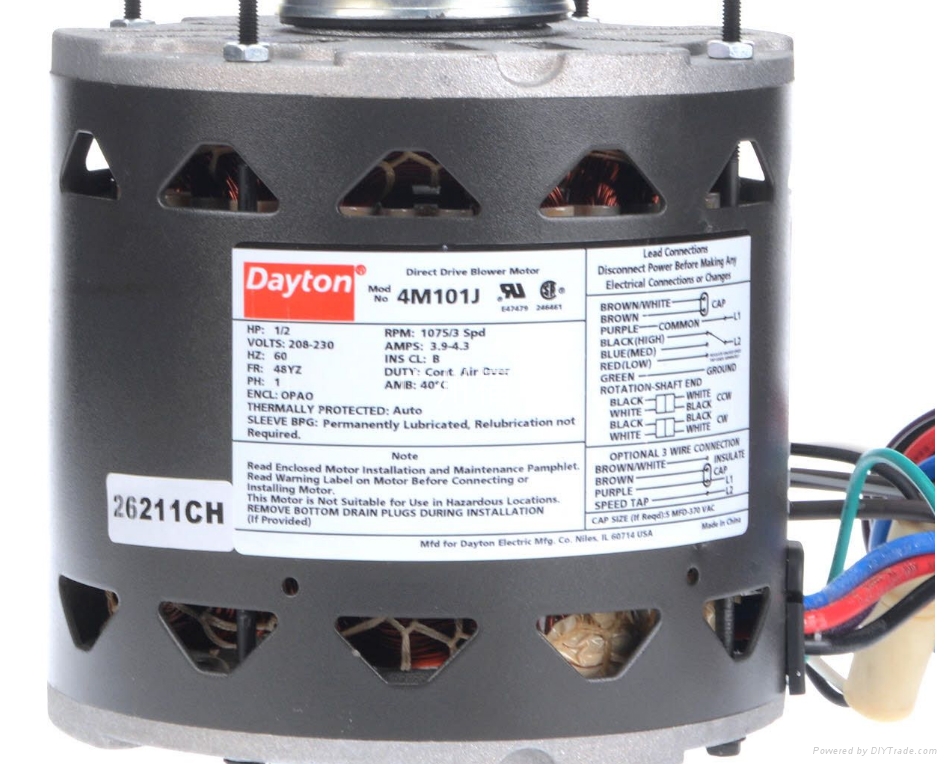

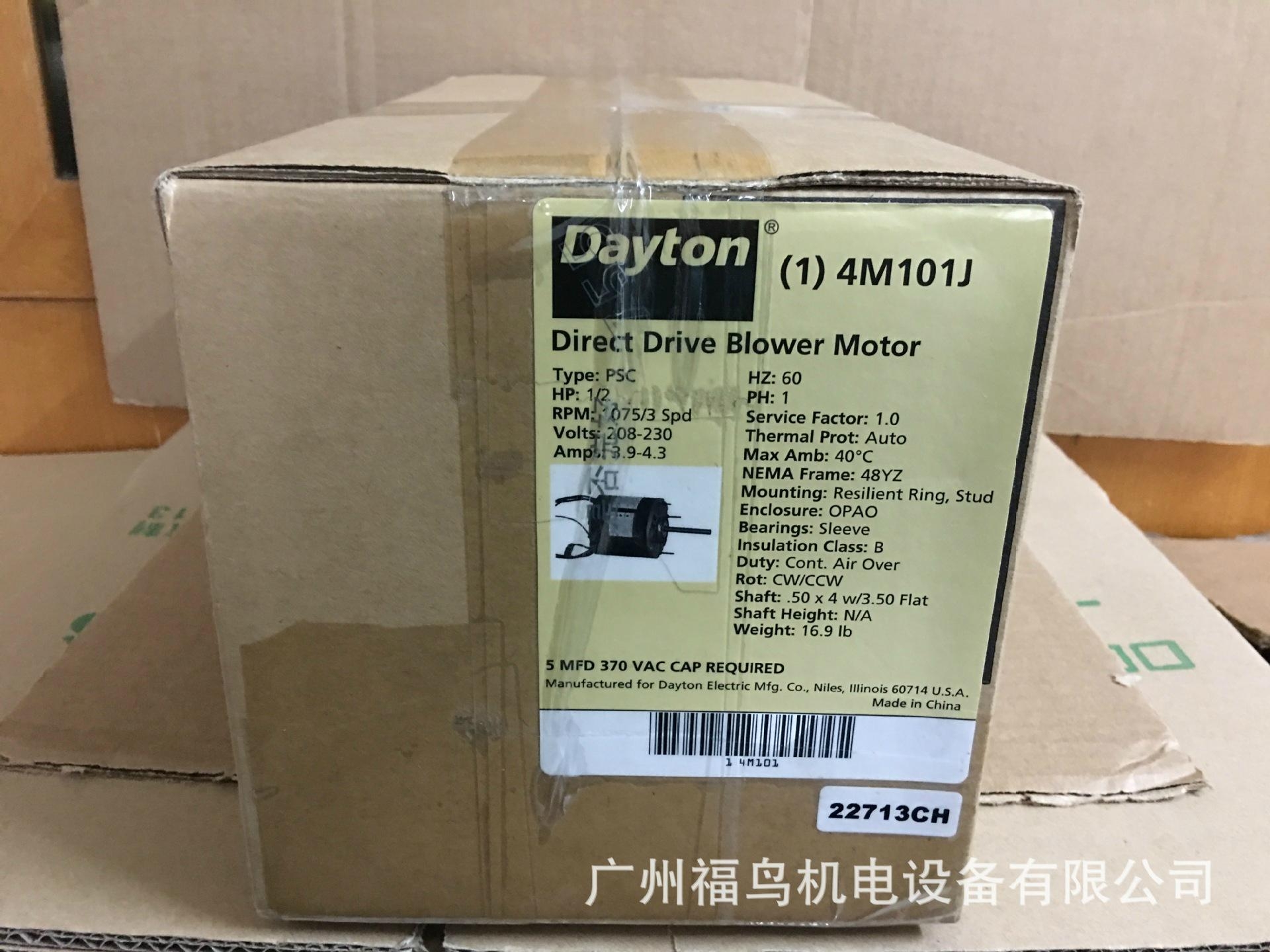

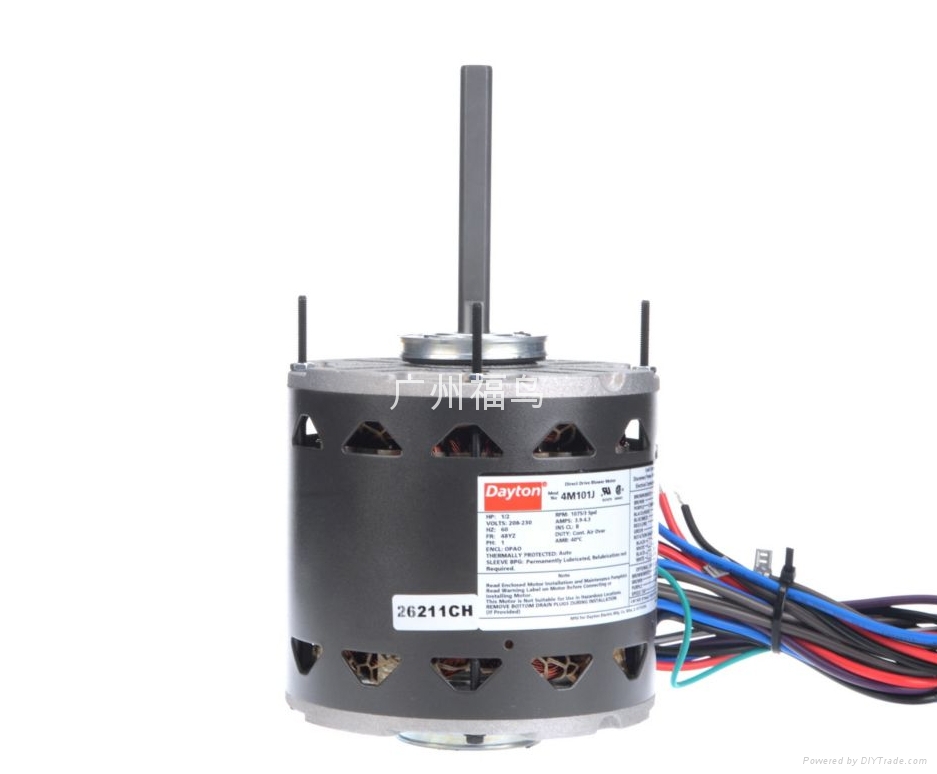

產品圖片
