Technical Specs:

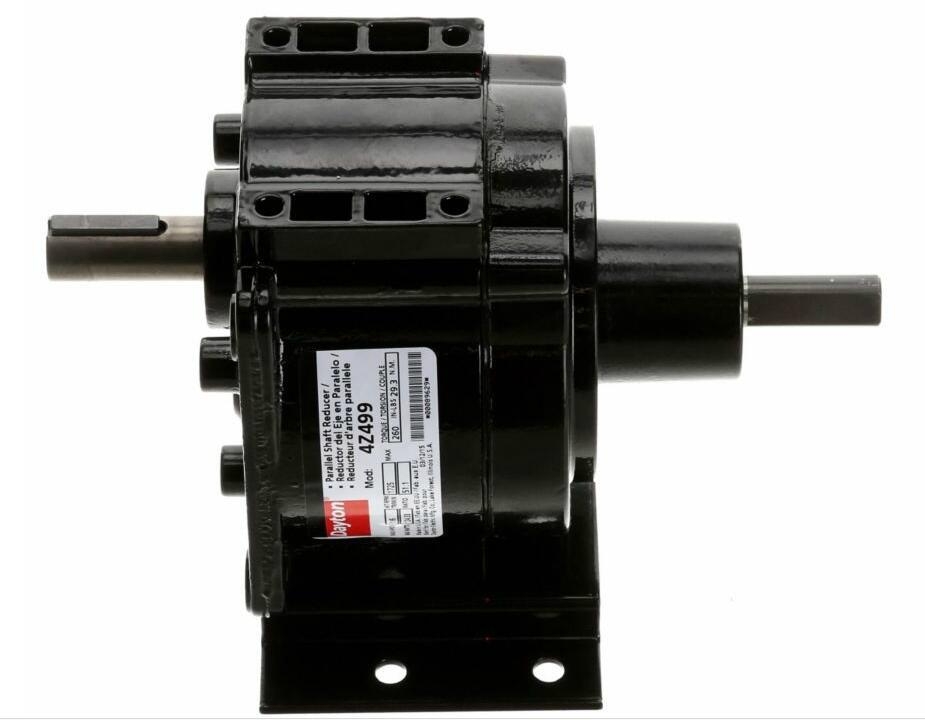

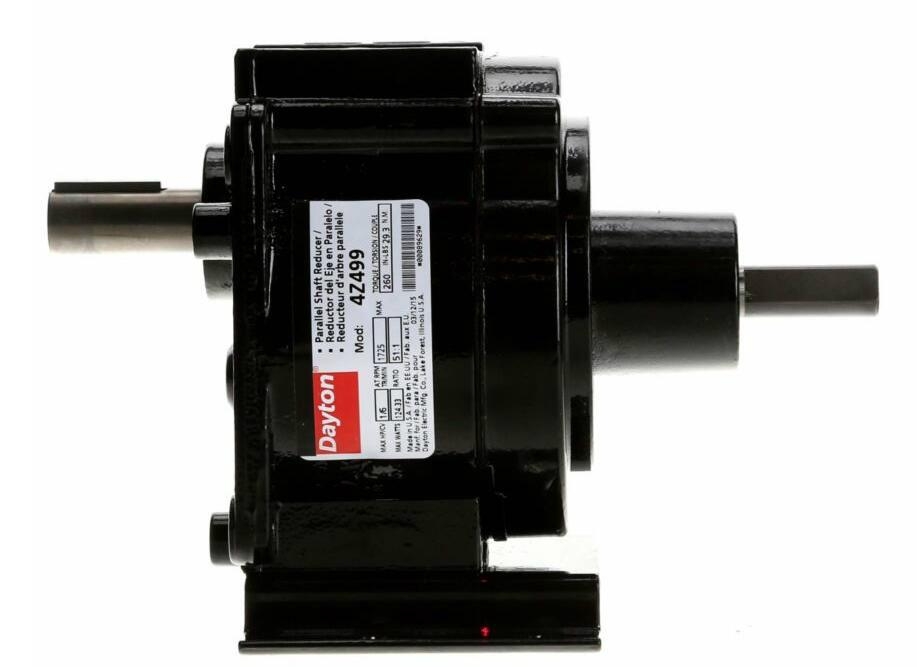

• Item: Speed Reducer
• Speed Reducer Type: Indirect Drive
• Shaft Orientation: Parallel
• Input RPM: 1725
• Nominal Output RPM: 34
• Bore Dia.: 5/8"
• Overhung Load: 175 lb.
• Nominal Ratio: 50.8:1
• Max. Input HP: 1/6
• Max. Output Torque: 260 in.-lb.
• Output Torque @ 1/40 HP: 41 in.-lb.
• Output Torque @ 1/20 HP: 82 in.-lb.
• Output Torque @ 1/12 HP: 136 in.-lb.
• Output Torque @ 1/10 HP: 163 in.-lb.

• Output Torque @ 1/6 HP: 260 in.-lb.
• Number of Stages: 3
• Base: Removable
• Mounting: Any Position
• Lubrication: Heavy Duty Oil
• Seal Type: Spring Loaded Lip
• Bearings: Ball
• Pinion Material: Hardened Steel
• Gear Type: Helical First Stage
• Housing Material: Die Cast Aluminum
• Finish: Gloss Powder Coated
• Output Shaft Dia.: 5/8"
• Output Shaft Height: 3-3/4"

產品規格︰ 型號: 4Z499
