TECHNICAL SPECS:

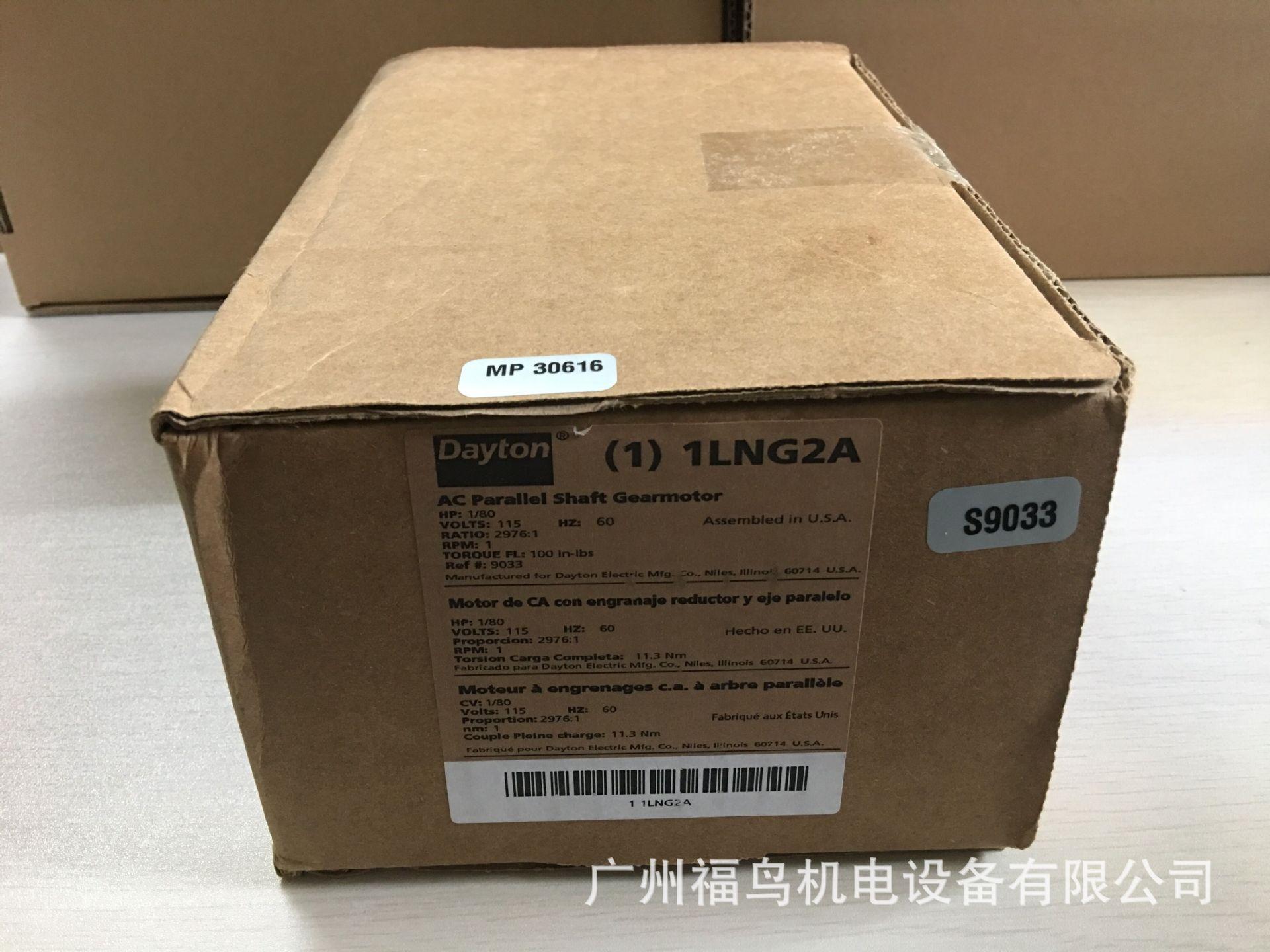

- Item: AC Gearmotor
- Gearmotor Type: AC Gearmotor
- Gearmotor Voltage: 115VAC
- Gearmotor Phase: 1
- Max. Torque: 100.0 in.-lb.
- Gearmotor Shaft Type: Single
- Gearmotor Shaft Orientation: Parallel
- Gearmotor Rotation: CW
- Nameplate RPM: 1
- Gearmotor Enclosure: Open
- Gearmotor Mounting Position: All Angle
- Gearmotor Brake Type: None
- Length Less Shaft: 4-1/4"
- Hz: 60/50
- RPM @ 50 Hz: 0.8
- Overhung Load: 56 lb.
- Input HP: 1/80
- Gear Ratio: 2976:1
- Full Load Amps: 0.5
- Insulation Class: A
- Thermal Protection: Auto
- Motor Type: Shaded Pole
- Shaft Dia. (Dimension U): 3/8"
- Shaft Length (Dimension V): 1"
- Bearings: Needle on Cover, Porous Sleeve on Motor
- Lubrication: Grease Filled
- Housing: Die Cast Zinc
- Gear Case Material: Die Cast Zinc
- Gears: Spur/Sintered Steel
- Gear Material: Sintered Steel
- Gear Type: Spur
- Application: Conveyor Toasters, X-ray Equipment, Pumps, Ingredient Motors, Water Softeners, Vending, Food and Restaurant Equipment, Amusement Devices, Valve Actuators, Security Systems, Displays
- Standards: UL/CSA/CE
产品规格︰
新型号: 1LNG2A (替代旧型号2L001)
