产品描述

Technical Specs:

• Item: OEM Blower
• Outlet Shape: Rectangular
• With/Without Flange: With Flange
• Wheel Dia.: 5-1/8"
• Wheel Width: 1-7/8"
• CFM @ 0.000-In. SP: 463
• CFM @ 0.100-In. SP: 425
• CFM @ 0.200-In. SP: 388
• CFM @ 0.300-In. SP: 338
• CFM @ 0.400-In. SP: 250
• CFM @ 0.500-In. SP: 161
• CFM @ 0.600-In. SP: 50
• Voltage: 115
• Hz: 50/60
• Phase: 1
• Full Load Amps: 1.28
• RPM: 1600
• Bearing Type: BALL
• Motor Type: Permanent Split Capacitor
• Motor Enclosure: Open
• Motor Insulation: Class B

• Thermal Protection: Auto
• Lead Length: 13"
• Conduit Box: No
• Max. Ambient Temp.: 104 Degrees F
• Max. Inlet Temp.: 104 Degrees F
• Inlet Dia.: 4-9/16"
• Outlet Height: 3-1/2"
• Outlet Width: 7-13/16"
• Overall Height: 9-3/8"
• Overall Width: 9-3/16"
• Overall Depth: 8-9/16"
• Wheel Type: Forward Curve
• Drive Type: Direct
• Mounting Position: All Position
• Housing Finish: Enamel
• Housing Material: Rolled Steel
• Housing Color: Gray
• Agency Compliance: UL Recognized US and Canada (E47479), CE
• Replaces: 4C448
• Includes: Discharge Mounting Flange











产品规格︰ 型号: 1TDR9 (替代旧型号4C448, 4C448A)

主要市场︰ 业务QQ: 2543525125, 2054518018, 532560858.

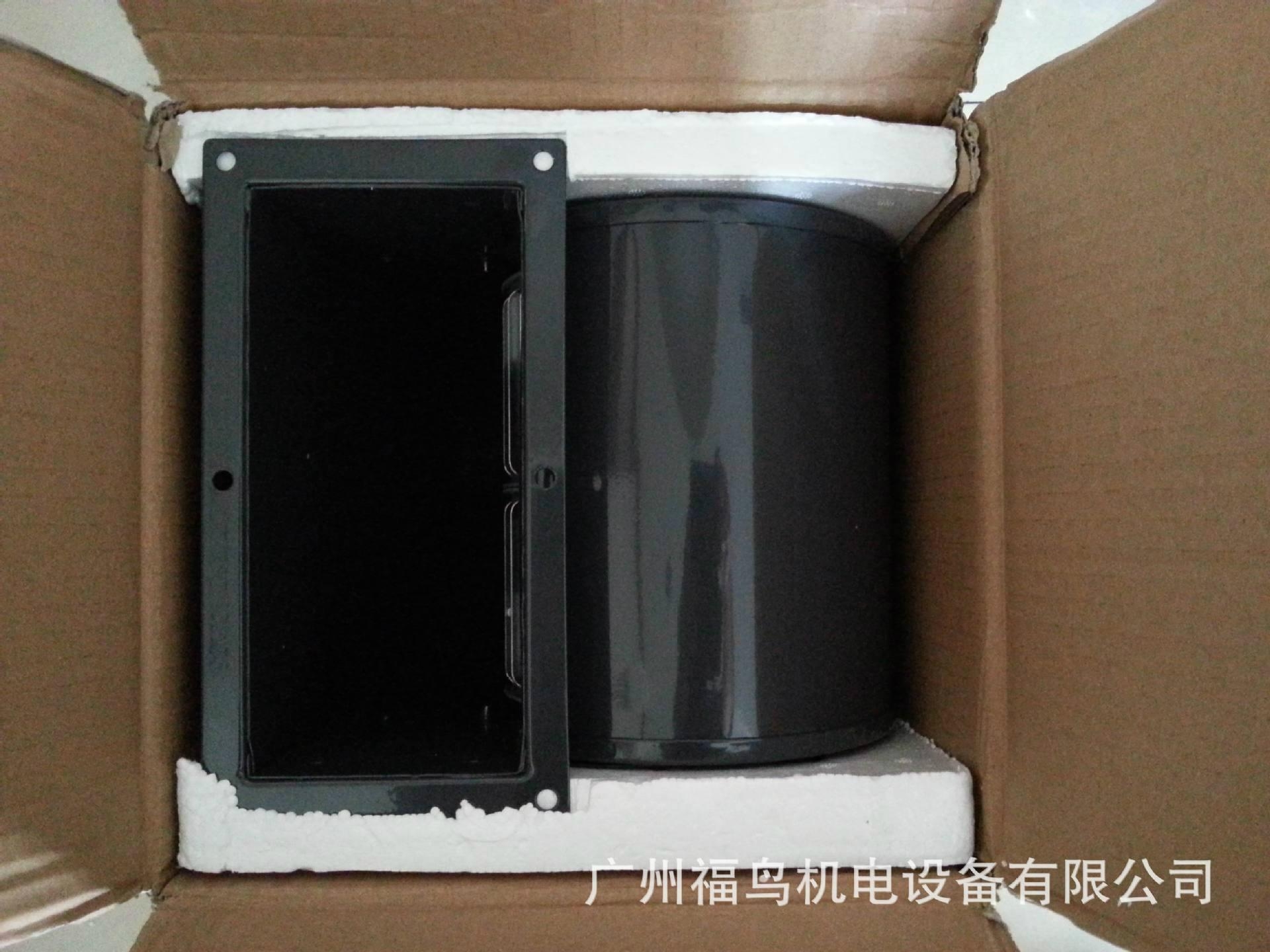

产品图片
