产品描述
Technical Specs:
- Item: Solenoid Valve
- Body Material: PVC
- Valve Design: 3-Way/2-Position
- Valve Configuration: Normally Closed
- Pipe Size: 1/2"
- Orifice Dia.: 63/64"
- Coefficient of Volume: 5.20
- Min. Operating Pressure Differential: 5 psi
- Safe Working Water Pressure: 140 psi
- Voltage: 120VAC
- Operation: Pilot Operated
- NEMA Rating: 4X
- Max. Fluid Temp.: 140 Degrees F
- Seal Material: Viton
- Coil Insulation Class: F
- Hz: 60
- Coil Enclosure: Watertight and Dust Tight
- Electrical Connections: 1/2" Conduit
- Overall Length: 3-1/2"
- Overall Width: 3-1/2"
- Overall Height: 6-5/8"
- Application: For Use in Severe Service Applications with Most Liquids, Including Acids, Caustics, Chlorine Solutions, Solvents and Ultrapure Fluids.
产品规格︰
型号: PS050VW11-PV, 120V/60HZ

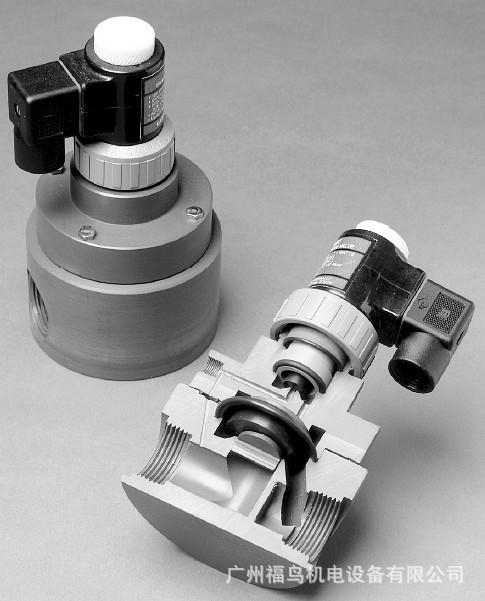

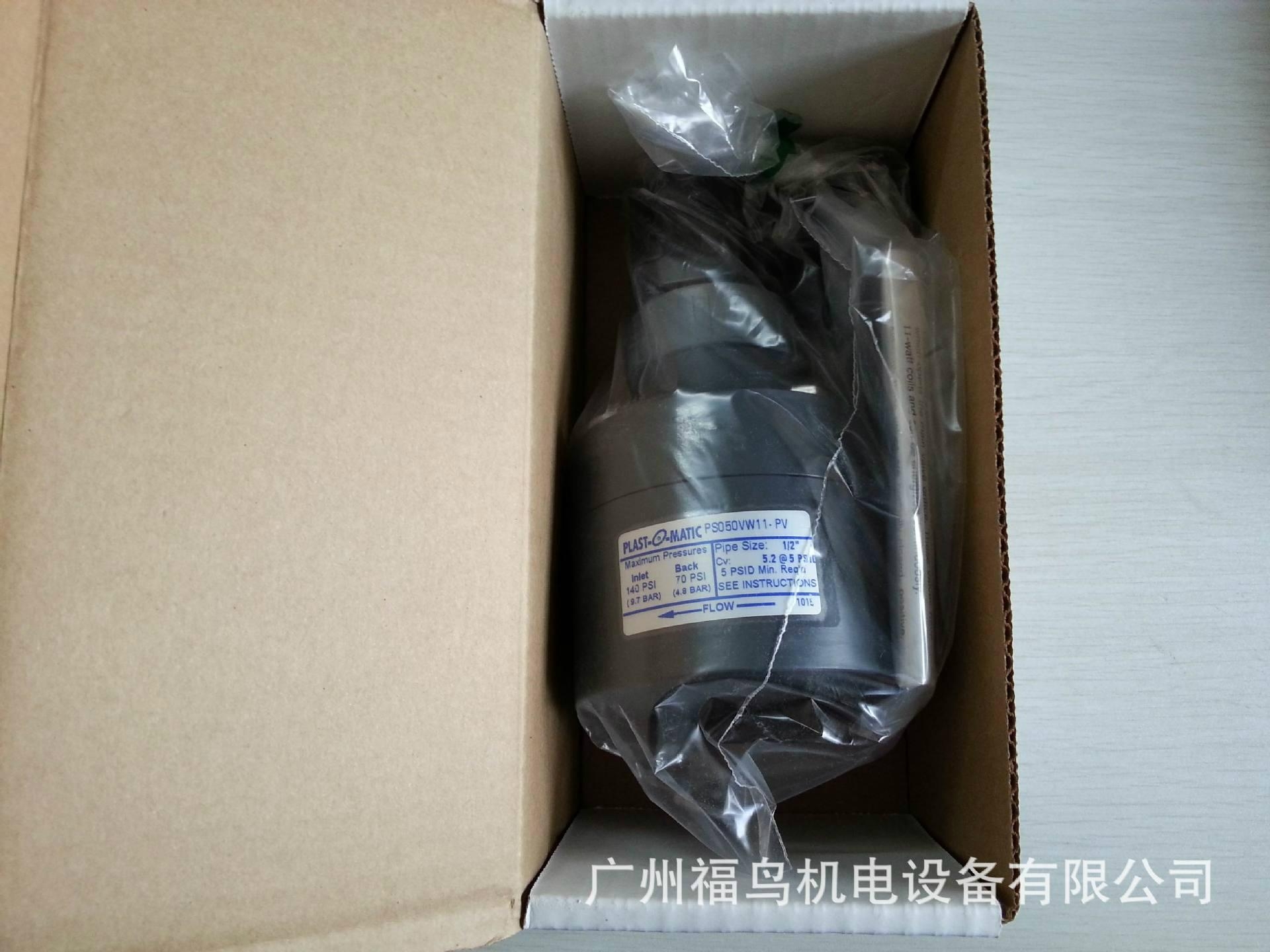

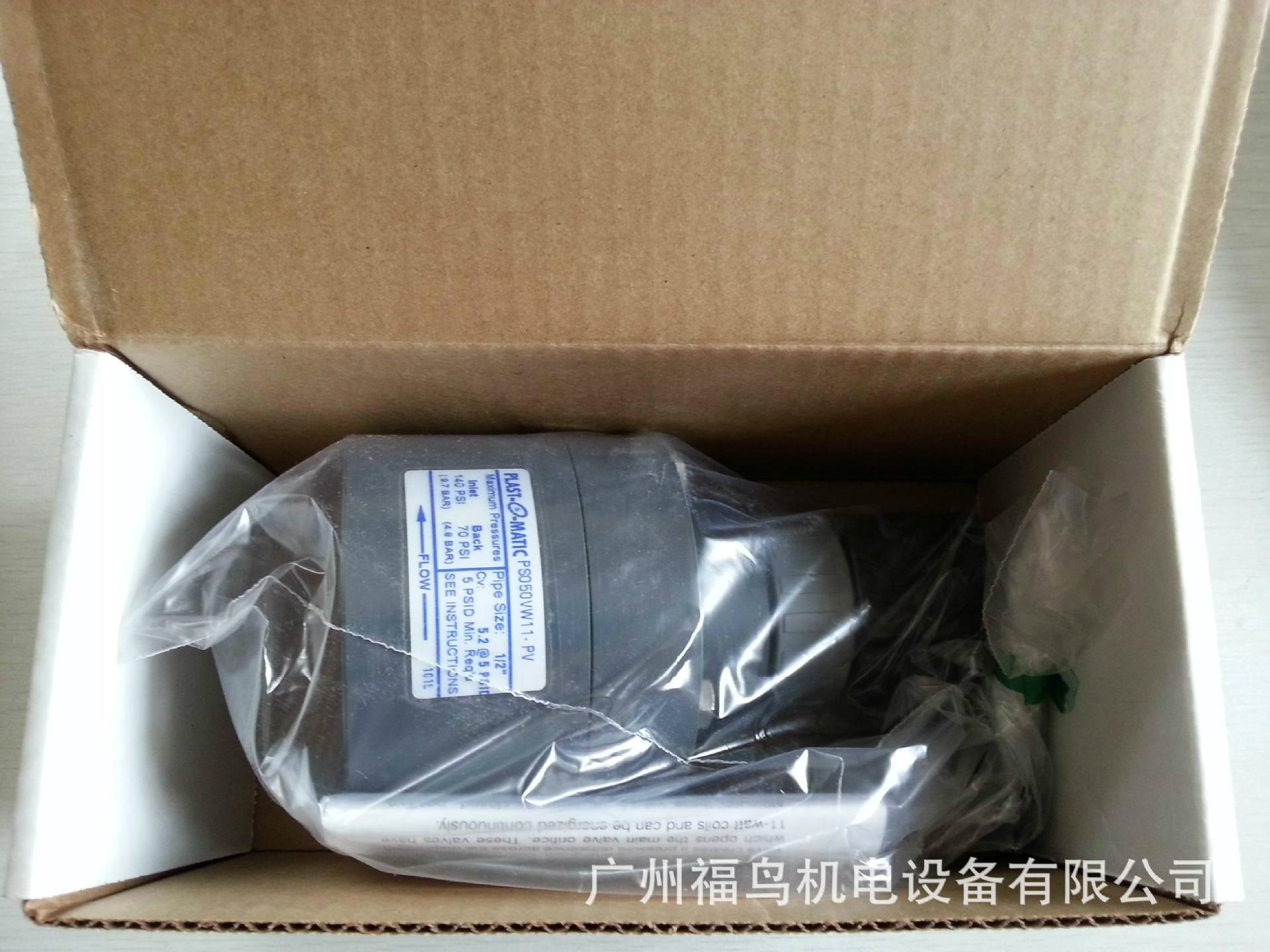

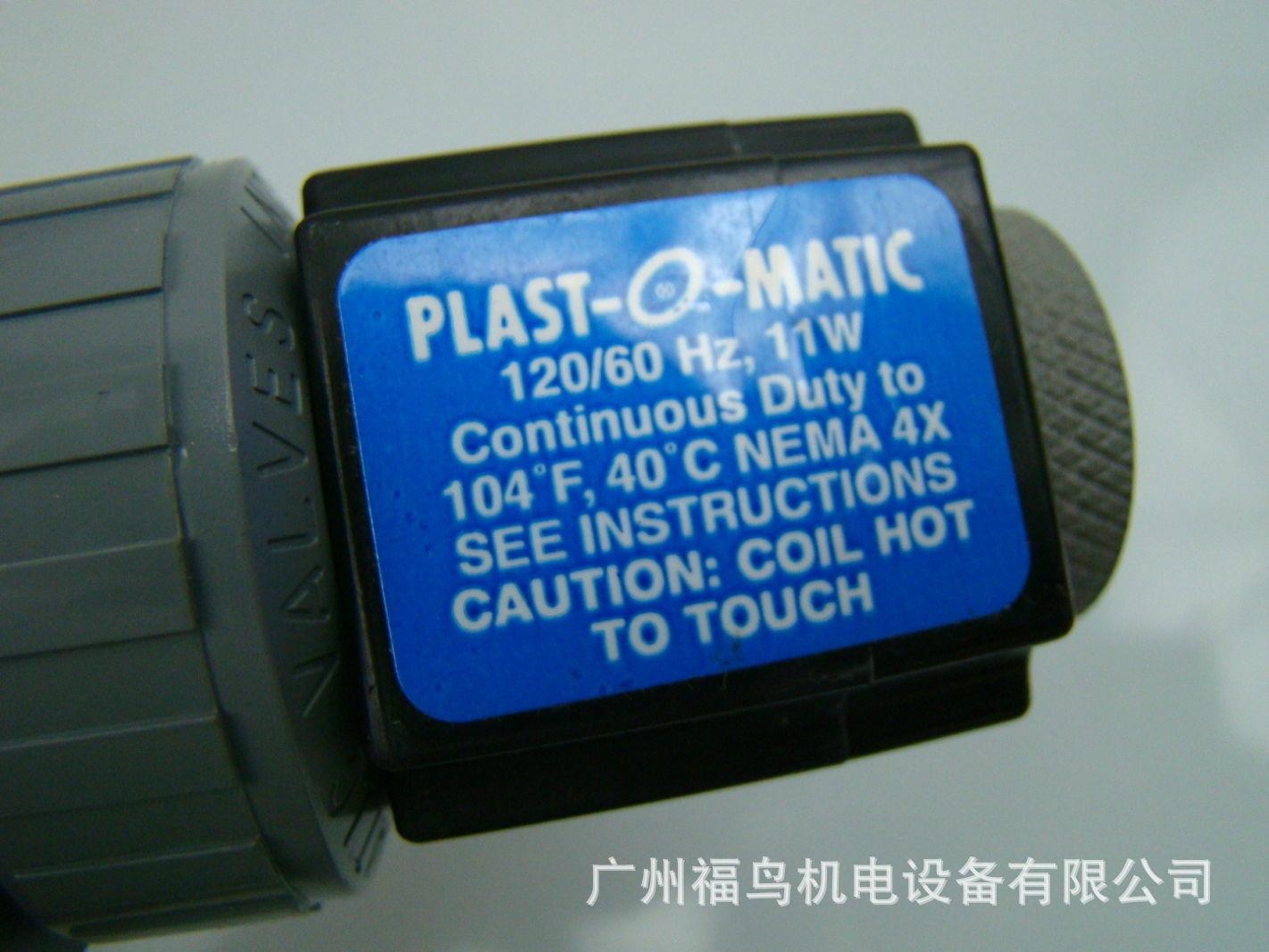

产品图片
