产品描述

Technical Specs:

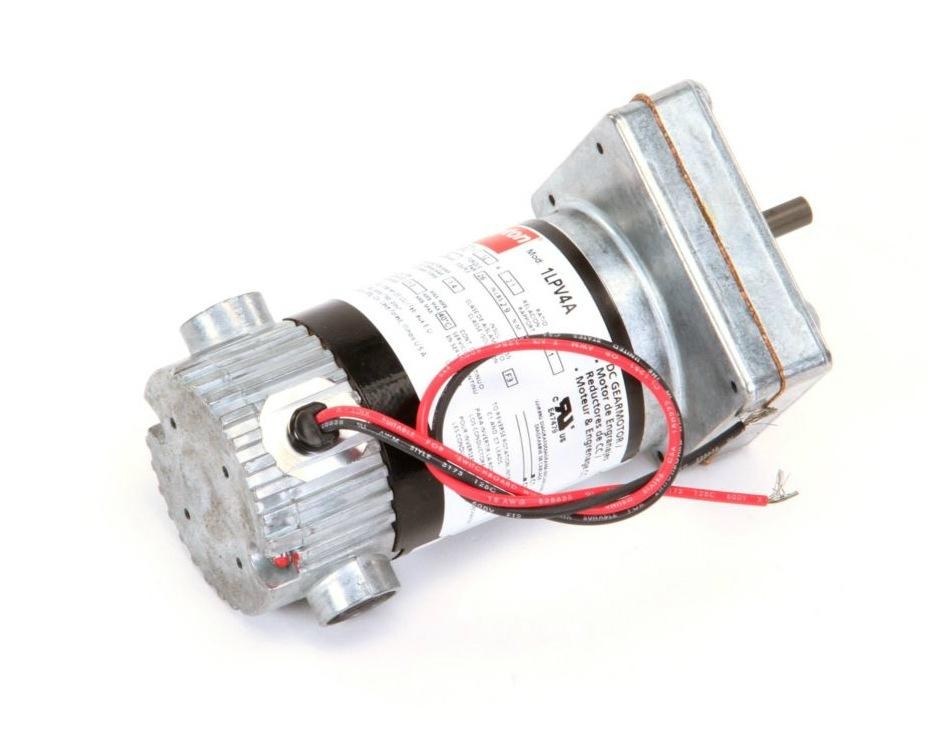

• Item: DC Gearmotor
• Voltage: 12VDC
• Shaft Orientation: Parallel
• Reversible Shaft Output: No
• Shaft: Single Output
• Nameplate RPM: 39
• Max. Torque: 26 in.-lb.
• Overhung Load: 50 lb.
• Input HP: 1/30
• Gear Ratio: 62:1
• Full Load Amps: 2.10
• Insulation Class: F
• Enclosure: TENV
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C
• Rotation: Reversible

• Mounting: All Position
• Motor Type: Permanent Magnet DC

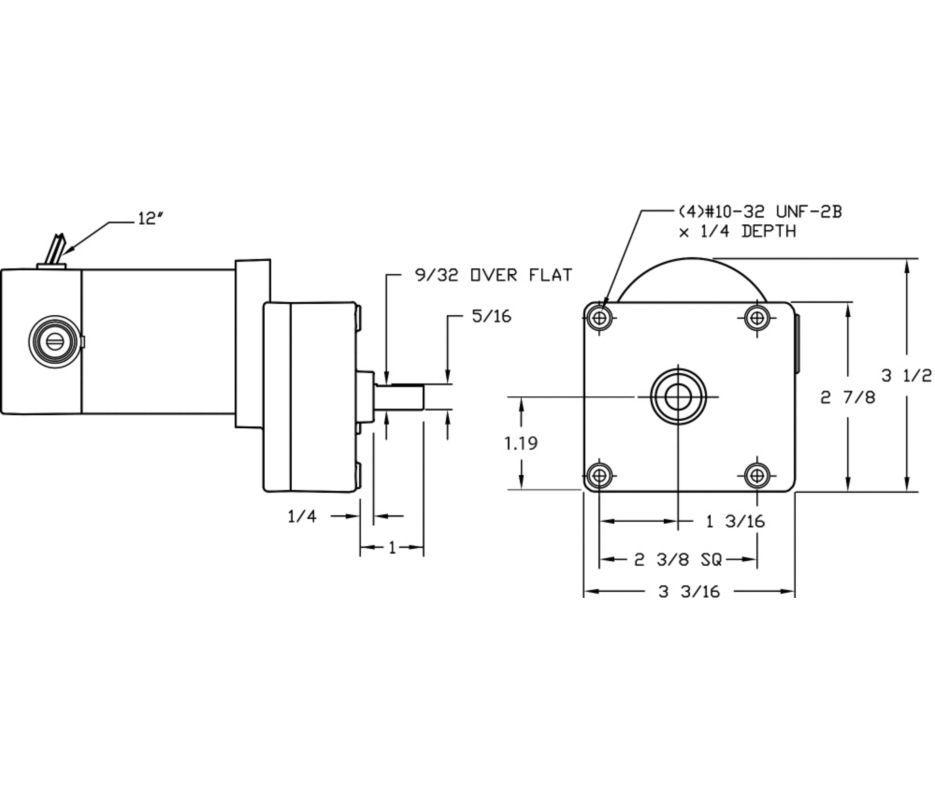

• Length Less Shaft: 5-5/8"
• Overall Length: 6-3/8"
• Keyway Size: Flat
• Bearings: Porous Bronze Sleeve on Case, Ball on Motor
• Lubrication: Grease Filled
• Brushes: Externally Replaceable
• Finish: Unpainted
• Gear Material: Acetyl/Steel
• Gear Case: Die Cast Zinc
• Seals: O-Ring Type on Output Shaft
• Housing Material: Die Cast Zinc
• Standards: cRUus
• Replacement Brushes: 6YHY4
• RPM Range: 31 to 50

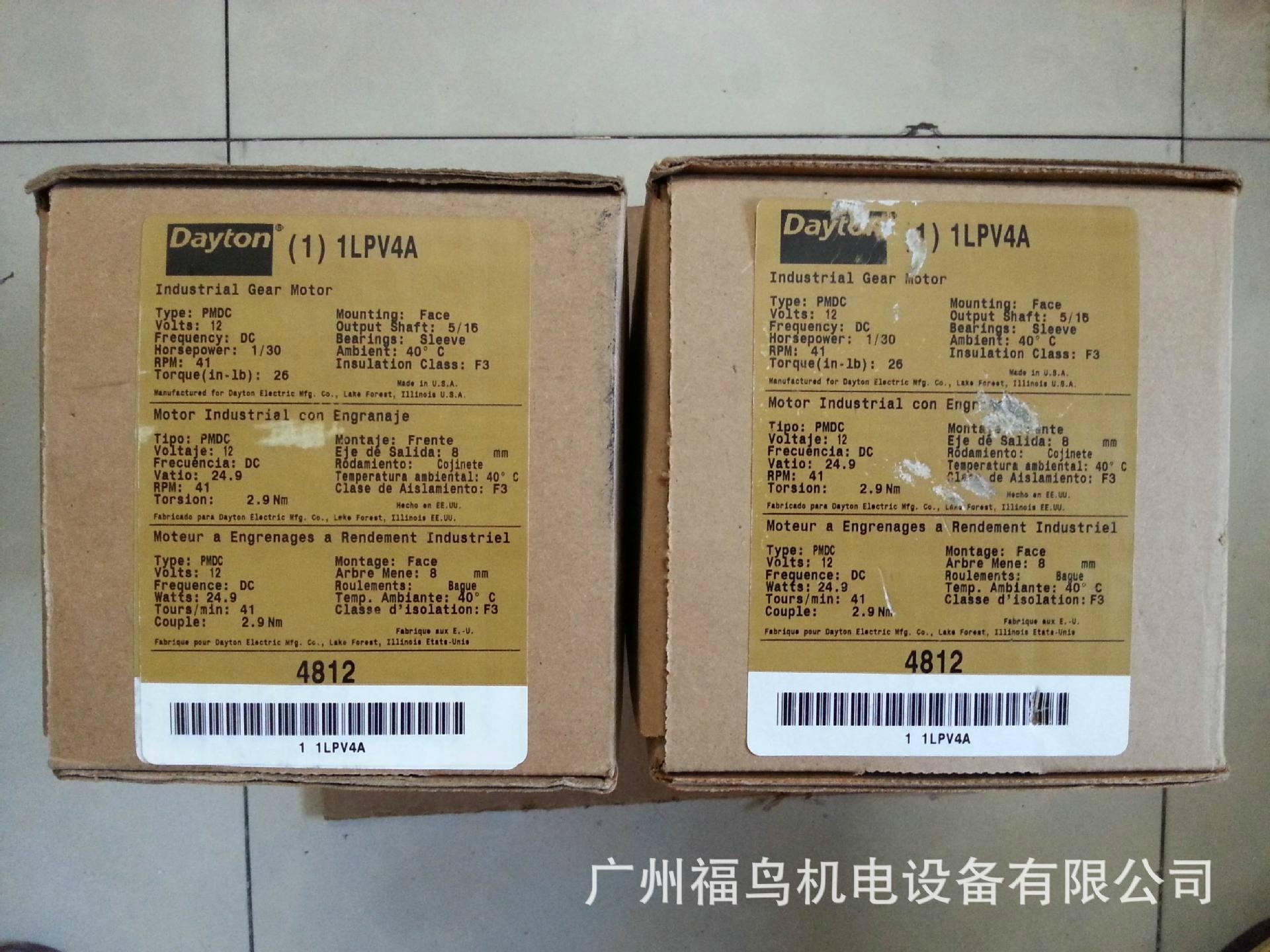

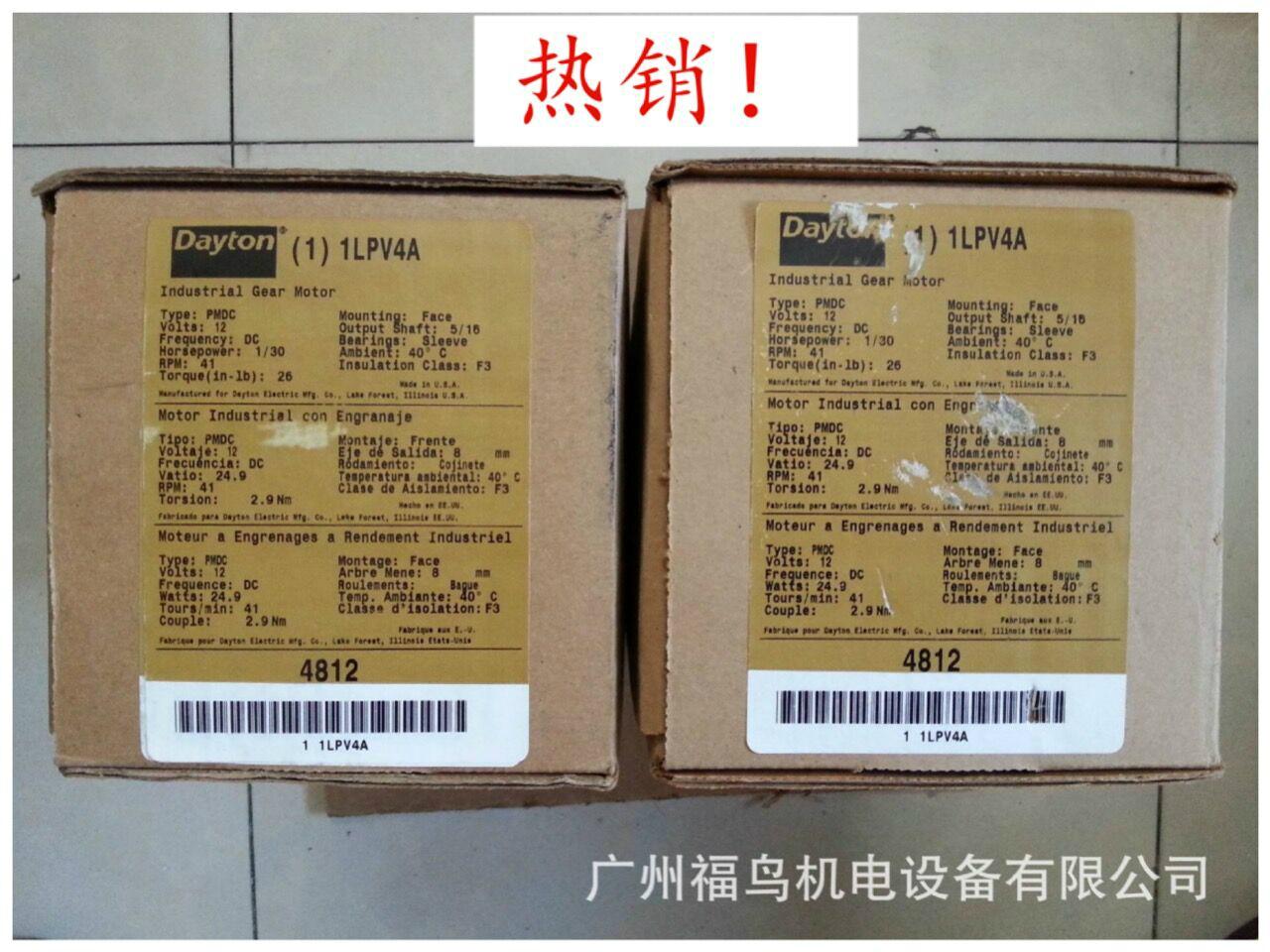

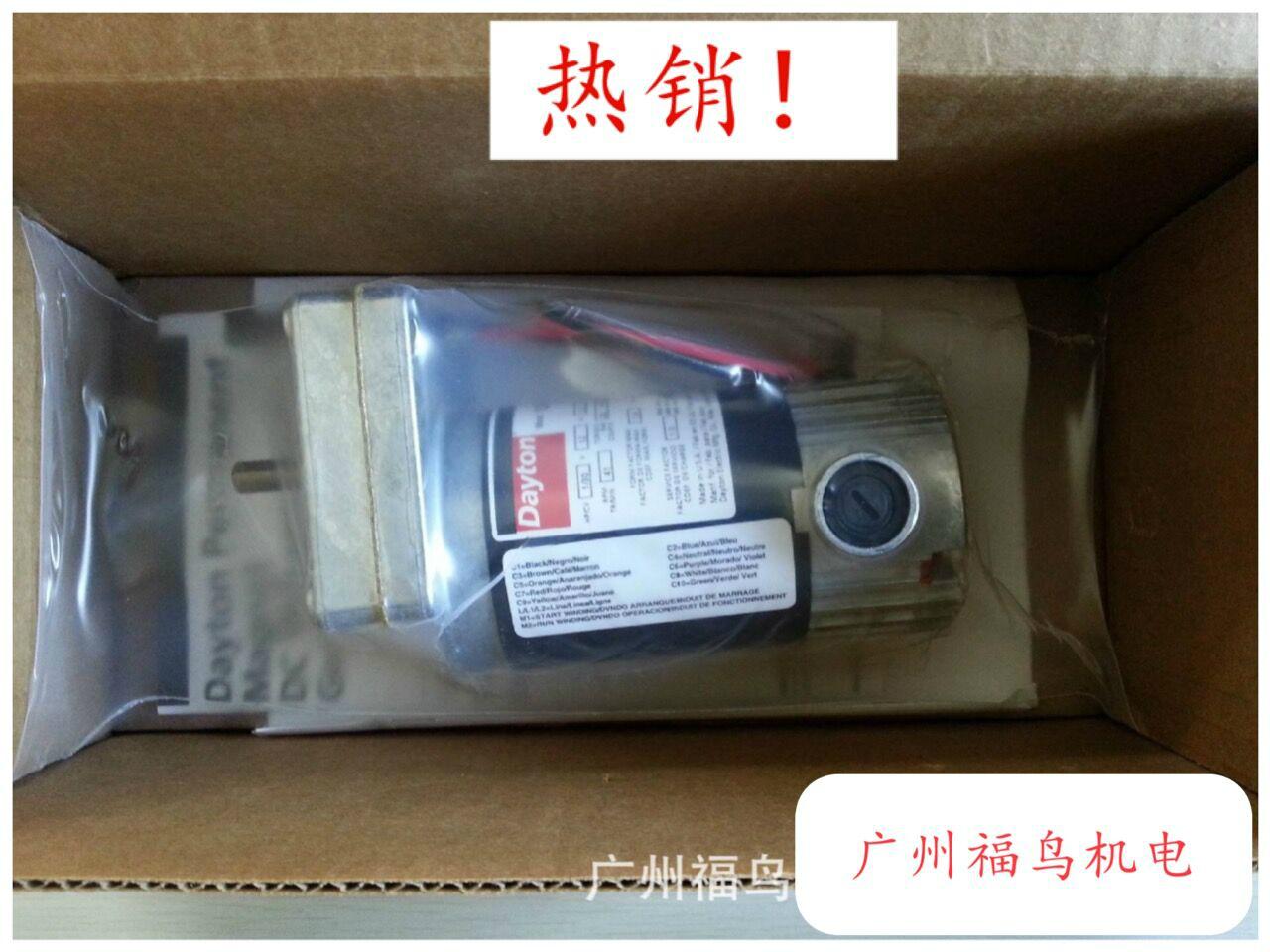

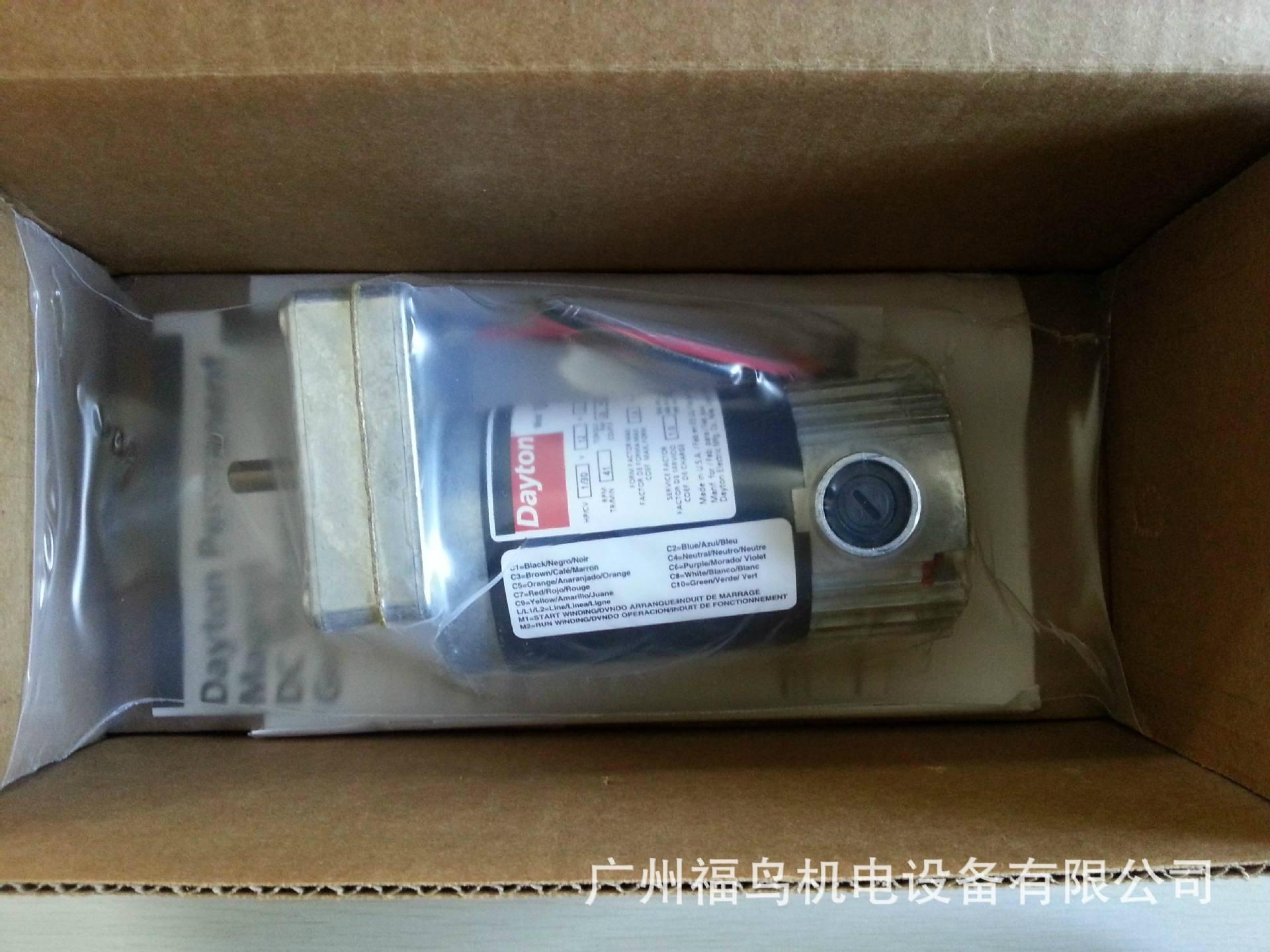

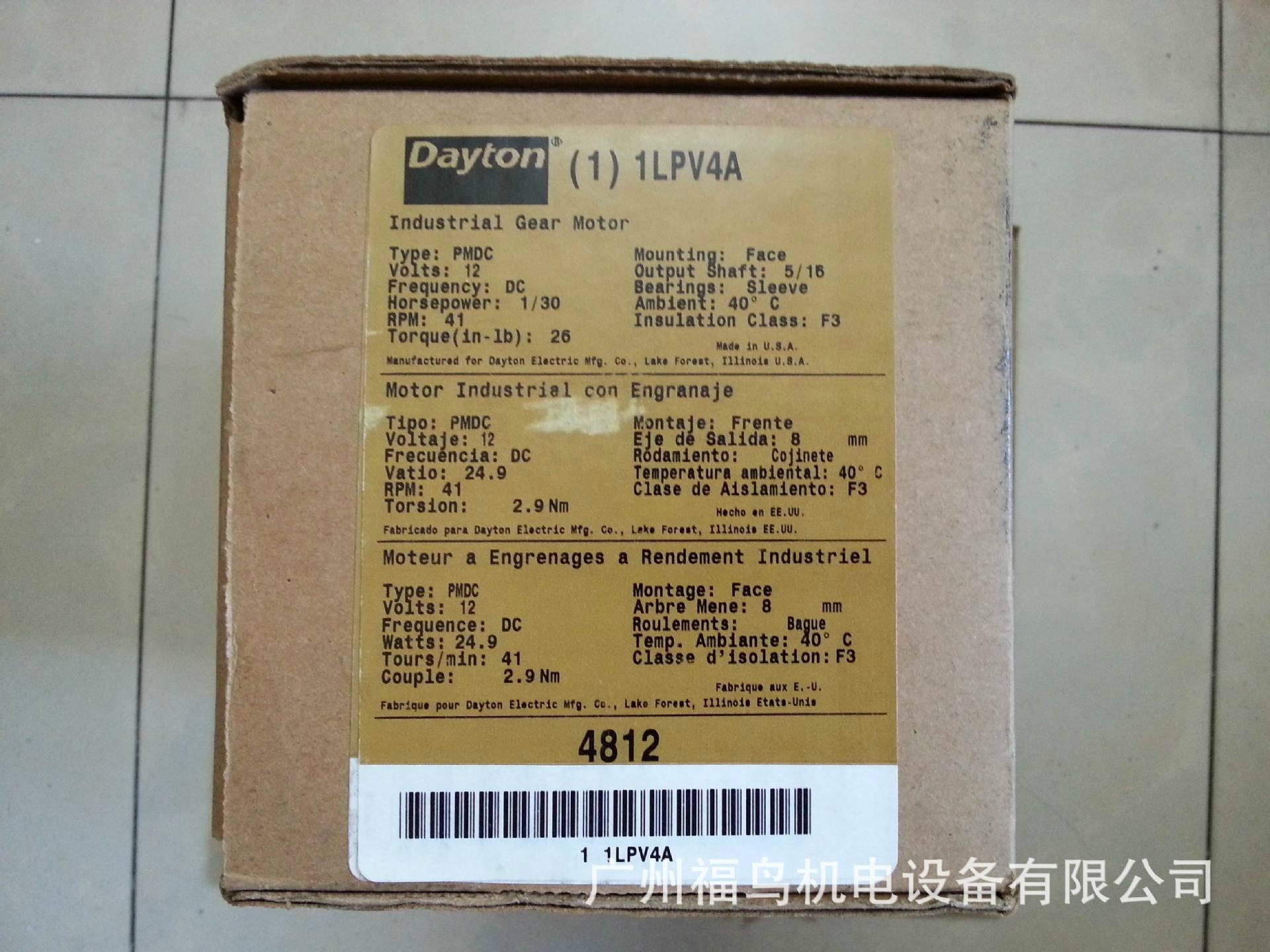

产品规格︰ 型号: 1LPV4, 1LPV4A (替代旧型号1L476)

主要市场︰ 业务QQ: 2543525125, 2054518018, 532560858.

产品图片
