Technical Specs:

• Item: Vacuum Motor
• Motor/Blower Type: Bypass
• Discharge: Peripheral
• Blower Stages: 1
• Number of Speeds: 1
• Motor Enclosure Design: Open
• CFM @ 2-In. Orifice: 99.0
• Vacuum (H2O Sealed): 50.8
• Voltage: 240
• Hz: 60/50
• Phase: 1
• Max. Amps: 3.3
• Max. Air Watts: 201
• Motor Mounting Type: Lug

• Motor Design: Universal AC/DC
• Motor Mounting Position: All Angle
• Thermal Protection: None
• Insulation Class: A
• Bearings: Ball
• Ambient Temperature: 40 Degrees C
• Body Dia.: 5.7"
• Overall Height: 5-1/8"
• Mounting Brackets: Thermoset
• Duty: Intermittent
• Average Life: 500 hr.
• Standards: UL Recognized (E47185), CSA Certified (LR31393)
• Replacement Brushes: Mfr. No. 833378-50

产品规格︰ 型号: 116271-00

主要市场︰ 业务QQ: 2543525125, 2054518018, 532560858.

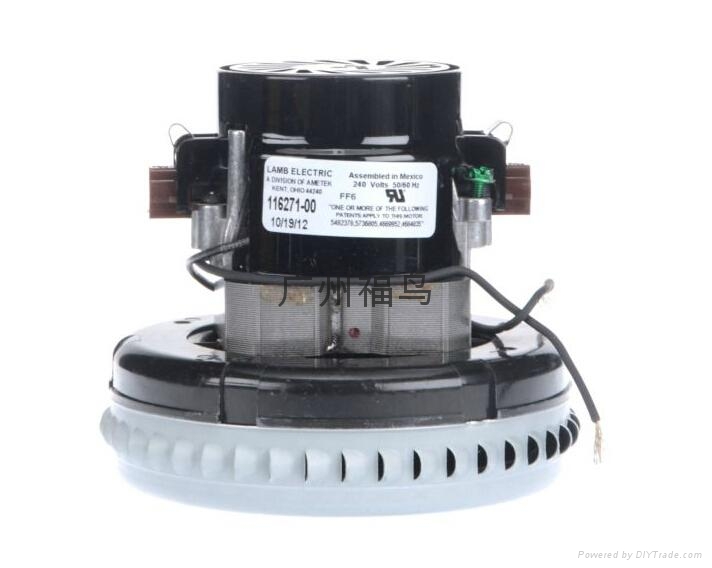

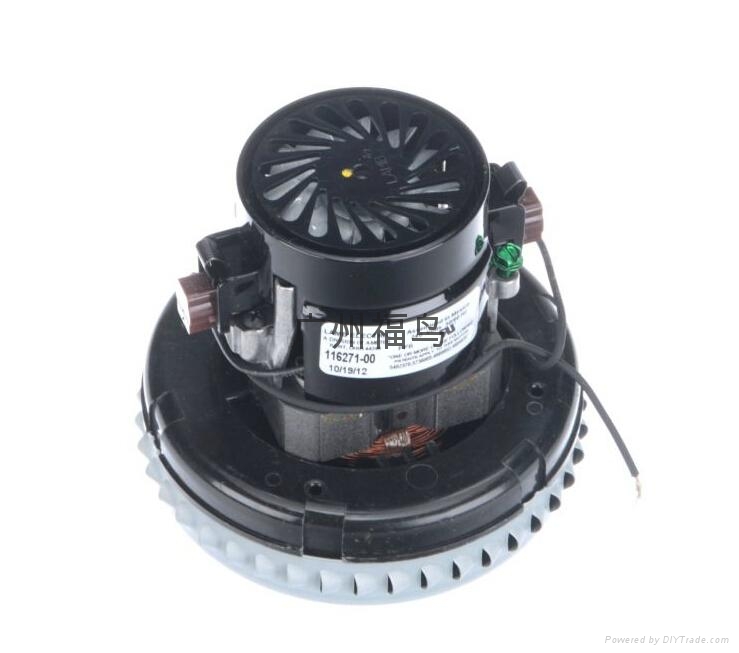

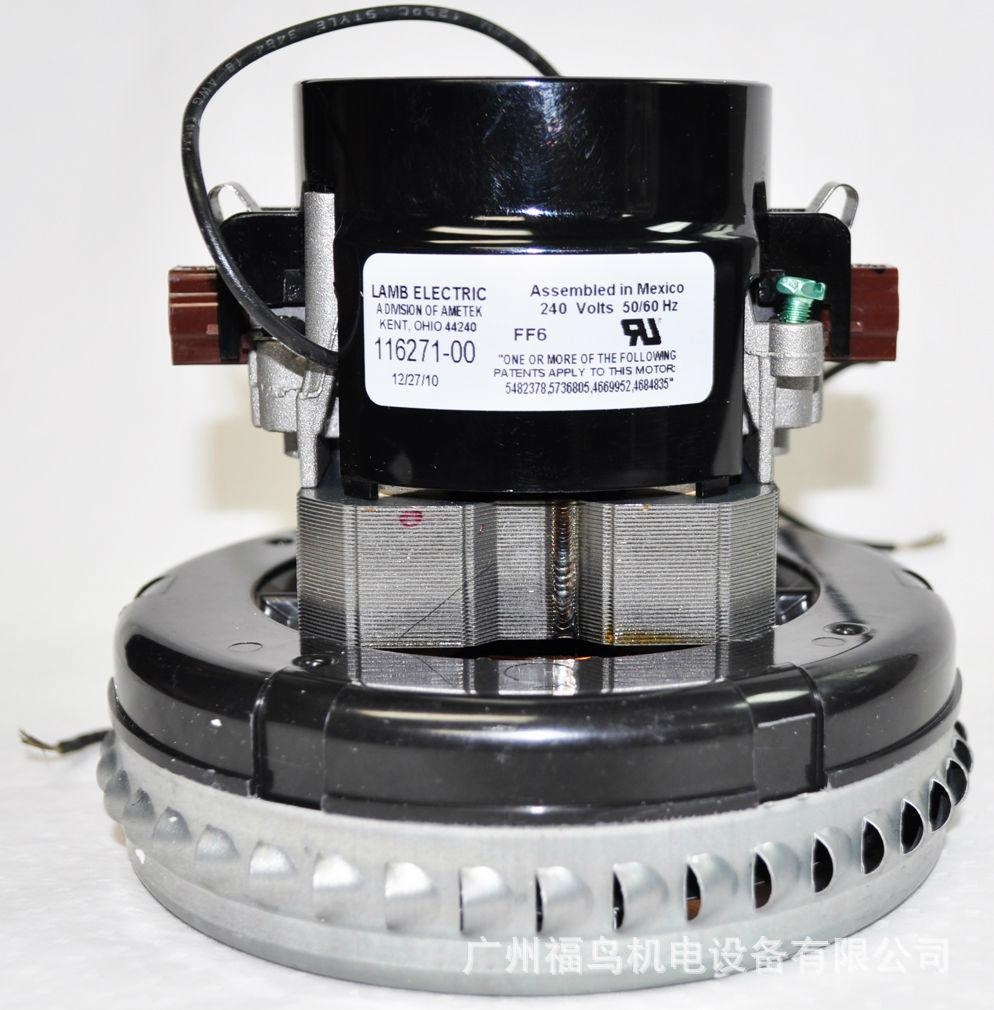

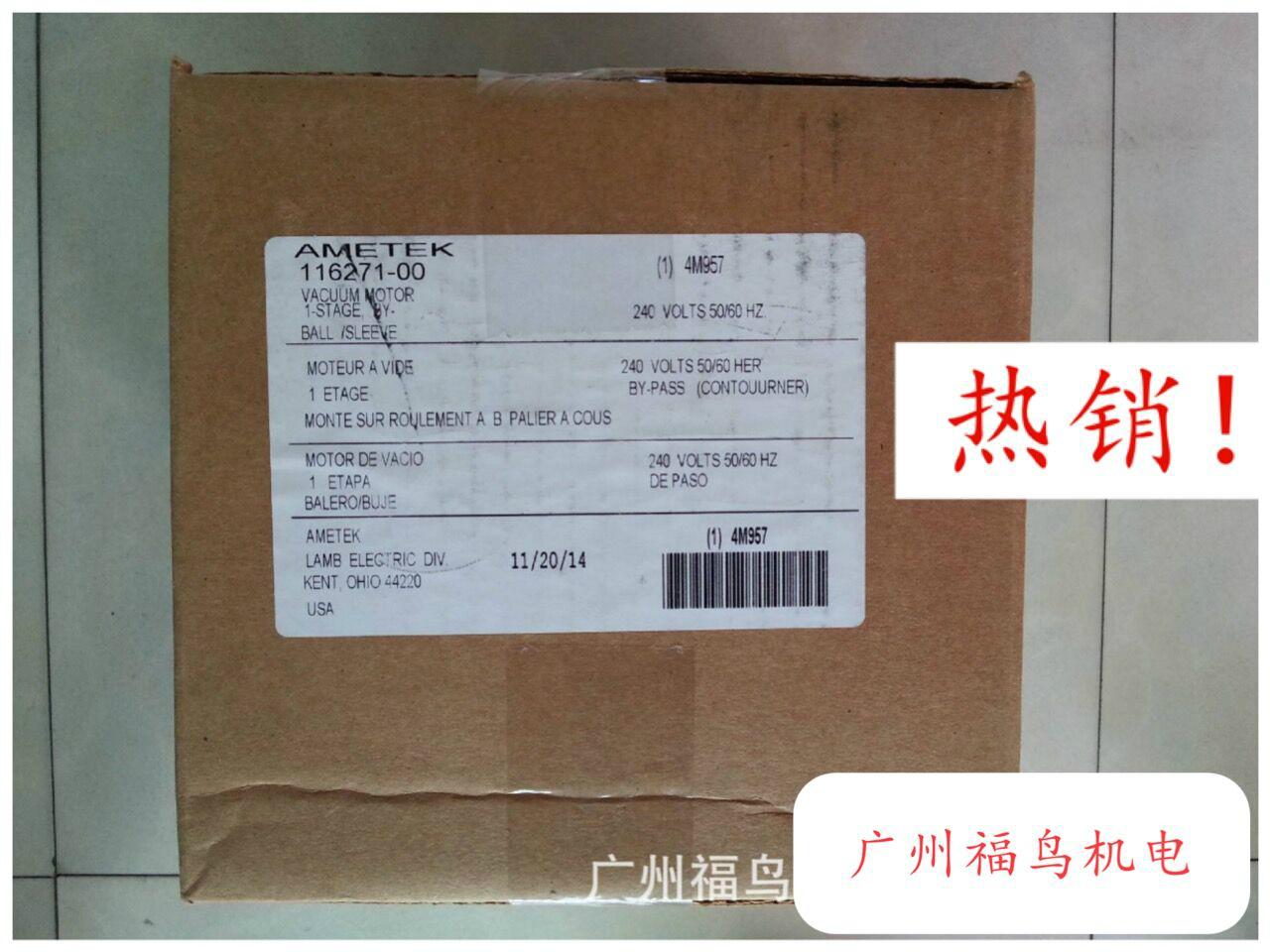

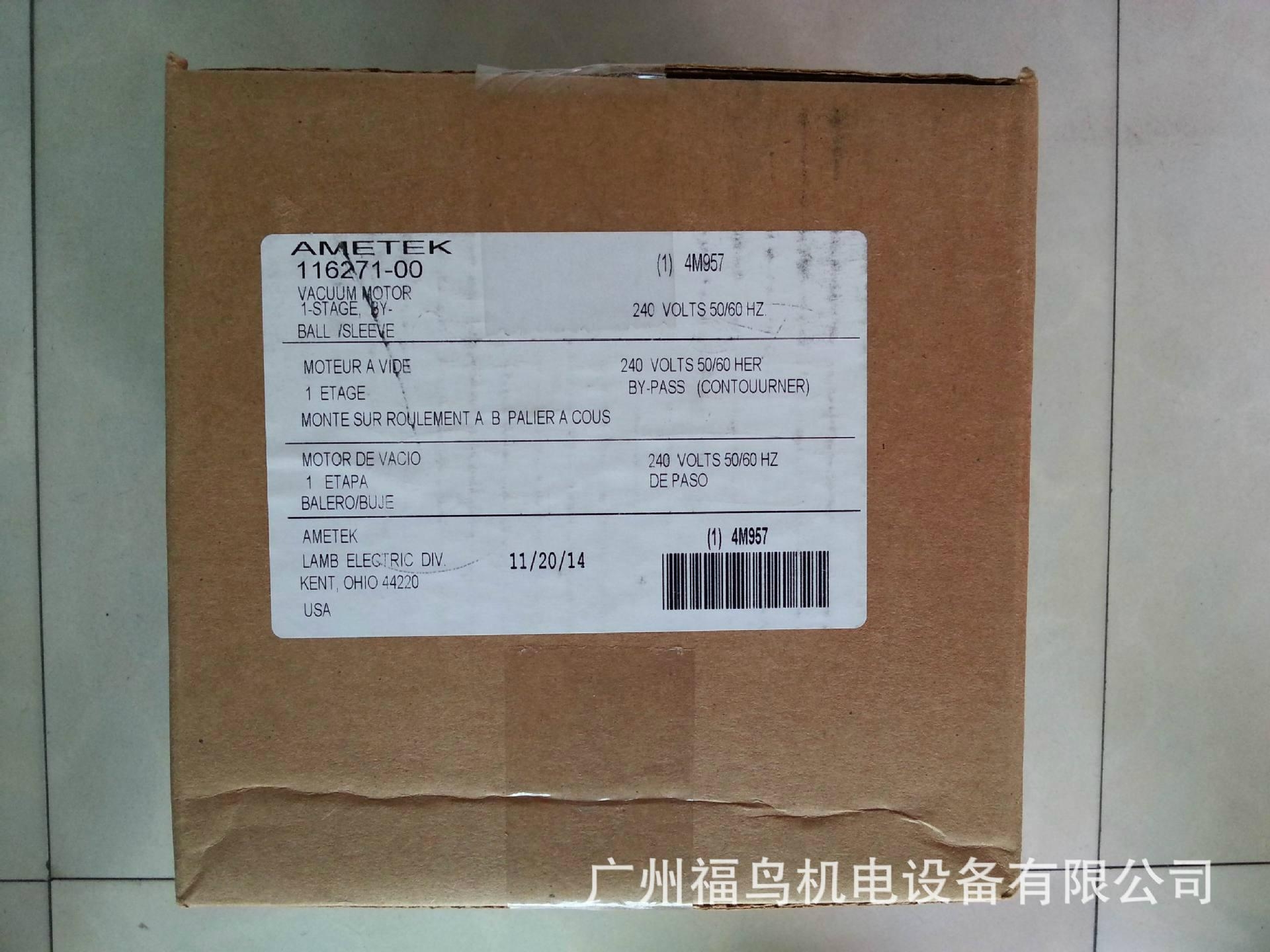

产品图片
