Technical Specs:

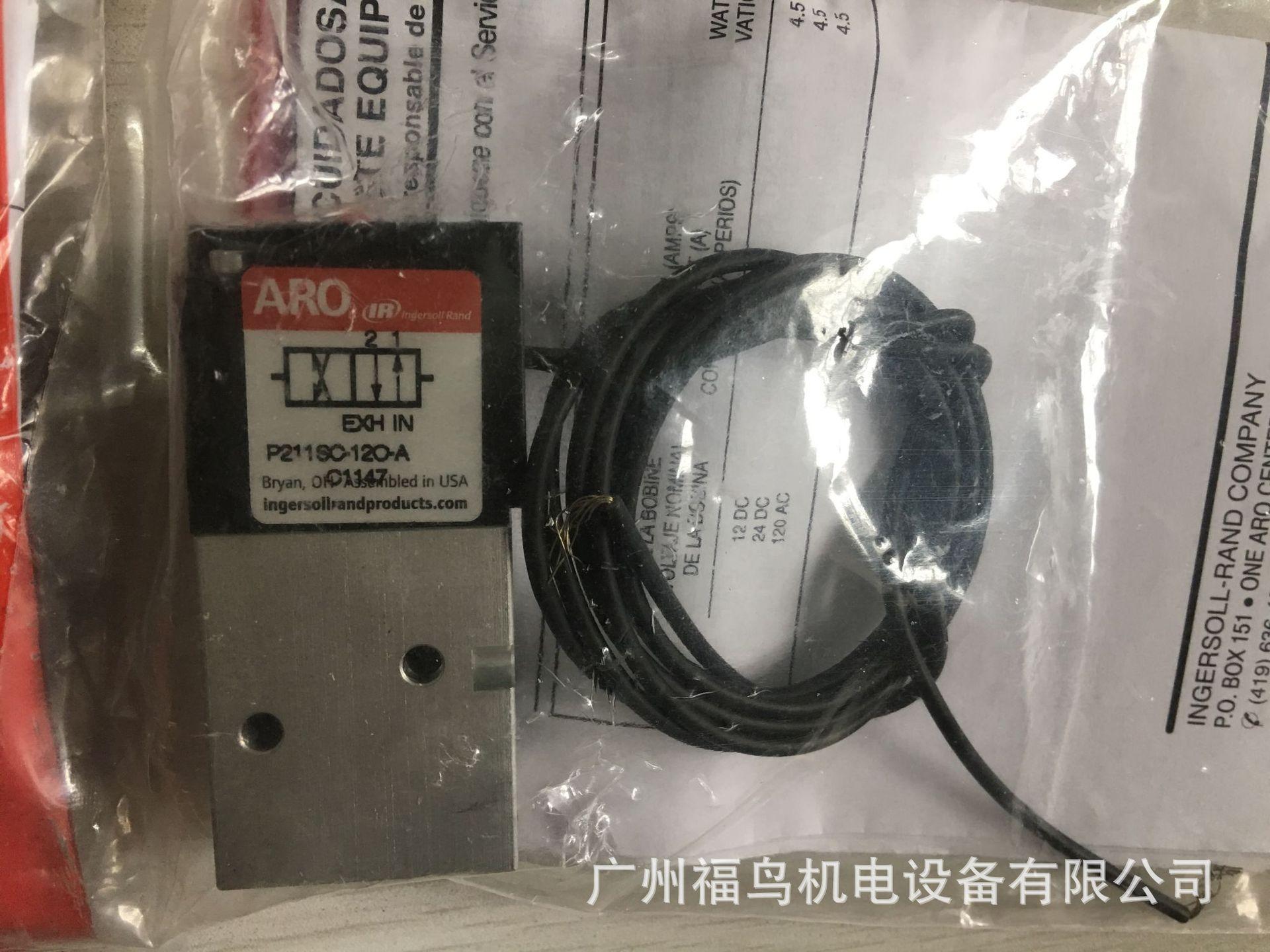

• Item: Solenoid Air Control Valve
• Air Valve Type: 4-Way, 2-Position
• Actuator/Return: Solenoid/Spring
• Body Style: Body Ported
• Pipe Size: 1/8"
• Voltage: 120VAC
• CFM: 6.9
• Coefficient of Volume: 0.144
• Electrical Connections: Lead Wire

• Shifting Technology: Direct
• Power Consumption: 4.5W
• Pressure Range: 0 to 120 psi
• Ambient Temp. Range: 32 Degrees to 125 Degrees F
• Override: Non-Locking Manual
• Overall Height: 2-3/4"
• Overall Length: 1-1/4"
• Overall Width: 1"
• NEMA Classification: NEMA 4

产品规格︰ 型号: P211SC-120-A, P211SC-120-A-G

主要市场︰ 业务QQ: 2543525125, 2054518018, 532560858.
