产品描述

Technical Specs:

• Item: OEM Blower
• Outlet Shape: Round
• With/Without Flange: With Flange
• Wheel Dia.: 2"
• Wheel Width: 1-7/8"
• CFM @ 0.000-In. SP: 12
• CFM @ 0.100-In. SP: 9
• CFM @ 0.200-In. SP: 6
• Voltage: 115
• Hz: 50/60
• Phase: 1
• Full Load Amps: 0.08
• RPM: 3340
• Bearing Type: Ball
• Motor Type: Permanent Split Capacitor
• Motor Enclosure: Open
• Motor Insulation: Class B
• Thermal Protection: Auto

• Lead Length: 13"
• Conduit Box: No
• Max. Ambient Temp.: 104 Degrees F
• Max. Inlet Temp.: 104 Degrees F

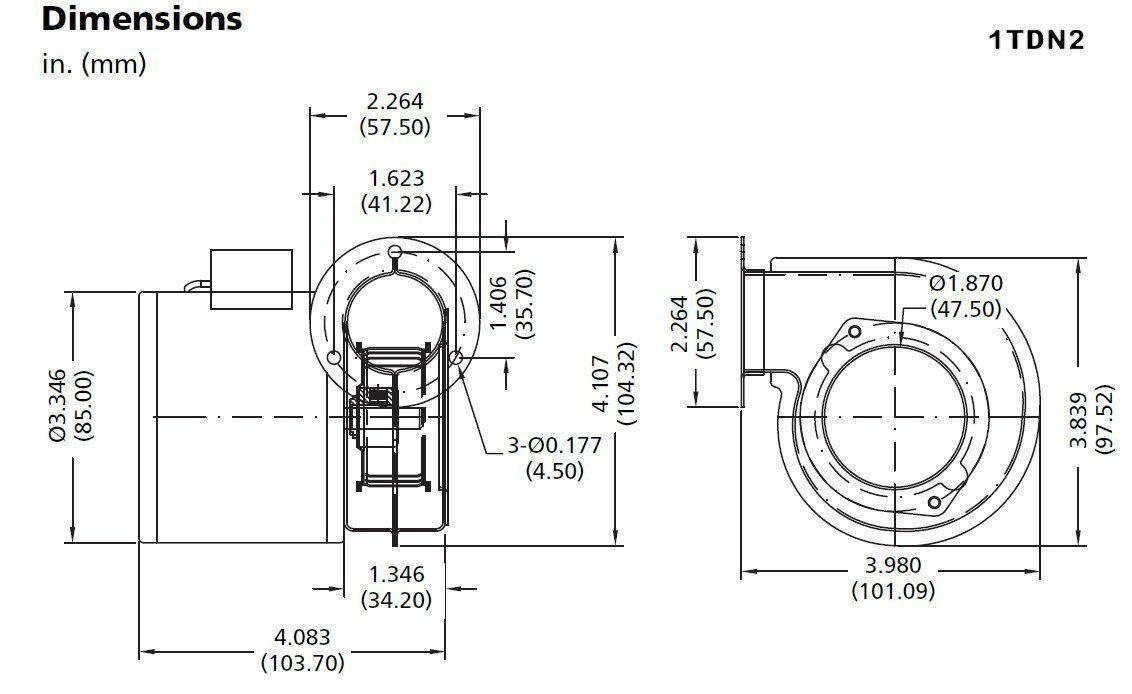

• Inlet Dia.: 1-7/8"
• Outlet Dia.: 1-1/4"
• Overall Height: 3-7/8"
• Overall Width: 3-15/16"
• Overall Depth: 4"
• Wheel Type: Forward Curve
• Drive Type: Direct
• Mounting Position: All Position
• Housing Finish: Enamel
• Housing Material: Rolled Steel
• Housing Color: Gray
• Agency Compliance: UL Recognized US and Canada (E47479), CE
• Replaces: 2C782
• Includes: Discharge Mounting Flange

产品规格︰ 型号: 1TDN2 (替代旧型号2C782, 2C782A).

主要市场︰ 业务QQ: 2543525125, 2054518018, 532560858.

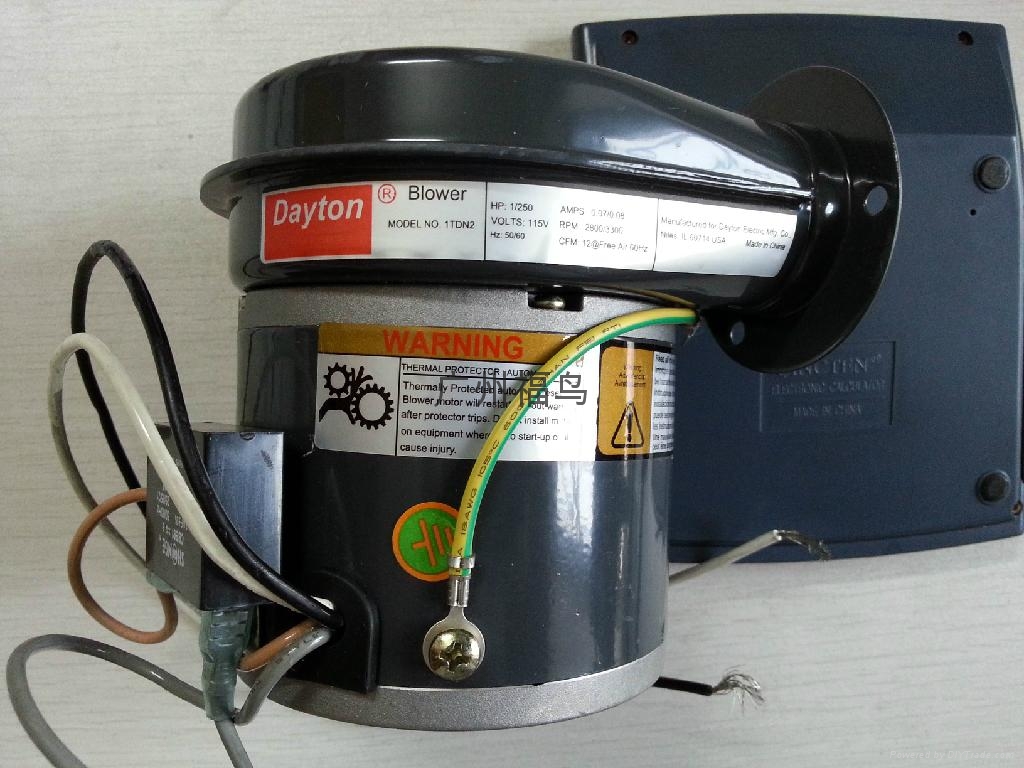

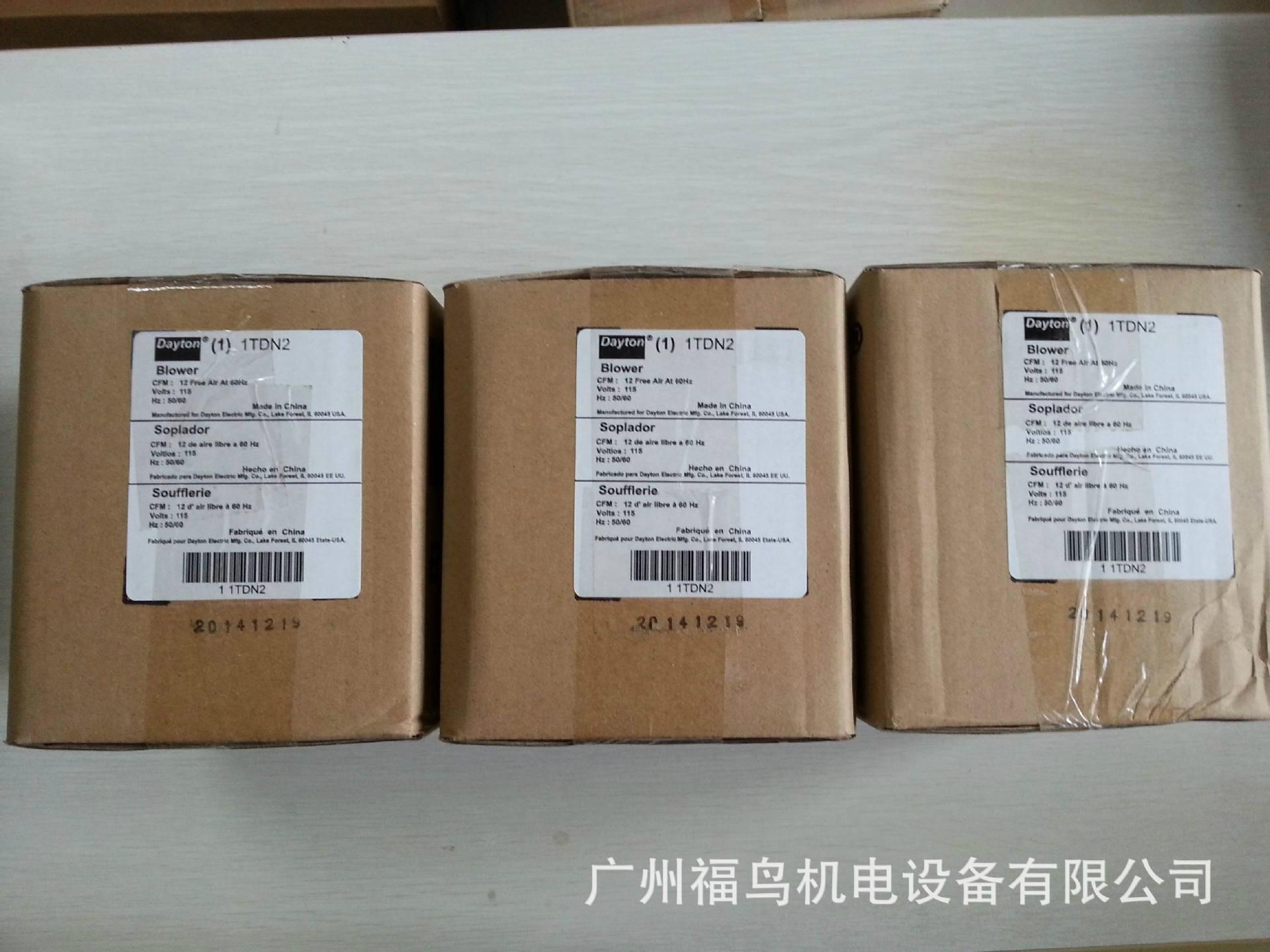

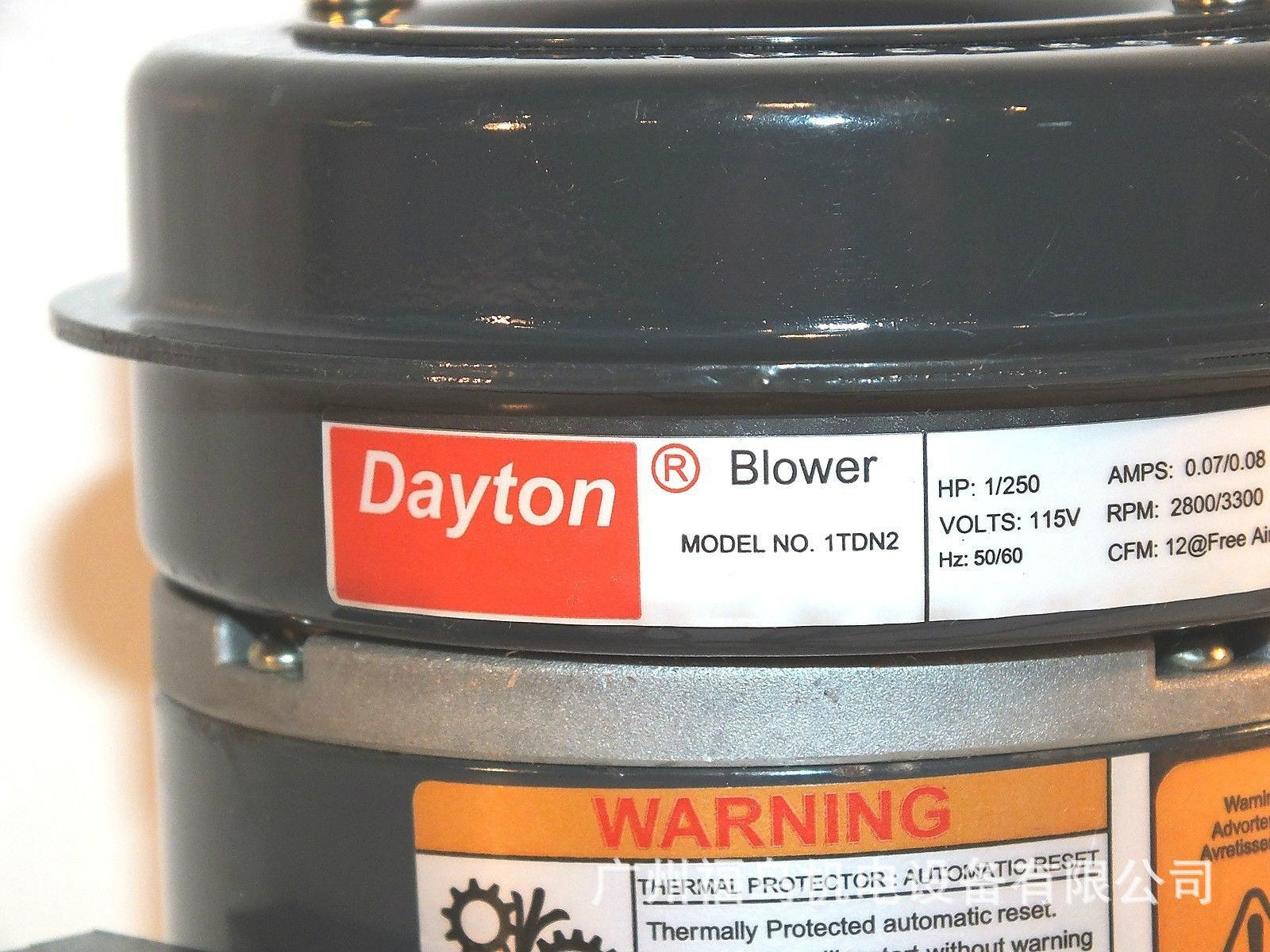

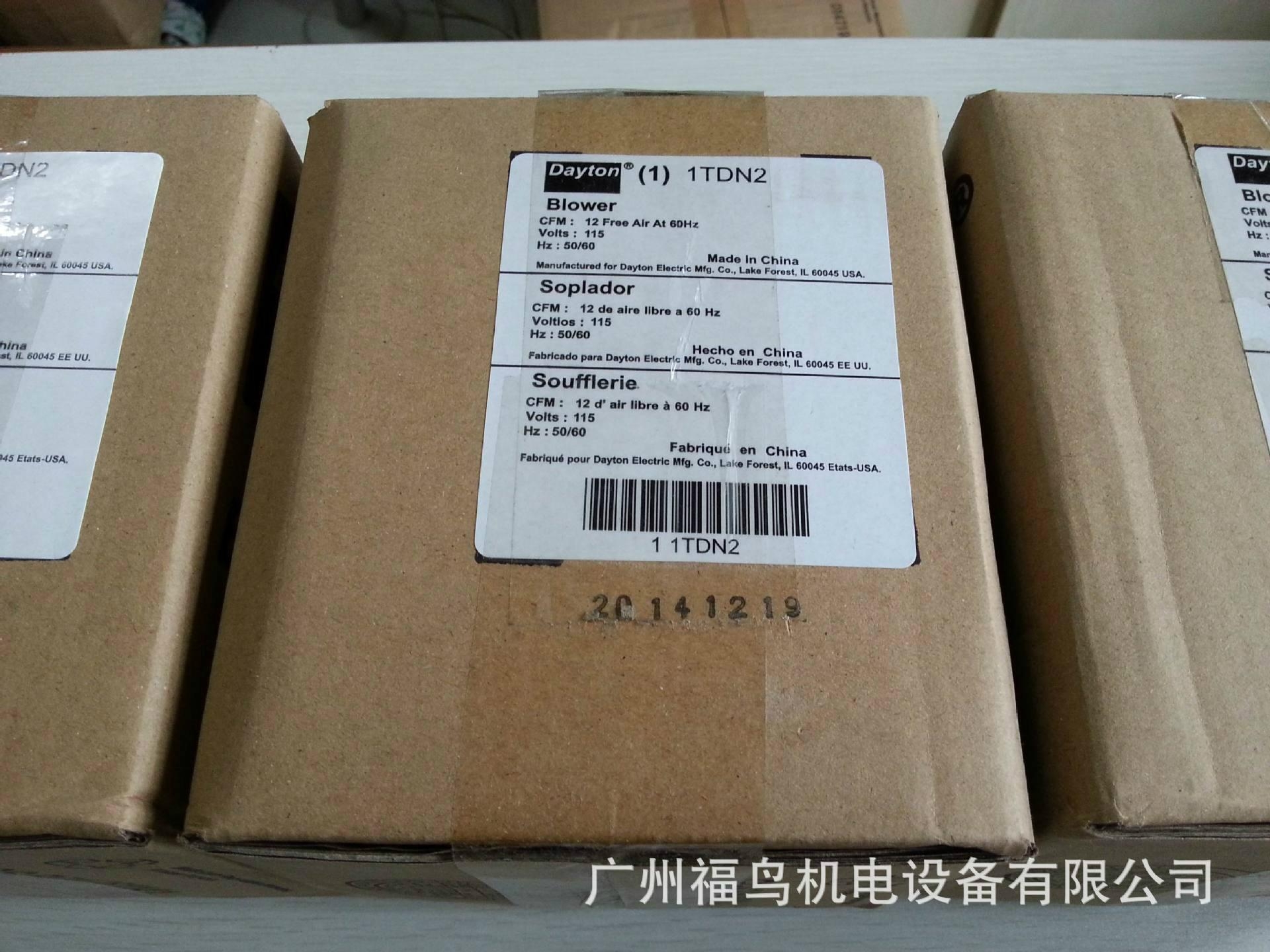

产品图片
