Technical Specs:

• Item: AC/DC Gearmotor
• Voltage: 115VAC/DC
• Phase: 1
• Hz: 60/50
• Shaft Orientation: Right Angle
• Reversible Shaft Output: No
• Shaft: Right Hand Output
• Nameplate RPM: 55
• Full Load Torque: 39 in.-lb.
• Overhung Load: 100 lb.
• Input HP: 1/15
• Gear Ratio: 100:1
• Full Load Amps: 1.3
• Insulation Class: B
• Enclosure: Open Vented
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C

• Rotation: Reversible
• Mounting: All Position
• Motor Type: Universal

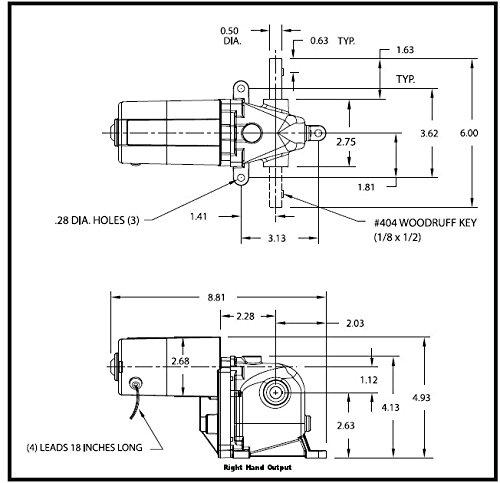

• Length Less Shaft: 8-3/4"
• Overall Length: 8-9/16"
• Keyway Size: #404 Woodruff Key
• Bearings: Porous Bronze Sleeve on Case, Sleeve on Motor
• Lubrication: Grease Filled
• Brushes: Externally Replaceable
• Finish: Unpainted
• Housing Material: Die Cast Zinc
• Gear Case: Die Cast Zinc
• Gear Material: Input Gear Steel, Worm Hardened Steel, Output Gear Cast Iron
• Gear Type: Worm
• Seals: Lip Type on Output Shaft
• Replacement Brushes: 1YNR3
• RPM Range: 51 to 75

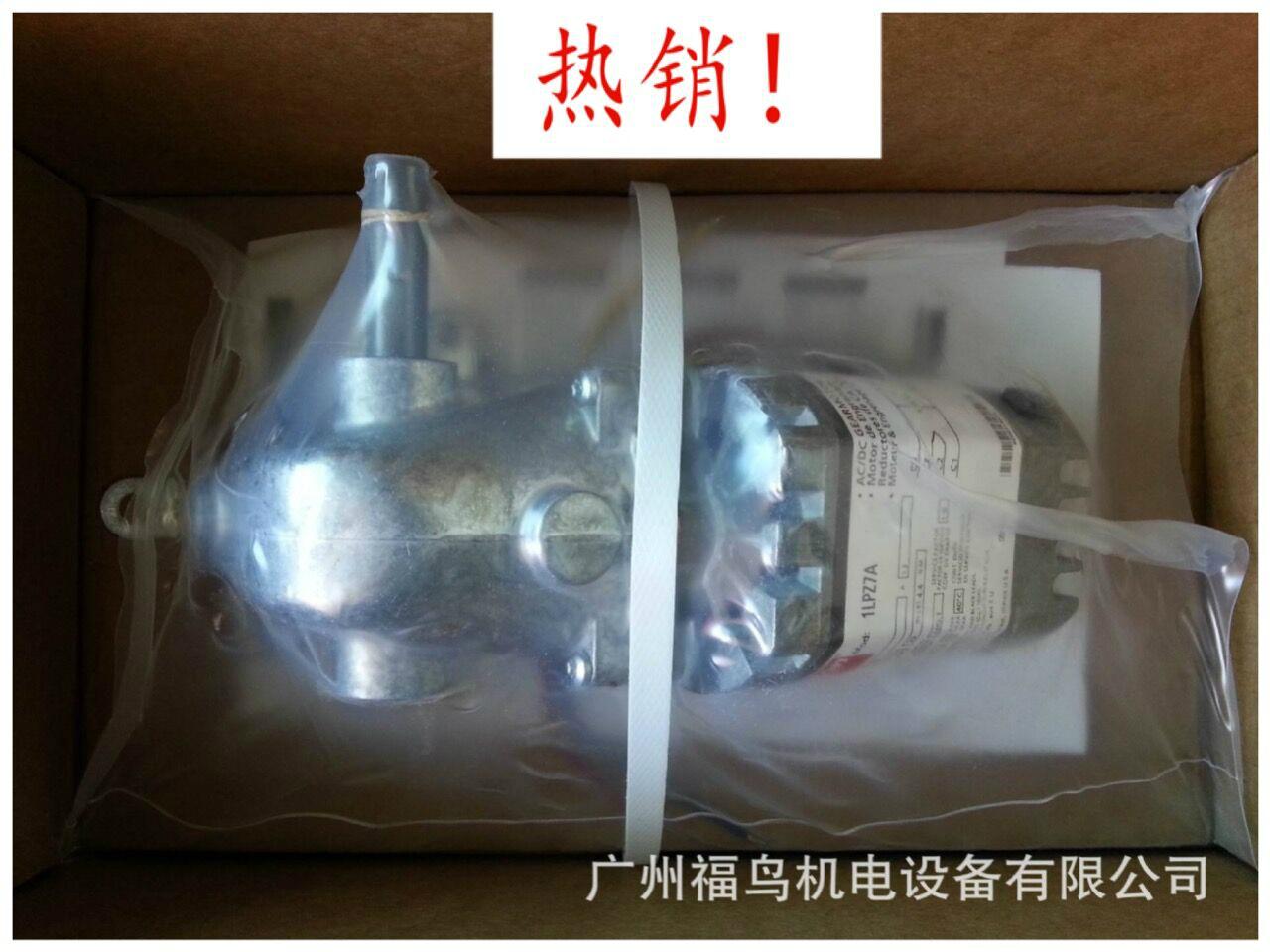

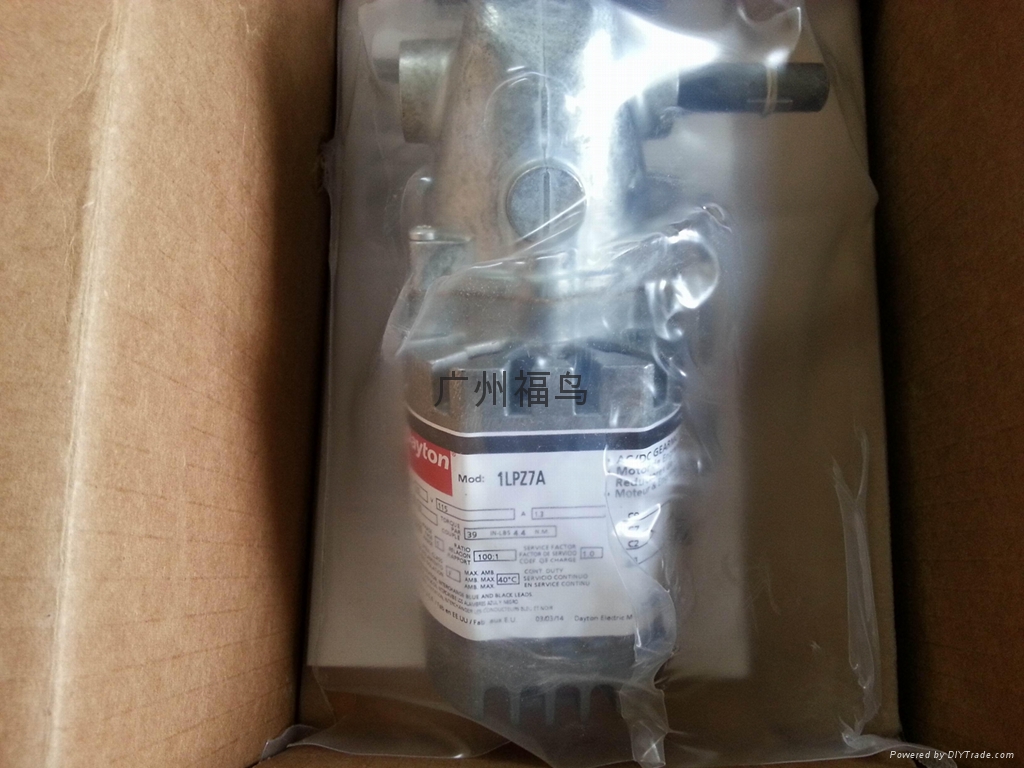

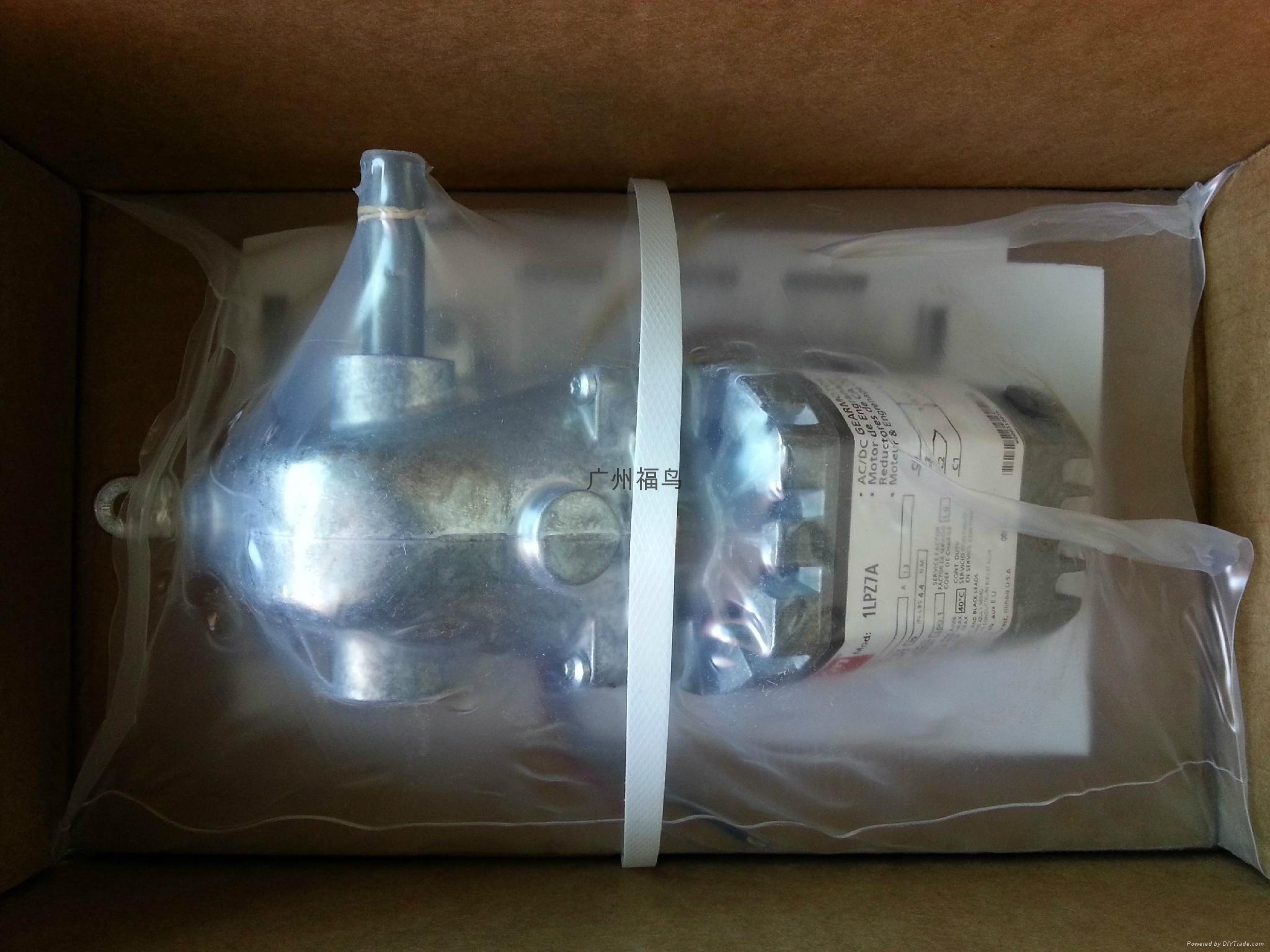

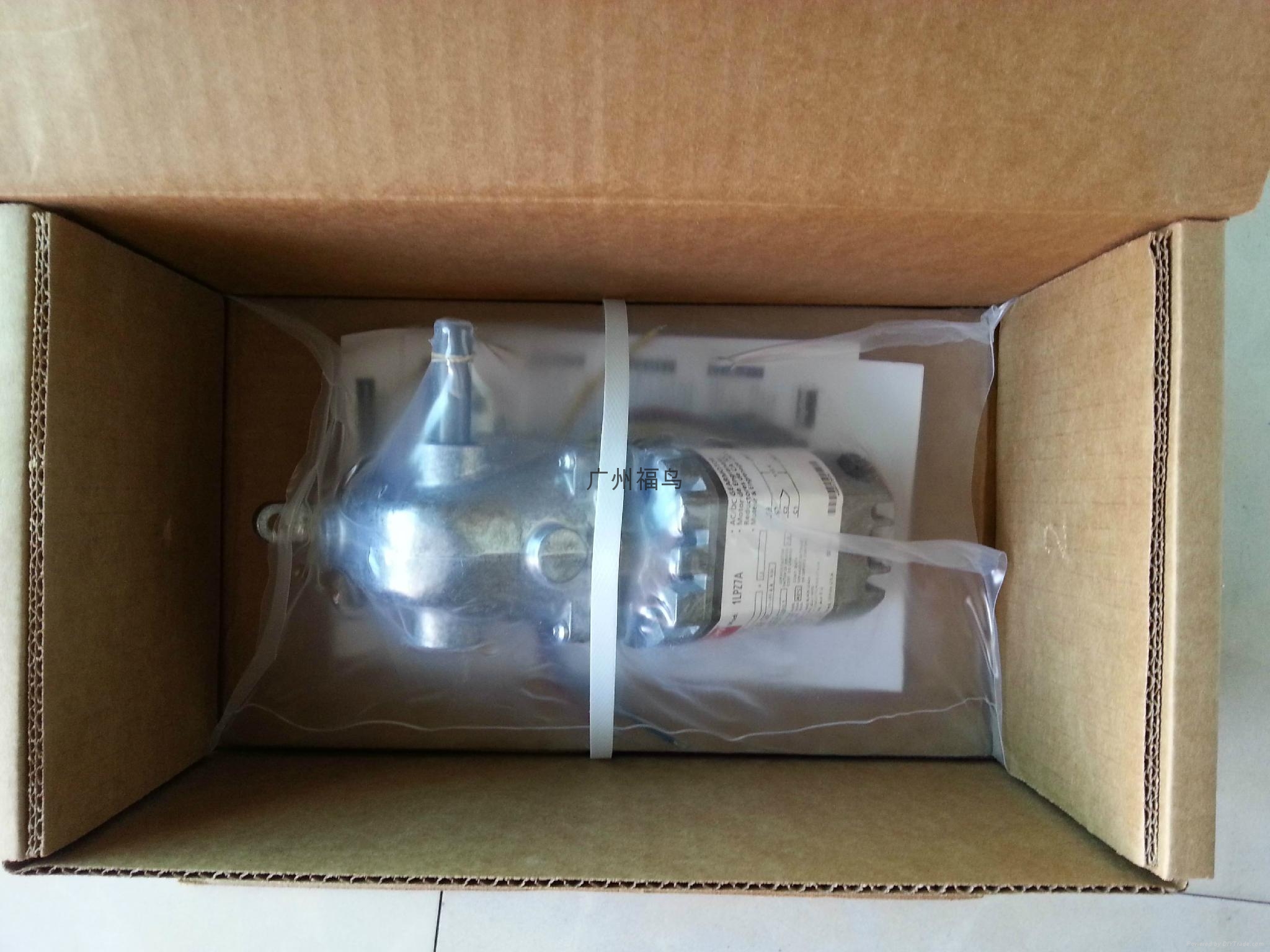

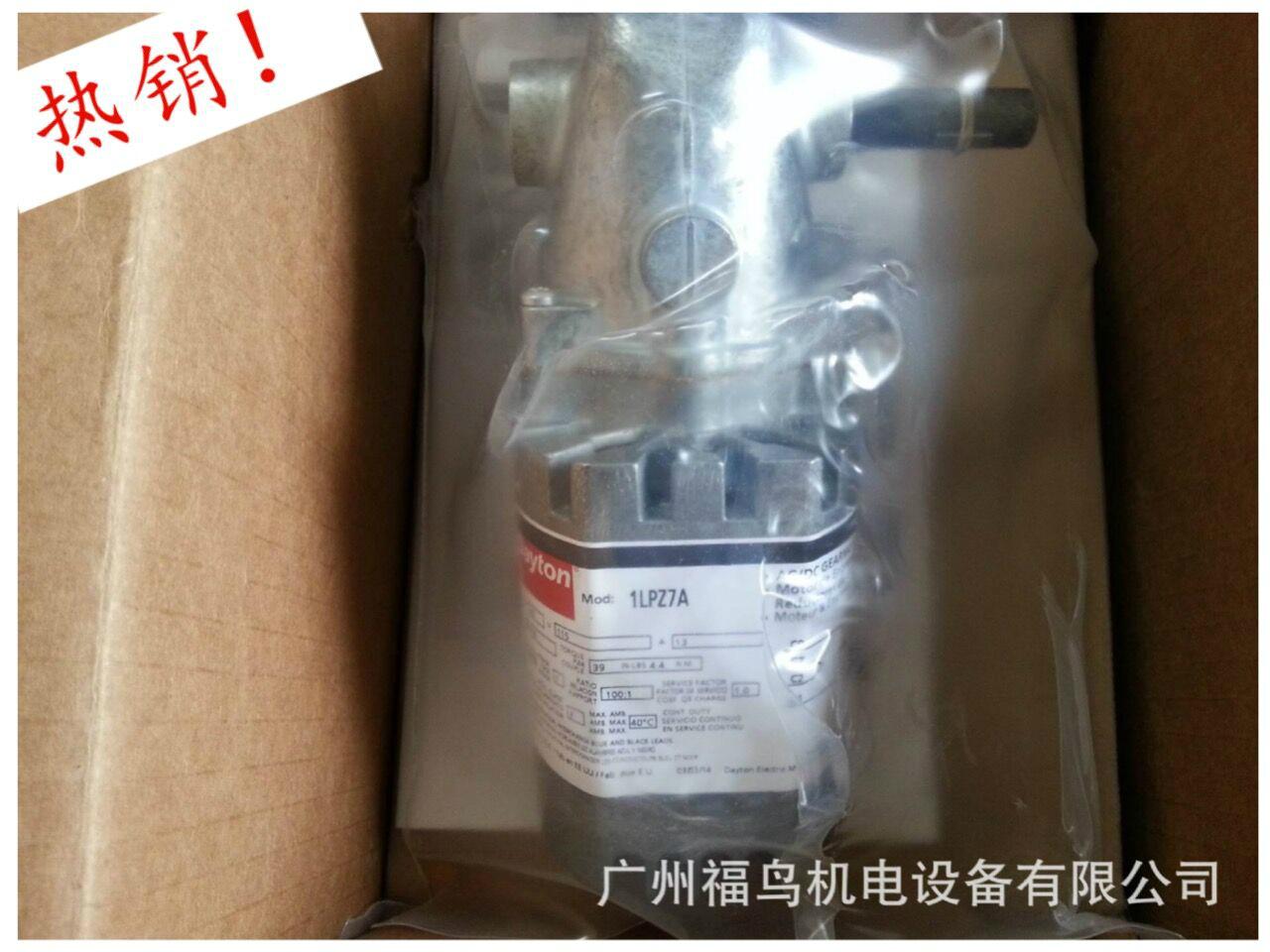

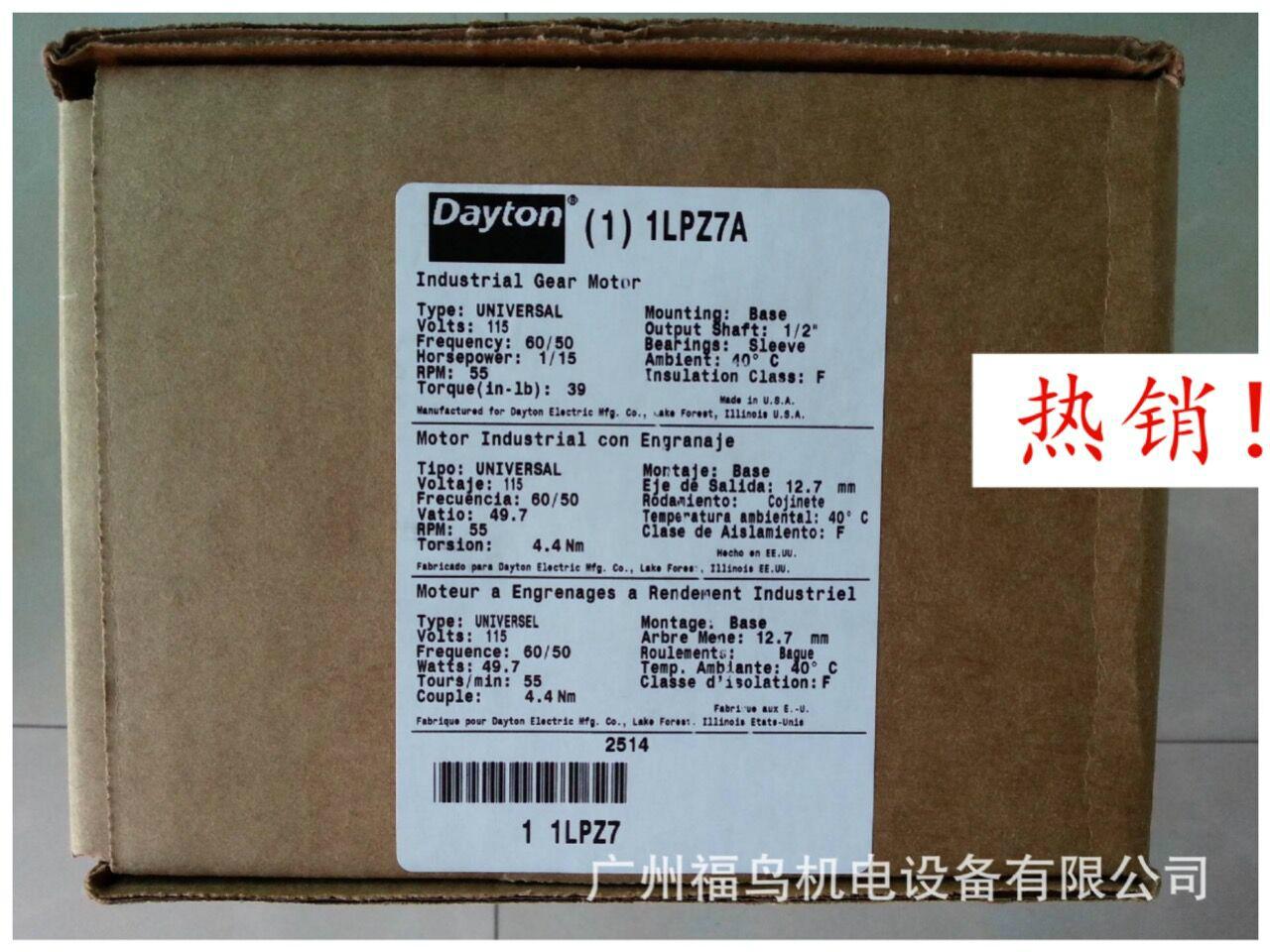

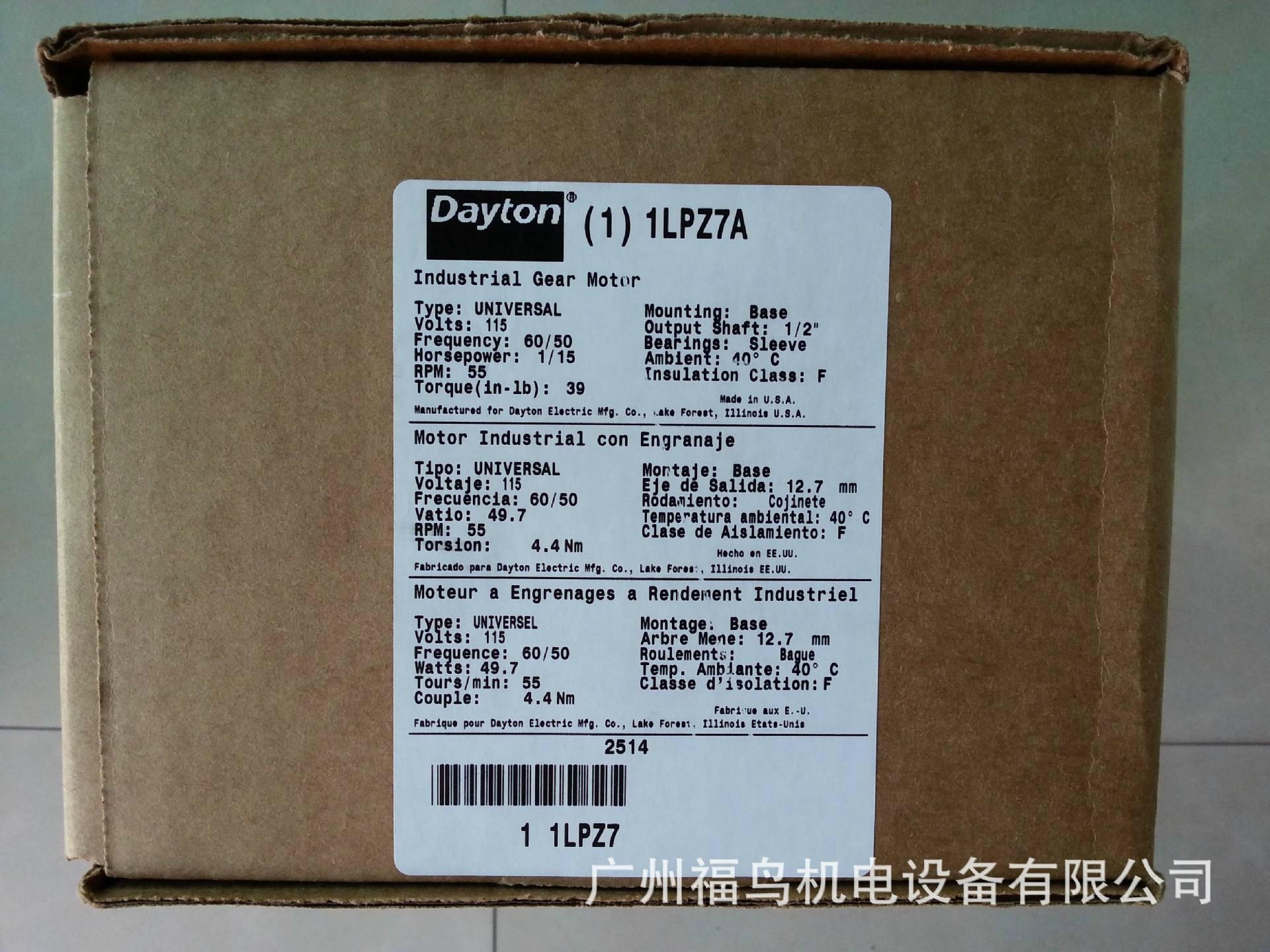

产品规格︰ 型号: 1LPZ7, 1LPZ7A (替代旧型号: 2Z802)
