产品描述

泵用电机.

Technical Specs:

• Item: Carbonator Pump Motor
• Motor Application: Pumps
• Motor Sub Application: Carbonator Pumps
• Motor Type: Split-Phase
• Enclosure: Open Dripproof
• HP: 1/3
• Nameplate RPM: 1725
• Frame: 48Y
• Voltage: 120/240
• Hz: 60/50
• Phase: 1

• Full Load Amps: 5.5-5.6, 2.7-2.8
• Mounting: Cradle
• Thermal Protection: Auto
• Insulation Class: B
• Service Factor: 1.0
• Max. Ambient Temp.: 40 Degrees C
• Rotation: CW/CCW
• Overall Length: 7-15/16"
• Shaft Dia.: 5/8"
• Shaft Length: 1-1/2"
• RPM Range: 1701-1800

产品规格︰ 型号: 5KH33GNA444AX

主要市场︰ 业务QQ: 2543525125, 2054518018, 532560858.

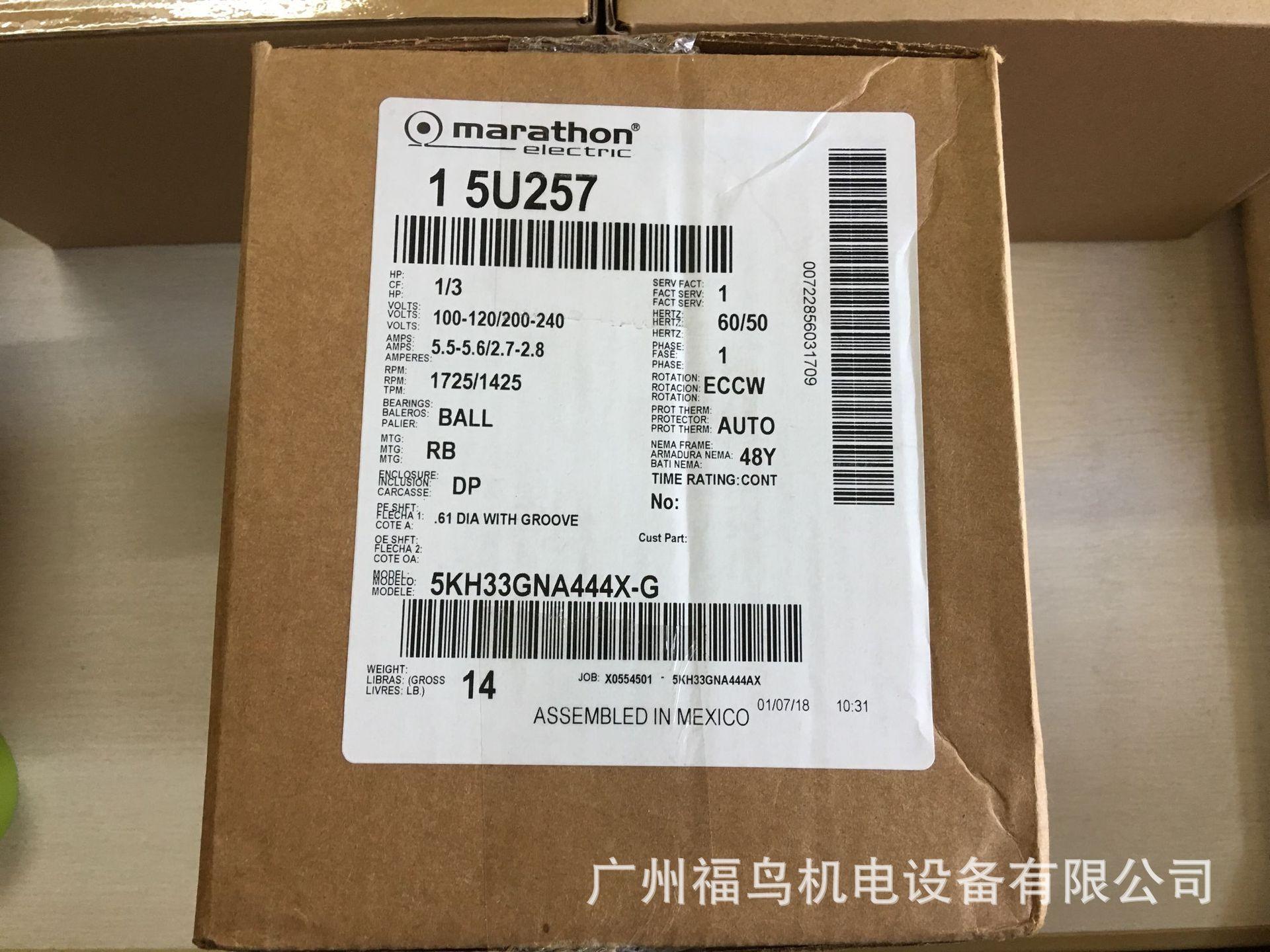

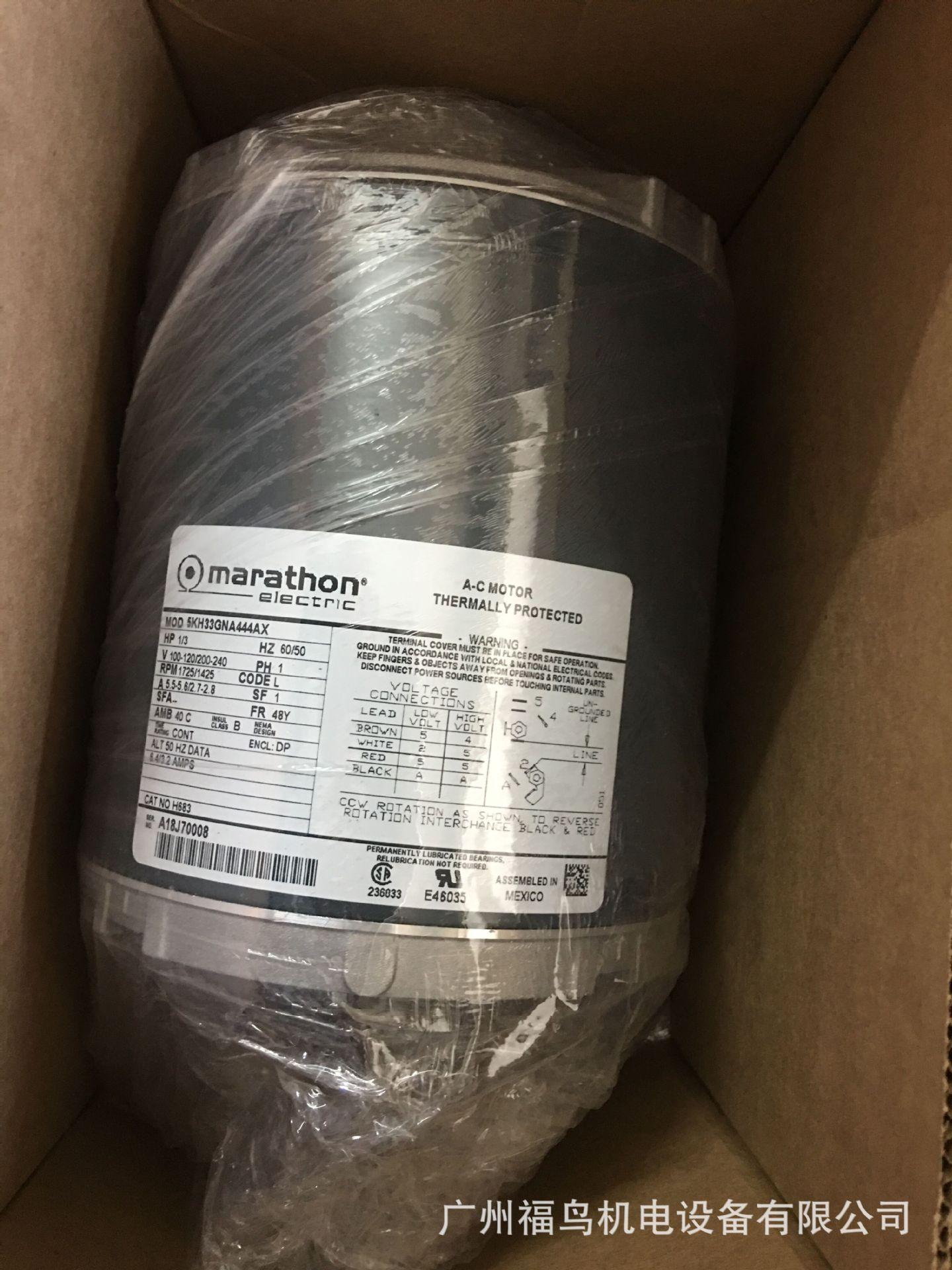

产品图片
